Toyota HILUX Front Axle Hub — Figure 4303

Toyota HILUX EPC diagram 4303, Front Axle Hub, with 1 images and 28 PNC and OE references.

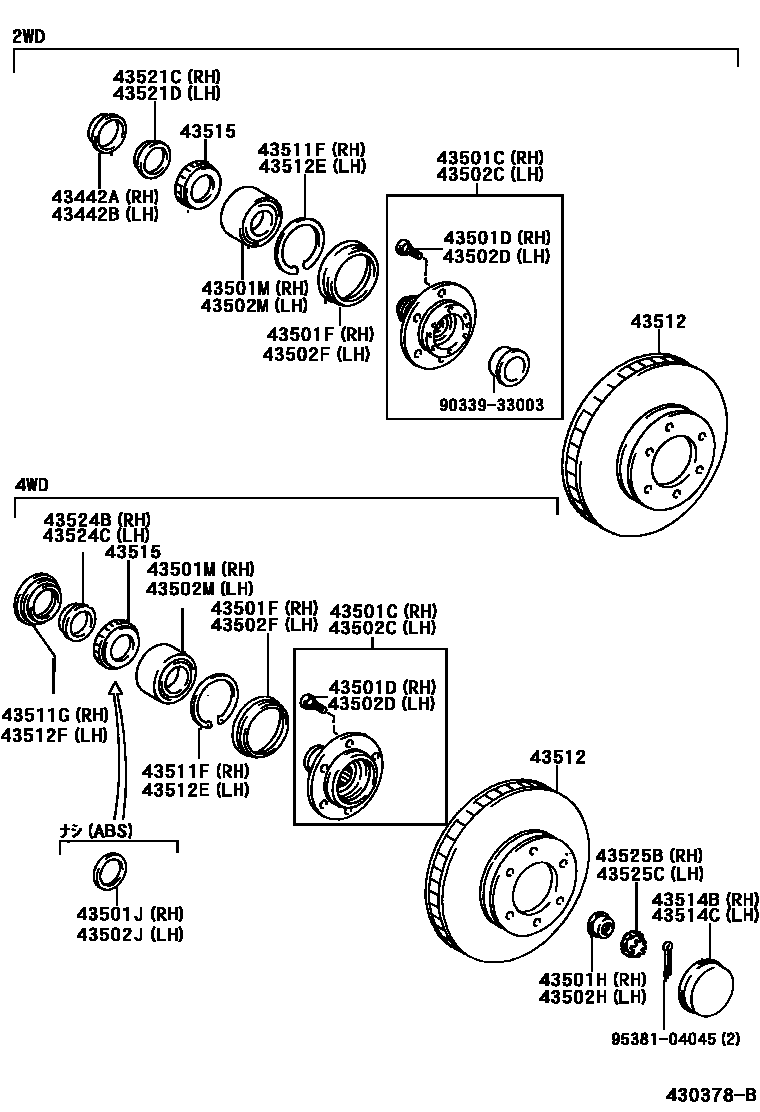

Toyota HILUX Front Axle Hub EPC diagram — 430378B
Front Axle Hub — 430378B (199511 – 999999)

PNC and OE references

PNCPart nameOE numbers
43442ARight steering knuckle grease retaining ring inner cover43442-35050
43442BLeft steering knuckle grease retaining ring inner cover43442-35050
43501CRight front axle hub sub-assembly43502-35110 · 43502-35170
43501DHub bolt (for right front axle)90942-02049
43501FOil seal (for right front axle hub)90312-95001
43501HNut (for front axle right half shaft)90179-28007
43501JSpacer (for right front axle hub)90560-52001
43501MInner bearing (for right front axle hub)90369-54001
43502CLeft front axle wheel hub sub-assembly43502-35110 · 43502-35170
43502DHub bolt (for left front axle)90942-02049
43502FOil seal (for left front axle hub)90312-95001
43502HNut (for front axle left half shaft)90179-28007
43502JSpacer (for left front axle hub)90560-52001
43502MInner bearing (for left front axle hub)90369-54001
43511FHole snap ring (for right front axle hub)90521-99114
43511GExternal oil seal (for right front axle hub)90316-69001
43512front brake disc43512-35210 · 43512-35280 · 43512-35310
43512EHole snap ring (for left front axle hub)90521-99114
43512FExternal oil seal (for left front axle hub)90316-69001
43514BRight front axle hub grease cap43514-28010
43514CLeft front axle hub grease cap43514-28010
43515Front anti-skid control rotor43515-35010
43521CRight front wheel adjustment nut43521-35010
43521DLeft front wheel adjustment nut43521-35010
43524BRight front wheel inner bearing spacer43524-35010
43524CLeft front wheel inner bearing spacer43524-35010
43525BRight front wheel adjustment lock cover43525-35010
43525CLeft front wheel adjustment lock cover43525-35010
