Toyota HILUX Front Drive Shaft — Figure 4302

Toyota HILUX EPC diagram 4302, Front Drive Shaft, with 1 images and 19 PNC and OE references.

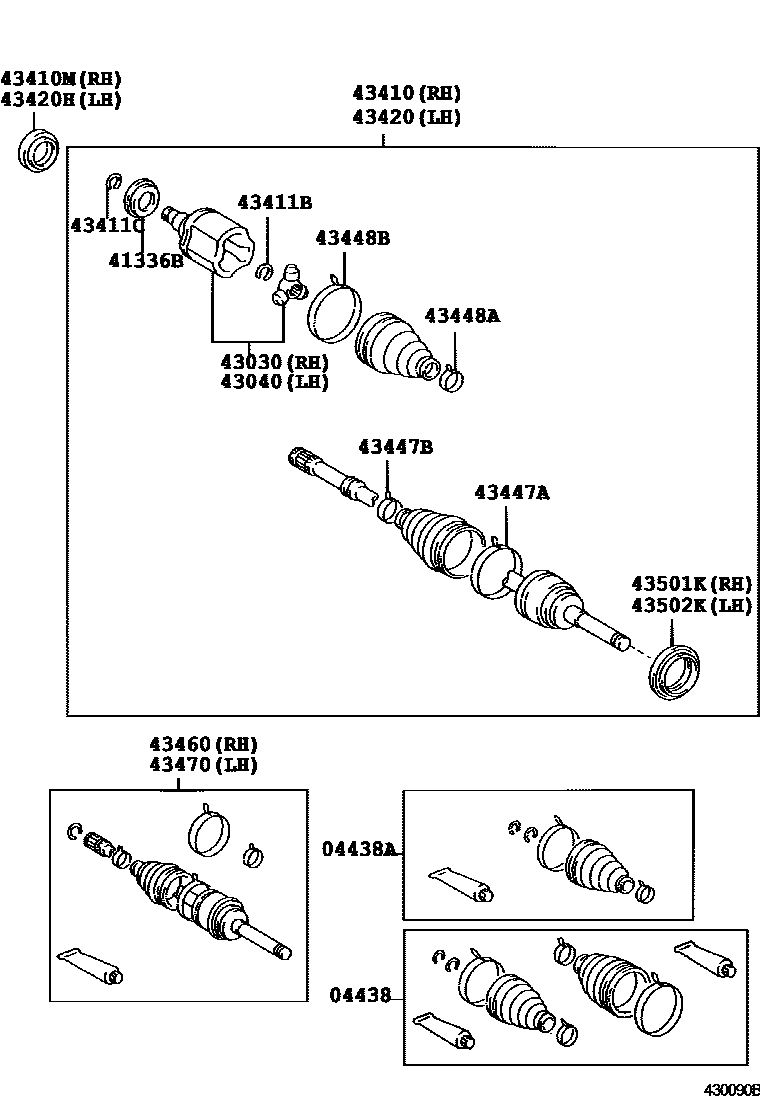

Toyota HILUX Front Drive Shaft EPC diagram — 430090B
Front Drive Shaft — 430090B (199511 – 999999)

PNC and OE references

PNCPart nameOE numbers
04438Front drive shaft dust boot assembly04438-35030 · 04438-35060
04438AFront drive shaft inner universal joint dust boot assembly04438-35040
41336BDust cover (for front drive shaft)41336-35020
43030Right front drive shaft inner universal joint assembly43403-35030
43040Left front drive shaft inner universal joint assembly43403-35030
43410Right front driveshaft assembly43430-35030
43410MToyota part90311-47010
43411BInner shaft snap ring (for front axle inner shaft)90520-29028
43411COuter shaft snap ring (for front axle inner shaft)90521-29002
43420Left front drive shaft assembly43430-35030
43420HToyota part90311-47011
43447AClamp No. 1 (used to fix the universal joint dust cover on the outside of the front axle)90949-01A50
43447BClamp No. 2 (used to fix the universal joint dust cover on the outside of the front axle)90949-01A51
43448AClamp No. 1 (used to fix the universal joint dust cover on the inside of the front axle)90949-01221
43448BNo. 2 clip (used to fix the universal joint dust cover on the inside of the front axle)90949-01222
43460Right front outer drive universal joint shaft assembly43460-39065
43470Left front outer drive universal joint shaft assembly43460-39065
43501KDust seal (for right front axle hub)90304-80002
43502KDust seal (for left front axle hub)90304-80002
