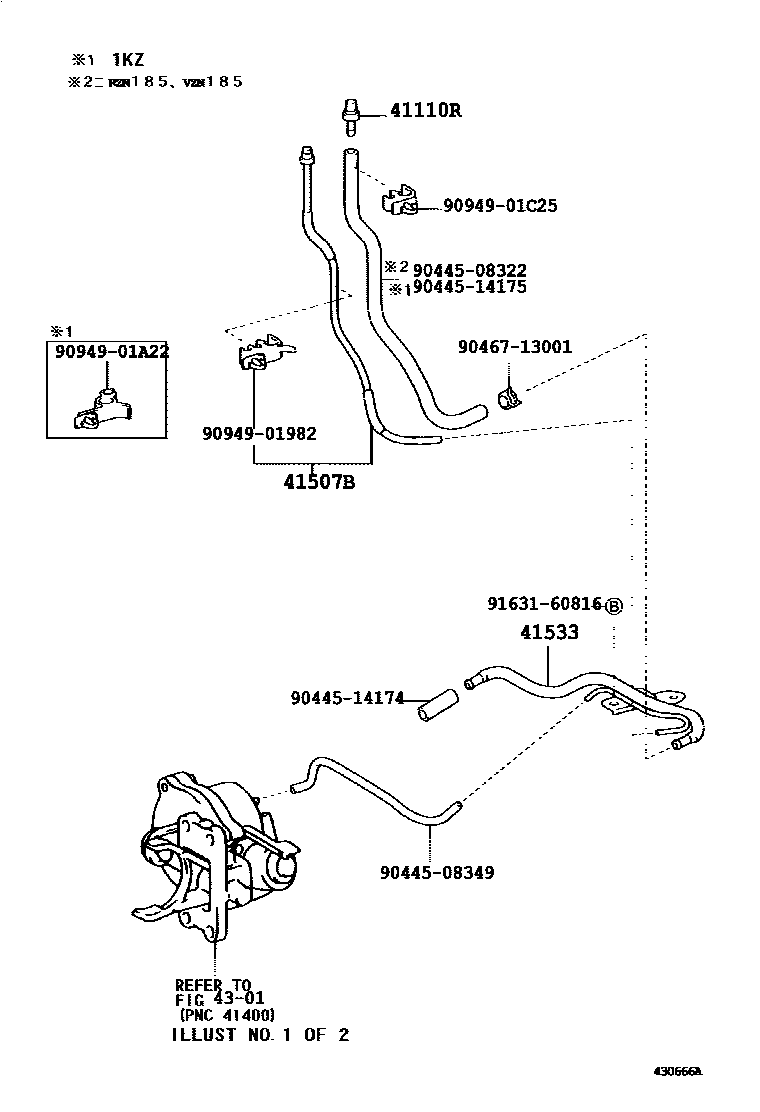

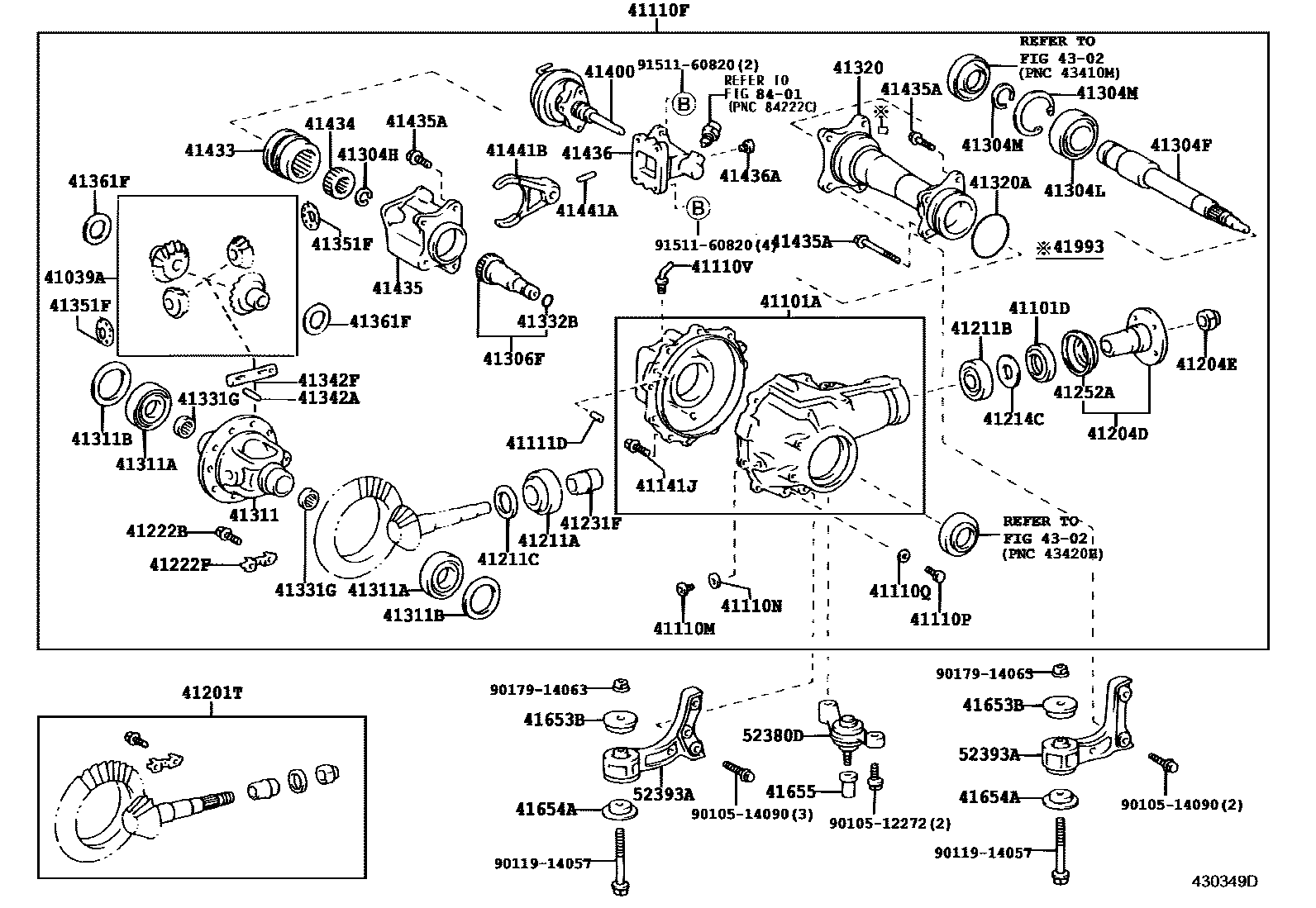

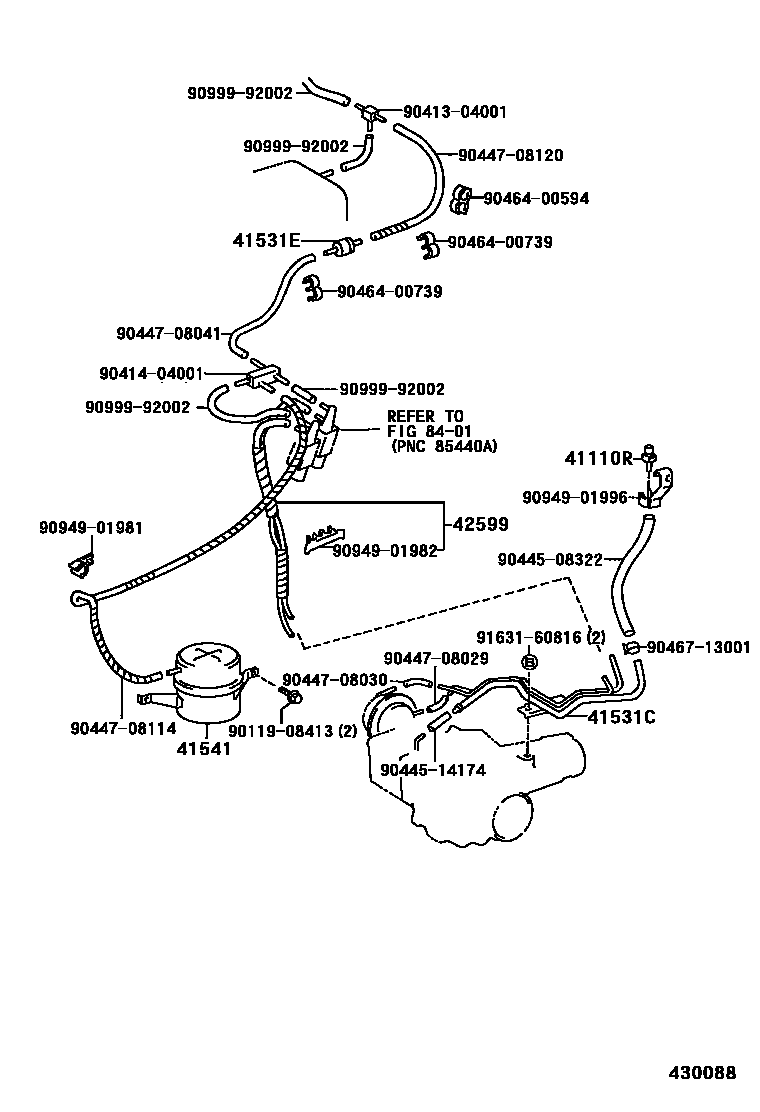

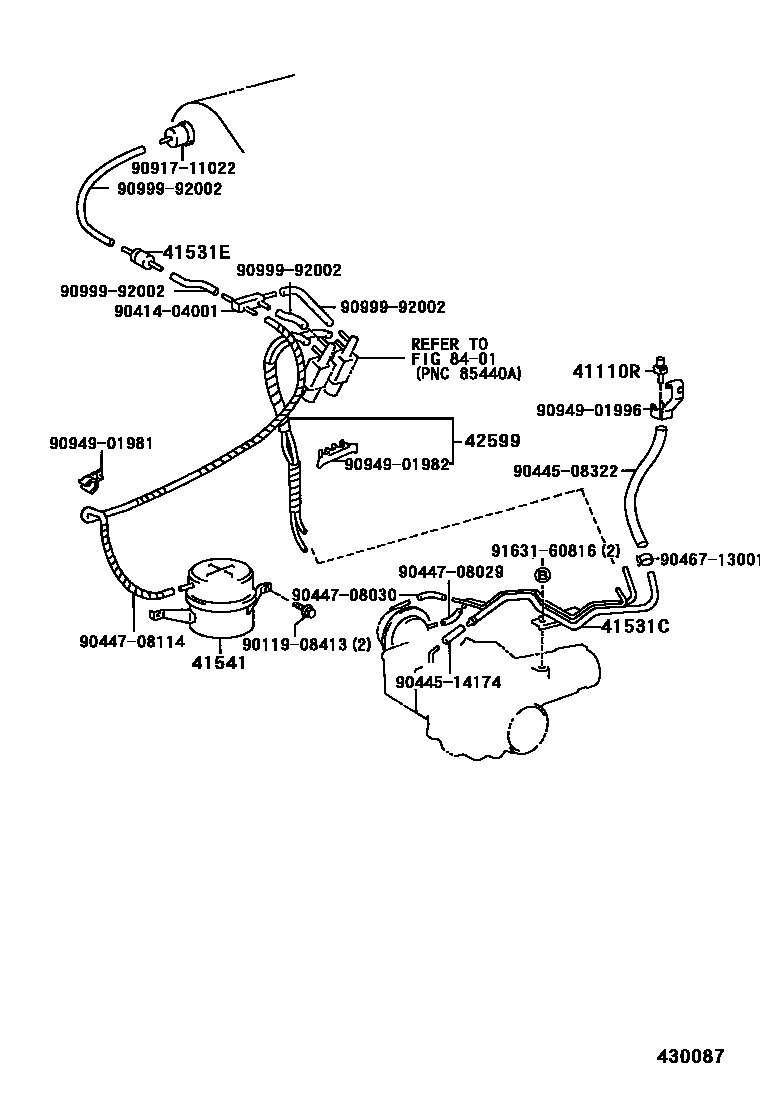

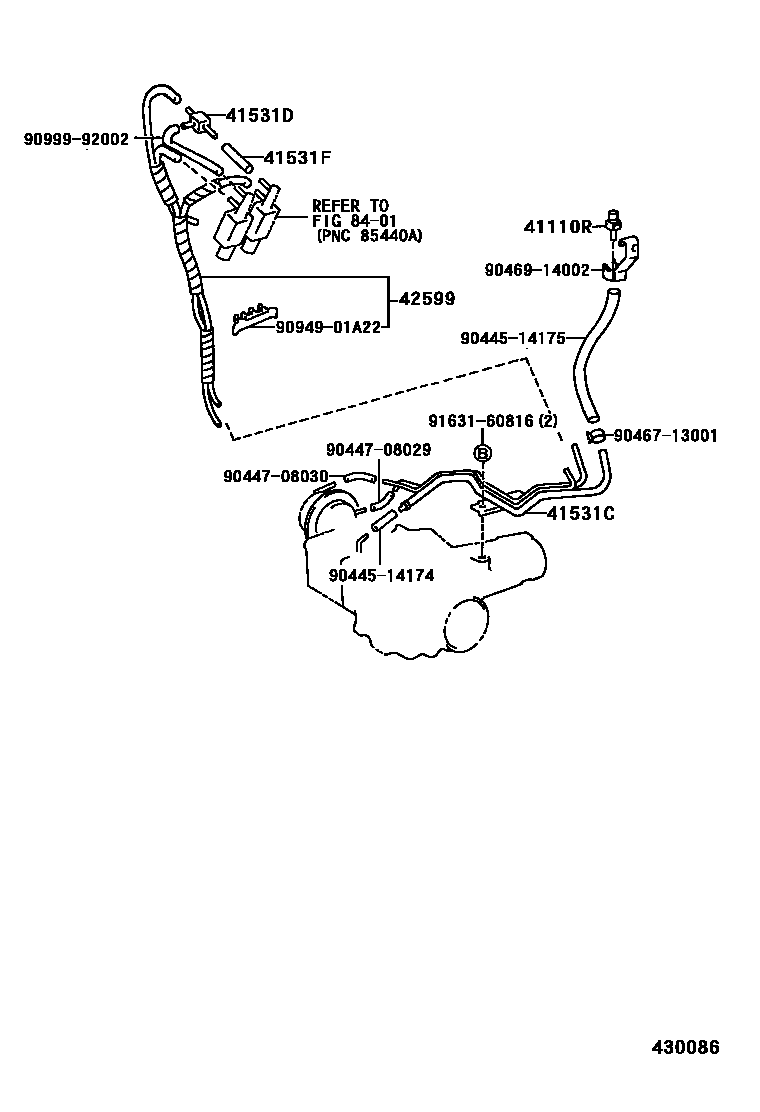

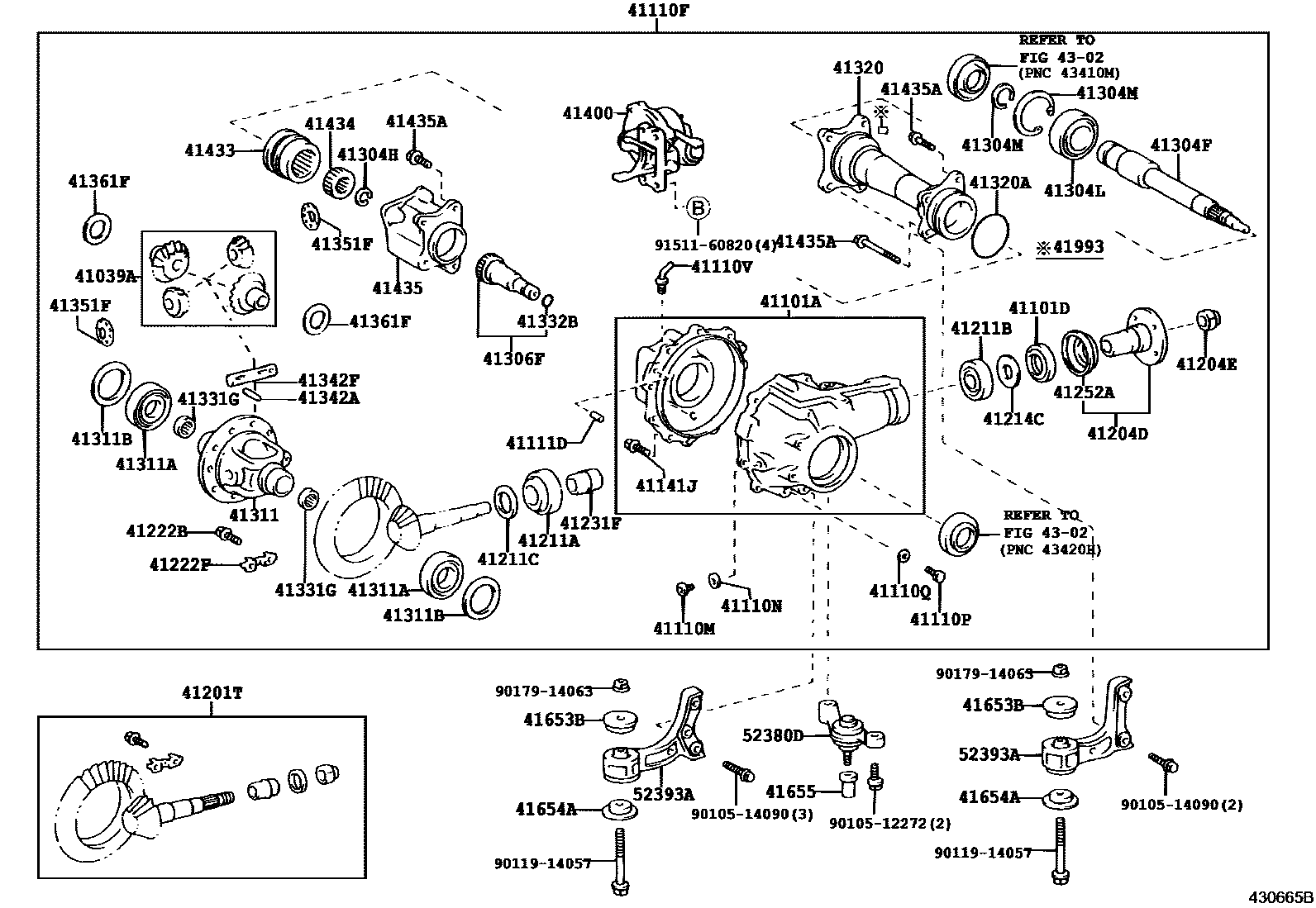

Toyota HILUX 前桥壳和差速器 — Figure 4301
Toyota HILUX EPC diagram 4301, 前桥壳和差速器, with 6 images and 61 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 41039A | Differential gear assembly | 41039-34050 |
| 41101A | Front differential housing sub-assembly | 41101-35131 |
| 41101D | Oil seal (for front differential case) | 90311-38049 |
| 41110F | Front differential case assembly | 41110-34241 · 41110-34261 · 41110-35801 · 41110-35831 · 41110-3D110 · 41110-3D140 · 41110-3D160 · 41110-3D190 · 41110-3D321 · 41110-3D330 · 41110-3D360 |
| 41110M | Front differential oil filling plug | 90341-18032 |
| 41110N | Front differential oil plug gasket | 12157-10010 |
| 41110P | Front differential drain plug | 90341-24014 |
| 41110Q | Front differential drain plug gasket | 90430-24003 |
| 41110R | Breather plug (for front differential) | 90930-03136 |
| 41110V | Connector (for front differential) | 90404-08004 |
| 41111D | Direct sales (for front differential case) | 90250-10017 |
| 41141J | Bolt (for front differential side bearing retainer) | 90105-10391 |
| 41201T | Front differential final drive gear assembly | 41201-80067 · 41201-80078 · 41201-80079 · 41201-80085 · 41201-80098 |
| 41204D | Front driving pinion front coupling flange sub-assembly | 41204-35060 · 41204-35070 |
| 41204E | Nut (front driving pinion front binding flange) | 90179-18020 |
| 41211A | Front roller tapered bearing (for front driving pinion) | 90366-35023 |
| 41211B | Rear tapered bearing (for front driving pinion) | 90366-30022 · 90366-30078 |
| 41211C | differential ring gear | 90201-35497 · 90201-35498 · 90201-35499 · 90201-35500 · 90201-35501 · 90201-35502 · 90201-35503 · 90201-35504 · 90201-35505 · 90201-35506 · 90201-35507 · 90201-35508 · 90201-35509 · 90201-35510 · 90201-35511 · 90201-35512 · 90201-35513 · 90201-35514 · 90201-35515 · 90201-35516 · 90201-35517 · 90201-35518 |
| 41214C | Front differential drive pinion oil retaining ring | 41214-35020 |
| 41222B | Bolt (for front differential ring gear assembly) | 90101-11353 |
| 41222F | Front differential ring gear fixing bolt locking plate | 41222-35030 |
| 41231F | Front differential drive pinion bearing spacer | 41231-22010 |
| 41252A | Dust cover (for front differential) | 41252-35030 |
| 41304F | Right differential side gear shaft sub-assembly | 41337-35020 |
| 41304H | Hole snap ring (for differential side gear shaft) | 96152-00300 |
| 41304L | Right side bearing (for front differential side gear shaft) | 90903-63008 |
| 41304M | Right shaft snap ring (for differential side gear shaft) | 90520-39023 · 90520-75002 · 90521-86002 |
| 41306F | Differential side gear countershaft sub-assembly | 41306-35030 |
| 41311 | front differential case | 41311-35060 |
| 41311A | Bearings (for front differential housing) | 90368-50006 |
| 41311B | Flat washer (for front differential case) | 90564-50092 · 90564-50093 · 90564-50094 · 90564-50095 · 90564-50096 · 90564-50097 · 90564-50098 · 90564-50099 · 90564-50100 · 90564-50101 · 90564-50102 · 90564-50103 · 90564-50104 · 90564-50105 · 90564-50106 · 90564-50107 · 90564-50108 · 90564-50109 · 90564-50110 · 90564-50111 · 90564-50112 · 90564-50113 · 90564-50114 · 90564-50115 · 90564-50116 · 90564-50117 · 90564-50118 |
| 41320 | Front differential tube assembly | 41320-35040 |
| 41320A | O-ring (for front differential tube) | 90301-68003 |
| 41331G | Needle roller bearings (for front differential side gears) | 90364-33009 |
| 41332B | Hole snap ring (for differential side gear countershaft) | 90521-29002 |
| 41342A | Direct sales (for front differential planetary gear shaft) | 90250-06058 |
| 41342F | No. 1 front differential planetary gear shaft | 41342-22020 · 41342-22021 |
| 41351F | Front differential planetary gear thrust washer | 41351-30060 |
| 41361F | No. 1 front differential side gear thrust washer | 41361-30040 · 41361-30050 · 41361-30060 · 41361-30070 |
| 41400 | Differential vacuum actuator assembly | 41400-34011 · 41400-34012 · 41400-35020 |
| 41433 | Differential clutch sleeve | 41433-35010 |
| 41434 | Differential clutch hub | 41434-35020 |
| 41435 | Differential clutch housing | 41435-35010 |
| 41435A | Bolt (for securing differential clutch housing) | 90107-12001 · 90109-12029 |
| 41436 | Front differential clutch housing cover | 41436-35020 |
| 41436A | Plug (for front differential clutch housing) | 90341-10065 |
| 41441A | Slotted spring pin (for differential shift fork) | 90254-05016 |
| 41441B | Differential shift fork | 41441-35010 |
| 41507B | Front differential lock actuator breather pipe | 41507-35060 · 41507-35070 |
| 41531C | Front differential vacuum tube | 41531-35021 · 41531-35030 |
| 41531D | Fitting No. 1 (for front differential vacuum hose) | 90413-04001 |
| 41531E | Check valve (for front differential vacuum hose) | 90917-10065 |
| 41533 | front differential breather pipe | 41533-35040 · 41533-35050 |
| 41541 | Differential vacuum tank | 41541-35040 |
| 41653B | Differential fixed part upper stop | 41653-35030 |
| 41654A | Differential fixed part lower block | 41654-26010 |
| 41655 | No. 1 front differential retainer nut | 41655-35010 |
| 41993 | Differential oil information label | 41993-35010 |
| 42599 | Separate differential vacuum hose | 42599-35080 · 42599-35081 · 42599-35091 |
| 52380D | Front differential bracket assembly | 52380-35010 |
| 52393A | Front differential No. 2 bracket | 52380-35040 · 52380-35050 |
