Toyota HILUX 车轮和车轮盖 — Figure 4103
Toyota HILUX EPC diagram 4103, 车轮和车轮盖, with 4 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

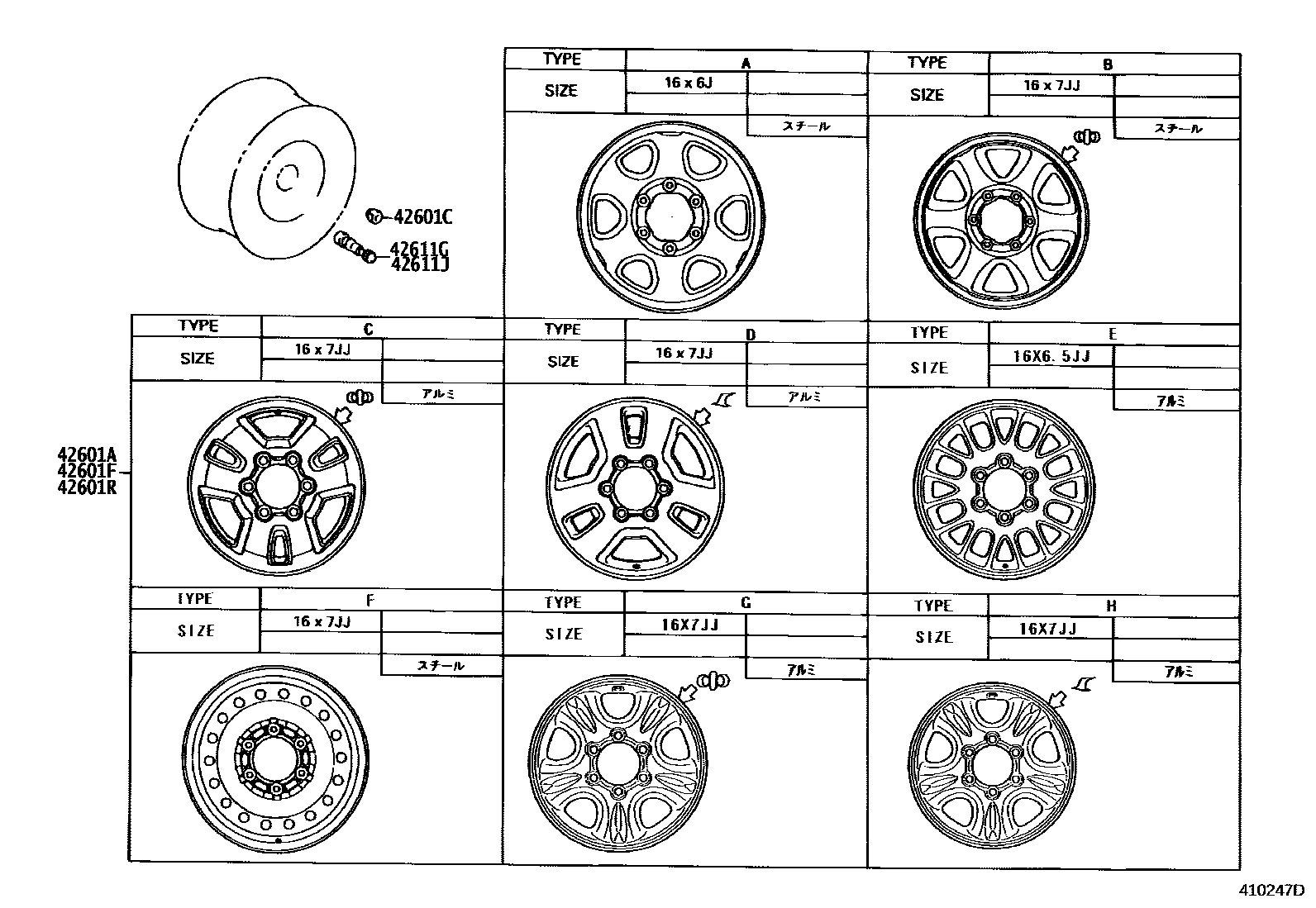

| 42601A | Spoke wheel (for spare tire) | 42601-35730 · 42601-35740 · 42601-35750 · 42601-35800 · 42611-35130 · 42611-35140 · 42611-35150 · 42611-35180 · 42611-35190 |

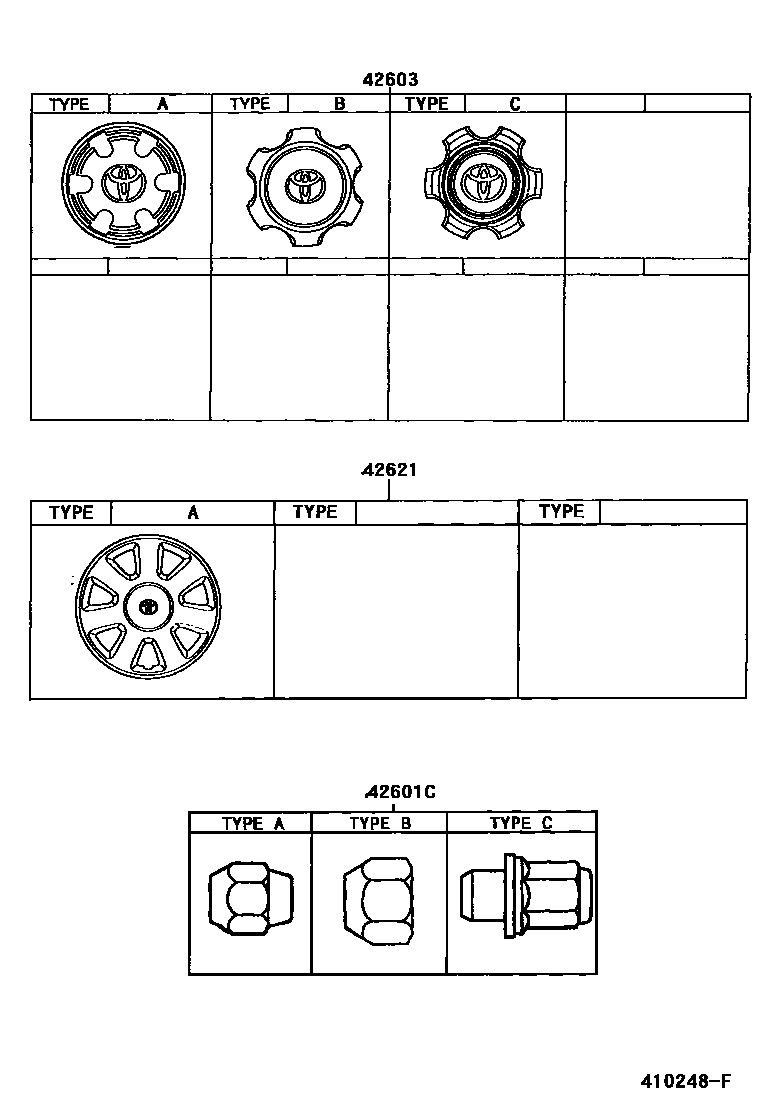

| 42601C | Hub nut (for axle) | 90942-01051 · 90942-01075 · 90942-01095 |
| 42601F | Spoke wheels (for front tires) | 42601-35730 · 42601-35740 · 42601-35750 · 42601-35800 · 42611-35130 · 42611-35140 · 42611-35150 · 42611-35180 · 42611-35190 |
| 42601R | Spoke wheels (for rear tires) | 42601-35730 · 42601-35740 · 42601-35750 · 42601-35800 · 42611-35130 · 42611-35140 · 42611-35150 · 42611-35180 · 42611-35190 |
| 42603 | Wheel hub decorative parts sub-assembly | 42603-35610 · 42603-35630 · 42603-35720 · 42603-35730 · 42603-35740 · 42603-35760 |
| 42611G | Valve (for tubeless tires) | 90942-05009 |
| 42611J | Valve (for tubeless spare tire) | 90942-05009 |
| 42621 | wheel cover | 42621-35260 |
