Toyota HILUX 后桥半轴和后桥轮毂 — Figure 4102

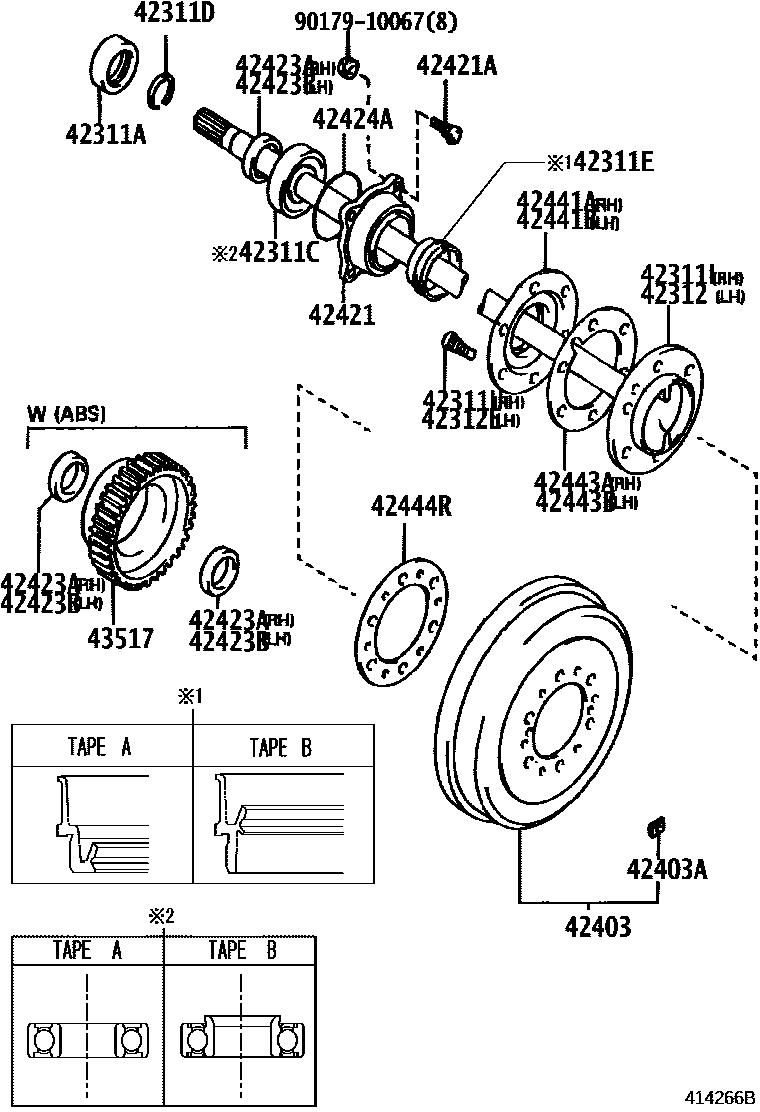

Toyota HILUX EPC diagram 4102, 后桥半轴和后桥轮毂, with 1 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42311A | Oil seal (for rear axle half shaft) | 90310-50001 · 90310-50005 |
| 42311C | Bearings (for rear axle half shaft) | 90363-40020 · 90363-40068 |
| 42311D | Snap ring (for rear axle half shaft) | 90520-36045 |
| 42311E | External oil seal (for rear axle half shaft) | 90313-48001 · 90313-54001 |
| 42311L | Rear axle right half shaft | 42311-35210 · 42311-35220 · 42311-35350 |
| 42311U | Hub bolt (for rear axle right) | 90942-02052 · 90942-02079 |
| 42312 | Rear axle left half shaft | 42311-35210 · 42311-35220 · 42311-35350 |
| 42312E | Hub bolt (for left rear axle) | 90942-02052 · 90942-02079 |
| 42403 | Rear brake drum sub-assembly | 42431-35110 · 42431-35210 |
| 42403A | Balance weight (for rear brake drum) | 90937-01117 · 90937-01118 · 90937-01119 · 90937-01195 · 90937-01196 · 90937-01450 · 90937-01451 |
| 42421 | Rear axle bearing housing | 42421-35030 · 42421-35050 |
| 42421A | Bolt (for rear axle bearing housing) | 90114-10002 |
| 42423A | Rear axle right bearing inner retainer | 42423-20010 |
| 42423B | Rear axle left bearing inner retainer | 42423-20010 |
| 42424A | O-ring (for bearing retainer assembly) | 90301-88077 |
| 42441A | Brake drum right oil baffle | 42441-35020 |
| 42441B | Brake drum left oil baffle | 42441-35020 |
| 42443A | Brake drum right fender pad | 42443-55020 |
| 42443B | Brake drum left oil deflector gasket | 42443-55020 |
| 42444R | Brake drum gasket (for rear axle) | 42444-35050 |
| 43517 | Rear anti-skid control rotor | 43517-35010 |
