Toyota HILUX 变速器油冷却器和配管(ATM) — Figure 3514

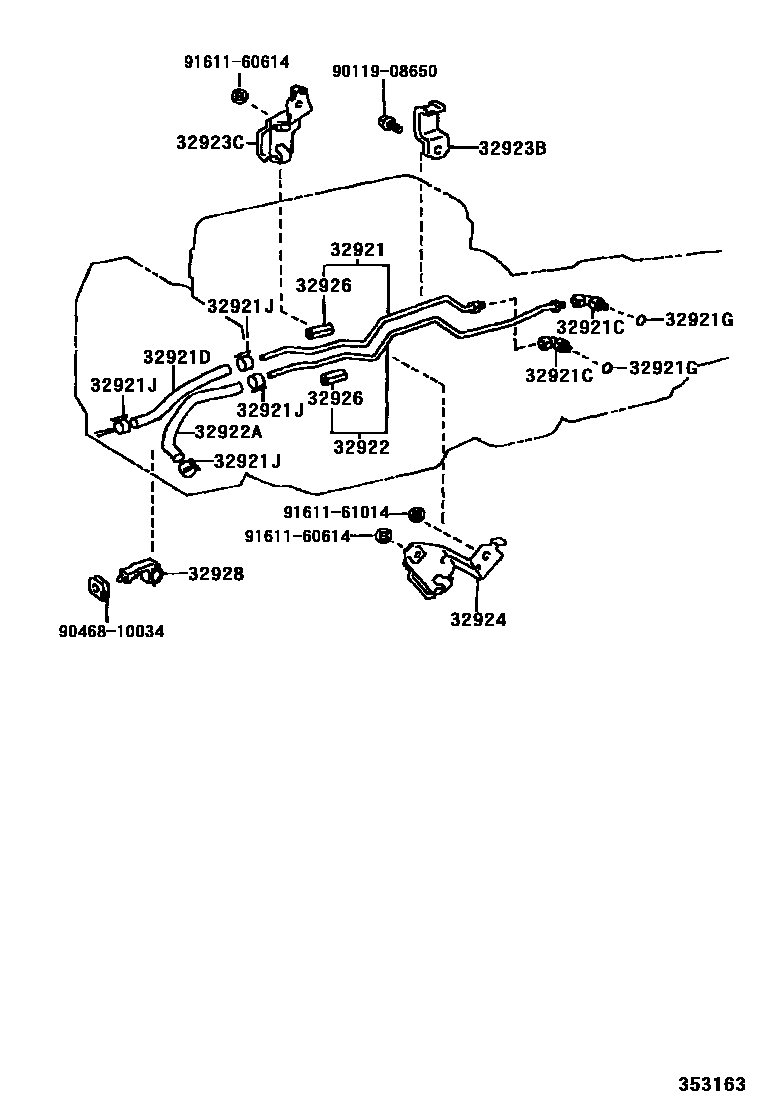

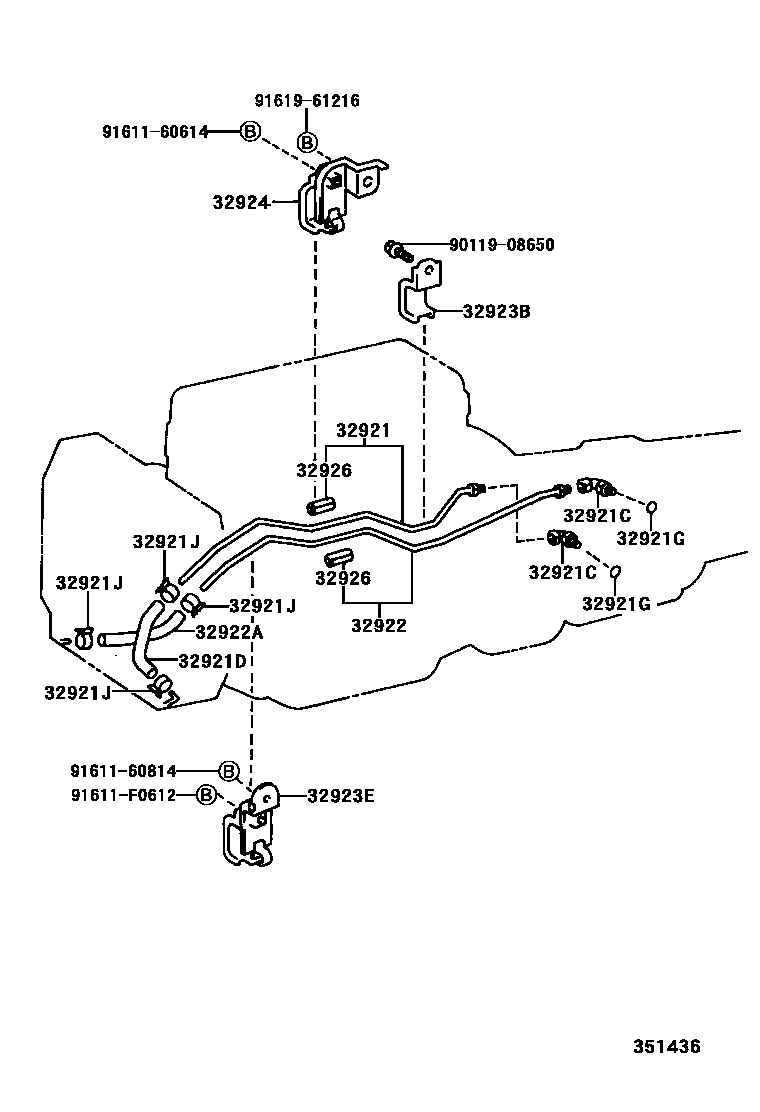

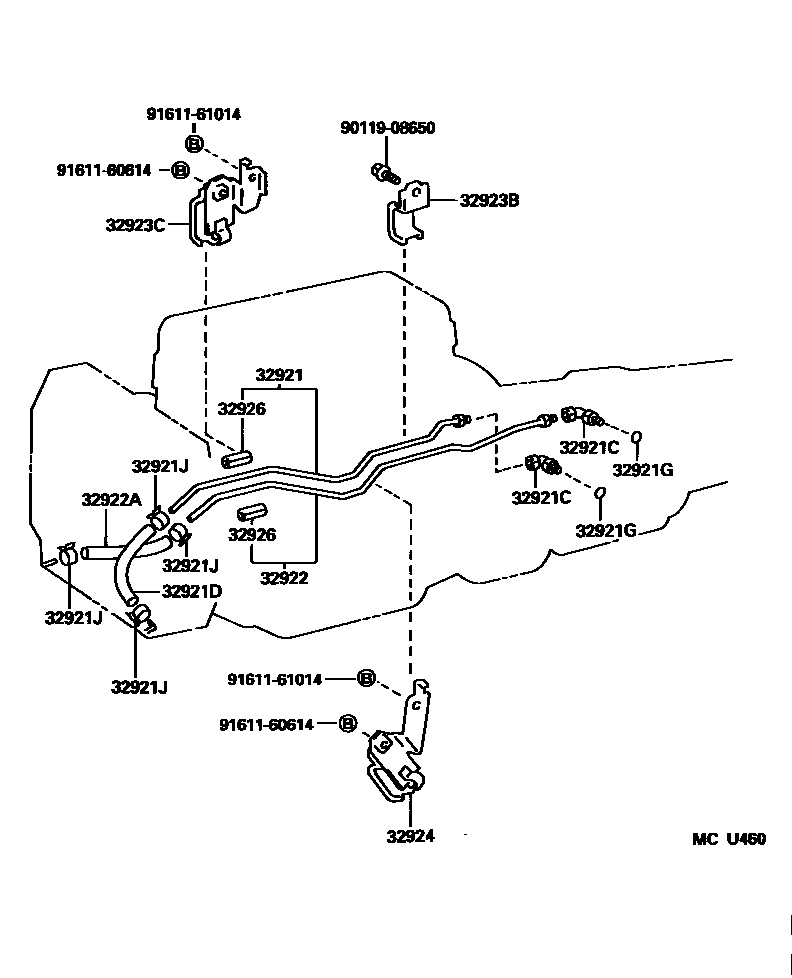

Toyota HILUX EPC diagram 3514, 变速器油冷却器和配管(ATM), with 3 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32921 | No. 1 transmission oil cooler oil inlet pipe | 32921-35260 · 32921-35270 · 32921-35280 · 32921-35340 · 32921-35370 |
| 32921C | Fitting (for transmission oil cooler tube) | 90407-14024 · 90407-16009 · 90407-16012 |
| 32921D | Hose (for transmission oil cooler oil inlet) | 32941-35260 · 32943-36050 · 90445-17112 · 90445-17134 |
| 32921G | O-ring (for transmission oil cooler pipe joint) | 90301-11006 |
| 32921J | Clamp (for transmission oil cooler hose) | 90467-16013 |
| 32922 | No. 1 transmission oil cooler oil outlet pipe | 32922-35290 · 32922-35300 · 32922-35310 · 32922-35370 · 32922-35400 |
| 32922A | Hoses (for transmission oil cooler oil outlet) | 32942-35110 · 90445-17103 |
| 32923B | No. 1 automatic transmission oil cooler pipe clamp | 32929-24060 |
| 32923C | No. 4 automatic transmission oil cooler pipe clamp | 32909-34040 · 32909-35120 |
| 32923E | No. 6 automatic transmission oil cooler pipe clamp | 32909-35100 · 32909-35200 |
| 32924 | No. 2 transmission oil cooler pipe clamp | 32909-34030 · 32909-34050 · 32909-35130 · 32909-35170 · 32909-35190 |
| 32926 | Automatic transmission oil cooler pipe cushion | 32926-30020 |
| 32928 | No. 1 Flexible Hose Clamp | 32928-35070 |
