Toyota HILUX 速度表从动齿轮(ATM) — Figure 3505

Toyota HILUX EPC diagram 3505, 速度表从动齿轮(ATM), with 2 images and 2 PNC and OE references.

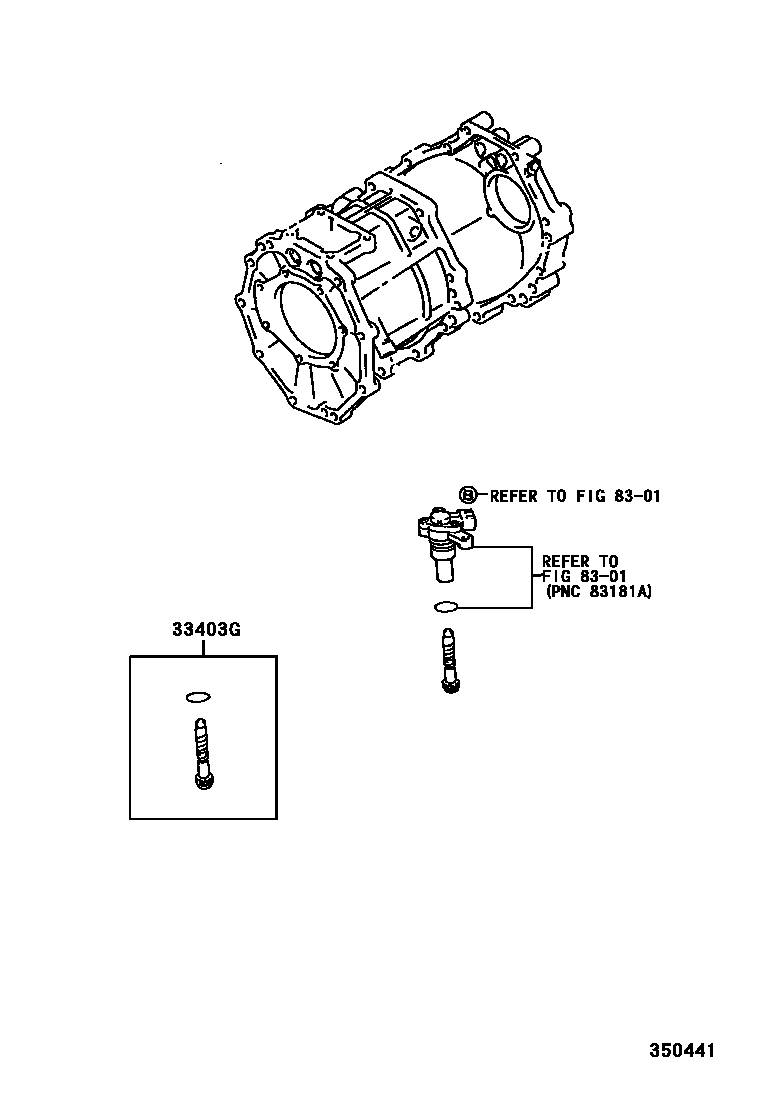

Toyota HILUX 速度表从动齿轮(ATM) EPC diagram — 350441
速度表从动齿轮(ATM) — 350441 (199807 – 999999)

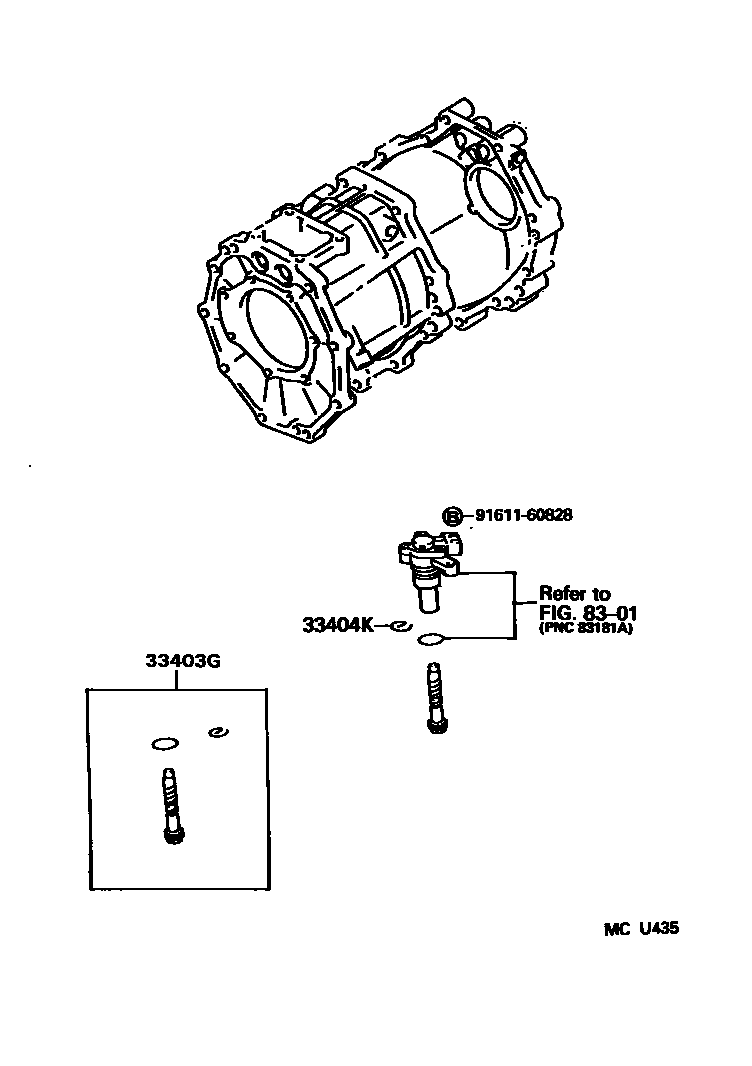

Toyota HILUX 速度表从动齿轮(ATM) EPC diagram — MCU435
速度表从动齿轮(ATM) — MCU435 (199511 – 999999)

PNC and OE references

PNCPart nameOE numbers
33403GSpeedometer driven gear sub-assembly (ATM)33403-39365 · 33403-39415 · 33403-39525 · 33482-59015 · 33482-59025
33404KClamp (for automatic transmission speedometer shaft sleeve)90468-12005
