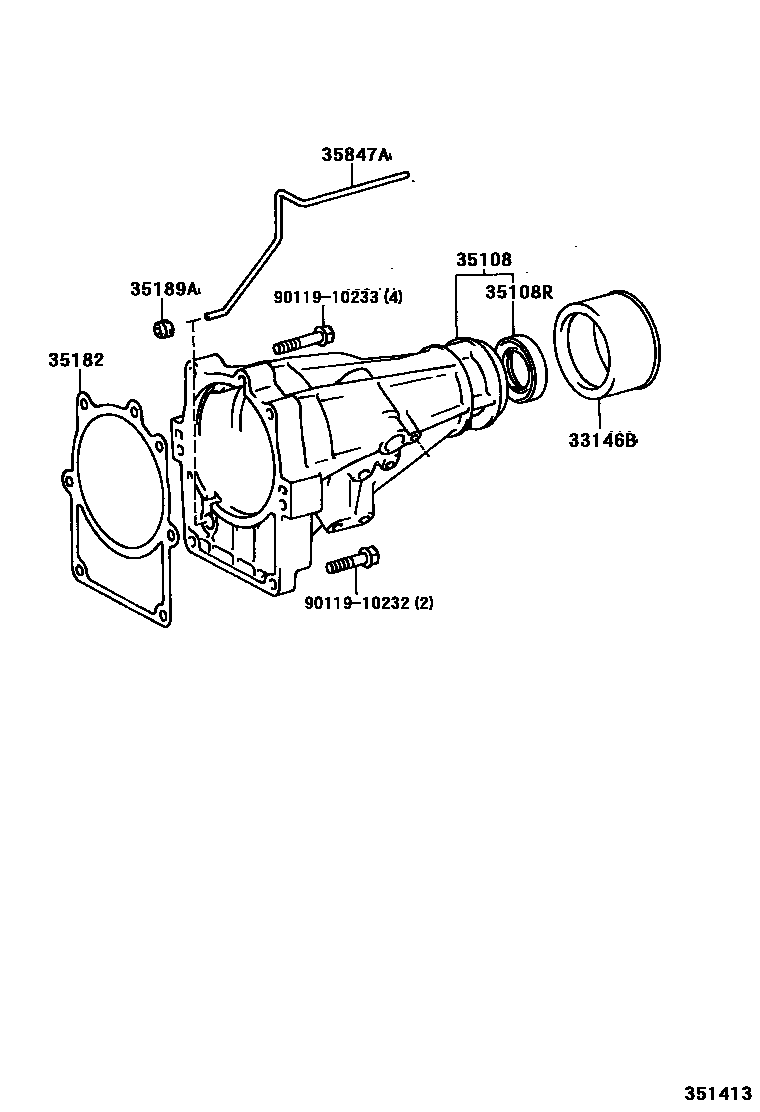

Toyota HILUX Extension shell (ATM) — Figure 3504
Toyota HILUX EPC diagram 3504, Extension shell (ATM), with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33146B | Extended shell dust cover | 33146-30020 |
| 35108 | Extended shell sub-assembly (ATM) | 35108-35050 · 35108-35060 |
| 35108R | Oil seal (for automatic transmission extension housing) | 90311-40001 |
| 35182 | Extension shell liner (ATM) | 35182-28010 |
| 35189A | Extension housing bushing oil supply pipe gasket | 35189-30010 |
| 35847A | Extension housing bushing oil supply pipe | 35847-30020 |
