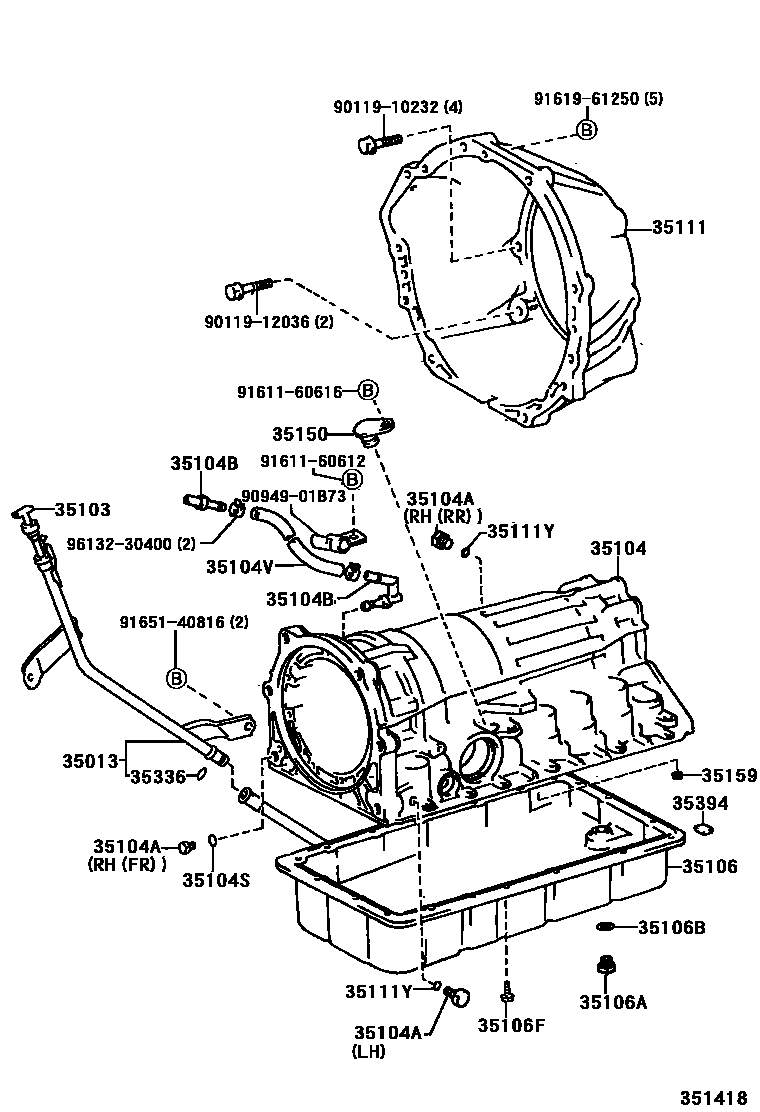

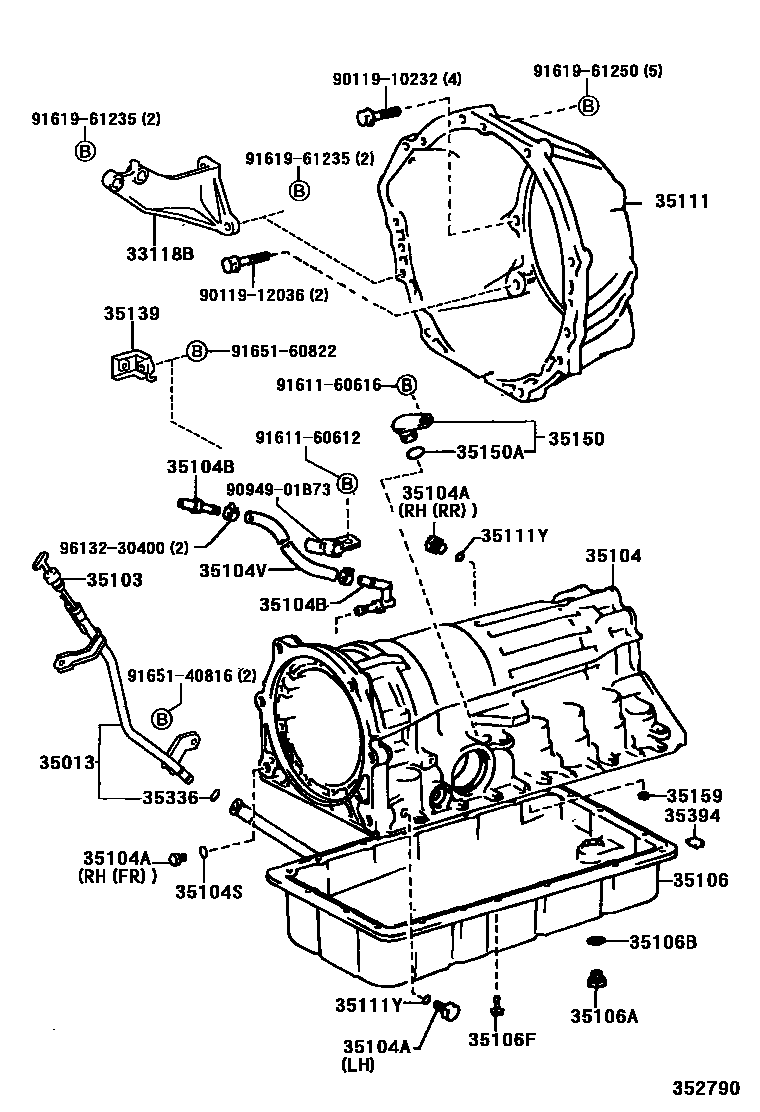

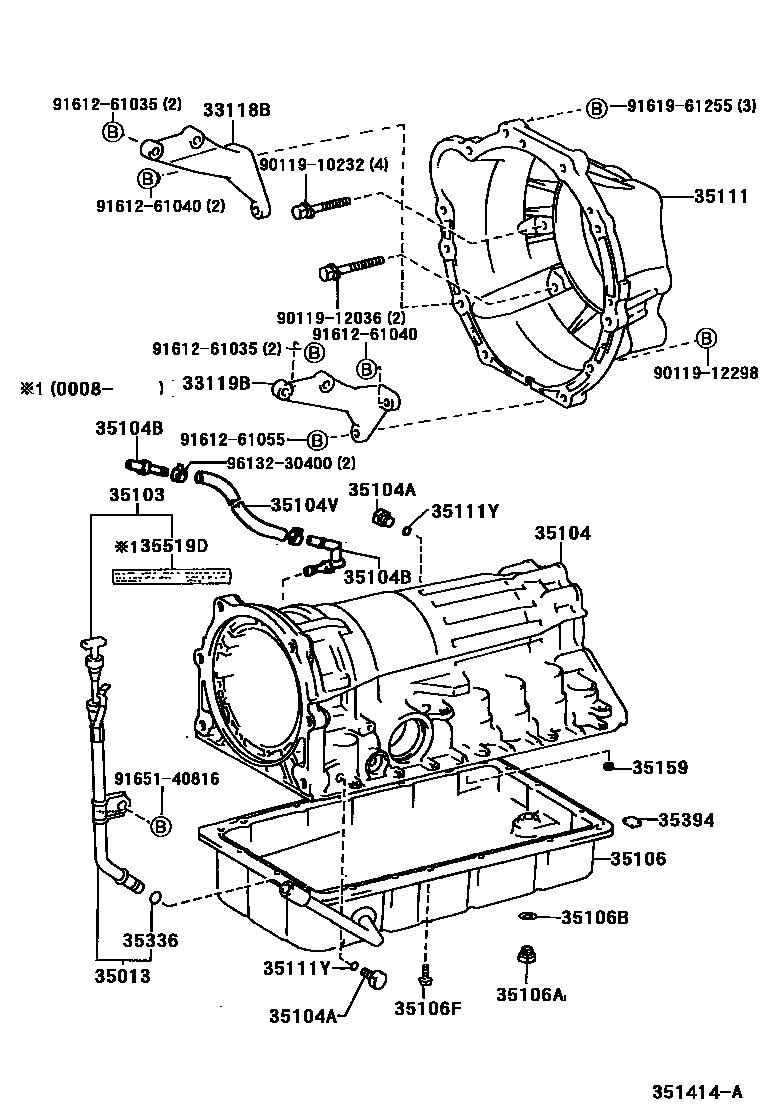

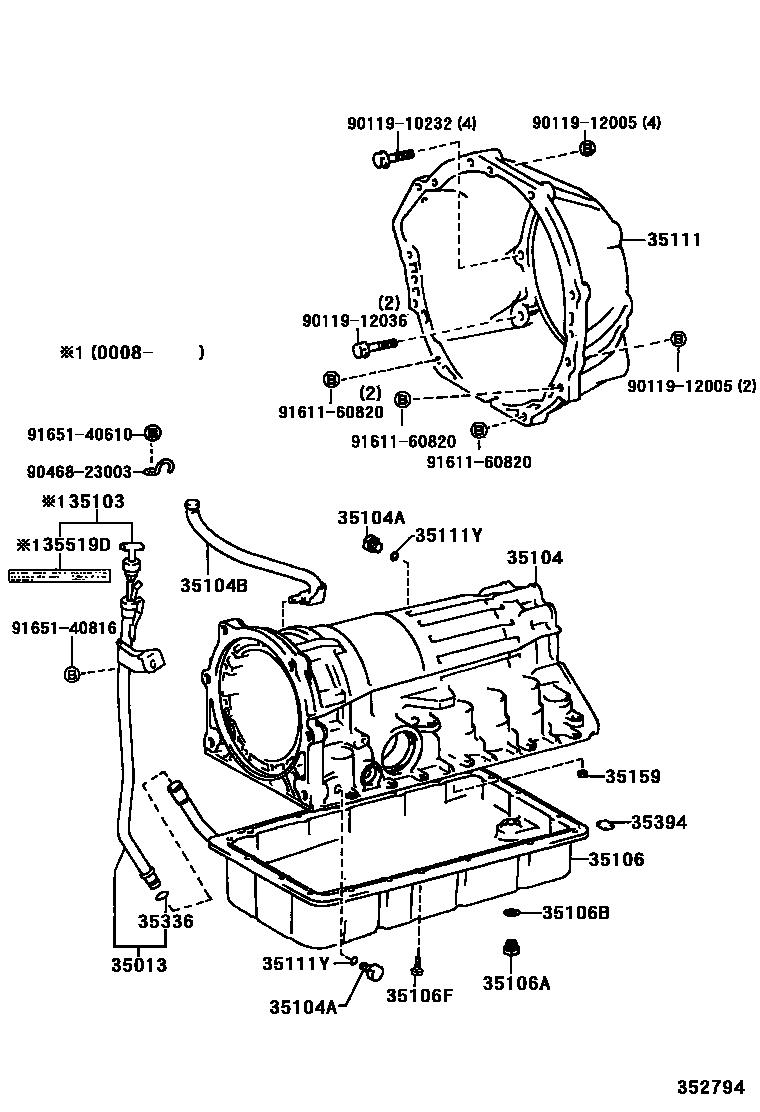

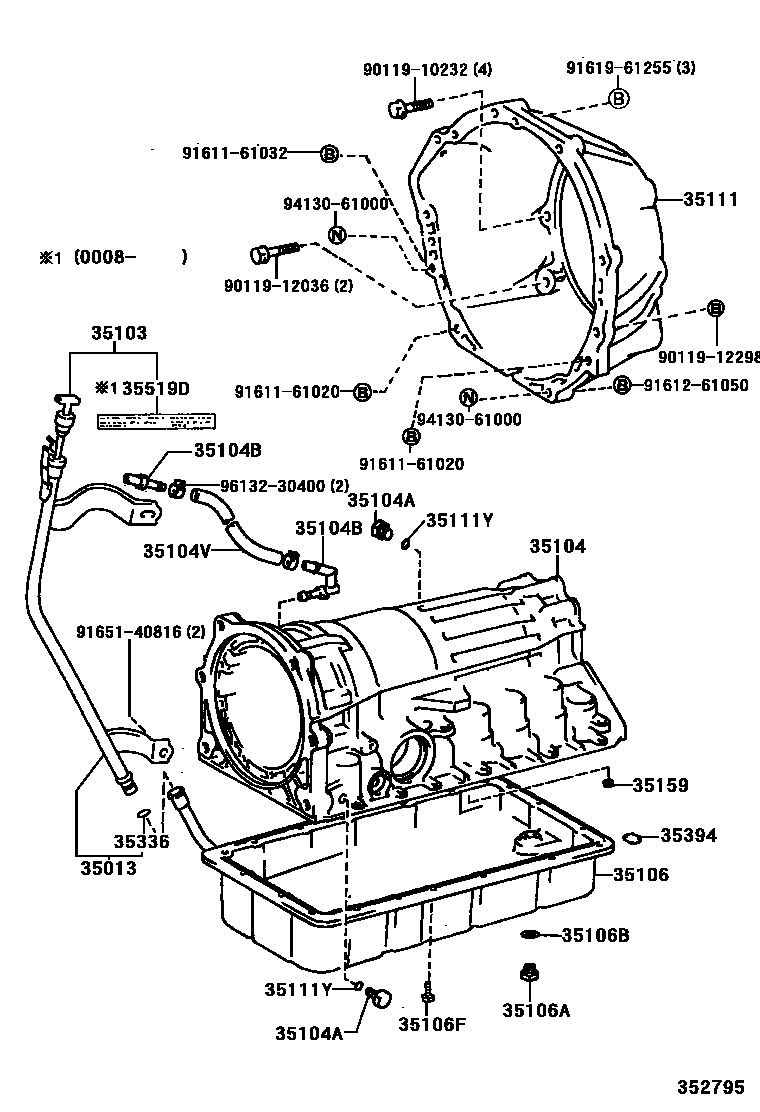

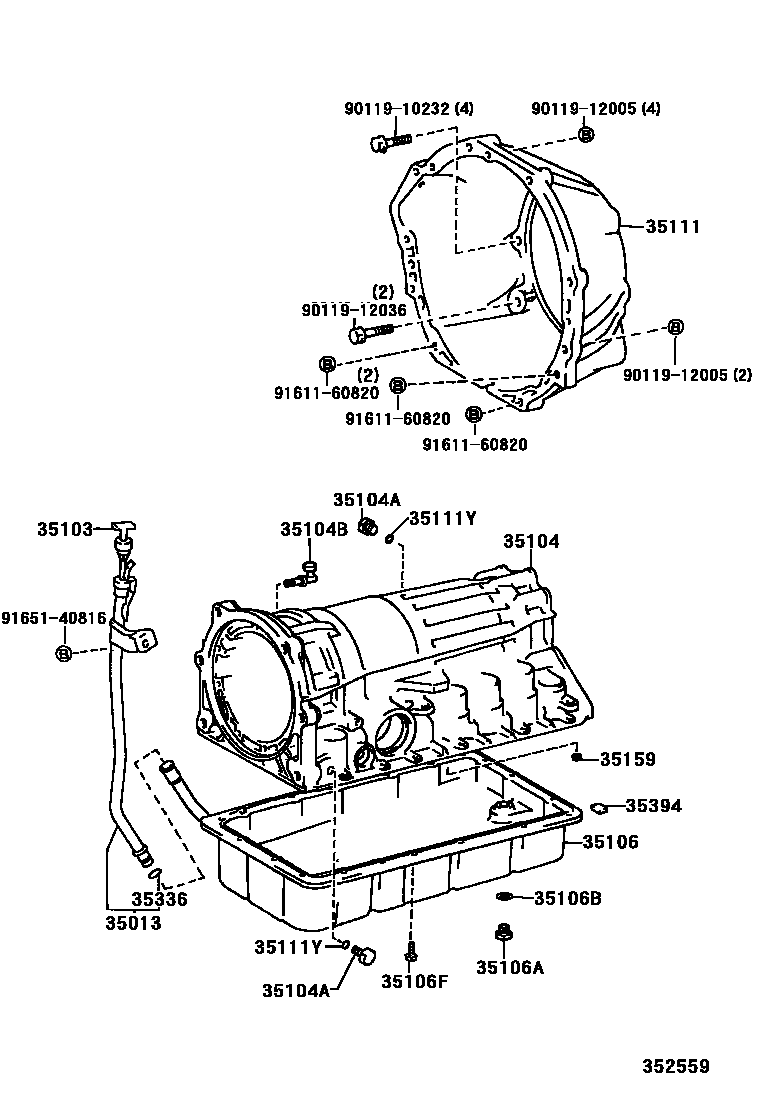

Toyota HILUX 变速器壳和油底壳(ATM) — Figure 3503
Toyota HILUX EPC diagram 3503, 变速器壳和油底壳(ATM), with 6 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33118B | Right reinforcement plate (ATM) | 33118-26011 · 33118-35070 |
| 33119B | Left reinforcement plate (ATM) | 33119-35040 |
| 35013 | Transmission oil pipe sub-assembly | 35013-34030 · 35013-34060 · 35013-35280 · 35013-35300 · 35013-35310 · 35013-35350 · 35013-35380 · 35013-35390 · 35013-35400 · 35013-60220 |
| 35103 | Transmission oil level scoring assembly | 35103-34030 · 35103-34060 · 35103-34070 · 35103-35230 · 35103-35310 · 35103-35320 · 35103-35340 · 35103-35360 · 35103-35370 · 35103-35450 · 35103-35460 · 35103-35470 · 35103-35480 |
| 35104 | Automatic transmission housing sub-assembly | 35104-26070 · 35104-35011 · 35104-35030 · 35104-60170 |
| 35104A | automatic transmission plug | 90341-08001 · 90341-14011 |
| 35104B | Ventilation plug No. 1 (ATM) | 90930-03098 · 90930-03099 · 90930-03108 · 90930-03116 · 90930-03168 |
| 35104S | O-ring (for transmission axle housing plug No. 1) | 90301-11006 |
| 35104V | Hoses (for breather plug) | 90445-11118 |
| 35106 | Automatic transmission oil pan sub-assembly | 35106-34010 · 35106-34020 · 35106-35070 · 35106-35110 · 35106-35120 · 35106-35140 |
| 35106A | Drain plug sub-assembly (ATM) | 90341-10006 · 90341-10018 |
| 35106B | Drain plug gasket (ATM) | 35178-30010 · 35178-50010 |
| 35106F | Bolt (for automatic transmission oil pan) | 90119-06513 |
| 35111 | automatic transmission housing | 35111-35060 · 35111-35070 · 35111-35090 |
| 35111Y | O-ring (for automatic transmission) | 90301-06196 |
| 35139 | Fuel pipe bracket | 35139-35020 |
| 35150 | gearbox plug assembly | 35150-30010 |
| 35150A | O-ring (for automatic transmission plug) | 90301-09012 |
| 35159 | brake drum gasket | 35159-30010 |
| 35336 | O-ring (for transmission filler pipe) | 90301-09011 · 90301-09173 |
| 35394 | Oil filter magnet (for transmission) | 35394-30011 |
| 35519D | Automatic transmission information label | 35519-20030 |
