Toyota HILUX 变矩器、前油泵和链条(ATM) — Figure 3502

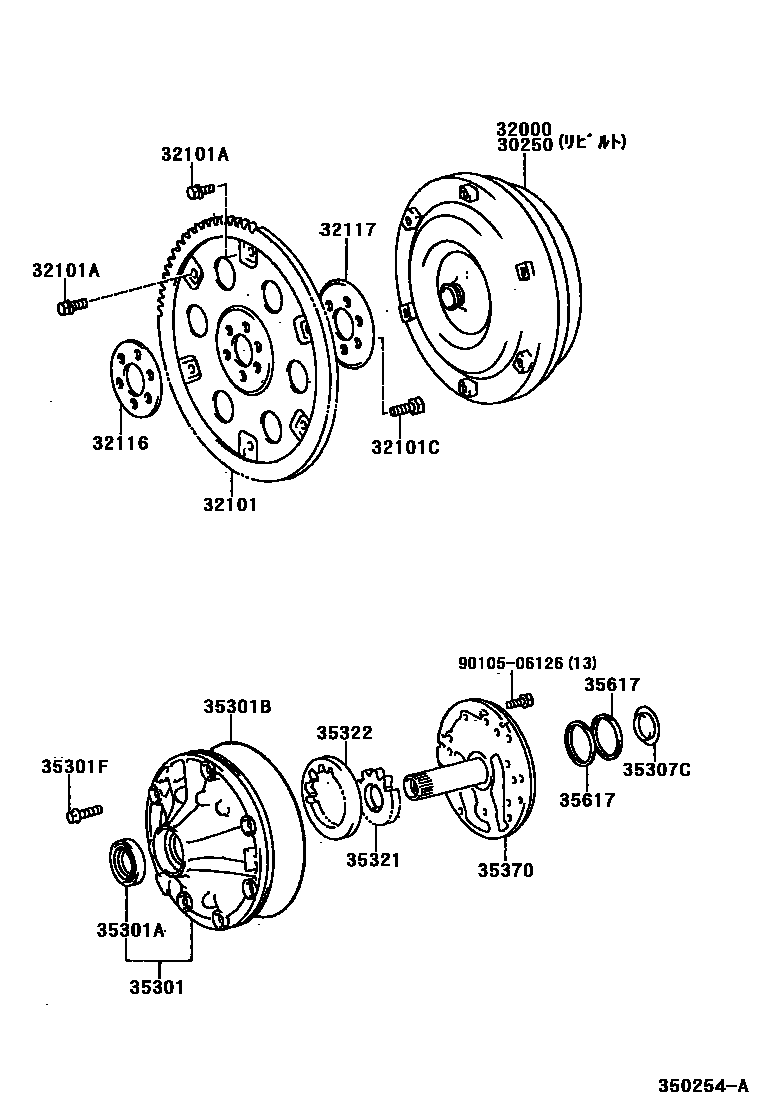

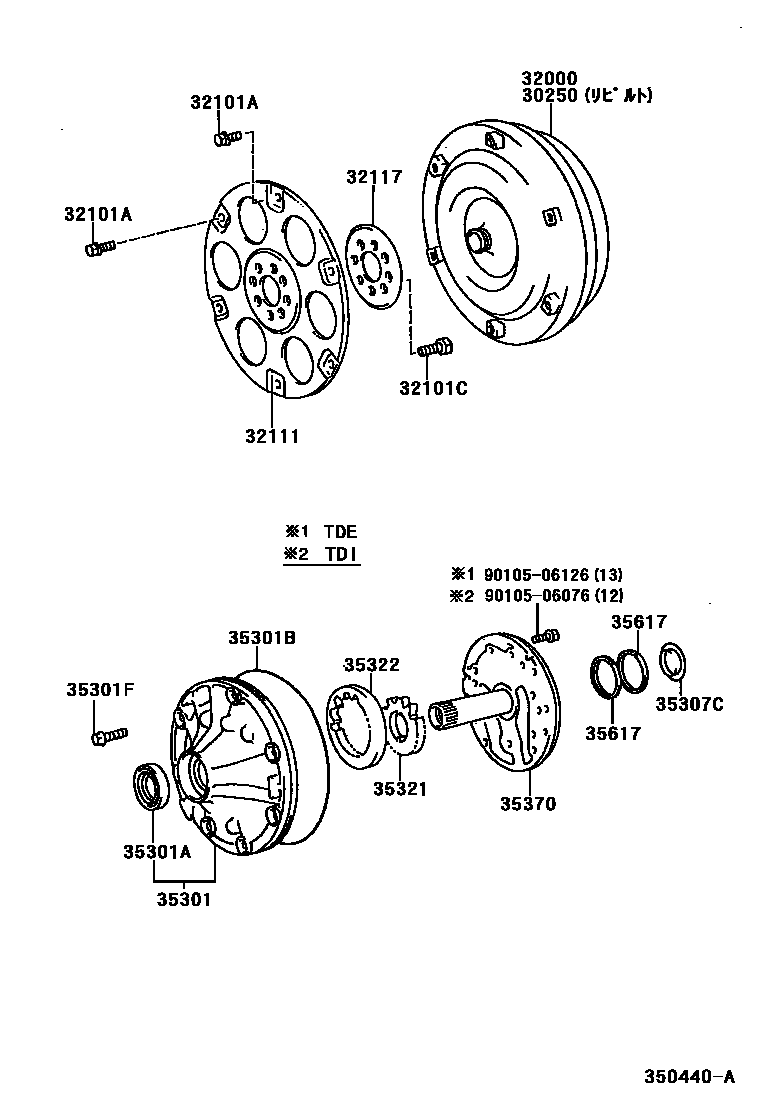

Toyota HILUX EPC diagram 3502, 变矩器、前油泵和链条(ATM), with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 30250 | Refurbished torque converter assembly | 30250-26080 · 30250-35150 · 30250-35160 · 30250-35170 · 30250-35180 · 30250-35190 · 30250-60190 |
| 32000 | Torque converter assembly | 32000-26080 · 32000-35150 · 32000-35160 · 32000-35170 · 32000-35180 · 32000-35190 · 32000-60190 |
| 32101 | Transmission plate and ring gear sub-assembly | 32101-26010 · 32101-35010 |
| 32101A | Bolts (for securing transmission plate and torque converter) | 90105-10413 · 90105-10414 · 90119-09009 · 90119-09010 |
| 32101C | Hexagonal bolts (used to fix the transmission plate) | 90105-10048 · 90105-10276 · 90105-13010 |
| 32111 | Pump impeller drive plate | 32111-35030 · 32111-60050 |
| 32116 | Front transmission plate spacer | 32116-26010 · 32116-32020 |
| 32117 | Rear transmission plate spacer | 32117-26010 · 32117-32020 · 32117-60050 |
| 35301 | Front oil pump body sub-assembly | 35301-30040 · 35301-35010 |
| 35301A | Oil seal (for front oil pump) | 90311-38029 |
| 35301B | O-ring (for front oil pump body) | 90301-99033 |
| 35301F | Bolt (used to secure the front oil pump) | 90105-08091 |
| 35307C | Thrust bearing race (for stator shaft) | 35789-30020 · 35789-30340 |
| 35321 | Front oil pump driving gear | 35321-12020 · 35321-12030 · 35321-12040 · 35321-12050 · 35321-12060 · 35321-12070 · 35321-12080 · 35321-12090 · 35321-12100 · 35321-12110 |
| 35322 | Front oil pump driven gear | 35322-12010 · 35322-12020 · 35322-12030 · 35322-12040 · 35322-12050 · 35322-12060 · 35322-12070 · 35322-12080 · 35322-12090 · 35322-12100 |
| 35370 | stator shaft assembly | 35370-30031 |
| 35617 | Clutch drum oil ring | 35617-30020 |
