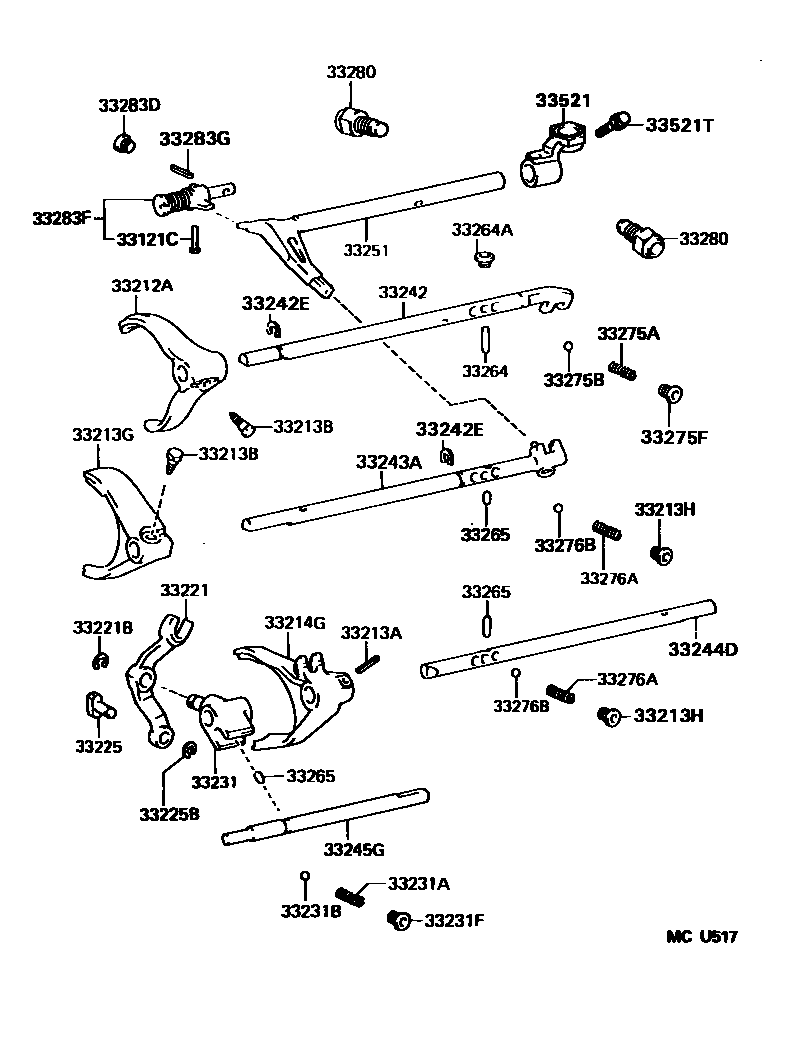

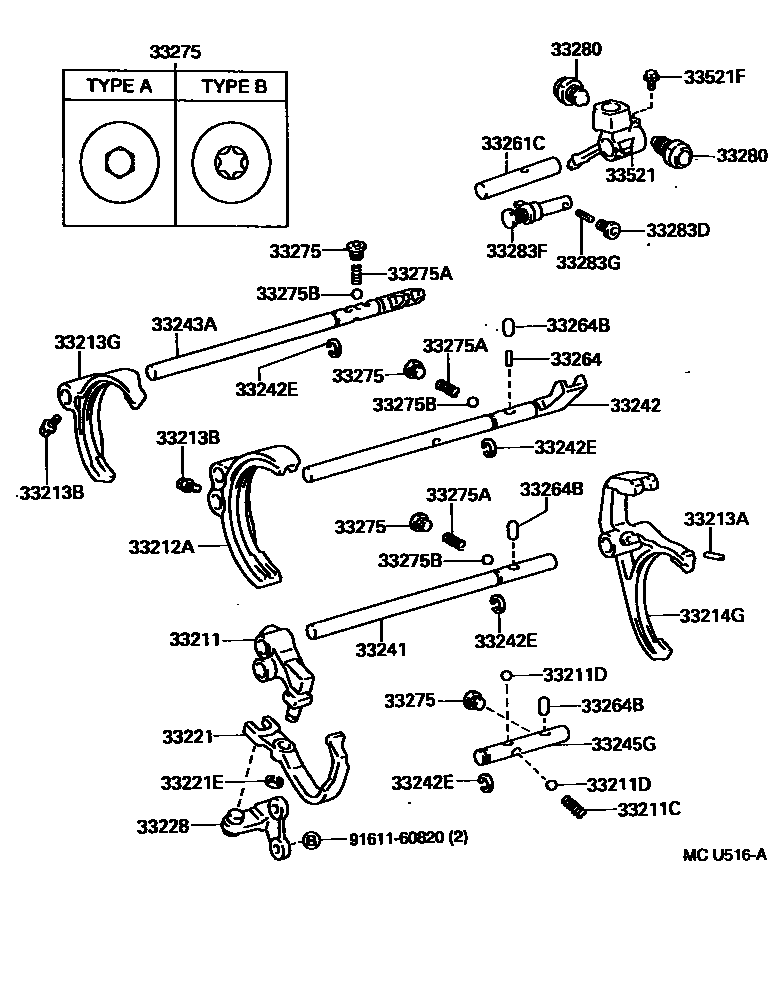

Toyota HILUX 换档拨叉和换档杆轴(MTM) — Figure 3307
Toyota HILUX EPC diagram 3307, 换档拨叉和换档杆轴(MTM), with 2 images and 45 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33121C | pin (for gearbox cover) | 90241-04030 |
| 33211 | Reverse Shift Fork | 33211-35050 |
| 33211C | Compression spring (for reverse shift fork return) | 90501-12166 |
| 33211D | Steel ball (for reverse shift fork) | 90360-10003 |
| 33212A | No. 1 shift fork | 33212-30050 · 33212-35032 |
| 33213A | Slotted spring pin (for securing shift fork) | 90254-05016 |
| 33213B | Bolt (for securing shift fork) | 90105-06077 · 90105-06143 |
| 33213G | No. 2 shift fork | 33213-30060 · 33213-35040 |
| 33213H | No. 2 headed straight thread plug | 90341-12005 · 90341-12018 |
| 33214G | No. 3 shift fork | 33230-30011 · 33230-35010 |
| 33221 | Reverse shift arm | 33221-22020 · 33221-35050 |
| 33221B | E-ring (for reverse shift arm) | 96160-00800 |
| 33221E | Ring (for reverse shift arm end shaft) | 96160-01000 |
| 33225 | shift arm shoe | 33225-22020 |
| 33225B | E-ring (for shift arm shoe) | 96160-00600 |
| 33228 | Reverse shift arm bracket | 33228-35030 |
| 33231 | Reverse gear shift guide block | 33231-22040 |
| 33231A | Reverse shift positioning spring | 90501-10052 |
| 33231B | Reverse gear shift positioning steel ball | 90360-08009 |
| 33231F | Screw plug (for reverse gear shift guide block) | 90341-10016 |
| 33241 | Reverse shift fork shaft | 33244-35060 |
| 33242 | No. 1 shift fork shaft | 33242-30070 · 33242-35050 |
| 33242E | Shaft snap ring (for shift fork shaft) | 90520-12003 |
| 33243A | No. 2 shift fork shaft | 33243-30130 · 33243-35080 |
| 33244D | No. 3 shift fork shaft | 33244-30050 |
| 33245G | No. 4 shift fork shaft | 33245-22011 · 33245-35090 |
| 33251 | shift lever | 33251-35160 |
| 33261C | shift lever shaft | 33261-35130 |
| 33264 | No. 1 shift interlock pin or steel ball | 33264-22010 · 90250-05029 |
| 33264A | interlocking hole plug | 90341-10065 |
| 33264B | Roller No. 1 (for shift interlock) | 90361-10003 |
| 33265 | No. 2 shift interlock pin | 33265-22010 · 33266-22010 · 90250-06007 |
| 33275 | No. 1 shift lock steel ball spring seat | 90341-12008 · 90341-12014 |
| 33275A | Compression spring (for the lower side of the shift lock steel ball) | 90501-14123 · 90501-16143 |
| 33275B | Gear shift lock steel ball | 90360-10003 |
| 33275F | Screw plug (for gear shift lock steel ball) | 90341-12014 |
| 33276A | No. 2 compression spring (for shift lock steel ball) | 90501-14123 |
| 33276B | No. 2 shift lock steel ball | 90360-10003 |
| 33280 | Reverse gear positioning pin assembly | 33280-27011 · 33280-35021 · 33280-35031 · 33280-35062 |
| 33283D | Screw plug (for reverse gear positioning pin) | 90341-10065 · 90341-12014 |
| 33283F | Reverse gear positioning pin | 33280-30061 · 33280-35100 |
| 33283G | Slotted spring pin (for reverse gear locating pin) | 90254-05001 · 90254-05016 |
| 33521 | shift lever housing | 33521-35270 · 33521-35330 |
| 33521F | Pin or bolt (for shifter housing) | 90254-05016 |
| 33521T | Bolt (for shift lever housing) | 90105-08079 |
