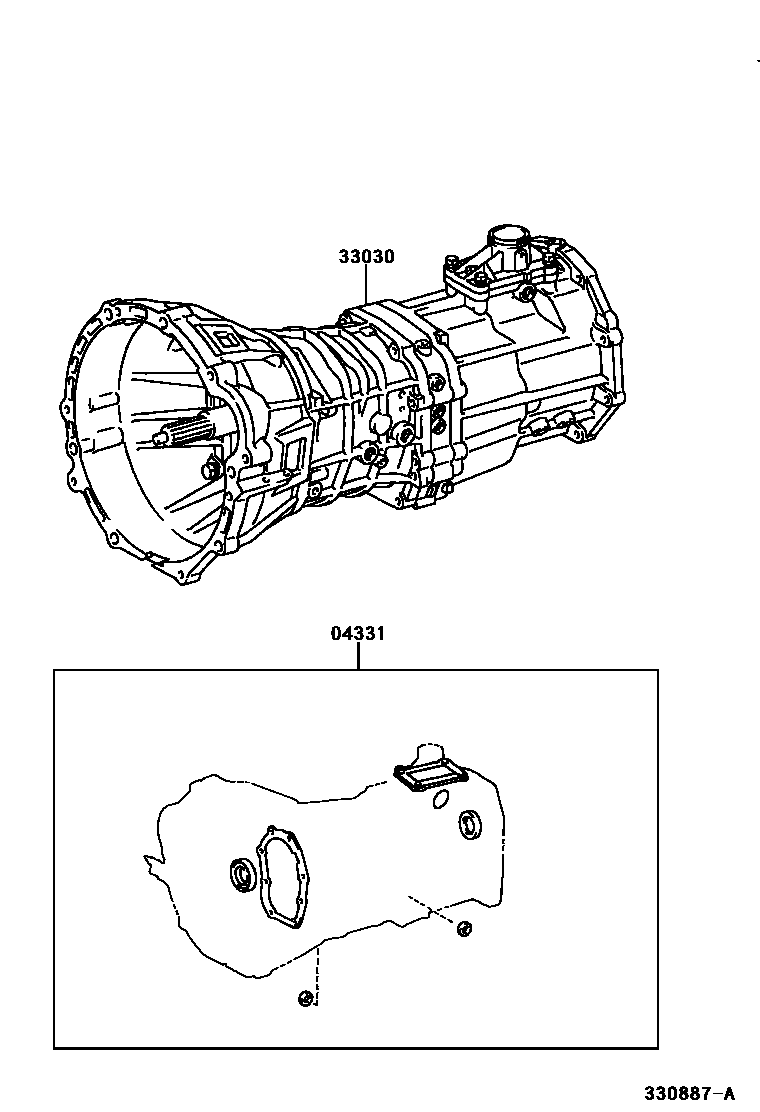

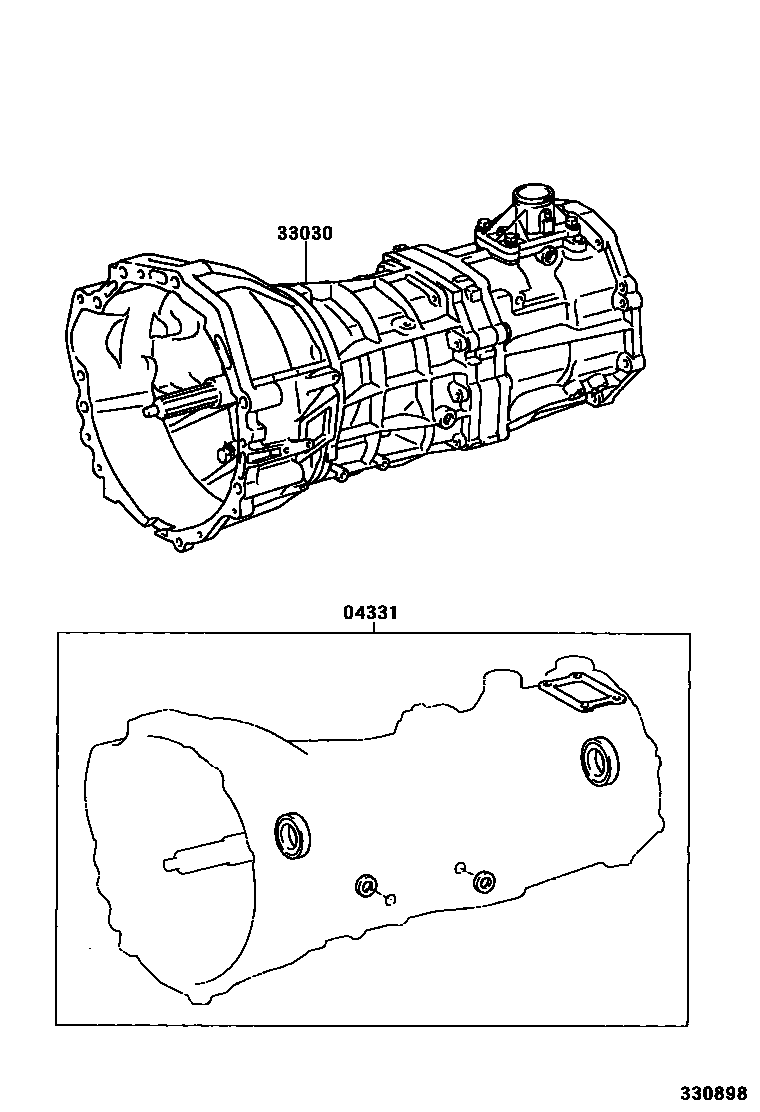

Toyota HILUX 传动桥或变速器总成和衬垫组件(MTM) — Figure 3301
Toyota HILUX EPC diagram 3301, 传动桥或变速器总成和衬垫组件(MTM), with 2 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04331 | Manual transmission overhaul gasket assembly | 04331-35250 · 04331-35270 · 04331-35271 |
| 33030 | Manual transmission unit assembly | 33030-3D420 · 33030-3D680 · 33030-3D683 · 33030-3D684 · 33030-3D690 · 33030-3D693 · 33030-3D694 |
