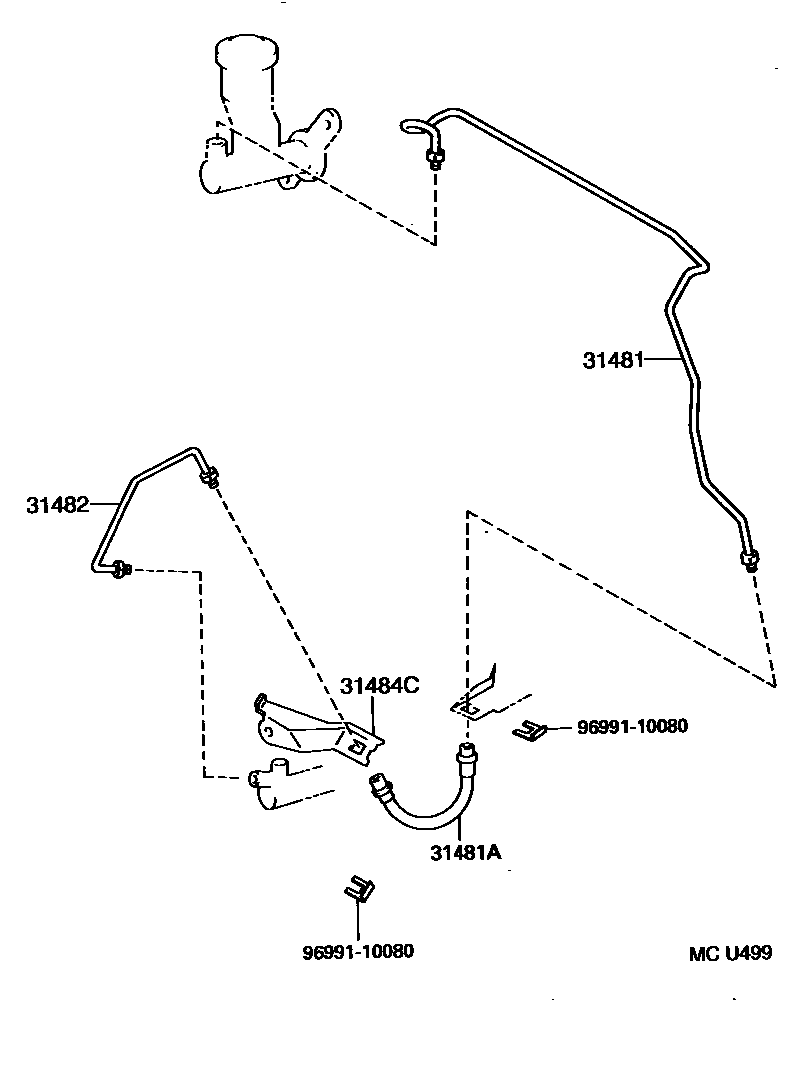

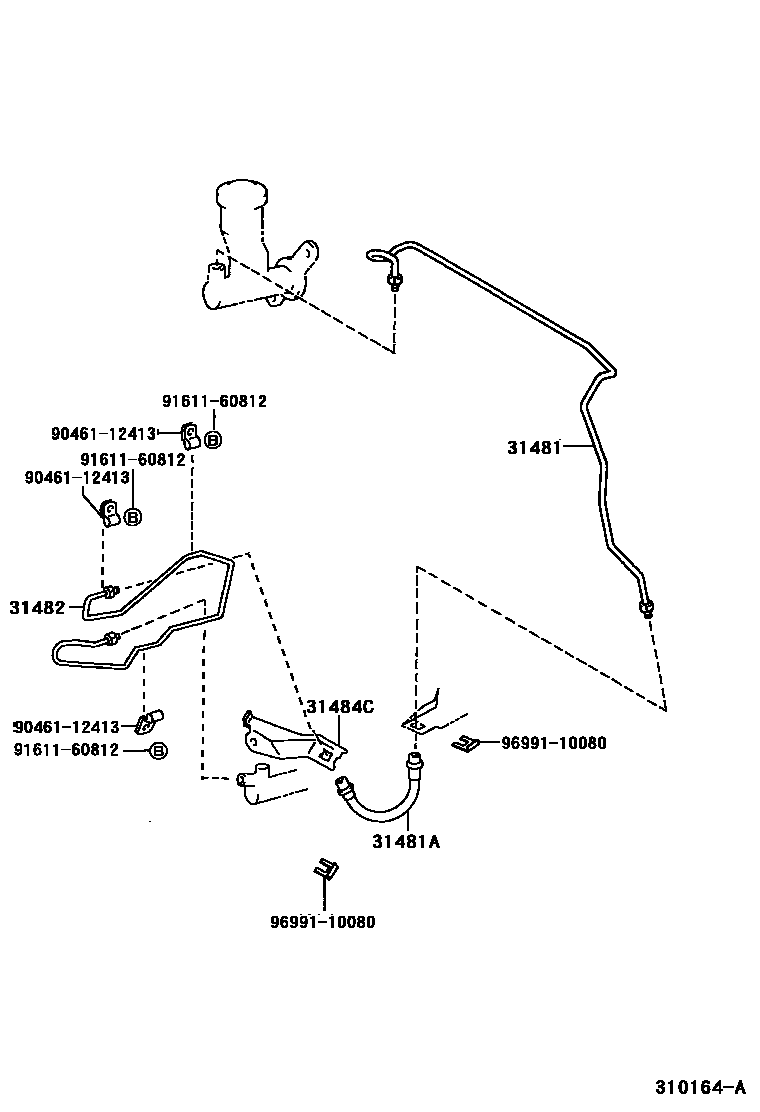

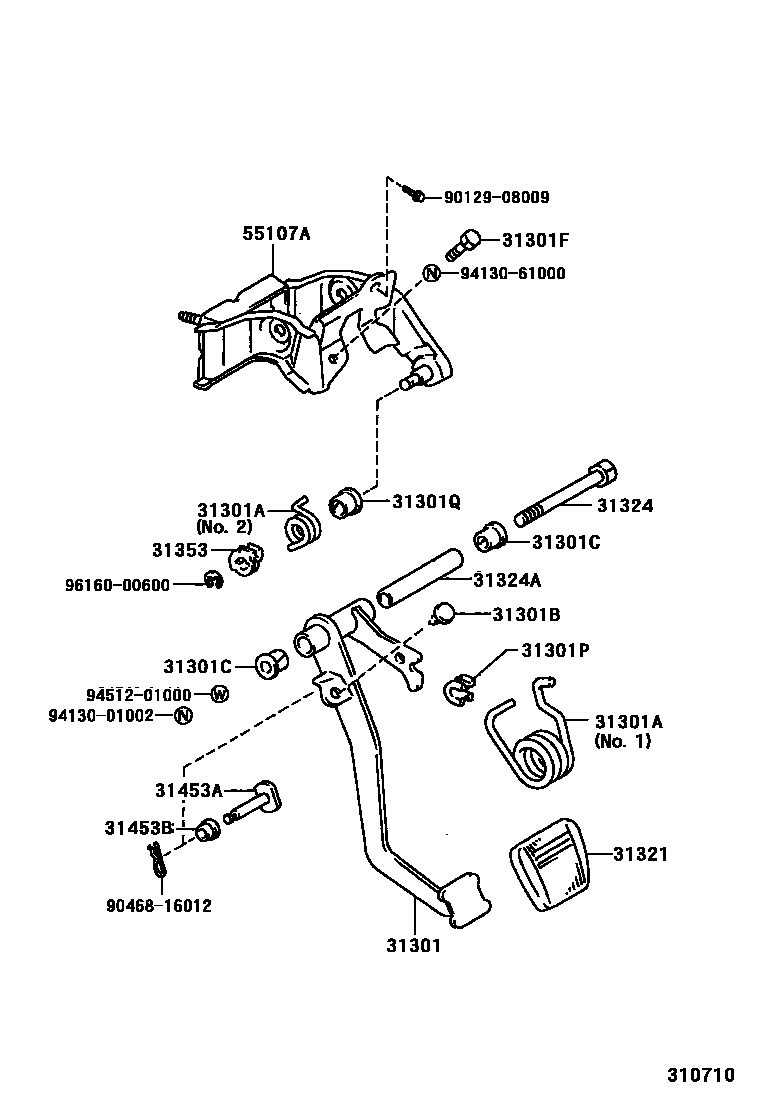

Toyota HILUX 离合器踏板和挠性软管 — Figure 3102
Toyota HILUX EPC diagram 3102, 离合器踏板和挠性软管, with 3 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31301 | Clutch pedal sub-assembly | 31310-35060 |
| 31301A | Spring (for clutch pedal) | 90949-03017 · 90949-03035 · 90949-03036 |
| 31301B | Cushion pad No. 1 (for clutch pedal) | 90541-06036 |
| 31301C | Bushing (for clutch pedal) | 90386-13015 |
| 31301F | Bolt (for clutch pedal stop) | 90101-10369 |
| 31301P | Bushing (for clutch pedal flip-up device) | 90389-06055 |
| 31301Q | Bushing (for clutch pedal spring) | 90386-13015 |
| 31321 | clutch pedal pad | 31321-14020 |
| 31324 | clutch pedal shaft | 90101-10177 |
| 31324A | clutch pedal collar | 90387-10082 |
| 31353 | Clutch pedal spring retainer | 31353-35010 |
| 31453A | Pin with hole (for clutch master cylinder push rod U-shaped clamp) | 47148-34010 |
| 31453B | Bushing (for clutch master cylinder push rod U-shaped clamp) | 90386-08033 |
| 31481 | Clutch master cylinder to flexible hose pipe | 31481-35430 |
| 31481A | No. 1 clutch hose | 90931-01091 · 90947-02863 |
| 31482 | Pipe from clutch release cylinder to flexible hose | 31482-35370 · 31482-35390 · 31482-60030 |
| 31484C | No. 1 clutch tube bracket | 31484-35280 · 31484-35290 |
| 55107A | Clutch pedal bracket sub-assembly | 55107-35070 |
