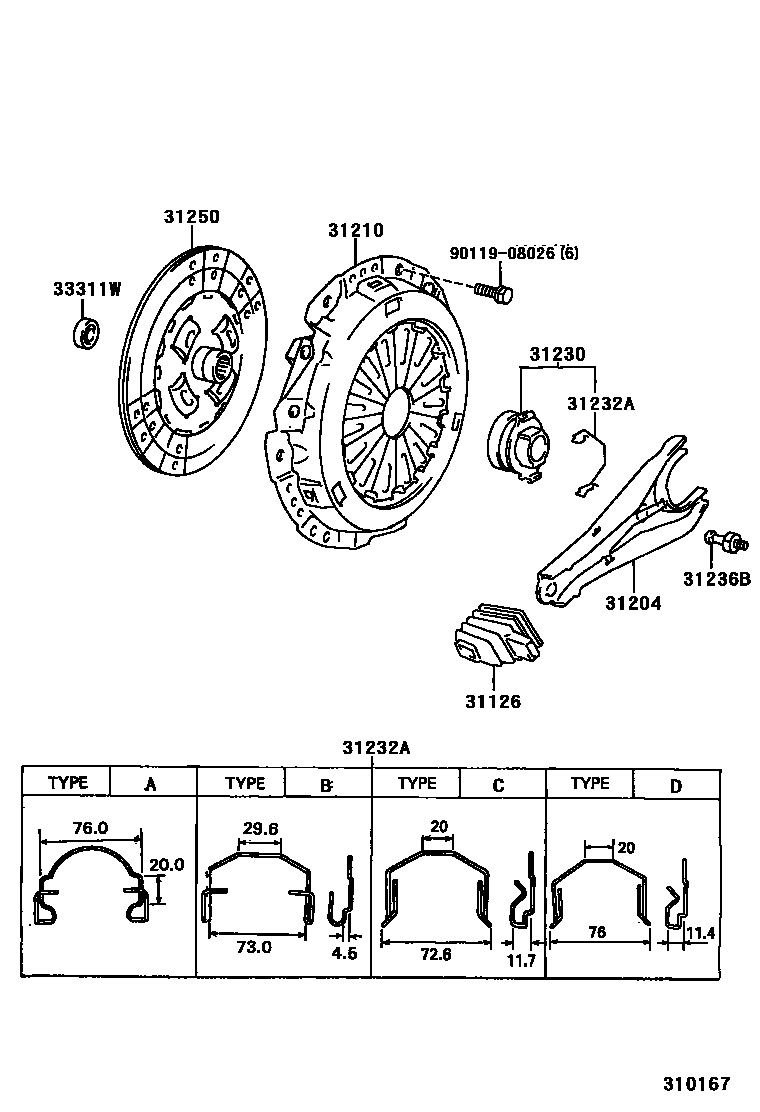

Toyota HILUX 离合器和分离叉 — Figure 3101
Toyota HILUX EPC diagram 3101, 离合器和分离叉, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31126 | Clutch release fork dust boot | 31126-26020 · 31126-60080 |
| 31204 | Clutch release fork assembly | 31204-20071 · 31204-60090 |
| 31210 | Clutch cover assembly | 31210-35200 · 31210-60170 · 31210-60180 · 31210-60190 |
| 31230 | Clutch release bearing assembly | 31230-35090 · 31230-60170 |
| 31232A | Release bearing hub clip | 31232-35020 · 31232-35040 · 31232-36030 · 31232-60030 |
| 31236B | Split fork bracket | 31236-30060 · 31236-60060 |
| 31250 | Clutch disc assembly | 31250-34010 · 31250-35330 · 31250-35331 · 31250-35332 · 31250-35400 |
| 33311W | Bearings (for input shaft) | 90363-12002 · 90363-12018 · 90363-12020 |
