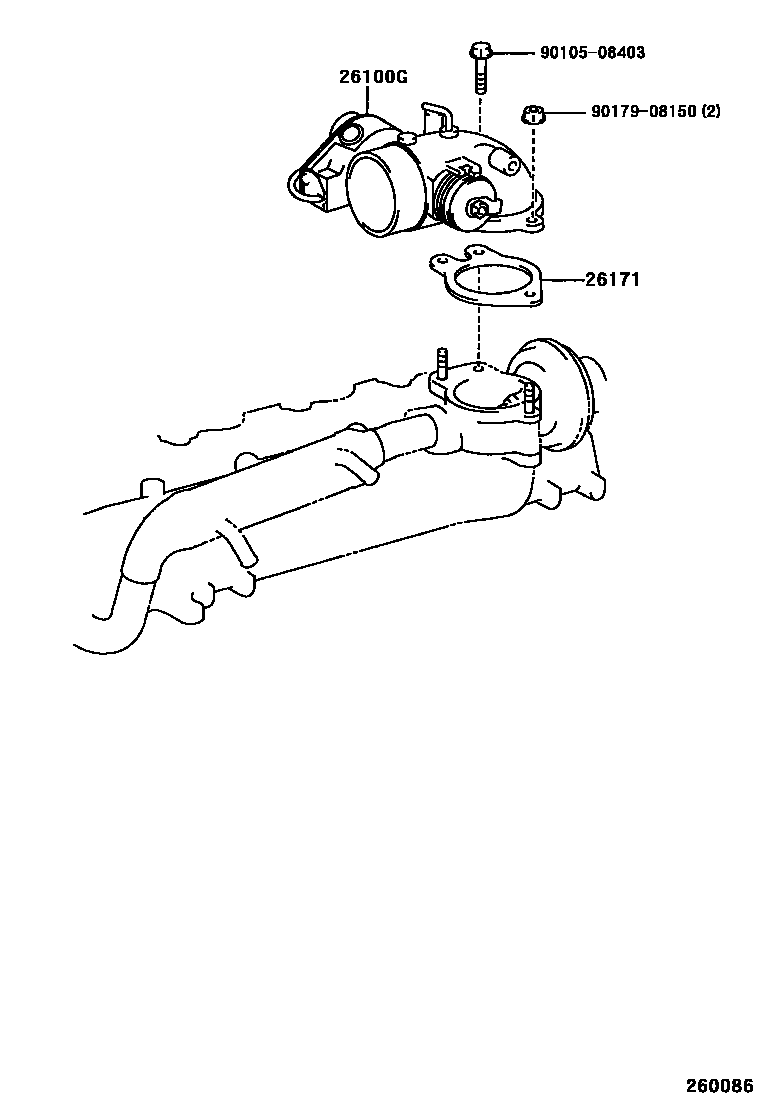

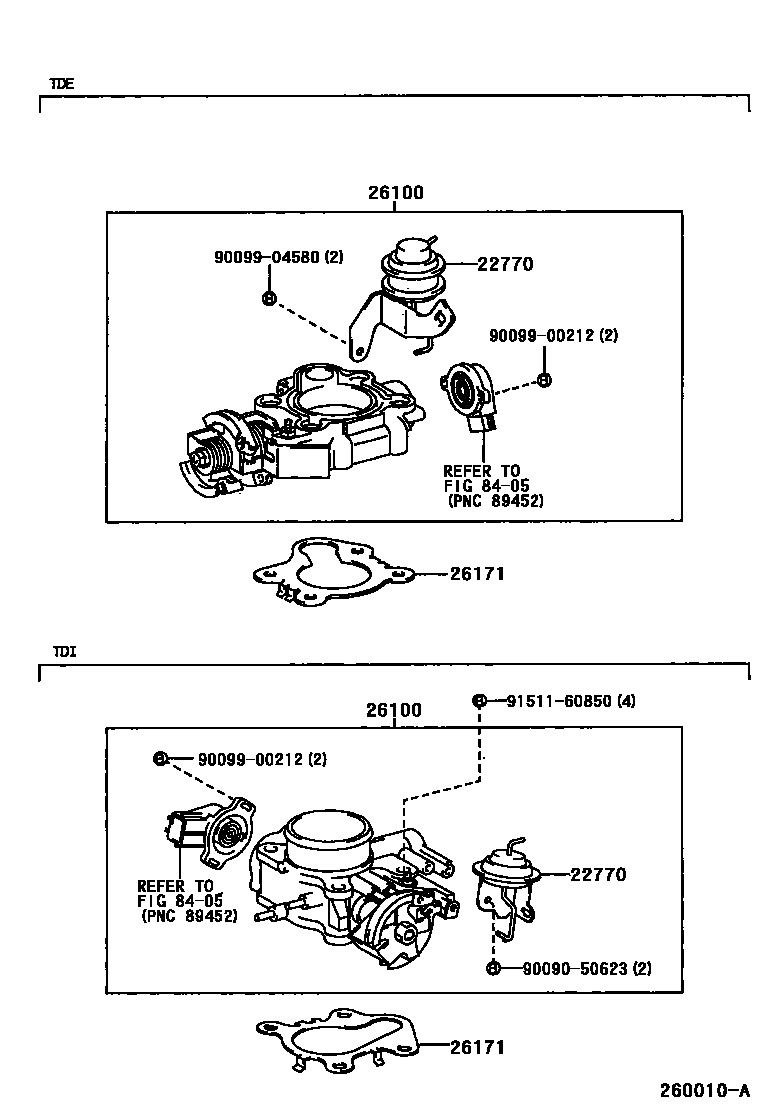

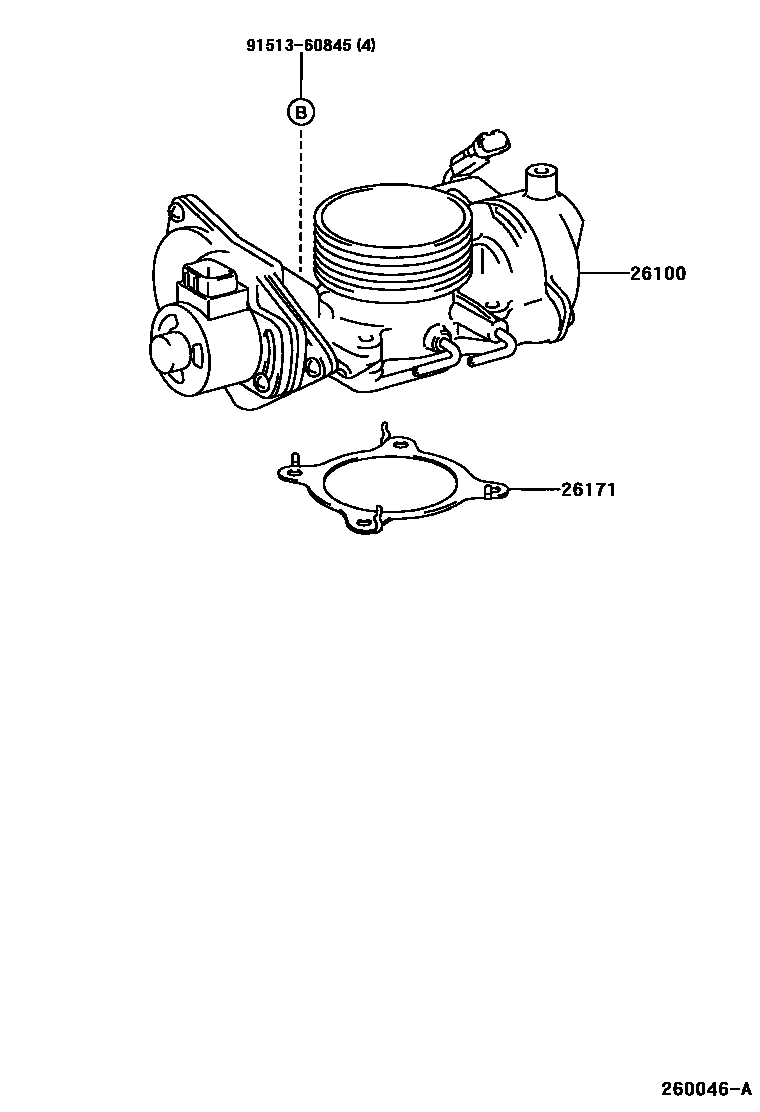

Toyota HILUX 文氏管 — Figure 2606
Toyota HILUX EPC diagram 2606, 文氏管, with 3 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22770 | Idle speed boost actuator | 26133-67010 · 26133-67070 |
| 26100 | Venturi assembly | 26100-67040 · 26100-67060 · 26100-67100 |
| 26100G | Diesel engine throttle body assembly | 26100-30010 · 26100-30030 |
| 26171 | Venturi gasket | 26171-30010 · 26171-30011 · 26171-67010 · 26171-67020 · 26171-67030 |
