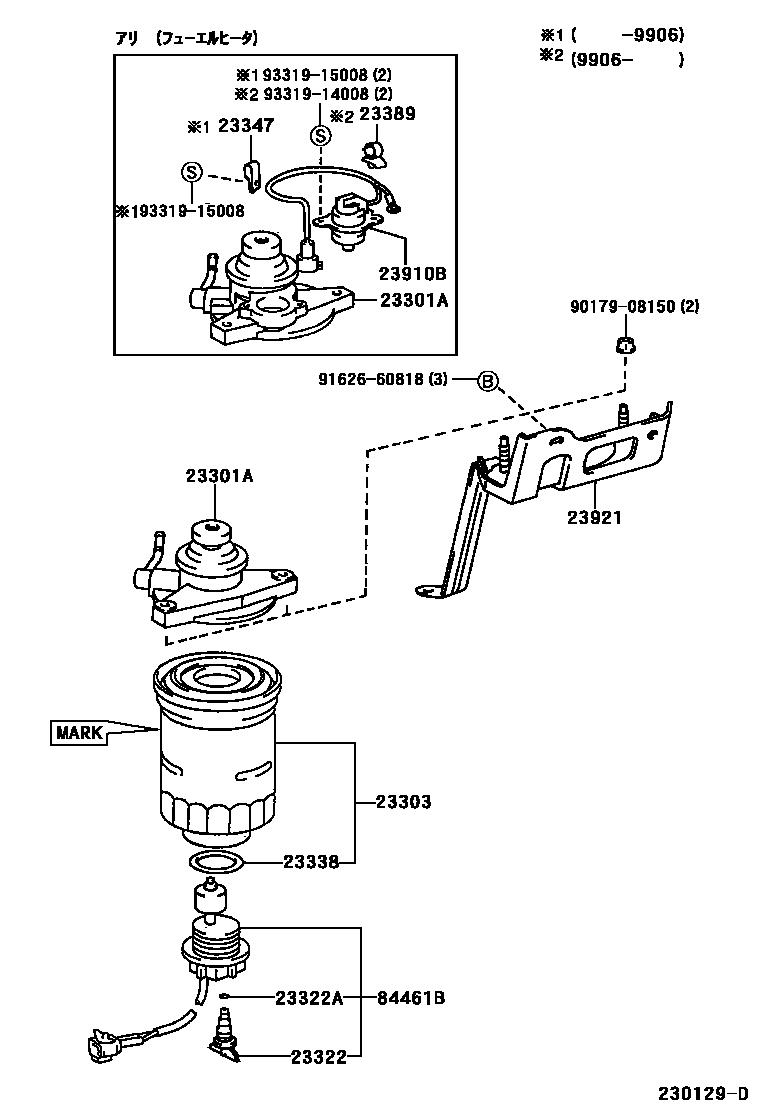

Toyota HILUX fuel filter — Figure 2302
Toyota HILUX EPC diagram 2302, fuel filter, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23301A | Fuel filter cover assembly | 23380-30020 · 23380-30030 · 23380-67120 · 23380-67130 · 23380-67260 · 23380-67270 |
| 23303 | Fuel filter element sub-assembly | 23303-64010 · 23390-64480 |
| 23322 | Drain plug (for fuel filter) | 23322-64020 |
| 23322A | O-ring (for drain plug) | 23344-54010 |
| 23338 | Gasket (for warning switch) | 23344-64010 |
| 23347 | Cable clip | 23347-54010 |
| 23389 | fuel filter clip | 23389-64490 |
| 23910B | Fuel heater assembly | 23910-27010 · 23910-67020 · 23910-67040 |
| 23921 | Fuel filter support | 23921-67040 |
| 84461B | Liquid level warning switch | 84461-35110 · 84461-60070 |
