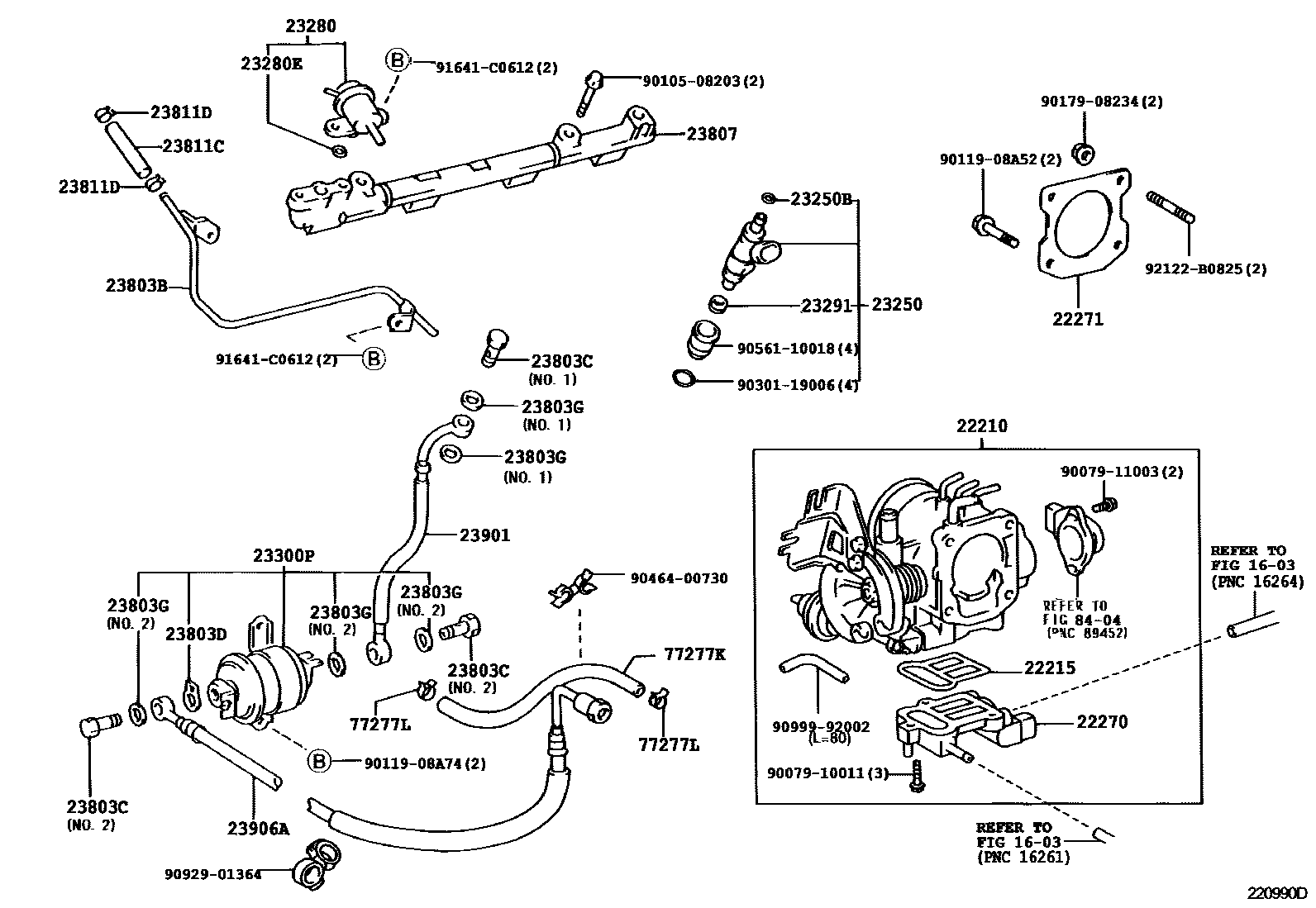

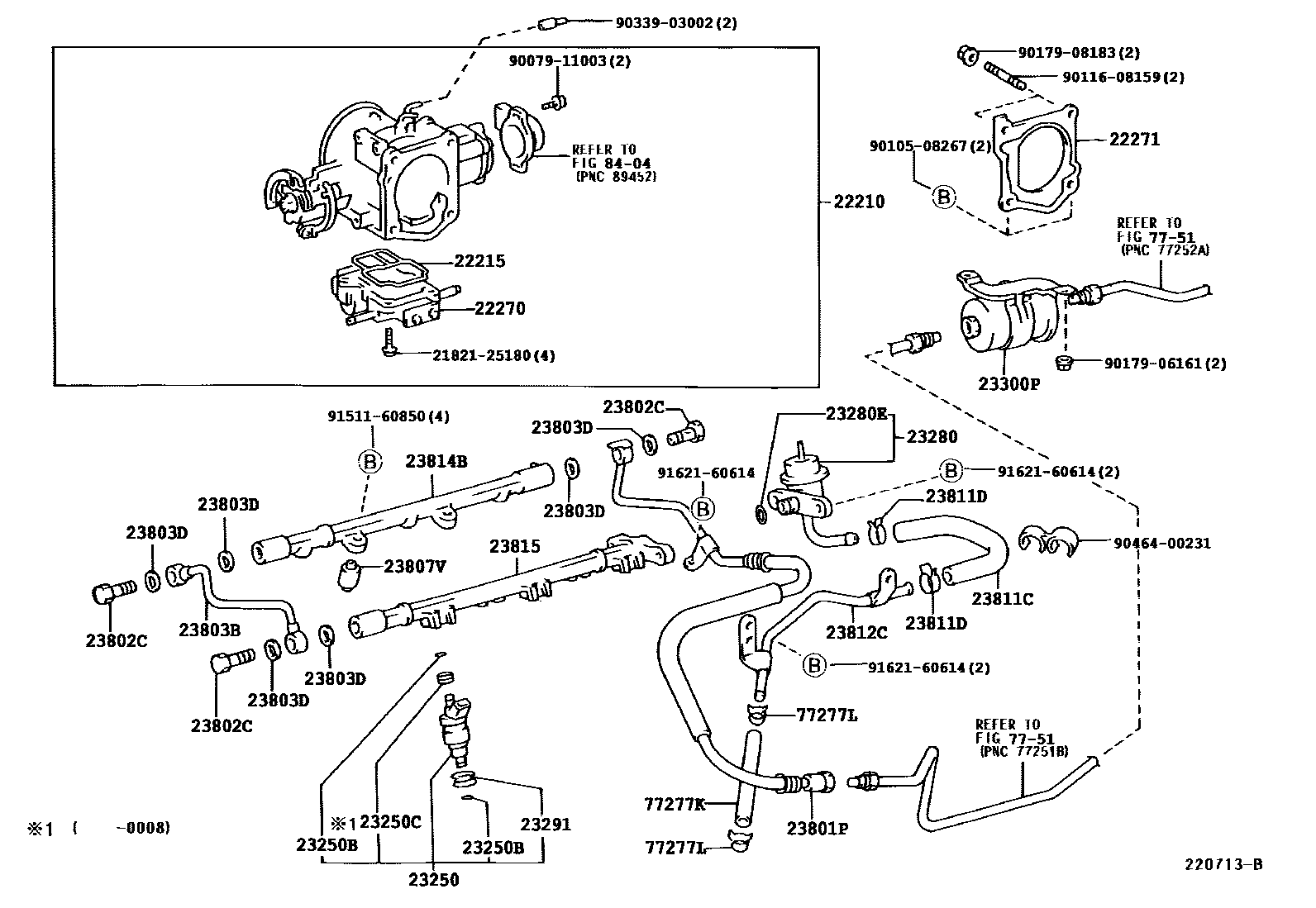

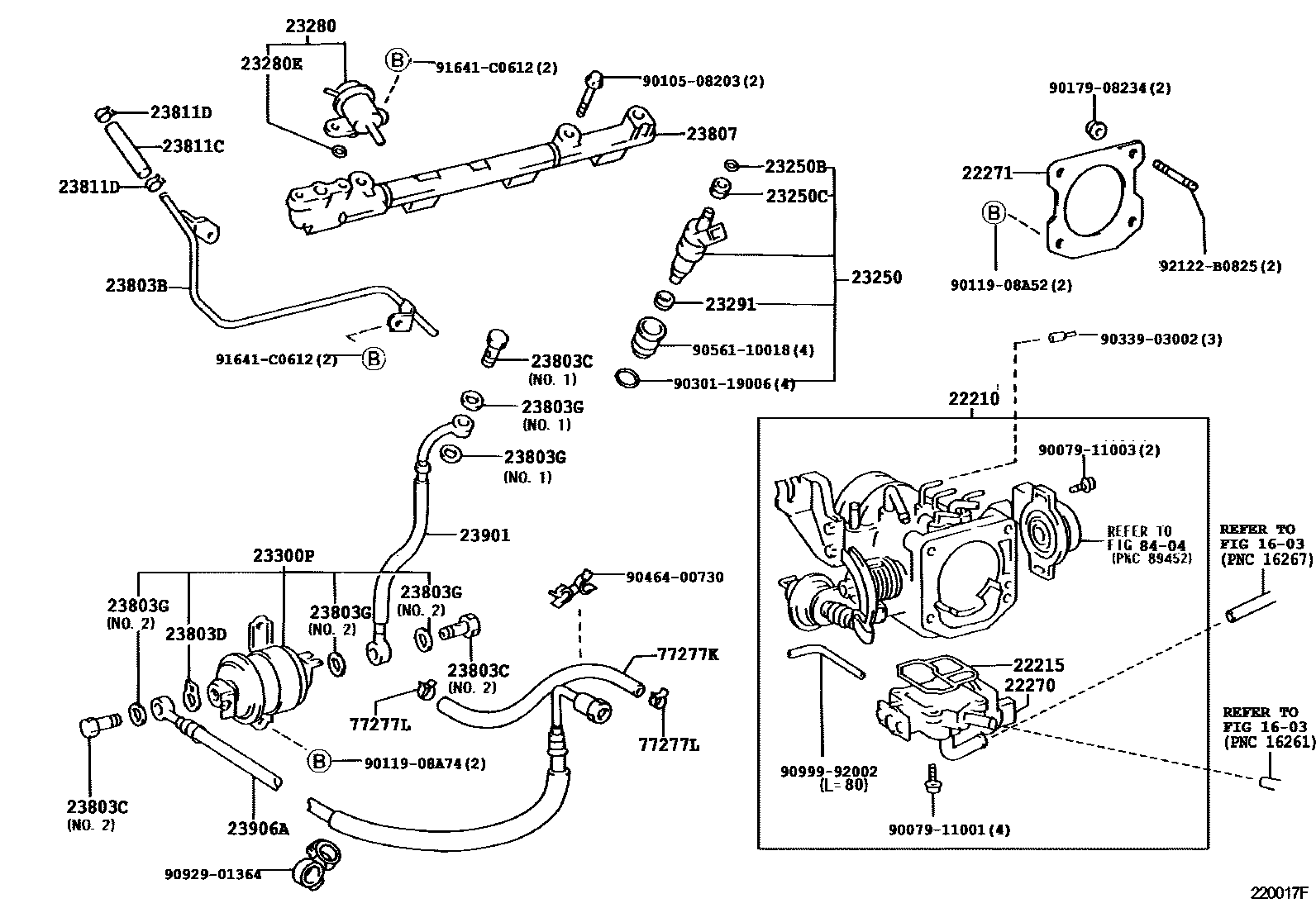

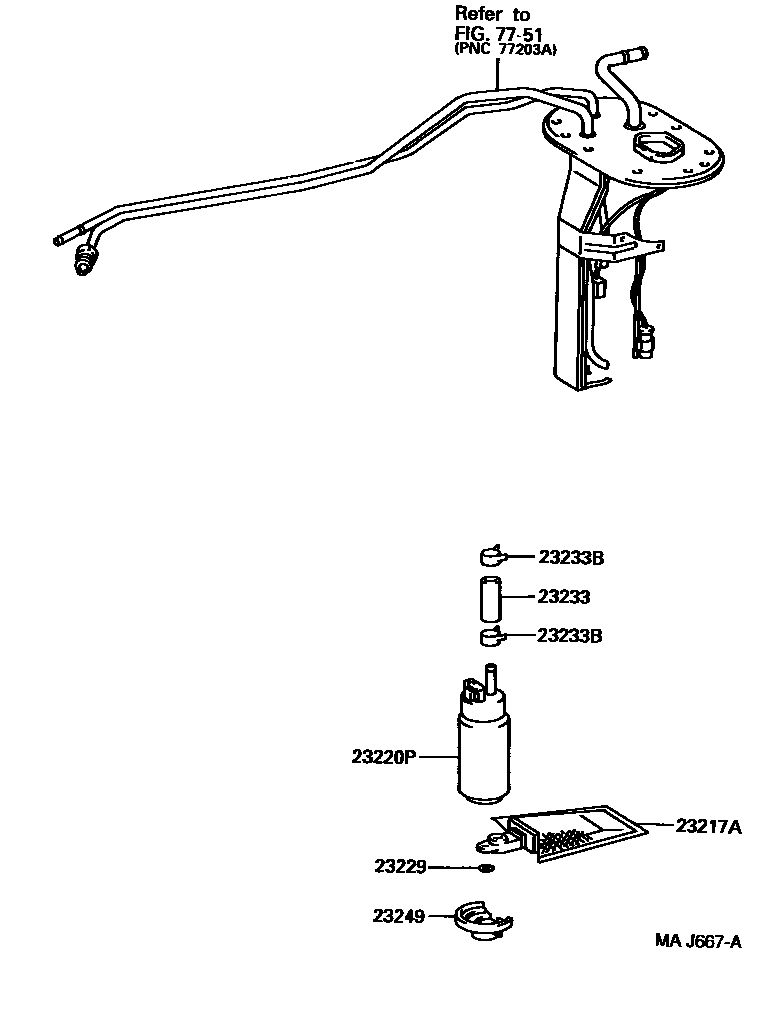

Toyota HILUX 燃油喷射系统 — Figure 2211
Toyota HILUX EPC diagram 2211, 燃油喷射系统, with 4 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22210 | Throttle body assembly | 22210-62230 · 22210-75130 · 22210-75180 · 22210-75240 |
| 22215 | Throttle body cover gasket | 22215-62180 · 22215-75050 · 22215-7A680 |
| 22270 | Idle speed control valve assembly (for throttle body) | 22270-62050 · 22270-75030 · 22270-75040 · 22270-75050 |
| 22271 | Throttle body gasket | 22271-62040 · 22271-75020 |
| 23217A | fuel pump filter | 23217-46090 |
| 23220P | fuel pump assembly | 23221-46010 |
| 23229 | Clip (for fuel pump filter) | 23229-16010 |
| 23233 | fuel pump hose | 23239-11010 |
| 23233B | Clamp (for fuel pump hose) | 90467-12067 |
| 23249 | Rubber gasket (for fuel pump) | 23249-74610 |
| 23250 | Fuel injector assembly | 23209-62030 · 23209-62040 · 23209-79095 · 23209-79135 |
| 23250B | O-ring (for fuel injector) | 90301-07001 · 90301-07024 |
| 23250C | Gasket (for injector) | 90480-13005 |
| 23280 | Fuel pressure regulator assembly | 23280-62030 · 23280-75020 |
| 23280E | O-ring (for fuel pressure regulator) | 90301-07001 · 90301-07024 |
| 23291 | Injector vibration isolation pad | 23291-20010 · 23291-62010 · 23291-73010 |
| 23300P | Fuel filter (for EFI) | 23300-62030 · 23300-79446 |
| 23801P | No. 1 fuel pipe sub-assembly | 23801-62070 · 23801-62071 |
| 23802C | Connector bolt (for No. 2 fuel pipe) | 90401-12036 |
| 23803B | No. 3 fuel pipe sub-assembly | 23803-62010 · 23803-75020 |
| 23803C | Gasket (No. 3 injector overflow pipe) | 90401-12033 · 90401-12097 |
| 23803D | Joint bolt (for No. 3 injector overflow pipe) | 90430-12017 · 90430-12026 |
| 23803G | Gasket (for fuel hose) | 23279-74010 · 90430-12026 |
| 23807 | Oil pipe sub-assembly | 23807-75020 · 23807-75021 |
| 23807V | No. 1 spacer (for oil pipe) | 90561-08020 |
| 23811C | Fuel hose (for fuel line to pressure regulator) | 23273-62010 · 90445-12290 · 95333-06020 · 95334-06012 |
| 23811D | Hose clip (for fuel hose) | 90467-11065 · 96135-41100 |
| 23812C | No. 2 fuel pipe | 23812-62041 |
| 23814B | oil pipeline | 23814-62050 |
| 23815 | No. 2 oil pipeline | 23815-62050 |
| 23901 | Fuel pipe sub-assembly | 23901-75030 · 23901-75031 · 23901-75050 |
| 23906A | Fuel hose sub-assembly | 23906-75040 |
| 77277K | Fuel hose (for oil return hose) | 23273-62030 · 23273-75040 · 23273-75050 |
| 77277L | Hose clip (for oil return hose) | 96135-41100 |
