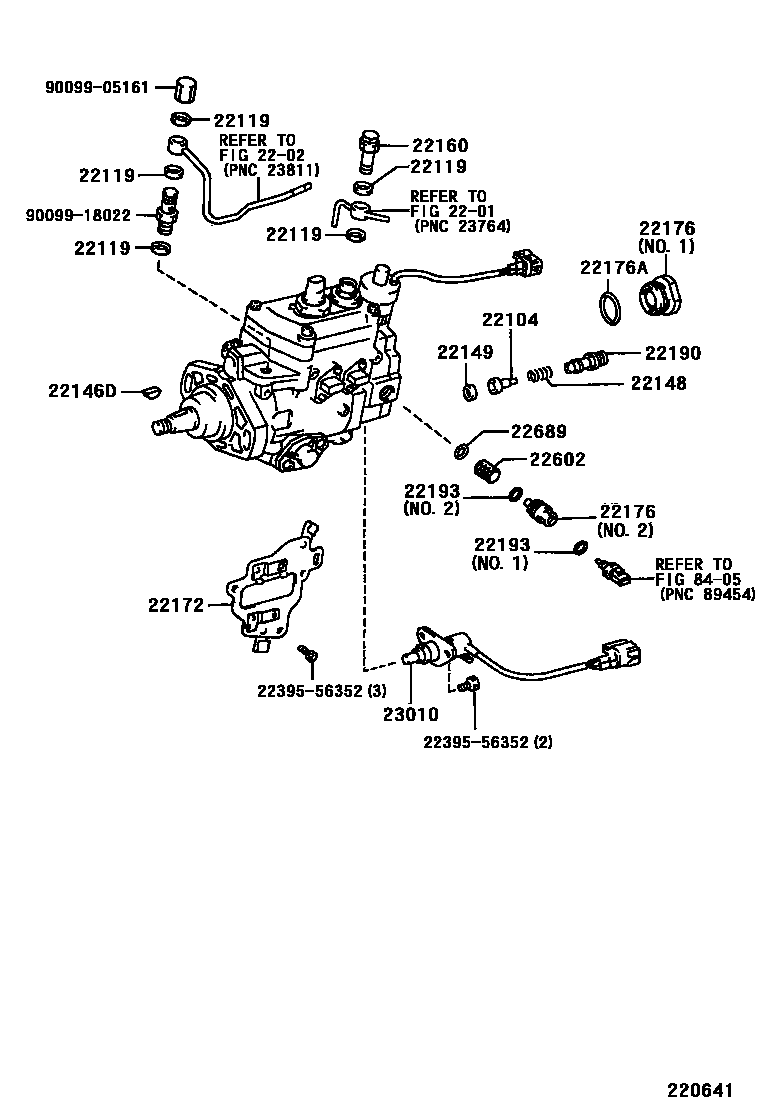

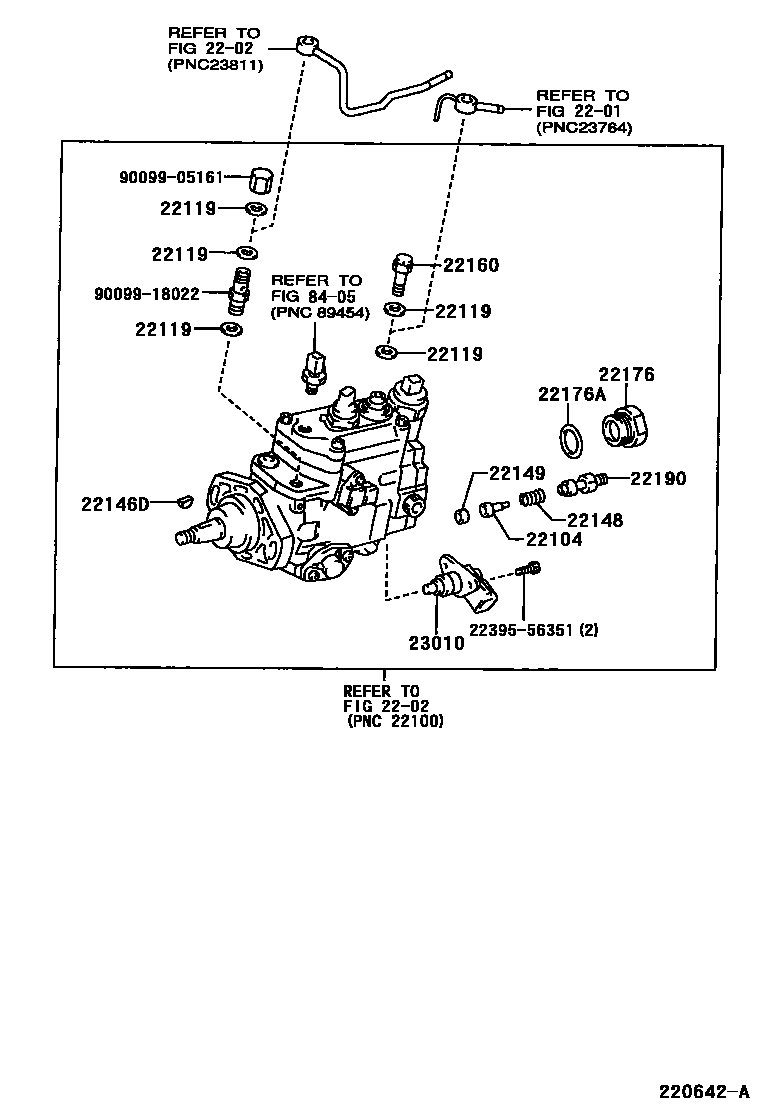

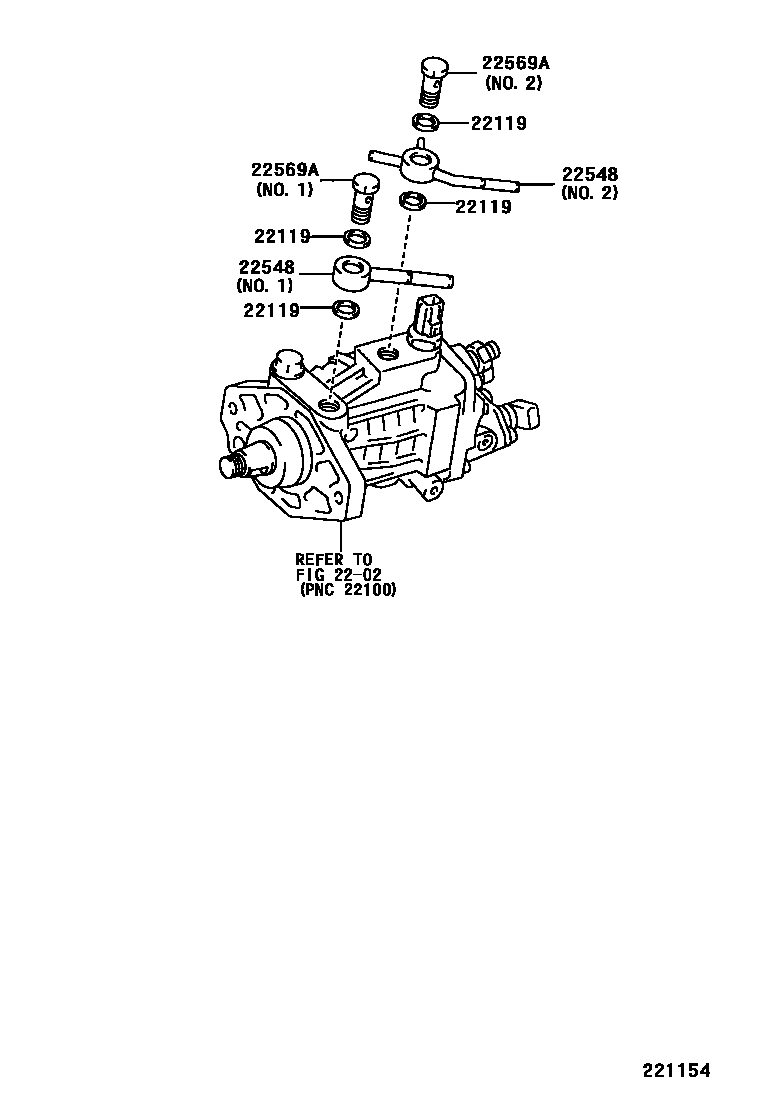

Toyota HILUX 喷油泵体 — Figure 2203
Toyota HILUX EPC diagram 2203, 喷油泵体, with 3 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22104 | Fuel injection pump delivery valve sub-assembly | 22104-17010 · 22104-67100 |
| 22119 | Bleed device oil nozzle gasket | 90201-12109 |
| 22146D | Key (for driving gear) | 90099-13017 · 90099-13018 |
| 22148 | Oil delivery valve spring | 22148-54010 |
| 22149 | Delivery valve gasket | 22149-56351 |
| 22160 | Overflow screw sub-assembly | 22160-67030 · 22160-67100 |
| 22172 | Solenoid valve connector bracket clip | 22172-67030 |
| 22176 | Distributor cap screw plug | 22176-54640 · 22176-67030 |
| 22176A | O-ring (for distributor cap screw plug) | 22193-54772 |
| 22190 | Damping valve sub-assembly | 22190-6A290 · 22190-6A680 |
| 22193 | O-ring (for connecting rod pin) | 22193-5B302 · 22193-67030 |
| 22548 | Rotary oil nozzle | 22548-30010 · 22548-30011 |
| 22569A | Fuel injection pump screw | 22569-1C170 · 22569-1C400 · 22569-27010 · 22569-30010 |
| 22602 | Fuel injection pump filter sub-assembly | 22602-56350 |
| 22689 | Washer (for rotary grease nipple) | 22689-56350 |
| 23010 | Timing control valve assembly | 23010-67010 · 23010-67030 |
