Toyota HILUX 喷油泵总成 — Figure 2202

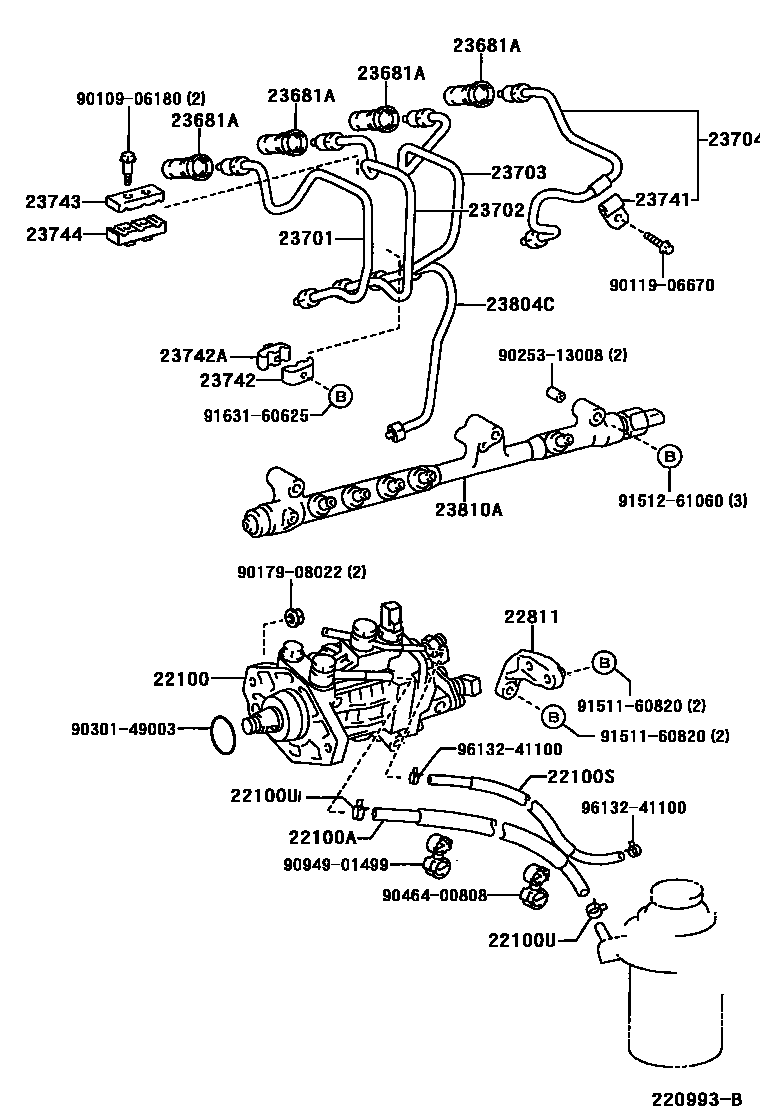

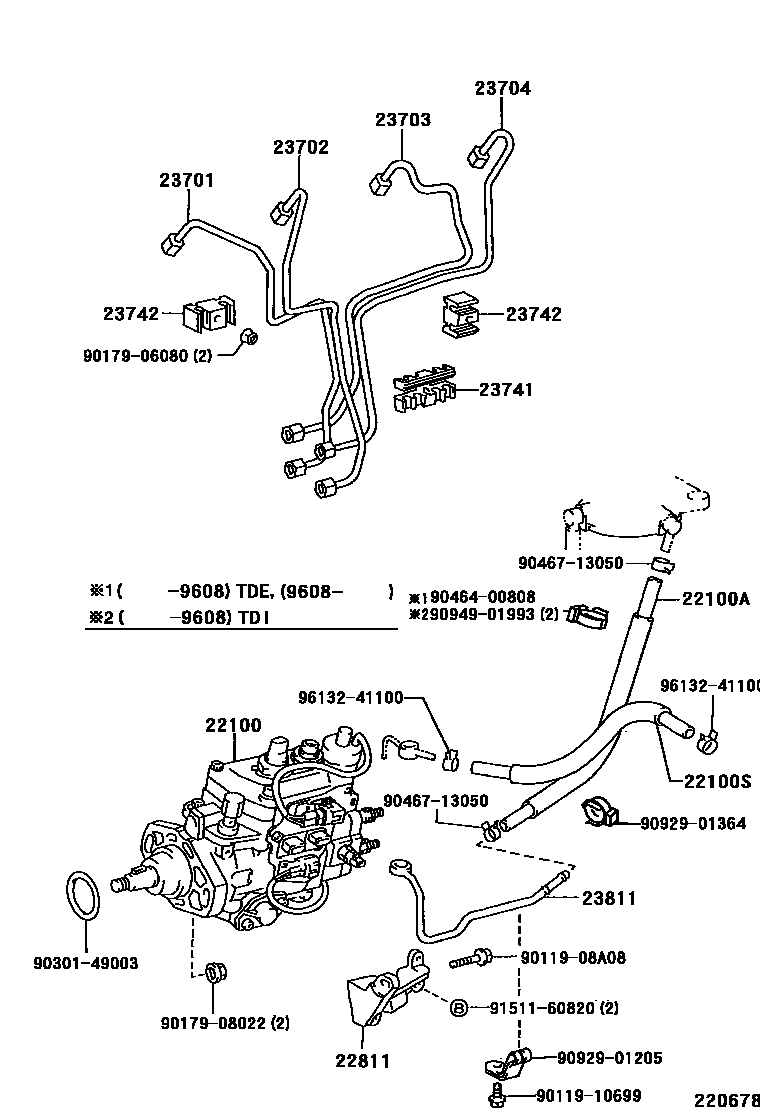

Toyota HILUX EPC diagram 2202, 喷油泵总成, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22100 | Fuel injection pump or fuel supply pump assembly | 22100-30010 · 22100-67070 · 22100-67100 |
| 22100A | Fuel hose or fuel line (for injection pump to fuel filter) | 23271-30010 · 23271-67080 · 23271-67110 |
| 22100S | Fuel hose (for injection pump to fuel pipe) | 23273-30010 · 23273-67040 · 23273-67070 |
| 22100U | Fuel hose clamp (for fuel injection pump) | 96135-41400 |
| 22811 | No. 1 fuel injection pump bracket | 22811-30010 · 22811-67010 |
| 23681A | Injector body seal | 23681-30010 |
| 23701 | No. 1 fuel injection pipe sub-assembly | 23701-30010 · 23701-67021 |
| 23702 | No. 2 fuel injection pipe sub-assembly | 23702-30010 · 23702-67020 · 23702-67021 |
| 23703 | No. 3 fuel injection pipe sub-assembly | 23703-30010 · 23703-67021 · 23703-67030 · 23703-67031 |
| 23704 | No. 4 fuel injection pipe sub-assembly | 23704-39015 · 23704-67020 |
| 23741 | No. 1 fuel injection pipe clamp | 23741-30010 · 23741-64030 |
| 23742 | No. 2 fuel injection pipe clamp | 23742-27010 · 23742-67010 |
| 23742A | No. 3 fuel injection pipe clamp | 23742-58020 |
| 23743 | No. 3 fuel injection pipe clamp | 23743-30010 · 23743-30011 |
| 23744 | No. 4 fuel injection pipe clamp | 23743-30020 · 23743-30021 |
| 23804C | Fuel inlet pipe sub-assembly | 23804-30010 |
| 23810A | Common rail assembly | 23810-30060 |
| 23811 | Fuel pipe (for fuel filter to injection pump) | 23811-67050 |
