Toyota HILUX 喷油嘴 — Figure 2201

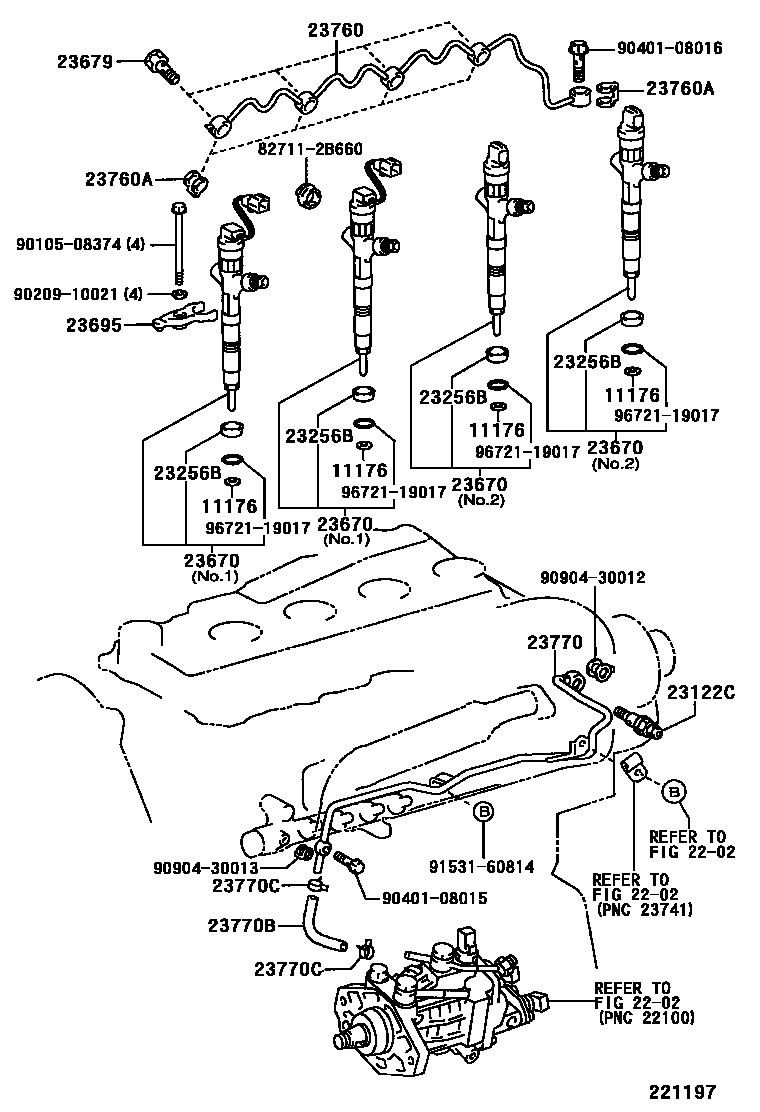

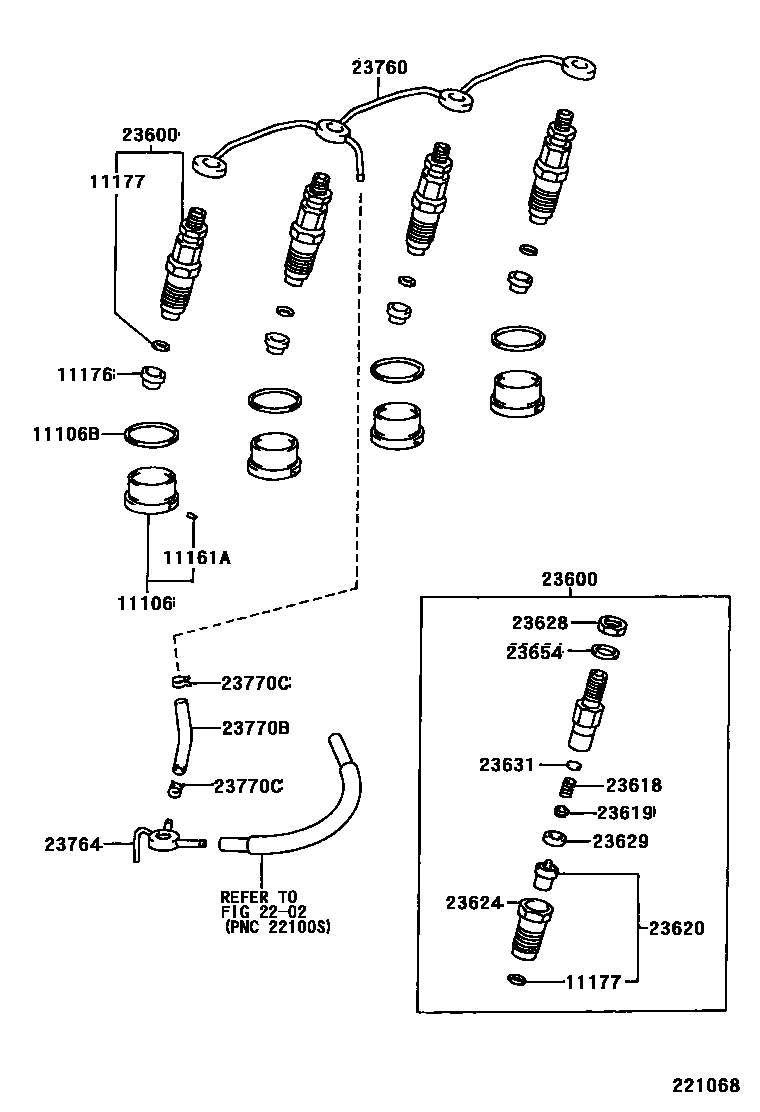

Toyota HILUX EPC diagram 2201, 喷油嘴, with 2 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11106 | Combustion chamber sub-assembly | 11106-67020 · 11106-67050 · 11106-67051 · 11106-67052 |
| 11106B | Gasket (for combustion chamber) | 11165-67020 · 11165-67030 · 11166-67020 · 11166-67030 |
| 11161A | Direct sales (for combustion chamber) | 90250-02046 |
| 11176 | Injector seat | 11176-30010 · 11176-67010 · 11176-67011 |
| 11177 | Injector seat gasket | 11177-64010 |
| 23122C | One-way valve | 23122-27010 · 23769-30010 |
| 23256B | No. 1 injector retaining ring | 23256-30010 |
| 23600 | Injector body and injector assembly | 23600-69105 · 23600-69165 |
| 23618 | Injector body pressure adjustment spring | 23618-54730 · 23618-64080 |
| 23619 | Injector body compression pin | 23619-64010 |
| 23620 | Fuel injector assembly | 23620-69075 · 23620-69105 |
| 23624 | Fuel injector fixing nut | 23624-64040 · 23624-64041 |
| 23628 | Nut (for fixing the sealing ring) | 23628-64010 |
| 23629 | Spacer (for fuel injector) | 23629-54080 |
| 23631 | Washer (for injector body pressure adjustment spring) | 23631-64010 · 23631-64012 · 23631-64014 · 23631-64016 · 23631-64018 · 23632-64010 · 23632-64012 · 23632-64014 · 23632-64016 · 23632-64018 · 23633-64010 · 23633-64012 · 23633-64014 · 23633-64016 · 23633-64018 · 23634-64010 · 23634-64012 · 23634-64014 · 23634-64016 · 23634-64018 · 23635-64010 · 23635-64012 |
| 23654 | Gasket (for sealing ring) | 23654-64010 |
| 23670 | Fuel injector assembly | 23670-30010 · 23670-30020 · 23670-39015 · 23670-39025 |
| 23679 | Fuel injector hollow screw | 23679-27010 · 23679-27020 |
| 23695 | No. 1 injector body clamp | 23695-30010 |
| 23760 | Fuel injector overflow pipe assembly | 23760-30010 · 23760-30020 · 23760-67020 · 23760-67030 |
| 23760A | padding | 90904-30008 · 90904-30013 |
| 23764 | No. 4 fuel injector overflow pipe | 23764-67010 |
| 23770 | No. 2 injector oil spill pipe assembly | 23770-30010 · 23770-30011 |
| 23770B | fuel hose | 23271-30020 |
| 23770C | Clip or clip (for fuel hose assembly) | 90467-10049 · 96135-41100 |
