Toyota HILUX vacuum tube — Figure 1708

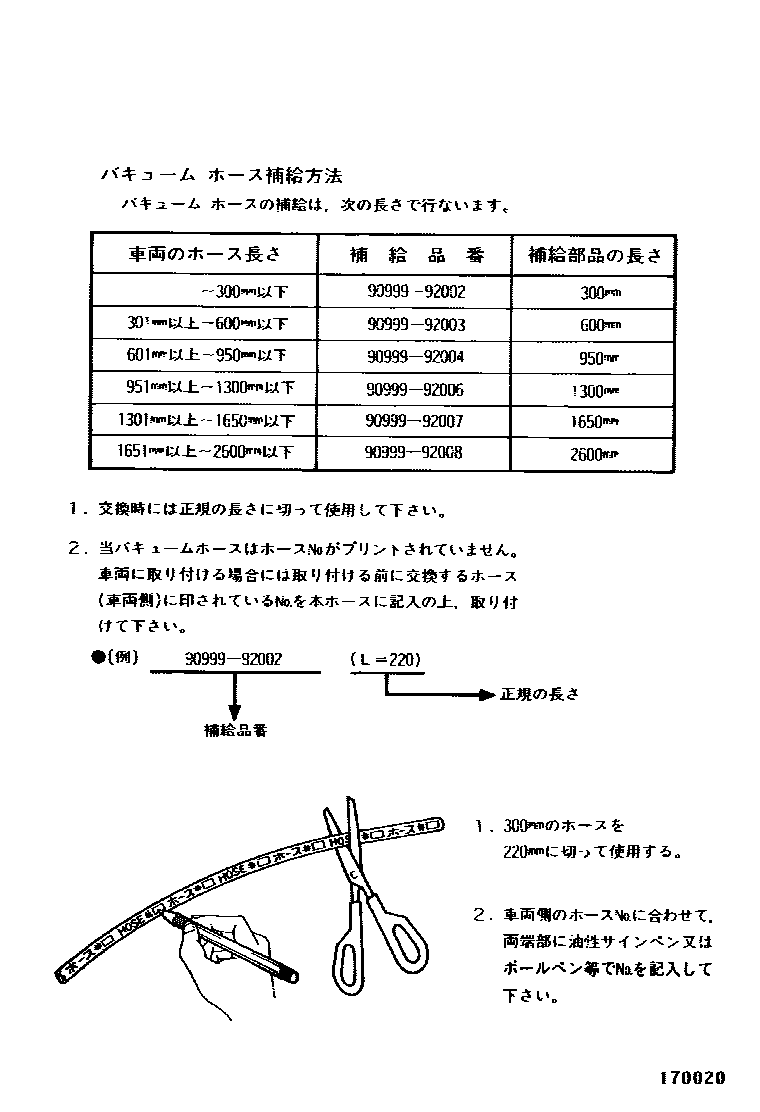

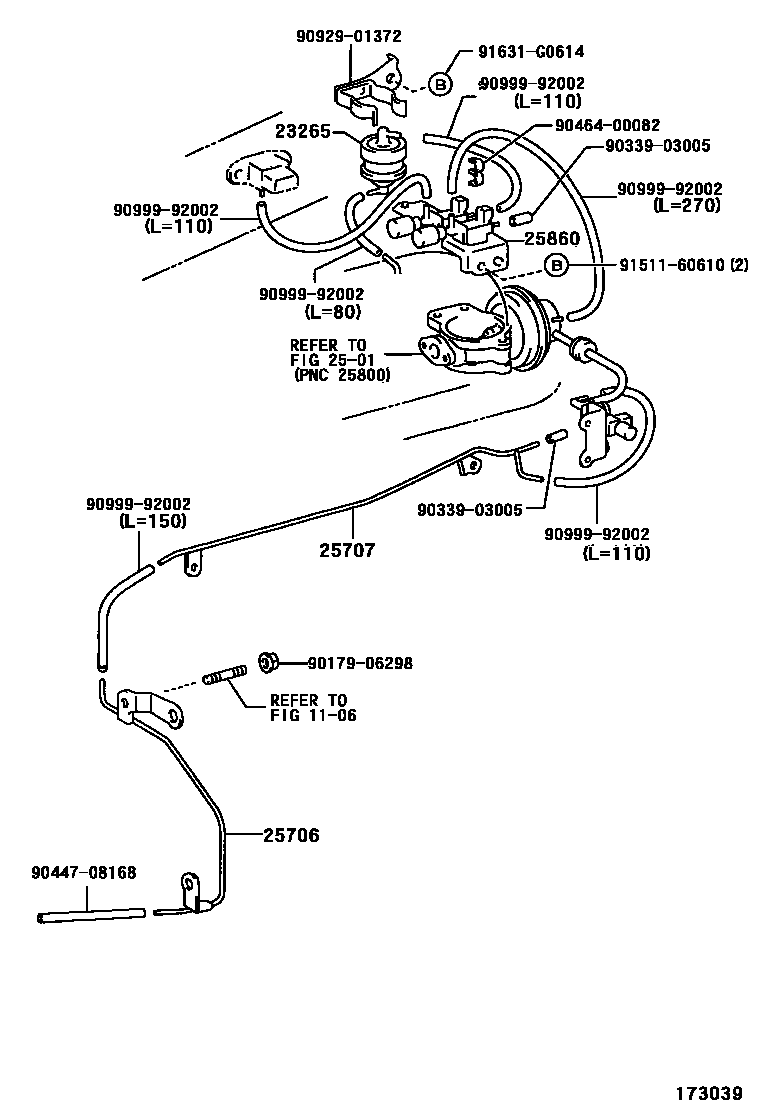

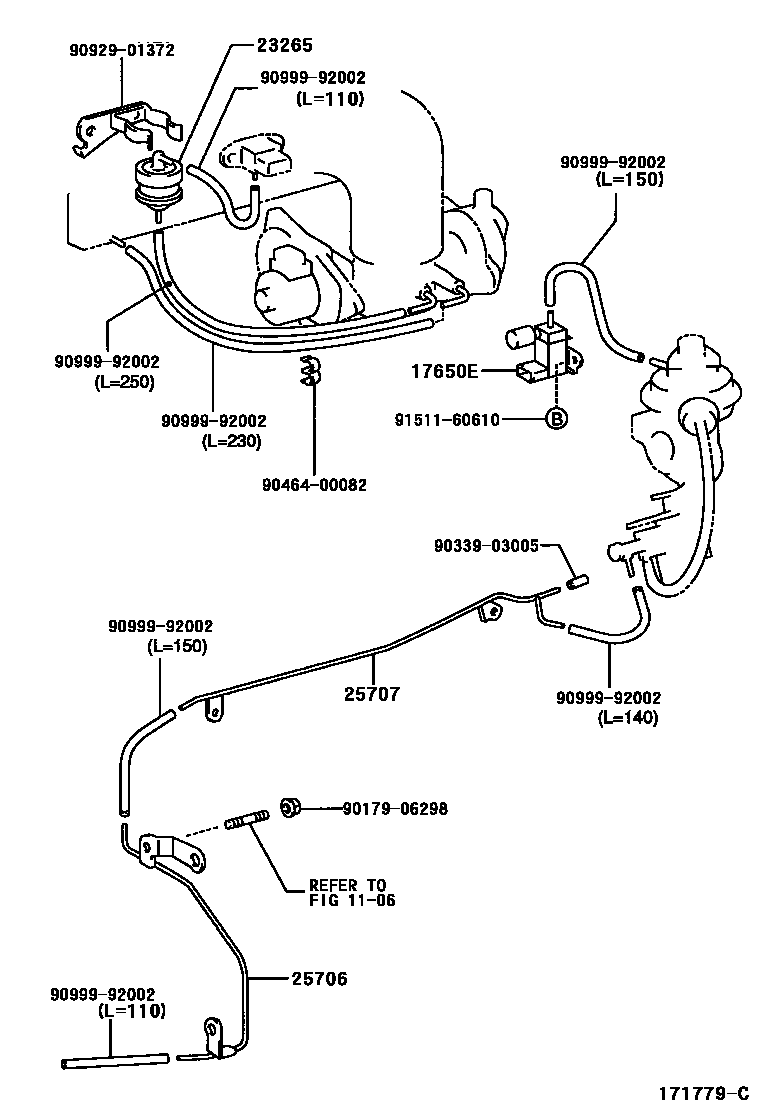

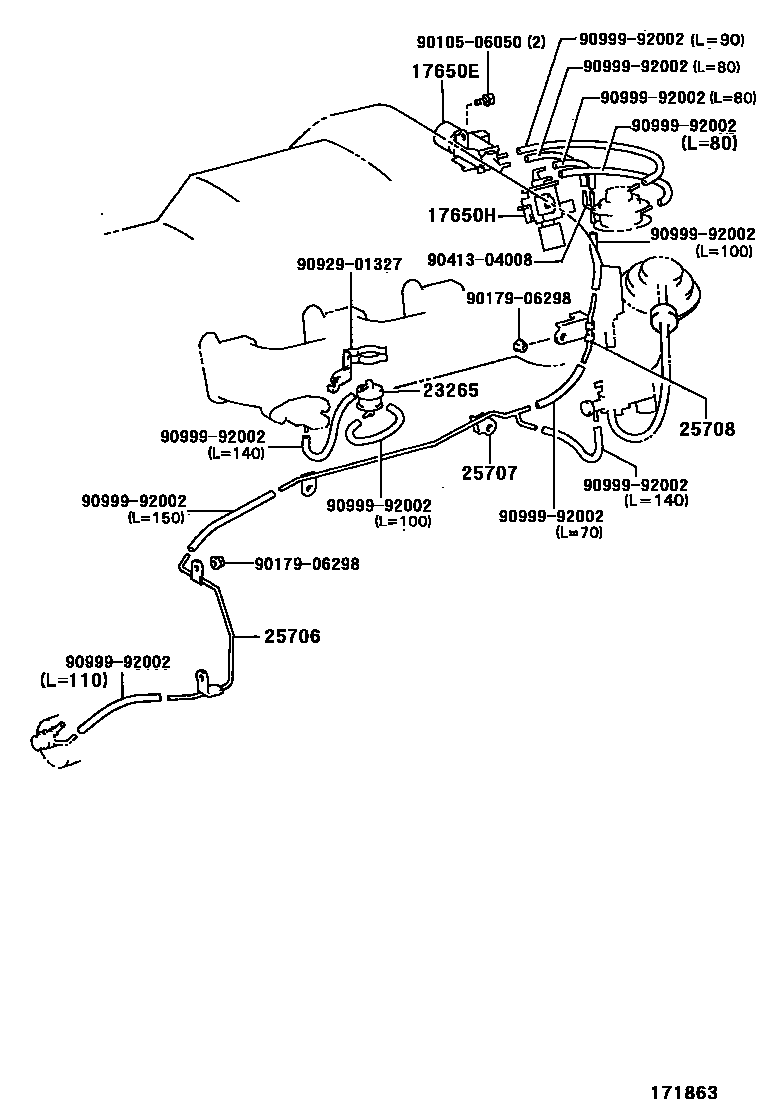

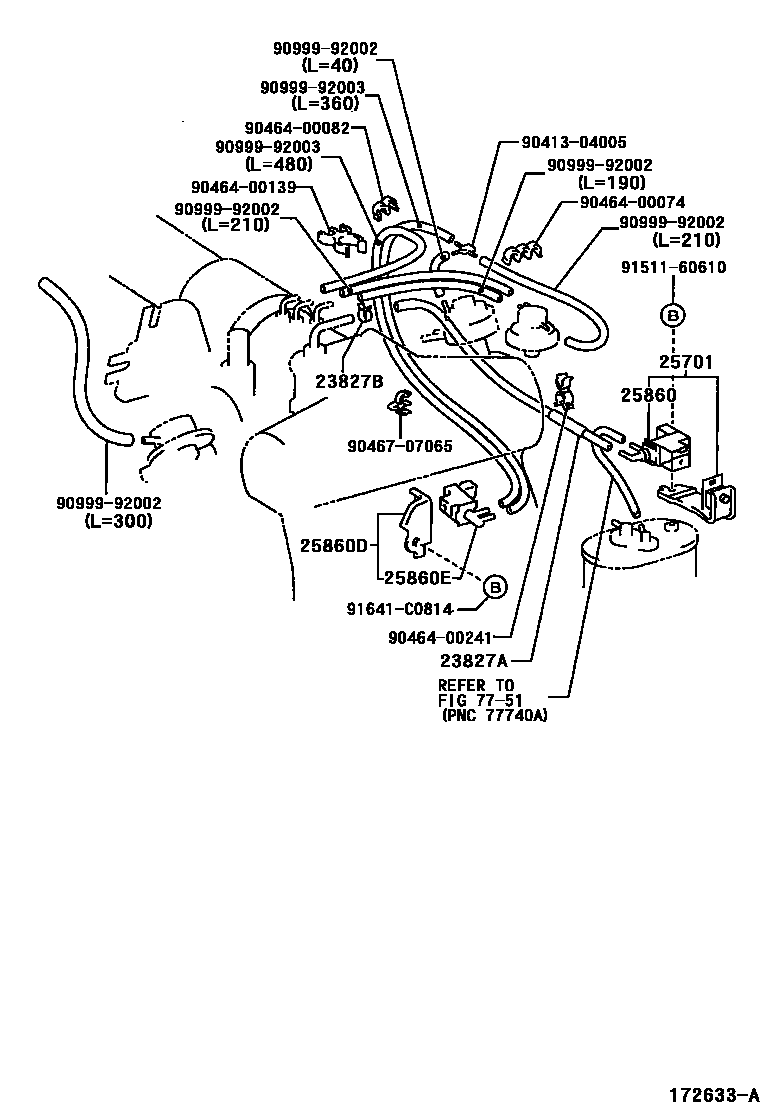

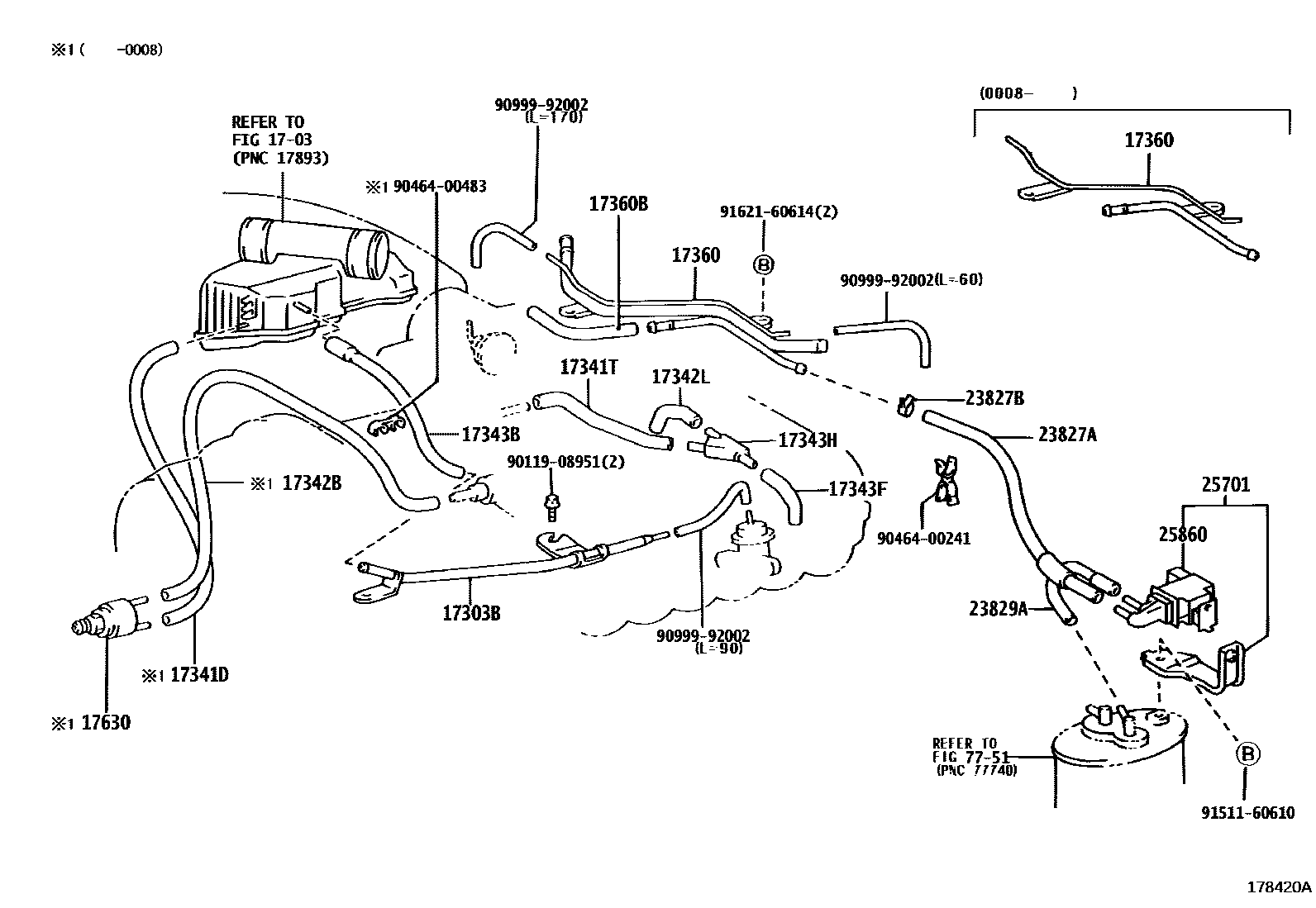

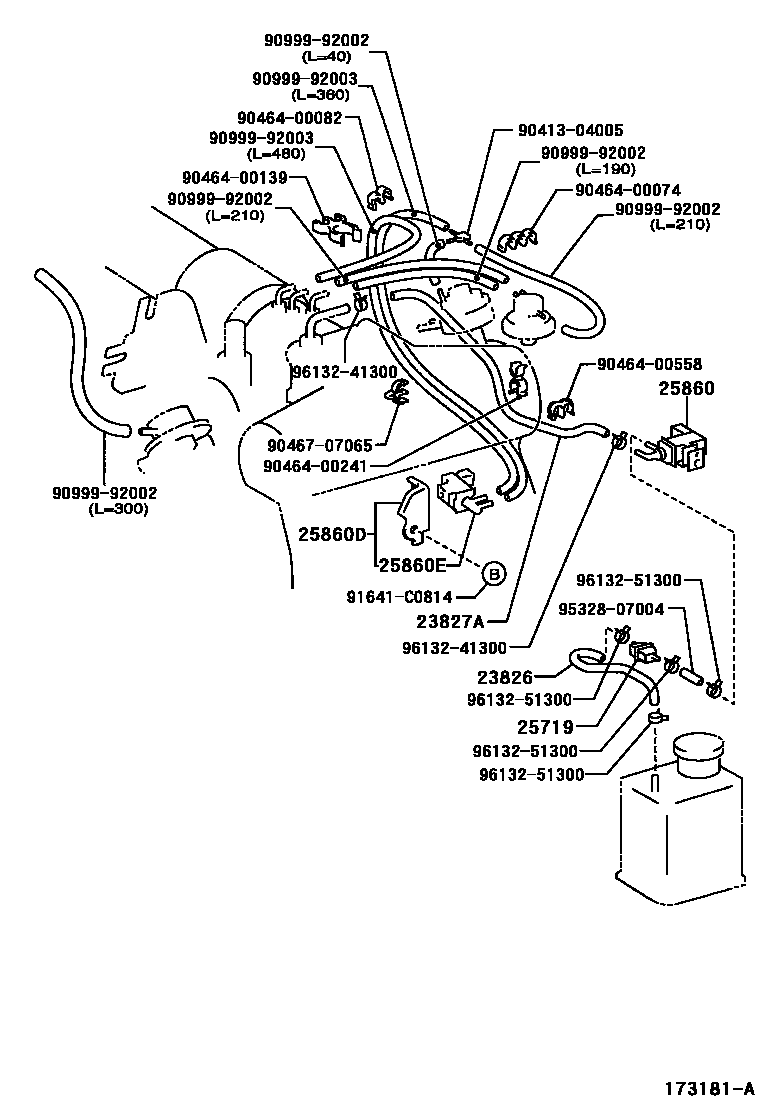

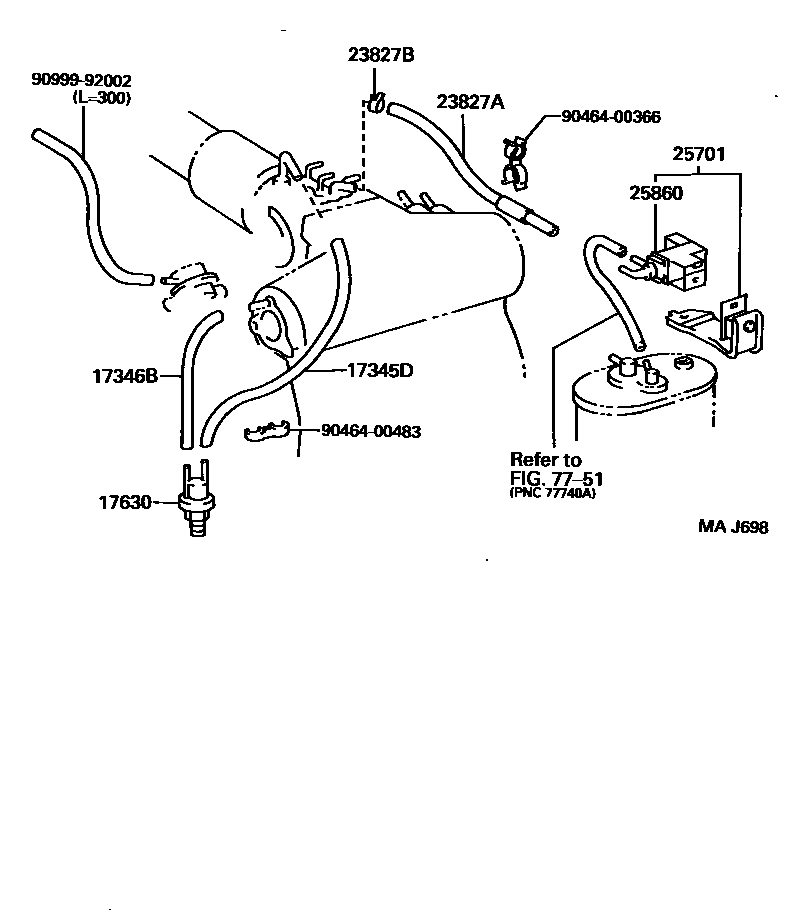

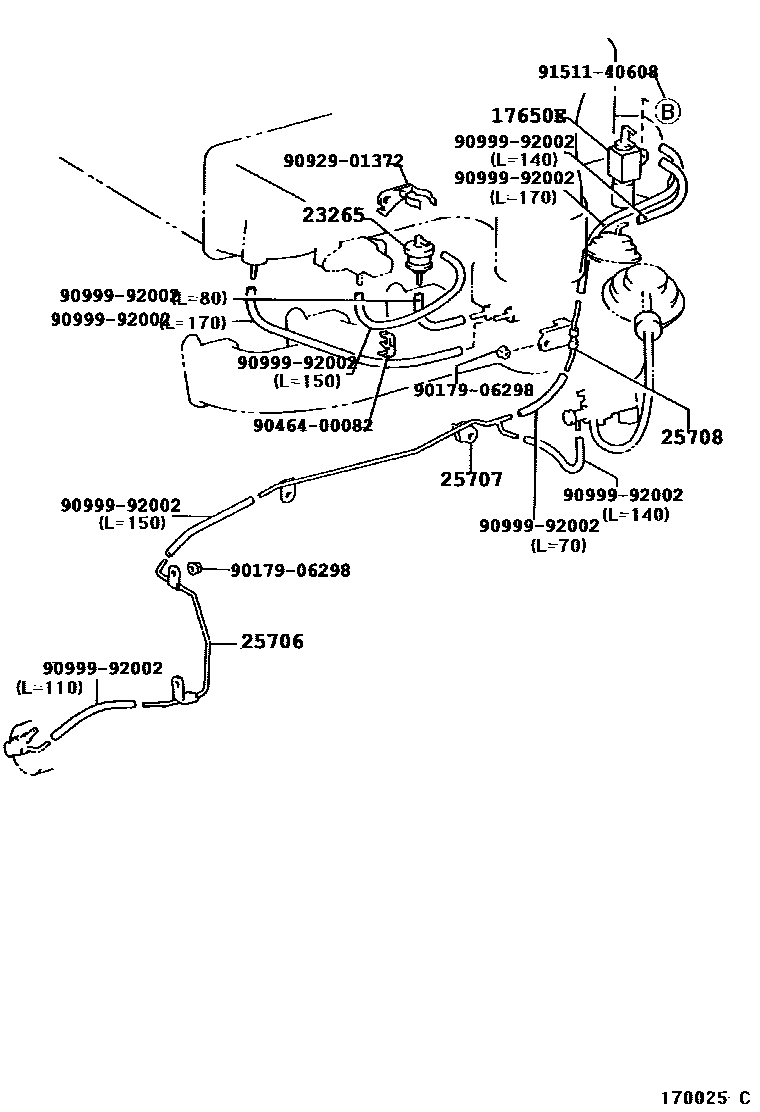

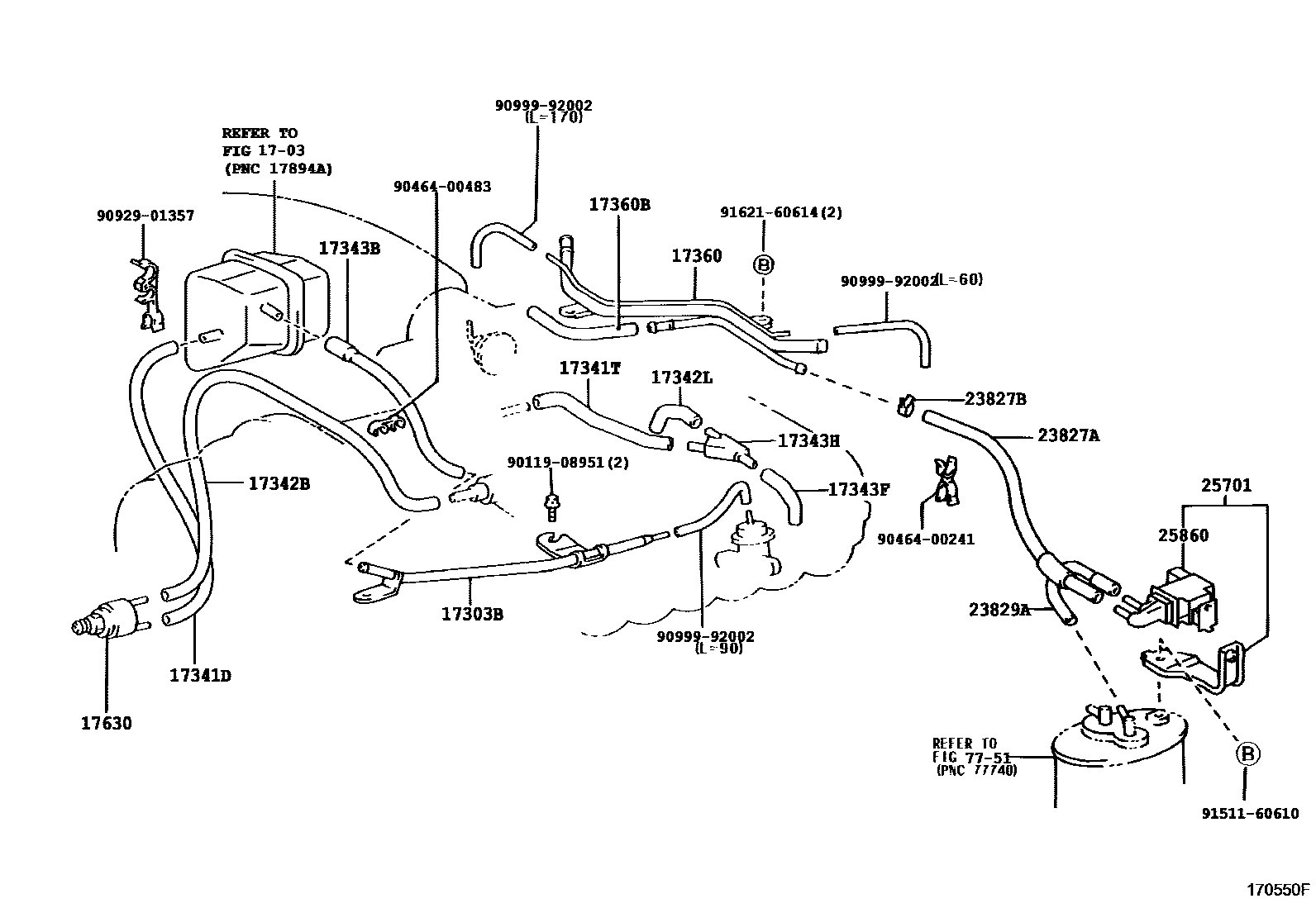

Toyota HILUX EPC diagram 1708, vacuum tube, with 10 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17303B | No. 1 air pipe sub-assembly | 17303-62020 |
| 17341D | No. 1 hose (for idle boost) | 17341-62050 · 17341-62070 |
| 17341T | Air hose No. 1 | 17341-62060 |
| 17342B | No. 2 hose (for idle boost) | 17342-62070 · 17342-62090 |
| 17342L | Air hose No. 2 | 17342-62080 |
| 17343B | No. 3 hose (for idle speed boost) | 17343-62090 · 17343-62110 |
| 17343F | No. 3 air hose | 17343-62080 |
| 17343H | Tee (for air hose) | 90904-13015 |
| 17345D | No. 5 air hose | 17345-75010 |
| 17346B | No. 6 air hose | 17346-75010 |
| 17360 | air pipe assembly | 17360-62010 · 17360-62011 |
| 17360B | Hoses (for air pipes) | 90445-12284 |
| 17630 | Air control valve assembly | 17630-15090 · 17630-70010 · 17630-70020 · 17630-74010 |
| 17650E | Vacuum switch valve | 90910-12126 · 90910-12185 |
| 17650H | Vacuum switch valve | 90910-12146 |
| 23265 | No. 1 gas filter | 90917-11036 · 90917-11038 · 90917-11044 |
| 23826 | No. 1 fuel vapor supply hose | 23826-62060 |
| 23827A | No. 2 fuel vapor supply hose | 23827-75050 · 23827-75200 · 23827-75260 · 90445-12292 |
| 23827B | Clamp (for No. 2 fuel vapor supply hose) | 96132-41300 · 96132-51000 |
| 23829A | Fuel vapor supply hose | 23829-62030 |
| 25701 | Emission control valve assembly | 25701-62030 · 25701-75020 · 25701-75021 |
| 25706 | No. 1 vacuum transfer tube sub-assembly | 25706-30010 · 25706-67010 · 25706-67020 |
| 25707 | No. 2 vacuum transfer pipe sub-assembly | 25707-67010 · 25707-67011 |
| 25708 | No. 3 vacuum transfer tube sub-assembly | 25708-67010 |
| 25719 | Vacuum pressure tank | 25719-50030 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-30010 · 25860-75100 · 25860-75180 · 25860-75181 · 25860-75230 |
| 25860D | No. 2 vacuum switch valve assembly | 25860-75060 |
| 25860E | No. 2 vacuum switch valve | 90910-12065 |
