Toyota HILUX Air Cleaner — Figure 1703

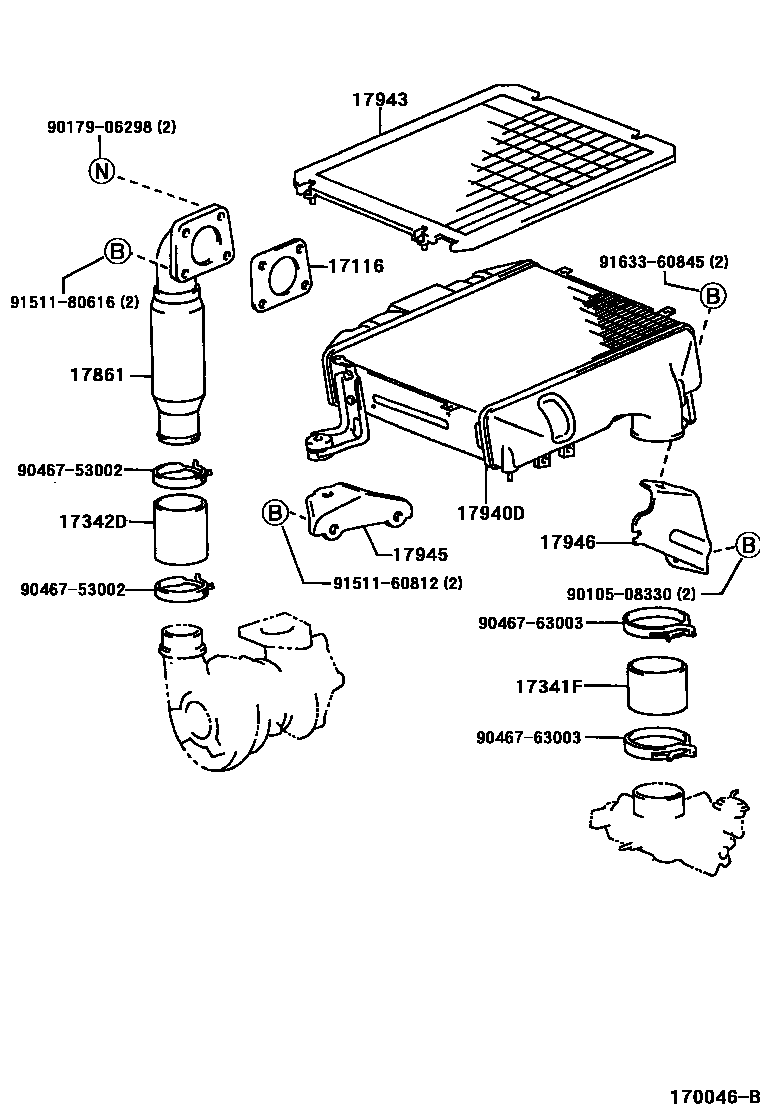

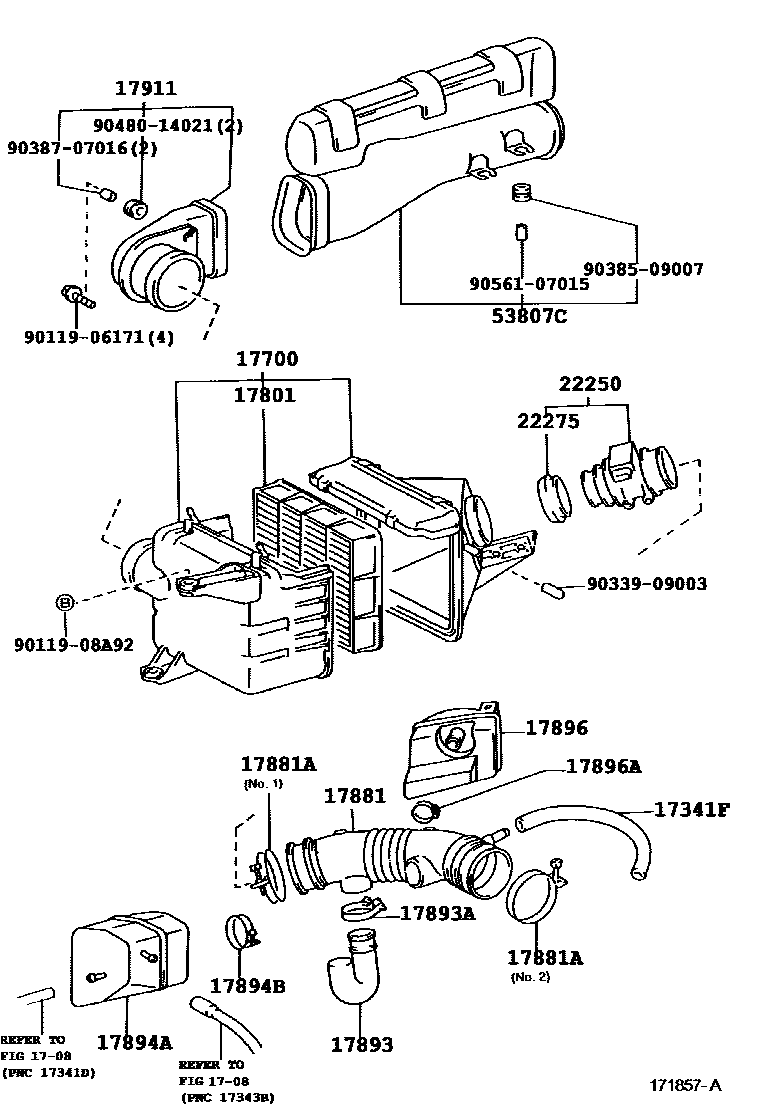

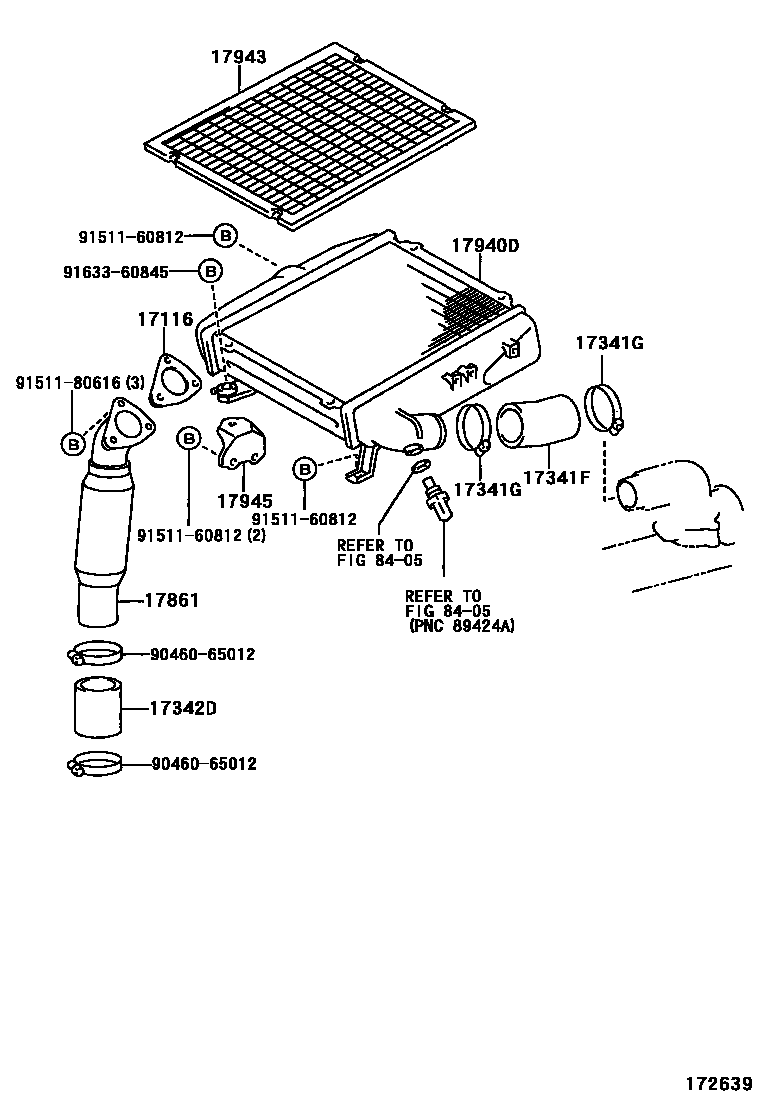

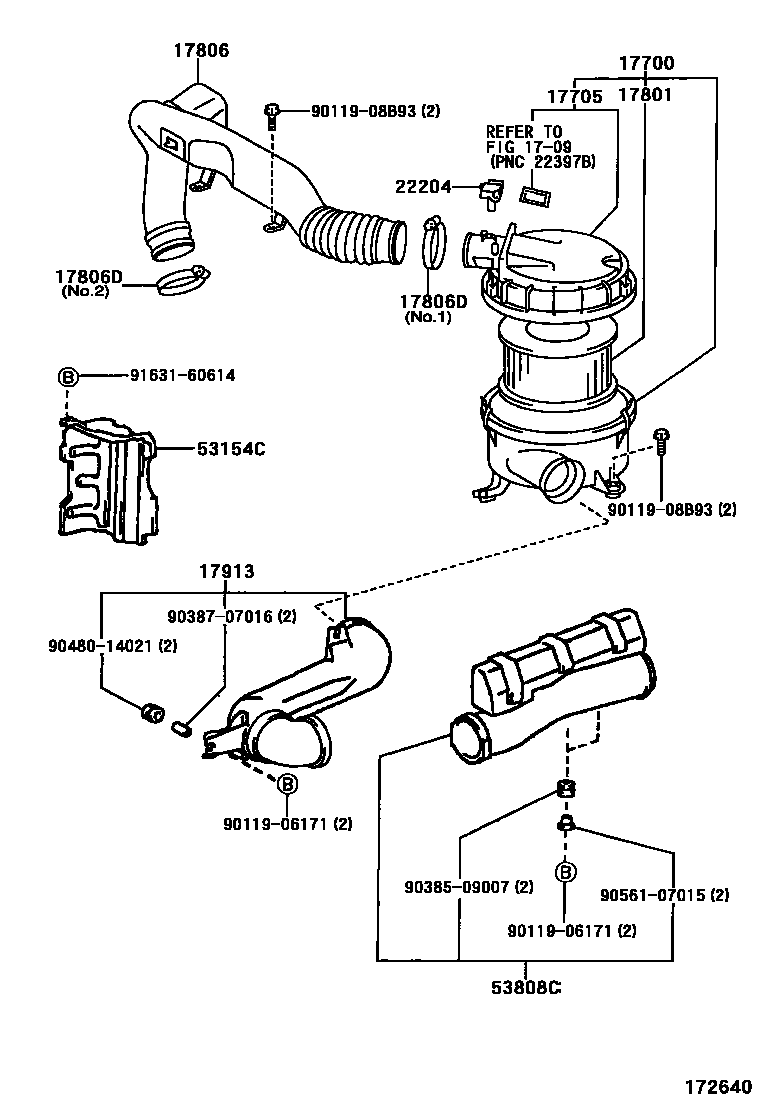

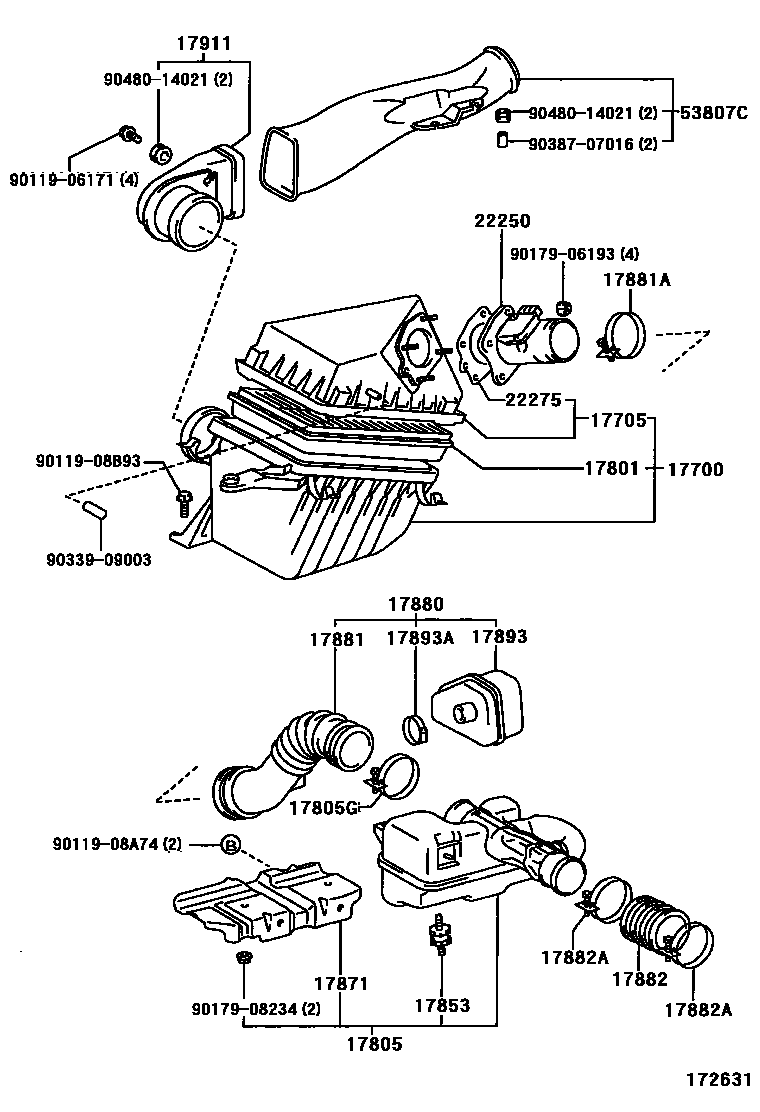

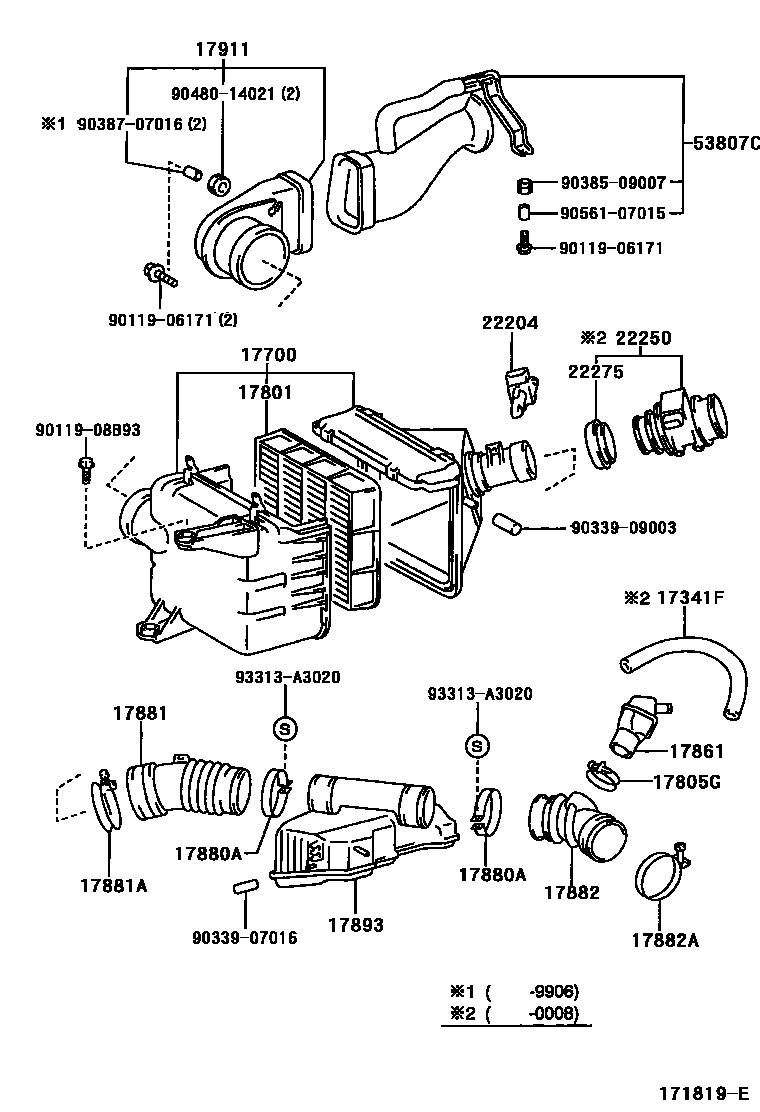

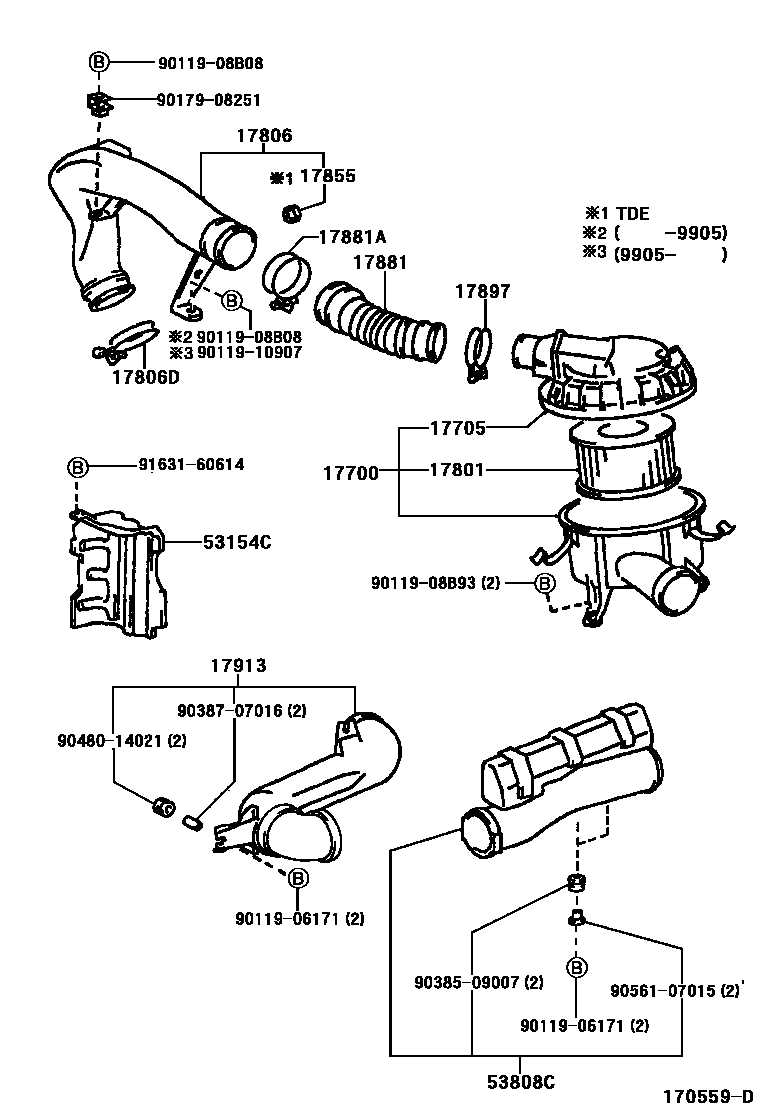

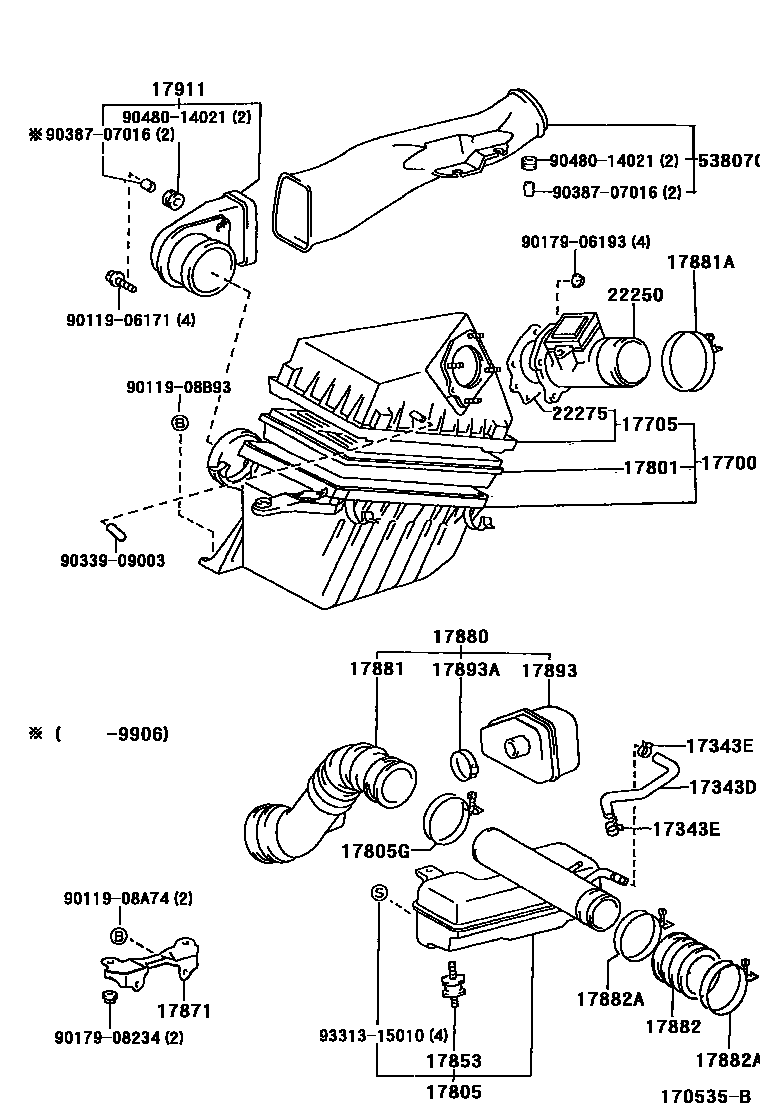

Toyota HILUX EPC diagram 1703, Air Cleaner, with 8 images and 42 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17116 | Intake flange gasket | 17116-30010 · 17116-67020 |
| 17341F | Air hose No. 1 | 12261-62050 · 17341-30010 · 17341-67010 · 90445-18148 |
| 17341G | Clip or clip (for No. 1 air hose) | 90460-80006 |
| 17342D | Air hose No. 2 | 17342-30010 · 17342-67010 · 17342-67030 |
| 17343D | No. 3 air hose | 17343-75010 |
| 17343E | Hose clamp (for size 3 air hose) | 96134-42100 |
| 17700 | air filter assembly | 17700-0C010 · 17700-0C020 · 17700-30060 · 17700-62050 · 17700-62100 · 17700-67110 |
| 17705 | Air filter cover sub-assembly | 17705-0C010 · 17705-0C020 · 17705-30030 · 17705-67100 |
| 17801 | Air filter element sub-assembly | 17801-08010 · 17801-30030 · 17801-46060 · 17801-67030 |
| 17805 | Intake connecting pipe sub-assembly | 17805-75100 · 17805-75170 · 17805-75171 |
| 17805G | Hose clamp (for air connector) | 96111-10500 · 96111-10830 |
| 17806 | No. 2 air filter pipe assembly | 17806-30010 · 17806-67010 · 17806-67020 |
| 17806D | Clamp (for air cleaner tube) | 96111-10690 · 96111-10780 · 96111-10800 |
| 17853 | Air filter bracket vibration isolation pad | 17853-75010 · 17853-75020 |
| 17855 | No. 1 air inlet duct gasket | 17855-67010 |
| 17861 | Intake connecting pipe | 17659-62010 · 17860-30010 · 17860-67010 |
| 17871 | Air intake connecting pipe stay | 17871-75010 · 17871-75011 · 17871-75020 |
| 17880 | Air cleaner hose assembly | 17880-0C010 |
| 17880A | hose clamp | 90460-73002 |
| 17881 | No. 1 air cleaner hose | 17881-0C010 · 17881-62090 · 17881-62091 · 17881-62150 · 17881-67070 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10830 · 96111-10900 |
| 17882 | No. 2 air cleaner hose | 17882-0C010 · 17882-62010 · 17882-62020 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 96111-10800 · 96111-10830 |
| 17893 | Intake resonator | 17893-0C010 · 17893-62040 · 17893-62060 · 17893-62070 |
| 17893A | hose clamp | 90080-46185 · 96111-10530 |
| 17894A | No. 2 intake resonator | 17894-62020 |
| 17894B | Hose clamp (for intake resonator No. 2) | 96111-10710 |
| 17896 | No. 3 intake resonator | 17896-62010 |
| 17896A | Hose clamp (for intake resonator No. 3) | 96111-10330 |
| 17897 | Hose clamp (for air cleaner) | 96111-10830 |
| 17911 | No. 1 cold air intake pipe | 52810-35010 |
| 17913 | No. 3 cold air intake pipe | 52830-35010 |
| 17940D | Intercooler assembly | 17940-30010 · 17940-67010 · 17940-67030 |
| 17943 | Intercooler protection device | 17943-30010 · 17943-67010 |
| 17945 | intercooler bracket | 17945-30010 · 17945-67010 |
| 17946 | No. 2 intercooler bracket | 17946-67010 |
| 22204 | Intake air flow meter assembly | 22204-21010 · 22204-30010 |
| 22250 | Intake air flow meter assembly | 22250-20020 · 22250-75010 · 22250-75020 |
| 22275 | air flow meter gasket | 22275-0C010 · 22275-20010 |
| 53154C | Radiator grille left deflector | 53154-35010 |
| 53807C | Right front fender air duct sub-assembly | 53807-35020 · 53807-35040 · 53807-35070 |
| 53808C | Left front fender air duct sub-assembly | 53808-35020 · 53808-35050 |
