Toyota HILUX Exhaust Pipe — Figure 1702

Toyota HILUX EPC diagram 1702, Exhaust Pipe, with 7 images and 31 PNC and OE references.

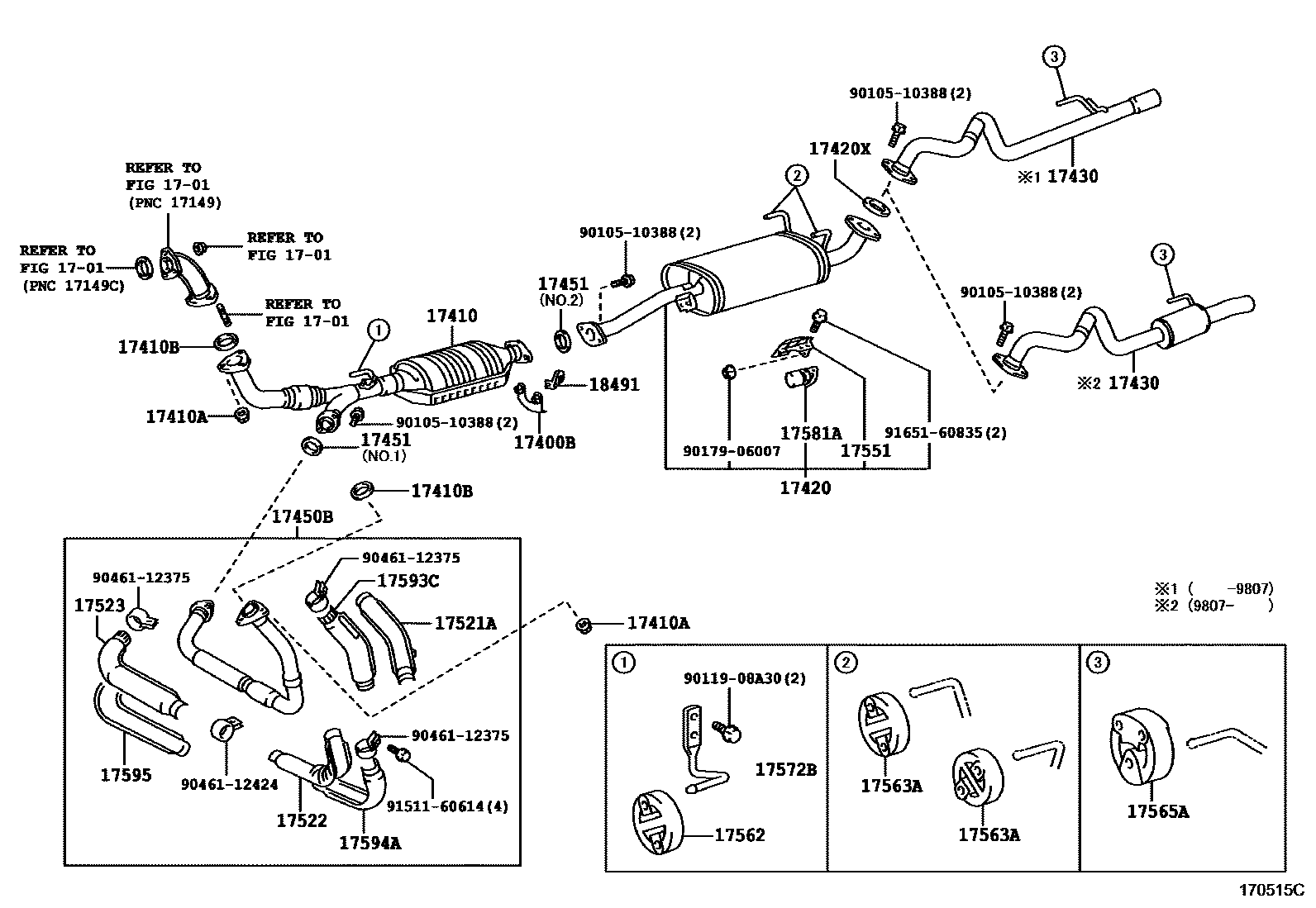

Toyota HILUX Exhaust Pipe EPC diagram — 170515C
Exhaust Pipe — 170515C (199511 – 999999)

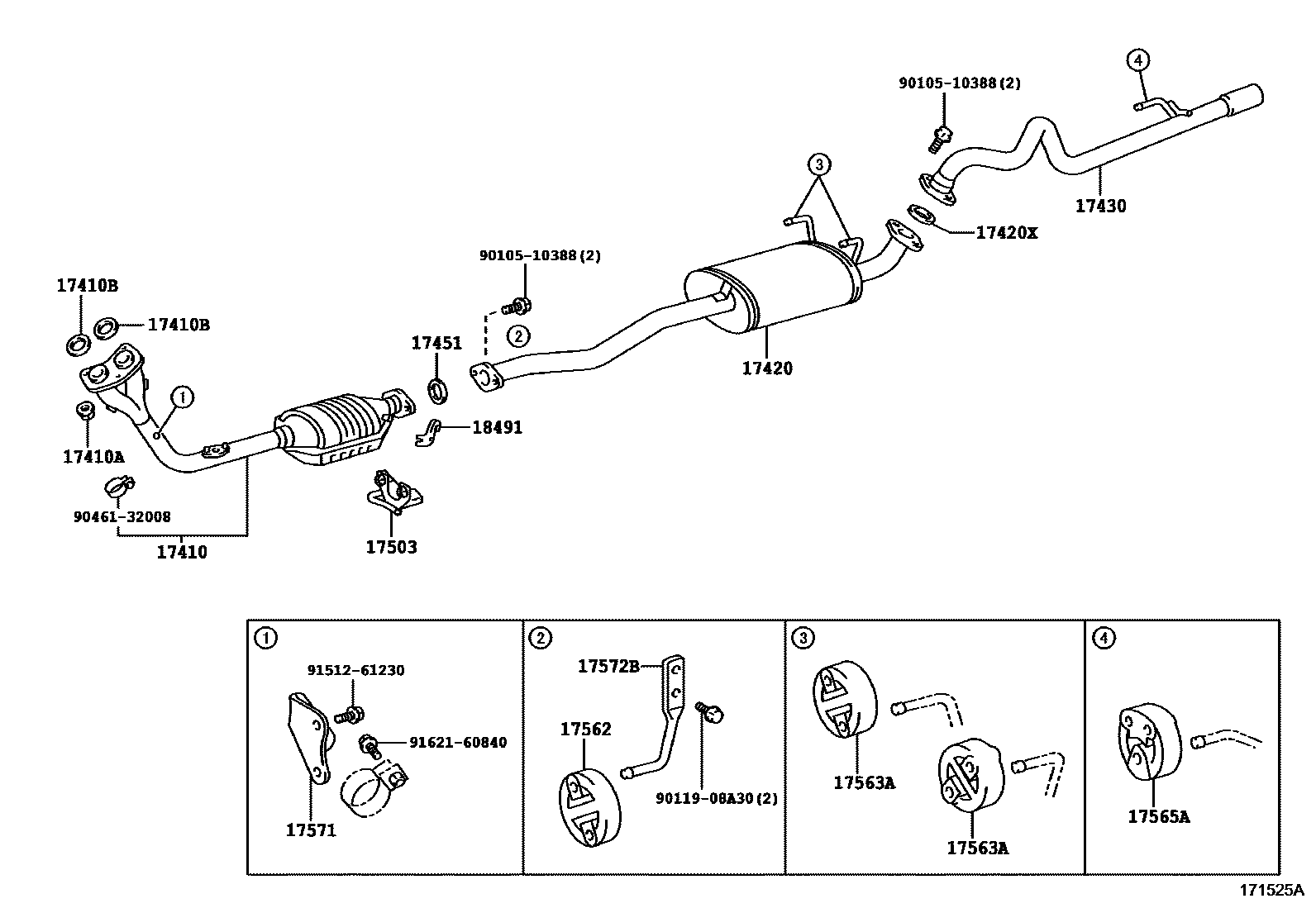

Toyota HILUX Exhaust Pipe EPC diagram — 171525A
Exhaust Pipe — 171525A (199511 – 199807)

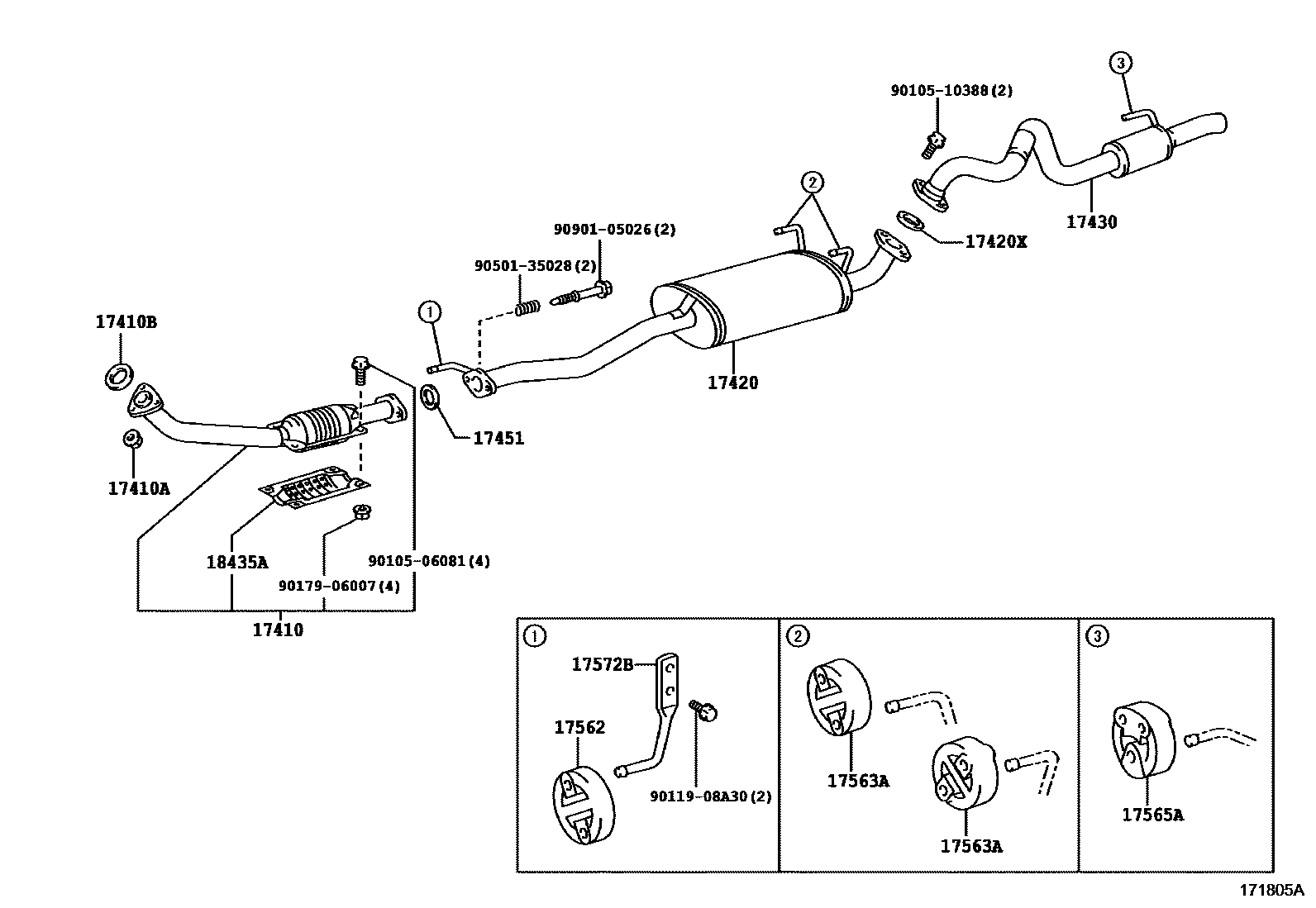

Toyota HILUX Exhaust Pipe EPC diagram — 171805A
Exhaust Pipe — 171805A (199807 – 200008)

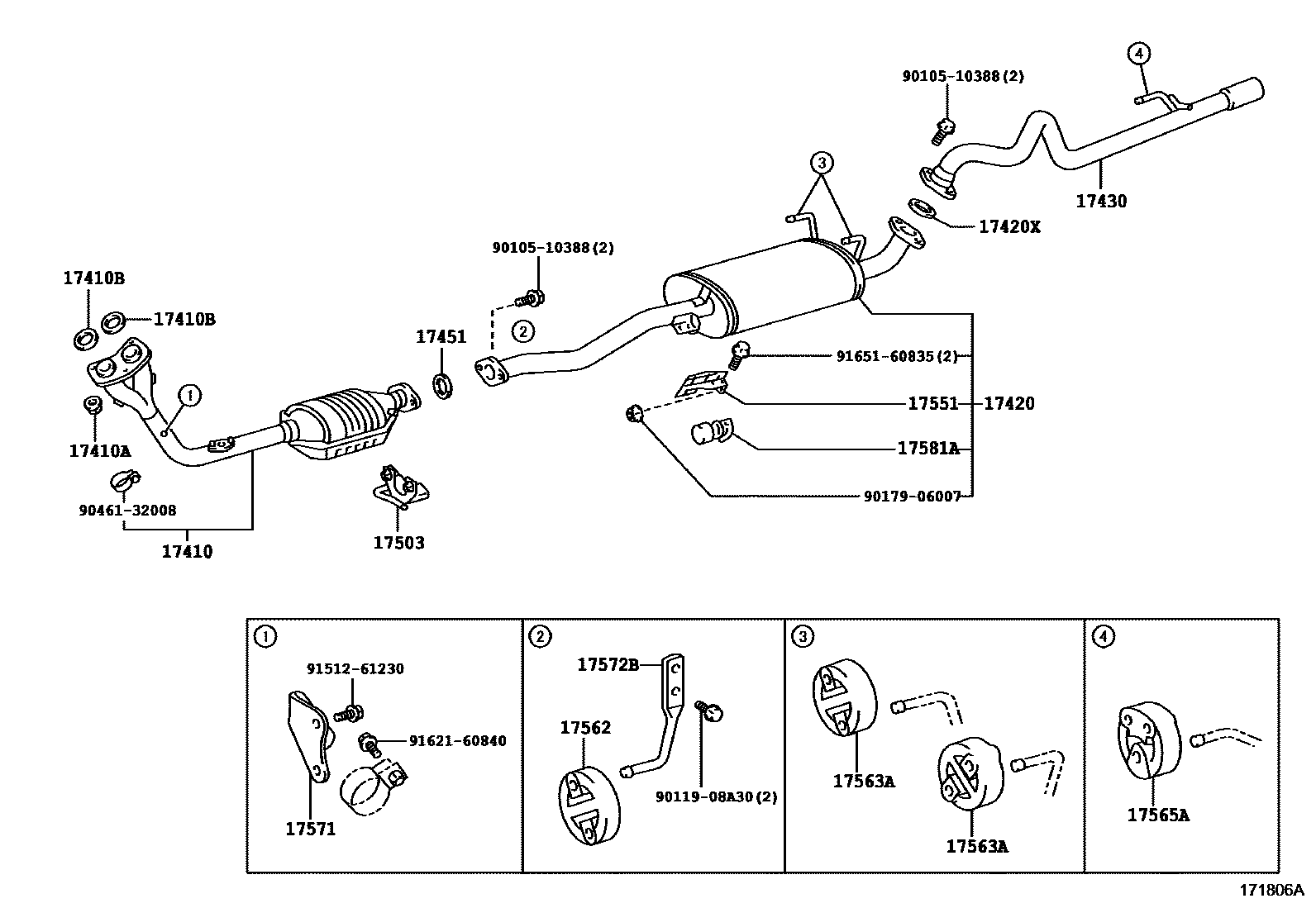

Toyota HILUX Exhaust Pipe EPC diagram — 171806A
Exhaust Pipe — 171806A (199807 – 200112)
Toyota HILUX Exhaust Pipe EPC diagram — 172627A
Exhaust Pipe — 172627A (200008 – 999999)

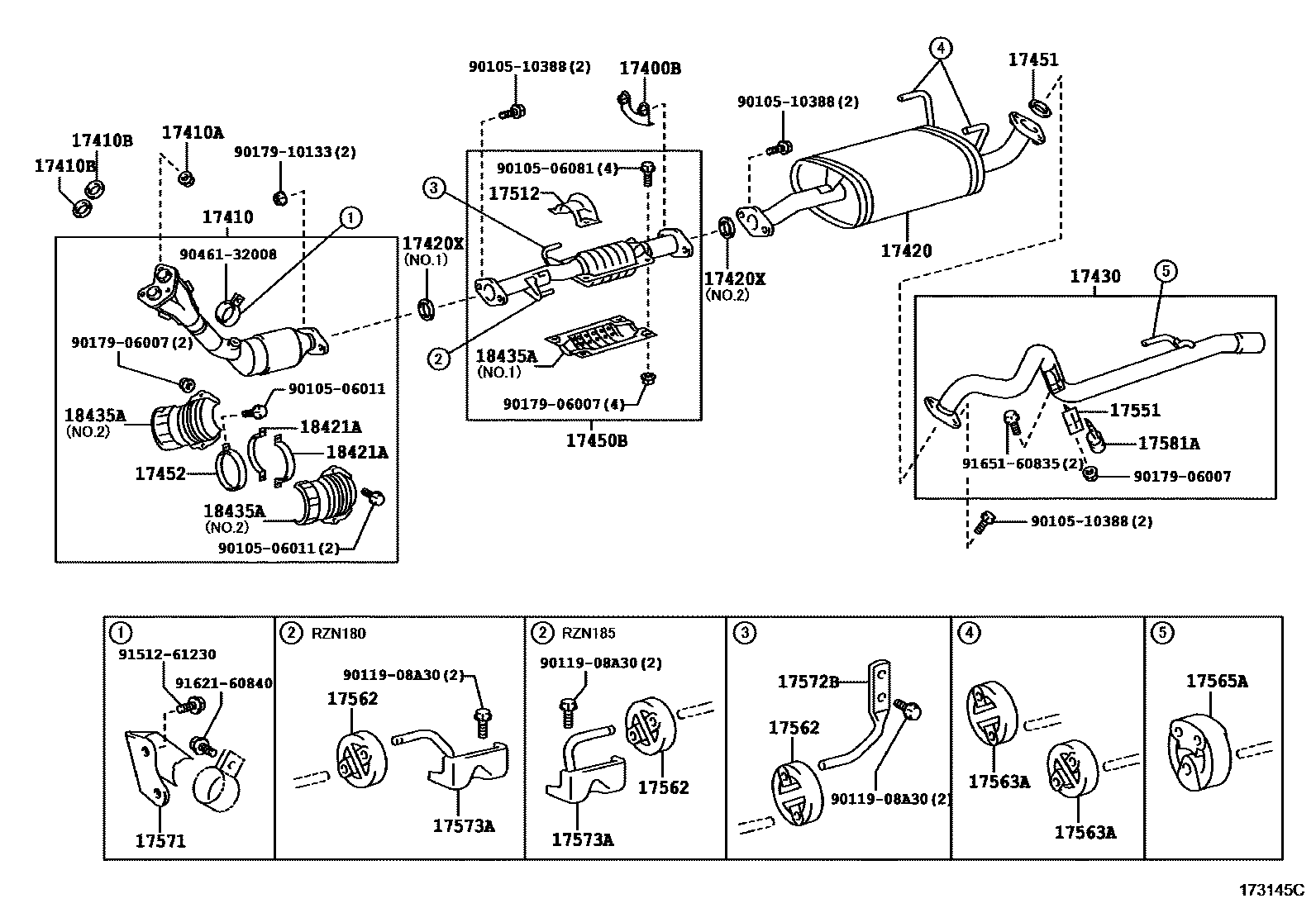

Toyota HILUX Exhaust Pipe EPC diagram — 173145C
Exhaust Pipe — 173145C (200112 – 999999)

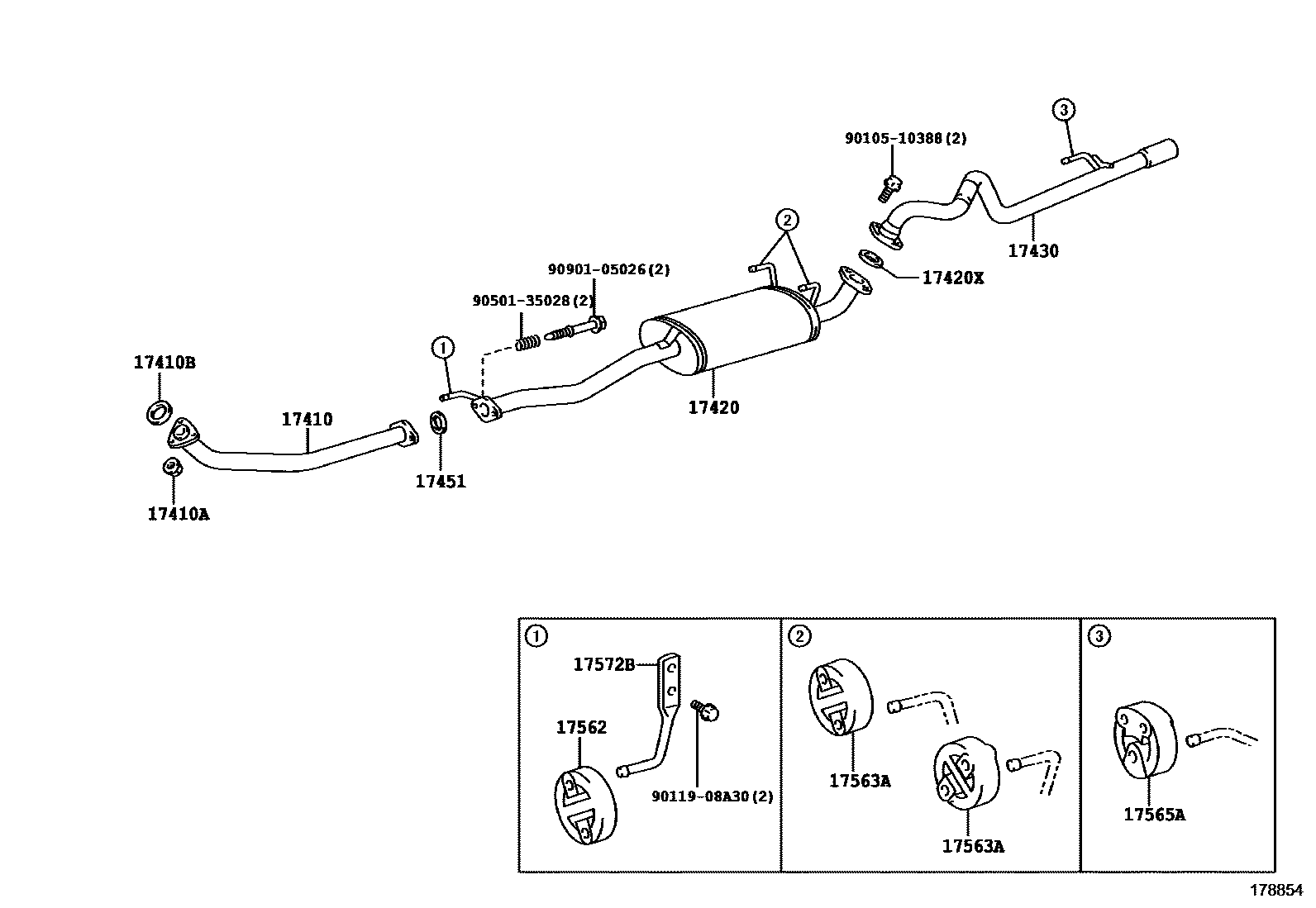

Toyota HILUX Exhaust Pipe EPC diagram — 178854
Exhaust Pipe — 178854 (199511 – 199807)

PNC and OE references

PNCPart nameOE numbers
17400Bexhaust pipe fixings18495-62010
17410Front exhaust pipe assembly17401-62060 · 17401-62110 · 17401-62130 · 17401-67080 · 17401-67090 · 17401-75110 · 17401-75111 · 17401-75290 · 17410-67030 · 17410-75350
17410AExhaust pipe fixing studs and nuts90179-10070
17410BExhaust pipe gasket90917-06061 · 90917-06065 · 90917-06067
17420Central exhaust pipe assembly17403-67020 · 17403-67060 · 17403-75040 · 17403-75150 · 17420-62210 · 17420-62270 · 17420-75200
17420XCenter exhaust pipe liner90917-06057 · 90917-06072
17430Exhaust tailpipe assembly17405-62020 · 17405-67040 · 17405-67050 · 17405-67090 · 17405-75190 · 17405-75320 · 17430-75620
17450BNo. 2 front exhaust pipe assembly17450-62020 · 17450-75040
17451Exhaust pipe gasket17451-67010 · 90917-06046 · 90917-06057 · 90917-06072
17452Exhaust pipe clamp17452-67010 · 17452-75050
17503Three-way catalytic converter rear bracket sub-assembly17503-62050
17512No. 2 upper exhaust pipe heat insulation pad17512-62060
17521ANo. 1 upper exhaust pipe protection device17505-62010
17522No. 2 upper exhaust pipe protection device17507-62070
17523No. 3 upper exhaust pipe protection device17509-62060
17541No. 1 exhaust pipe protection device stay17541-67010
17551No. 1 exhaust pipe insulation pad17551-62010
17562No. 2 exhaust pipe lifting lug17565-74290
17563ANo. 3 exhaust pipe lifting lug17565-46010
17565ANo. 4 exhaust pipe lifting lug17566-35030 · 17566-67030
17571No. 1 exhaust pipe bracket17571-75080
17572BNo. 2 exhaust pipe bracket17572-62060 · 17572-62070 · 17572-62080 · 17572-62090 · 17572-67020 · 17572-67030
17573ANo. 3 exhaust pipe bracket17573-62020 · 17573-75160
17581AExhaust pipe damper17581-46010 · 17581-62010 · 17581-75050 · 17581-75060
17593CNo. 1 lower exhaust pipe protection device17506-62010
17594ANo. 2 lower exhaust pipe protection device17508-62010
17595No. 3 lower exhaust pipe protection device17059-62010
18421AThree-way catalytic converter protection device left support18421-75010
18435Three-way catalytic converter protection device18435-67010
18435AIntegrated three-way catalytic converter protection device18435-16170 · 18435-16190 · 18435-20020 · 18435-75030
18491Thermal sensor air inlet flange18491-28010 · 18491-74020
