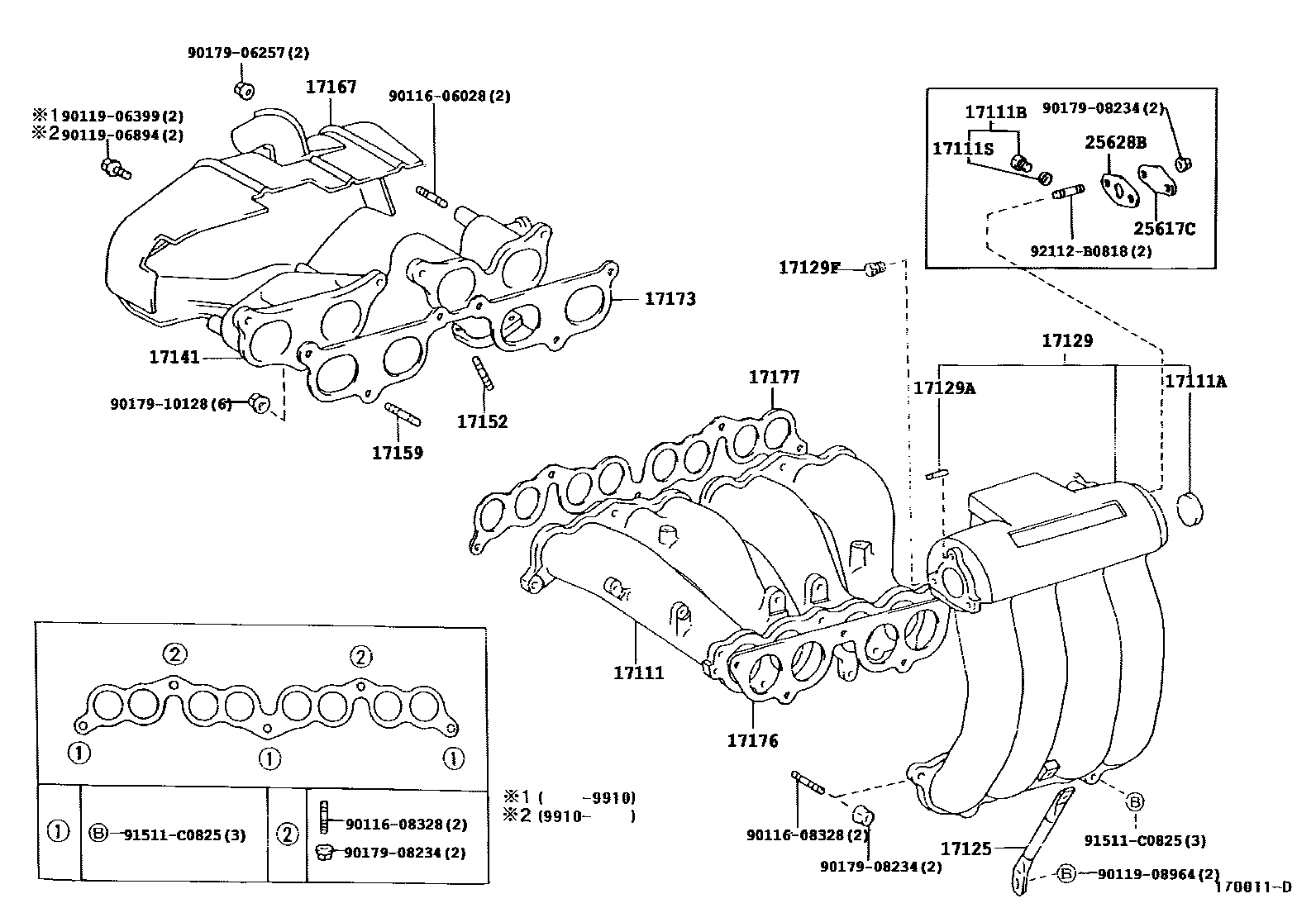

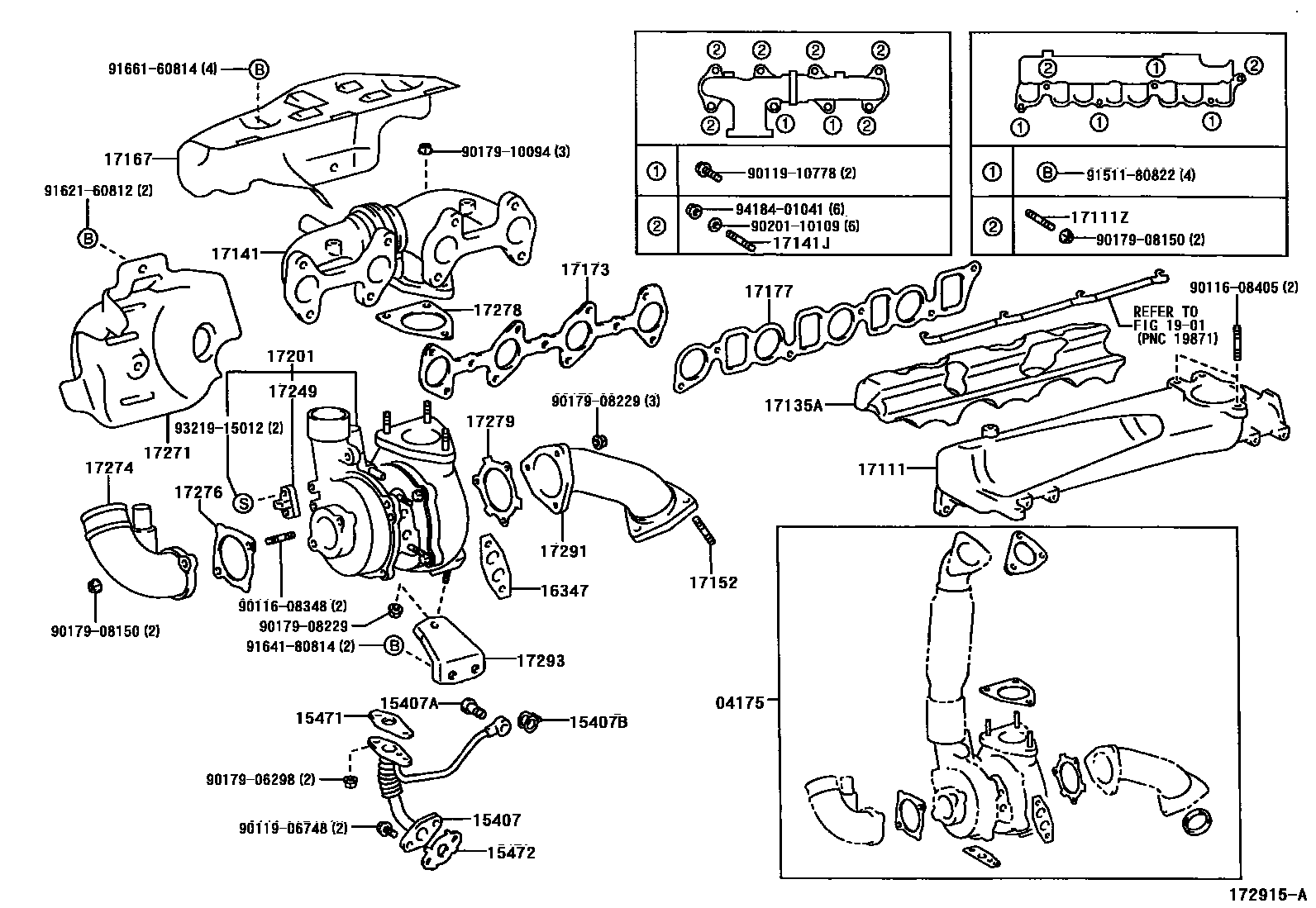

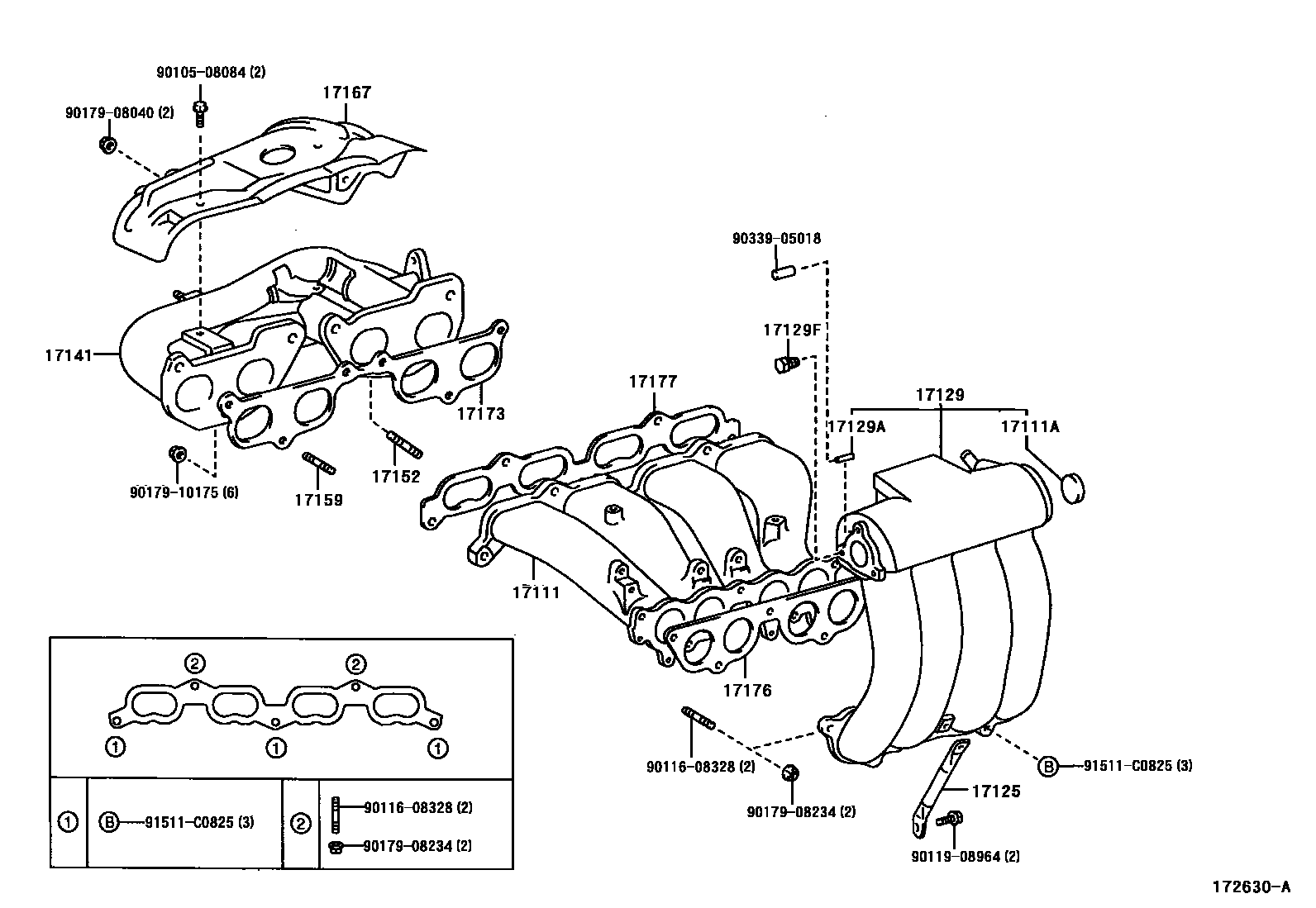

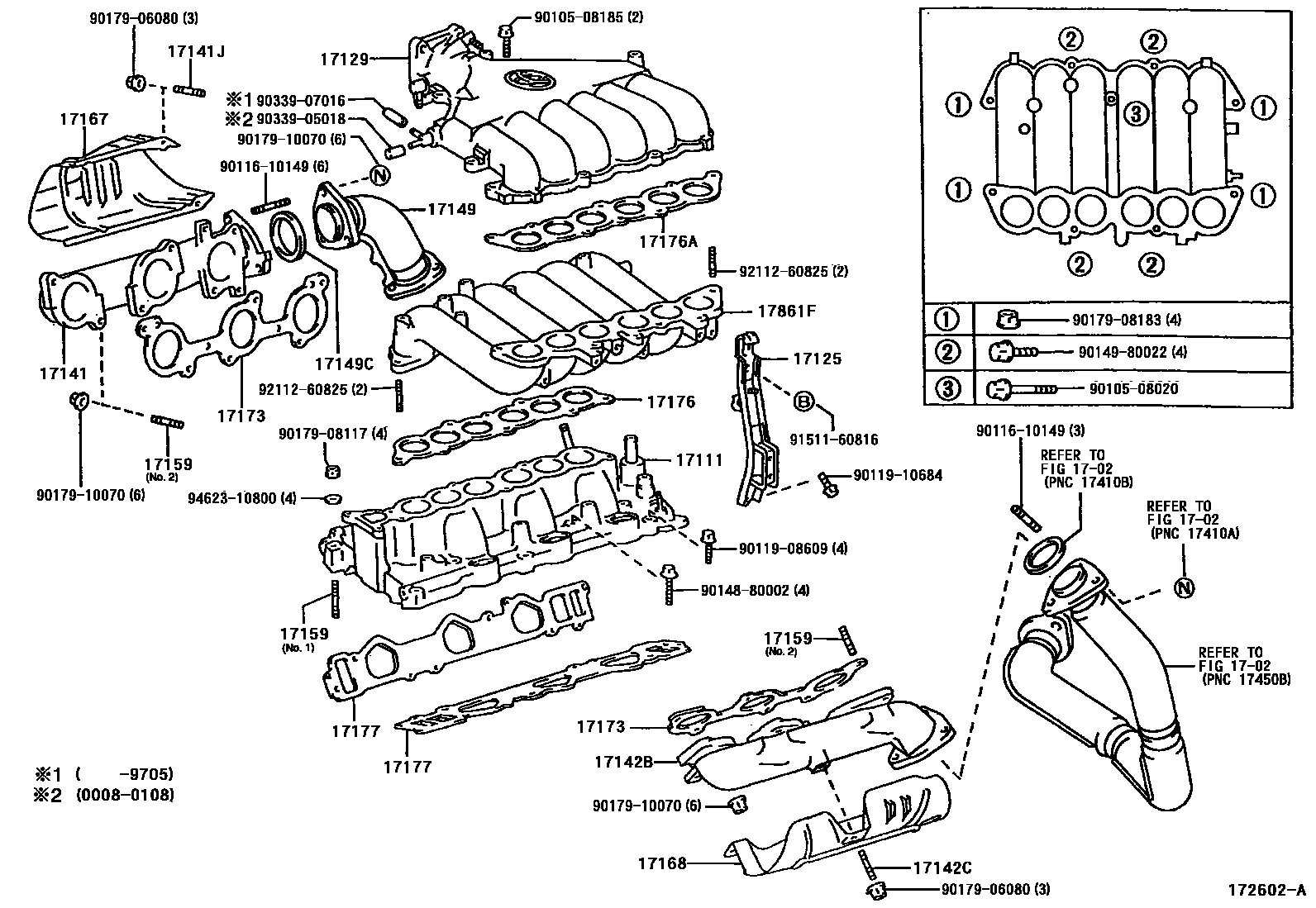

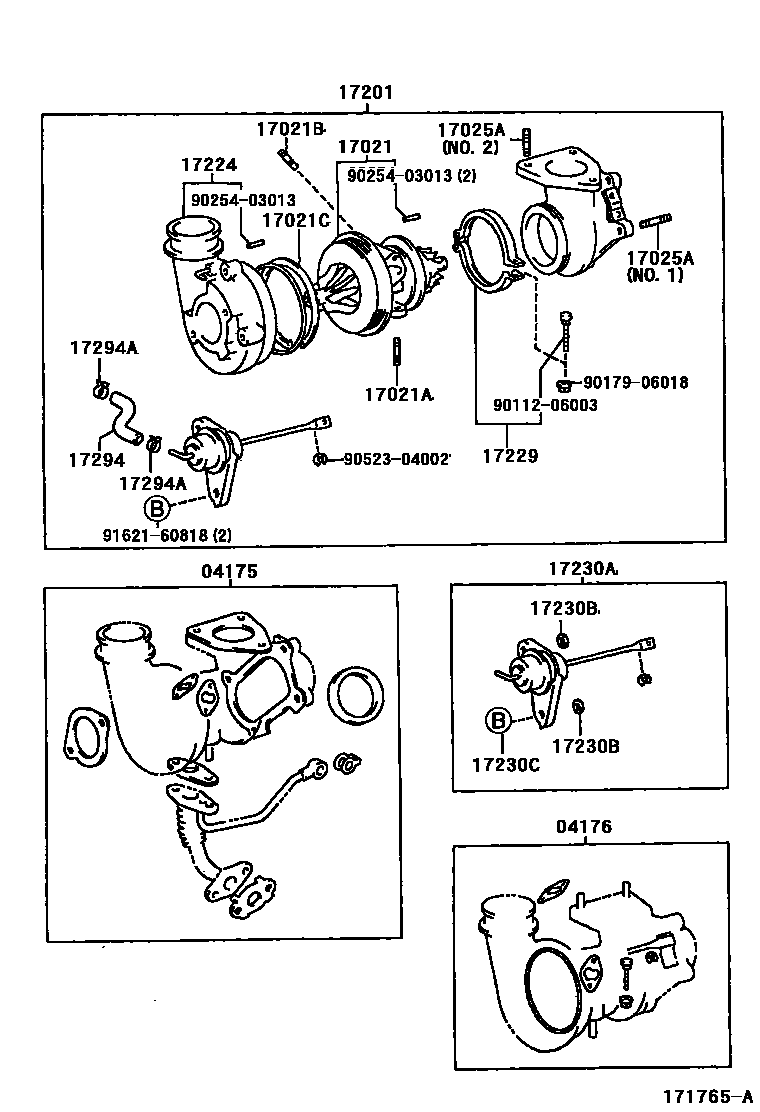

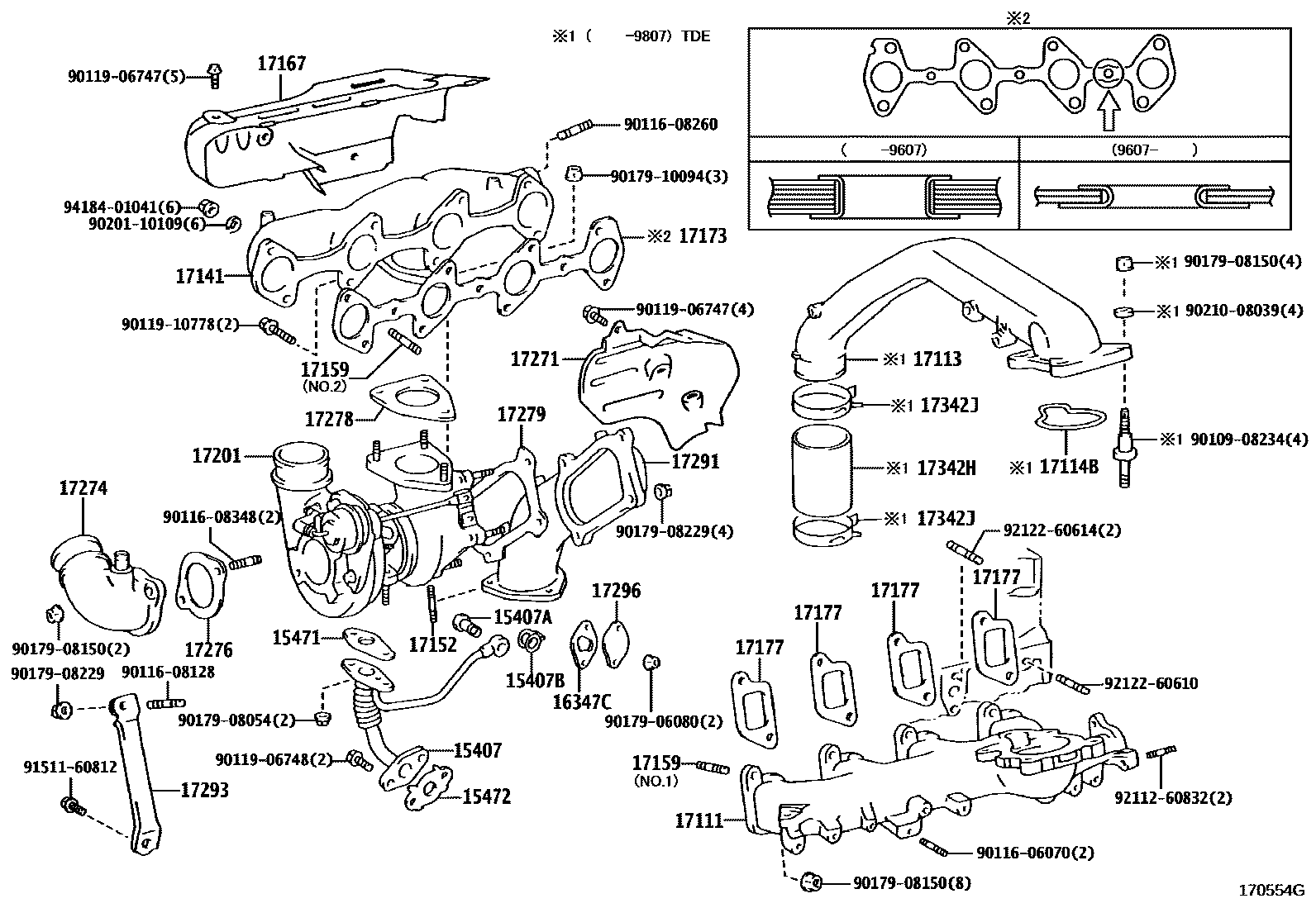

Toyota HILUX Manifold — Figure 1701
Toyota HILUX EPC diagram 1701, Manifold, with 6 images and 62 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04175 | Turbocharger gasket assembly | 04175-30010 · 04175-30011 · 04175-67010 · 04175-67011 |
| 04176 | Turbocharger seal assembly | 04176-67010 |
| 15407 | Turbine oil inlet pipe sub-assembly | 15407-30010 · 15407-67010 |
| 15407A | Connector bolt (for turbine oil inlet pipe) | 90401-12097 |
| 15407B | Gasket (for turbine oil inlet pipe) | 90904-30004 |
| 15471 | Turbine oil inlet pipe gasket | 15471-30010 · 15471-58010 |
| 15472 | No. 1 turbine oil outlet pipe gasket | 15472-67010 |
| 16347 | water bypass liner | 16347-30010 |
| 16347C | Liners (for turbine water pipes) | 16347-67010 |
| 17021 | Bearing shell sub-assembly | 17021-67010 · 17021-67020 |
| 17021A | Stud bolts (for bearing housing) | 90116-08158 |
| 17021B | Stud bolt | 90116-06048 |
| 17021C | Hole snap ring (for bearing housing) | 90521-99007 |
| 17025A | Stud bolts (for turbine housing) | 90116-10175 · 90126-08009 |
| 17111 | Intake Manifold | 17101-62020 · 17101-67011 · 17111-30050 · 17111-30070 · 17111-30071 · 17111-67050 · 17111-67070 · 17111-67071 · 17111-75030 · 17111-75031 · 17111-75070 |
| 17111A | No. 1 screw plug | 96411-43500 |
| 17111B | No. 2 screw plug | 90341-10009 |
| 17111S | Gasket (for manifold plug) | 90430-09005 |
| 17111Z | Stud bolts (for intake manifold to cylinder head) | 92122-80822 |
| 17113 | intake pipe | 17113-67011 |
| 17114B | Intake flange gasket | 17116-67010 |
| 17125 | No. 1 pressure tank stay | 17125-62060 · 17125-75030 |
| 17129 | Intake pressure tank | 17109-62060 · 17109-62080 · 17109-62090 · 17109-75012 · 17109-75013 · 17109-75030 |
| 17129A | Connector No. 1 | 90406-06001 · 90406-06002 |
| 17129F | Intake manifold intake hole plug | 90345-51006 · 90345-51025 |
| 17135A | Intake manifold No. 1 heat shield | 17135-30010 · 17135-30011 |
| 17141 | exhaust manifold | 17104-30010 · 17104-67010 · 17141-62090 · 17141-67020 · 17141-75040 · 17141-75080 |
| 17141J | Studs (for right exhaust manifold) | 90116-06028 · 90126-10017 |
| 17142B | Left exhaust manifold | 17142-62080 |
| 17142C | Studs (for left exhaust manifold) | 90116-06028 |
| 17149 | Exhaust manifold extension | 17149-62010 · 17149-62011 |
| 17149C | Gasket (for manifold extension) | 90917-06083 |
| 17152 | Studs (for manifold to exhaust) | 90116-10088 · 90116-10149 |
| 17159 | Studs (for manifold to cylinder head) | 90116-08251 · 90116-10150 · 90116-10163 · 90126-10017 · 92122-80822 |
| 17167 | Exhaust manifold No. 1 heat shield | 17167-30010 · 17167-62051 · 17167-67030 · 17167-67040 · 17167-75011 · 17167-75012 · 17167-75100 |
| 17168 | Exhaust manifold No.2 insulation pad | 17168-62051 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-30010 · 17173-30020 · 17173-62050 · 17173-67020 · 17173-67030 · 17173-75020 |
| 17176 | Gasket (intake surge tank to intake manifold) | 17176-62040 · 17176-75010 |
| 17176A | No. 2 gasket (intake surge tank to intake manifold) | 17176-62040 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17177-30010 · 17177-62060 · 17177-67010 · 17177-67011 · 17177-75020 · 17177-75030 |
| 17201 | Turbocharger sub-assembly | 17201-30010 · 17201-67010 · 17201-67020 · 17201-67040 |
| 17224 | compressor casing | 17024-67010 |
| 17229 | V-Belt | 17229-67010 |
| 17230A | Compensation actuator assembly with bracket | 17230-69015 · 17230-69085 · 17230-69145 |
| 17230B | Flat Washer (for compensating actuator assembly) | 90201-08081 · 90201-08082 · 90201-08086 · 90201-08087 |
| 17230C | Bolt with washer (for compensating actuator assembly) | 91621-60822 |
| 17249 | Turbocharger compensation resistor | 17249-30010 |
| 17271 | No. 1 turbine vibration isolation pad | 17271-30010 · 17271-30011 · 17271-67030 |
| 17274 | Compressor oil inlet elbow pipe | 17274-30010 · 17274-67011 |
| 17276 | Compressor oil inlet gasket | 17276-67010 |
| 17278 | Gasket (turbo to exhaust manifold) | 17278-67010 |
| 17279 | Turbine outlet elbow gasket | 17279-30010 · 17279-30030 · 17279-67010 |
| 17291 | Turbine oil outlet elbow | 17291-30010 · 17291-67040 |
| 17293 | Turbocharger stay | 17293-30010 · 17293-67010 |
| 17294 | Actuator hose | 90445-12265 |
| 17294A | Clamp (for actuator hose) | 96132-41100 |
| 17296 | Bearing shell side plate | 17296-28010 |
| 17342H | Air hose No. 2 (for turbocharger) | 17342-67010 · 17342-67030 |
| 17342J | Hose clip (for air intake pipe) | 90467-53002 |
| 17861F | Intake connecting pipe | 17861-62011 · 17861-62012 |
| 25617C | EGR hole cover plate | 25617-74020 |
| 25628B | EGR air intake gasket | 25628-75010 |
