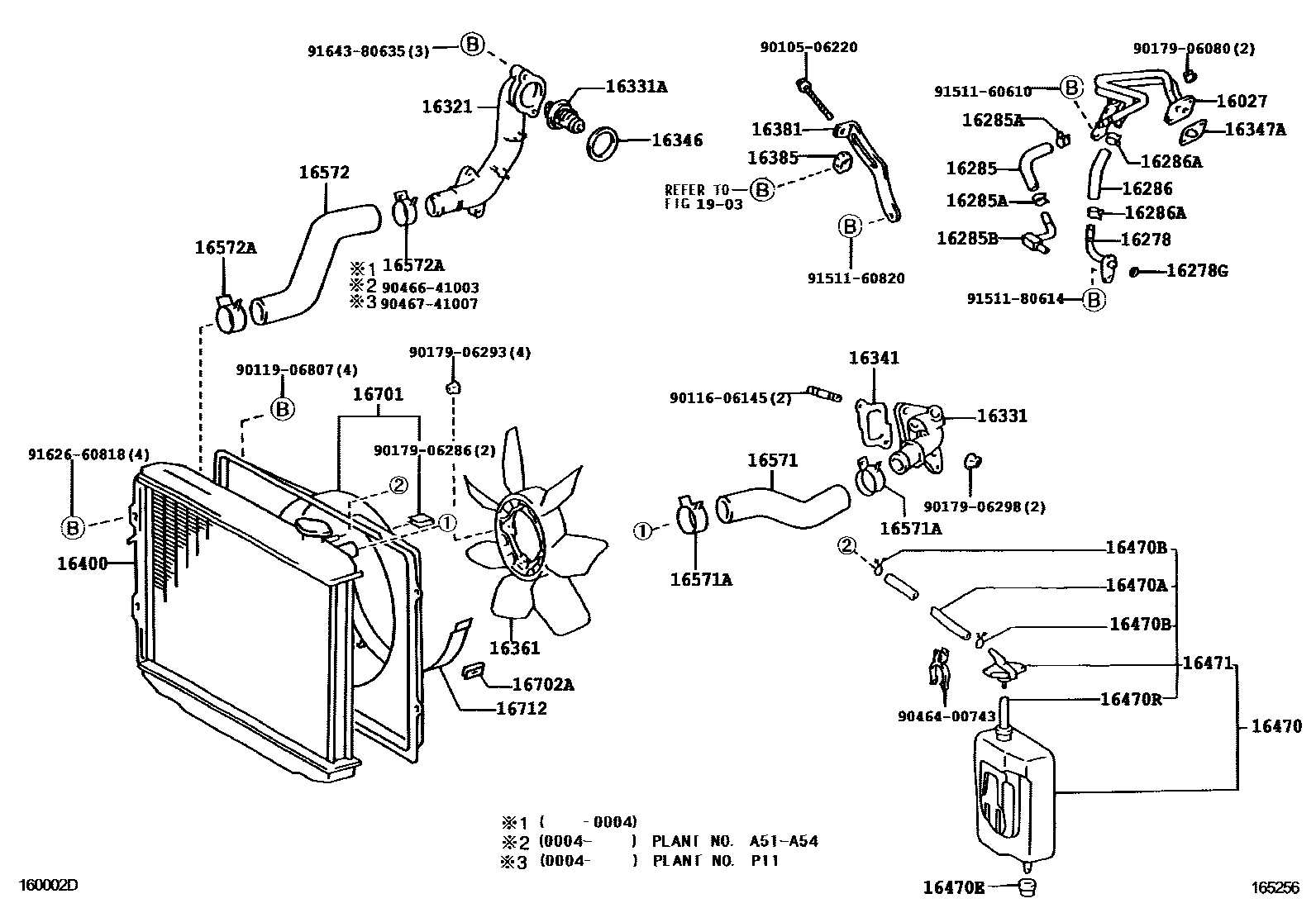

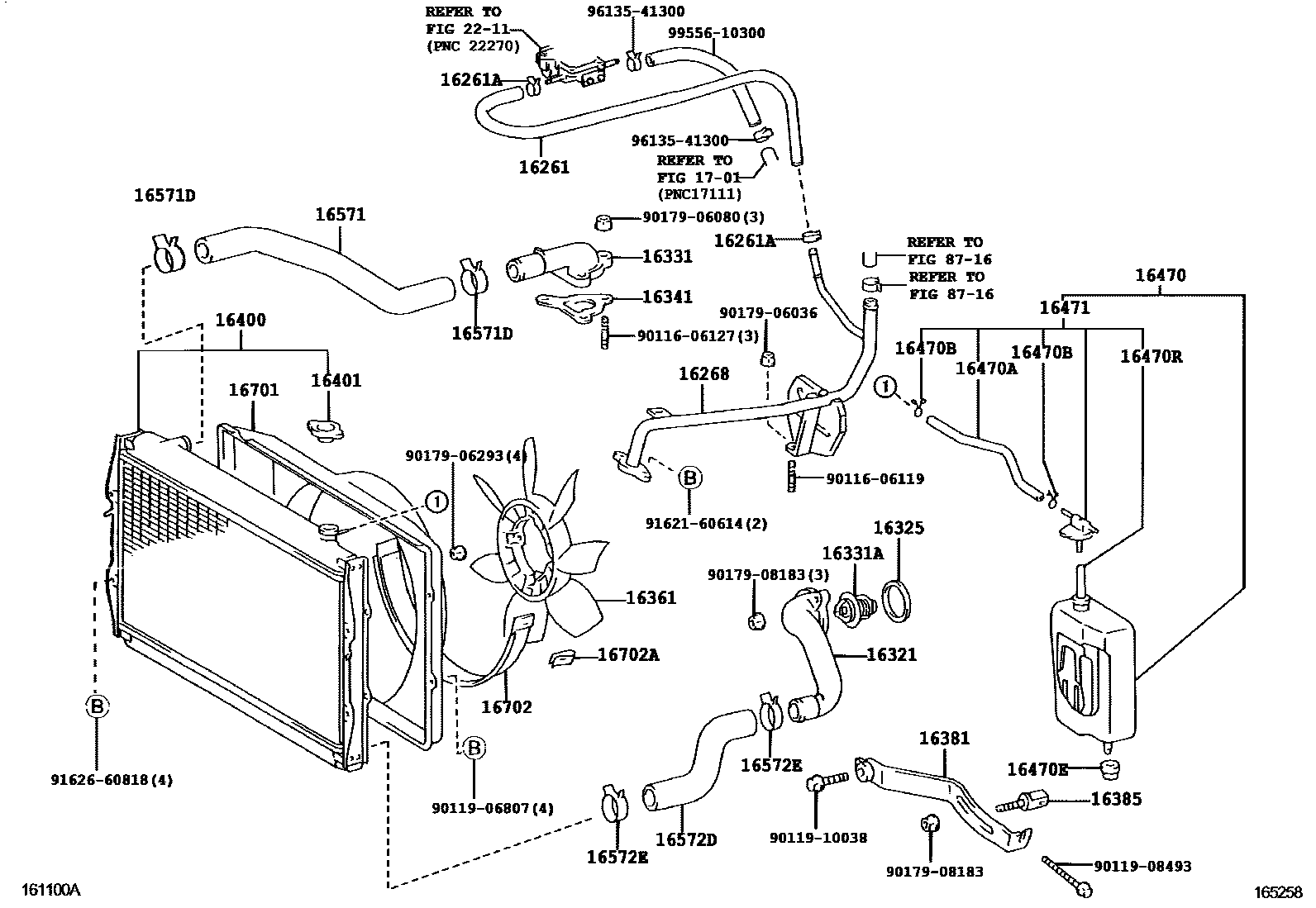

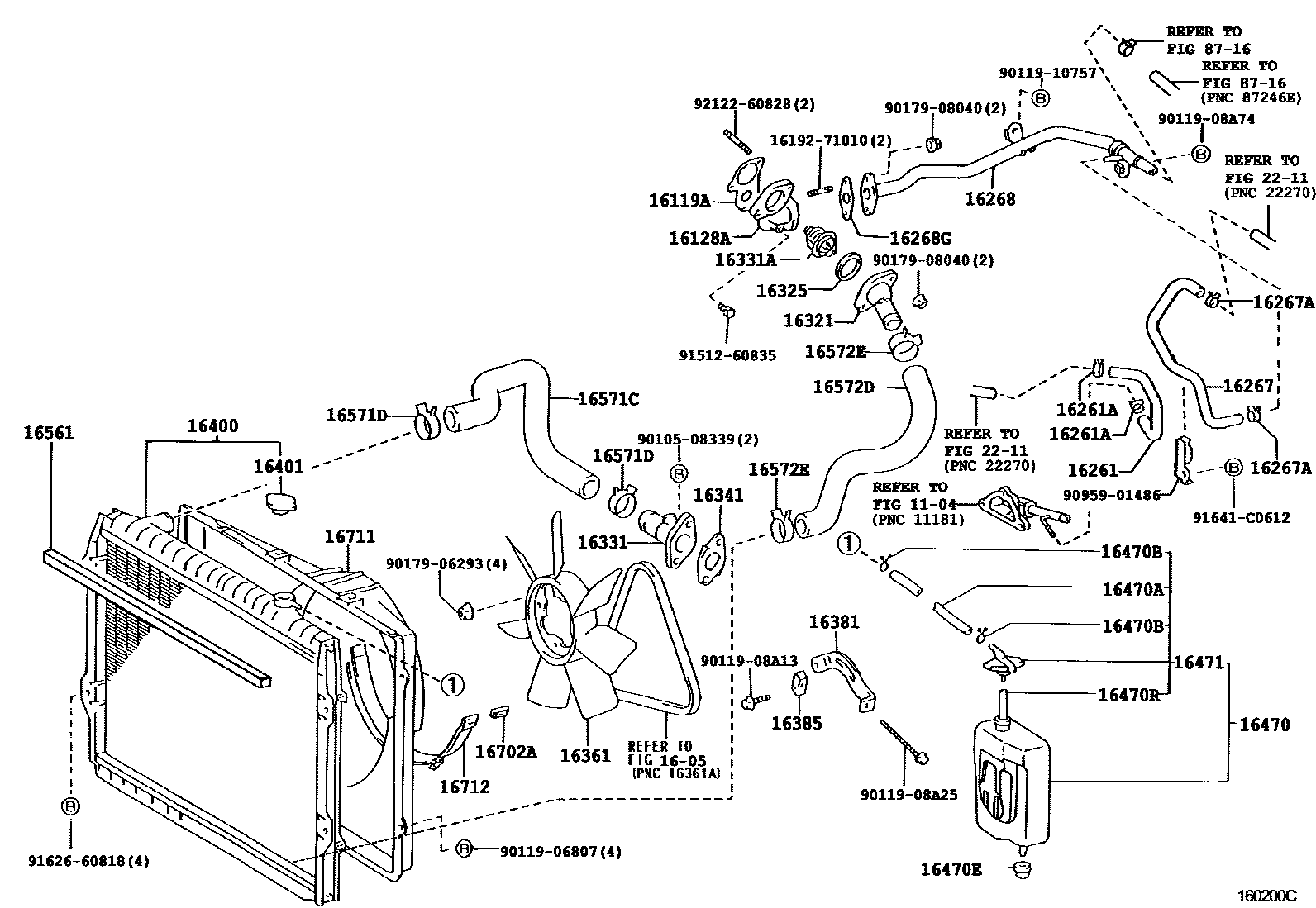

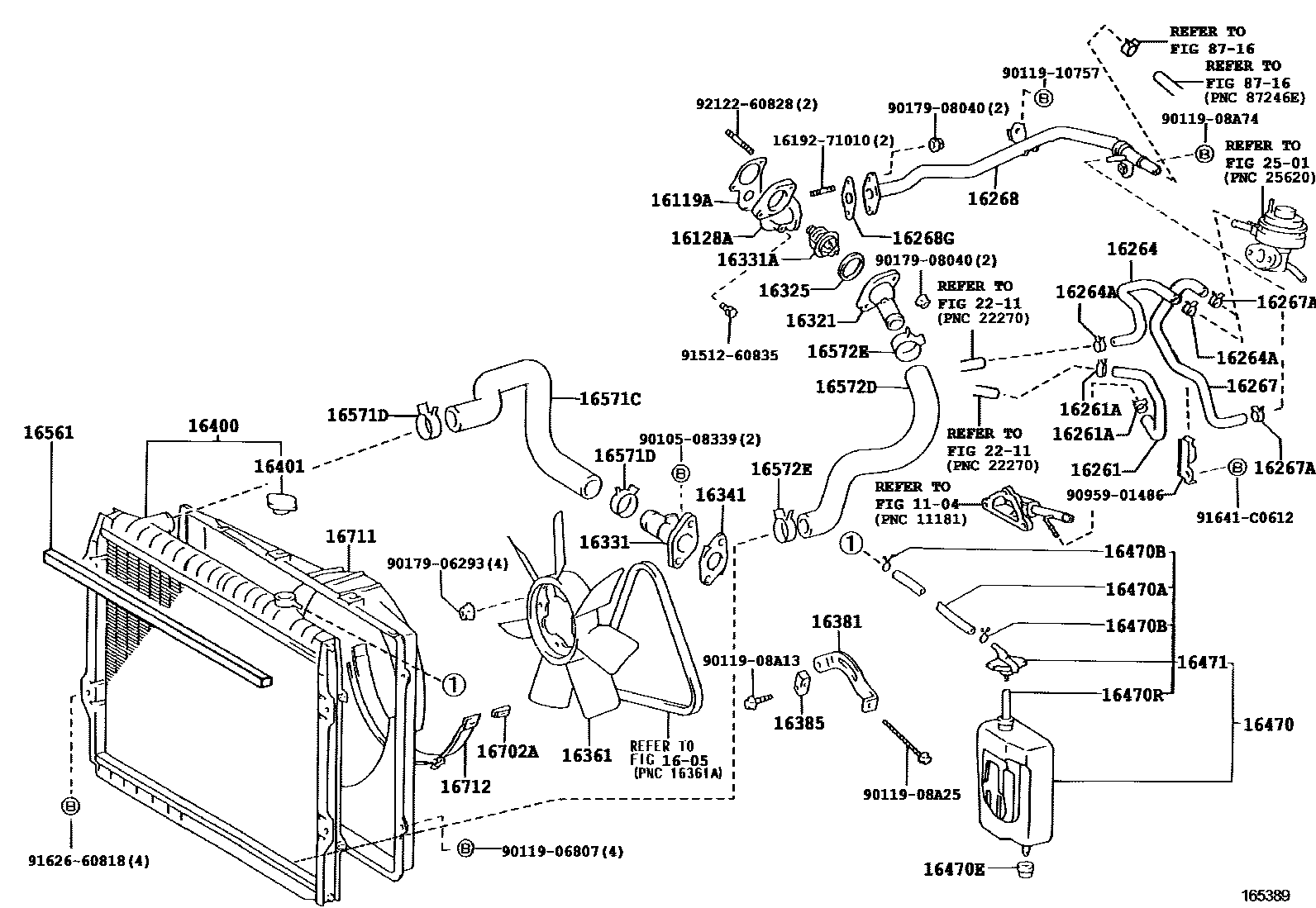

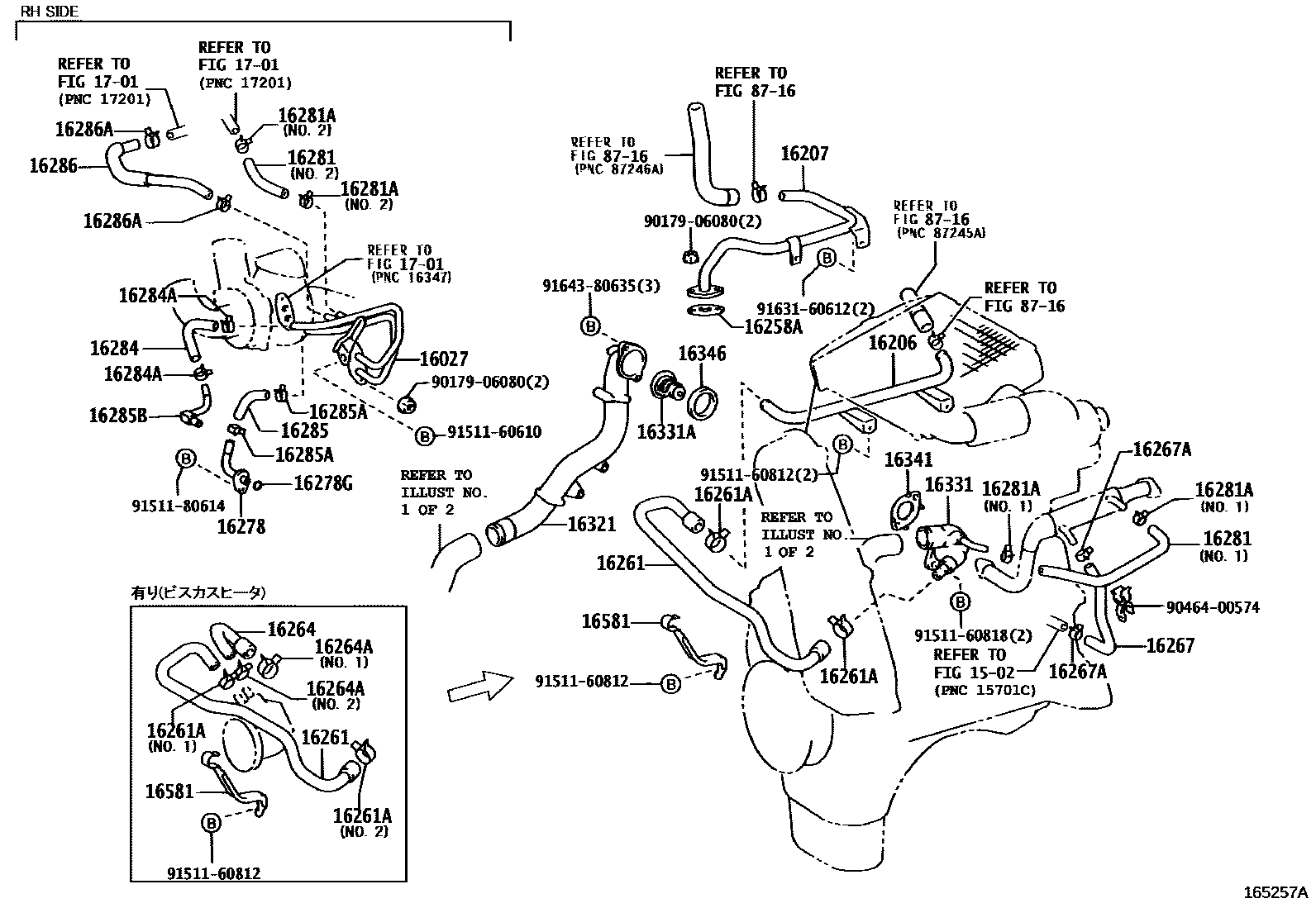

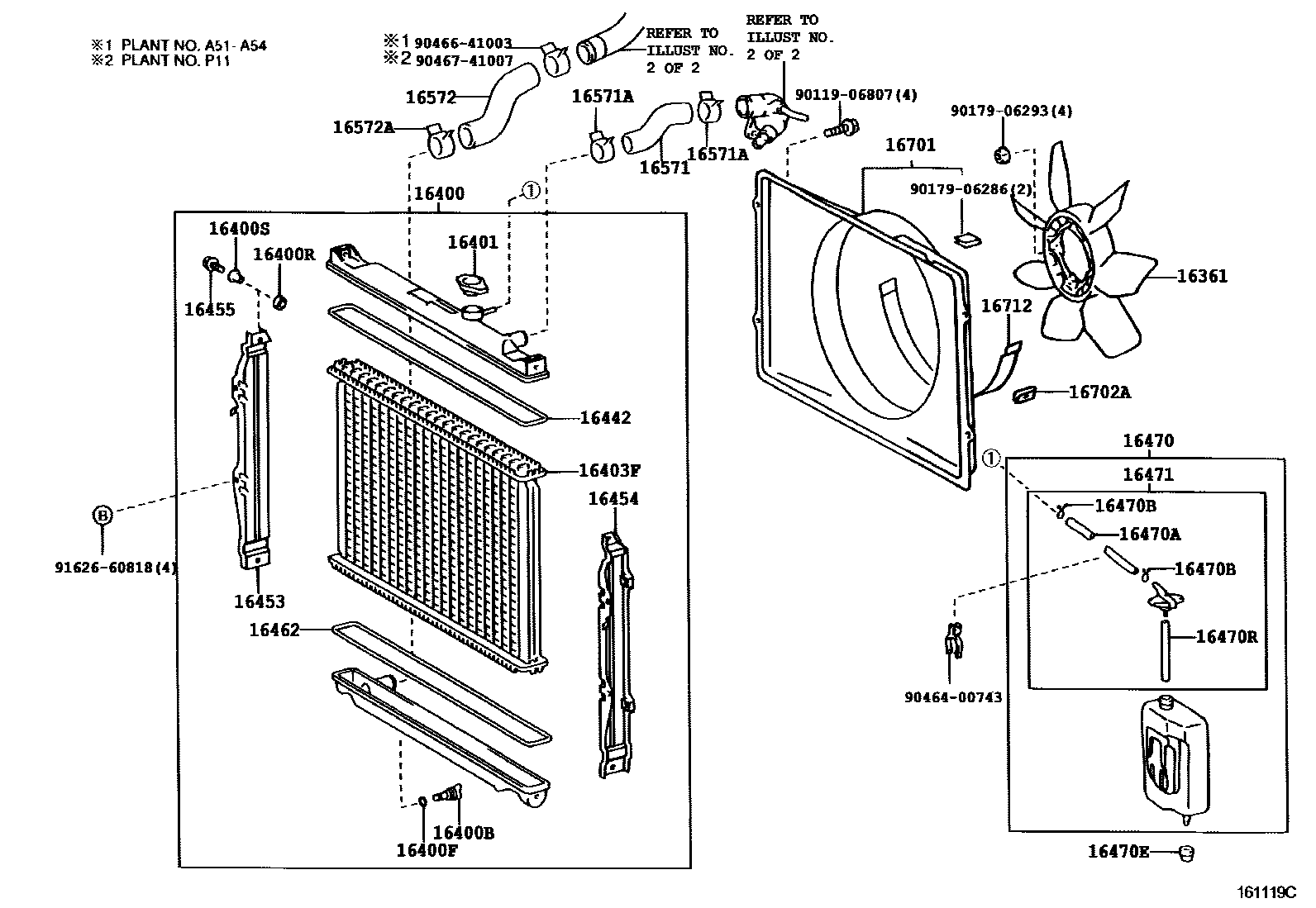

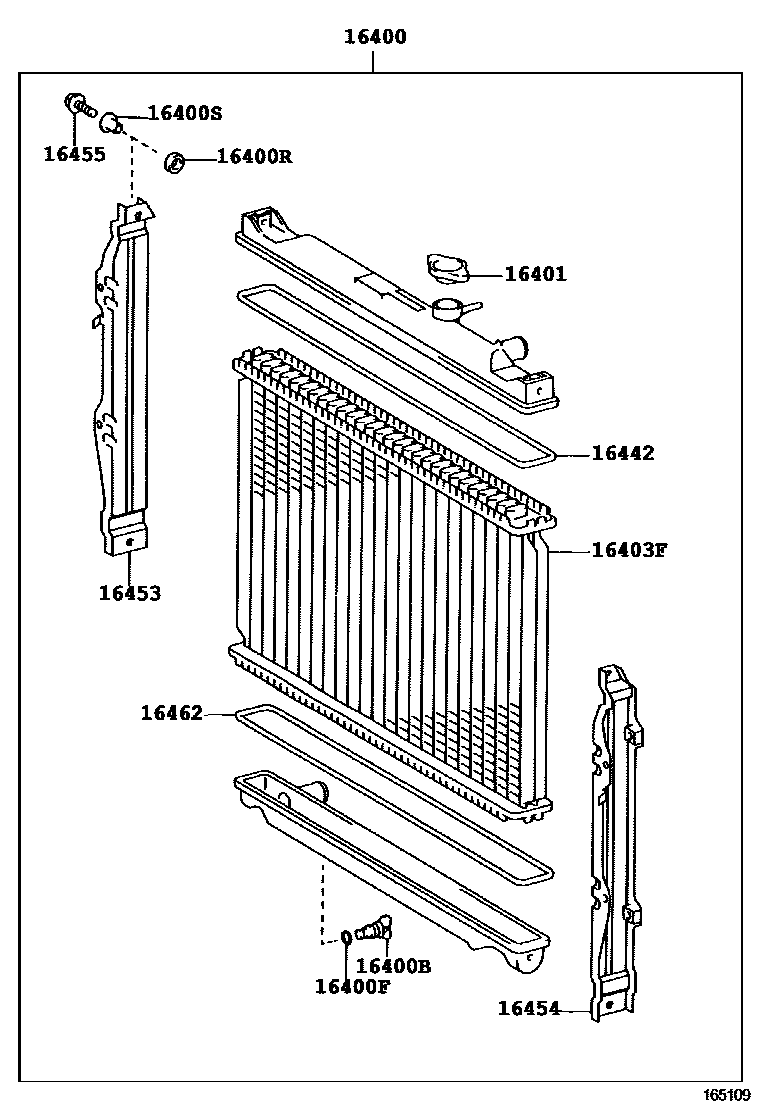

Toyota HILUX RADIATOR & WATER OUTLET — Figure 1603
Toyota HILUX EPC diagram 1603, RADIATOR & WATER OUTLET, with 9 images and 66 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16027 | No. 1 turbine water pipe sub-assembly | 16027-30010 · 16027-67010 · 16027-67011 |
| 16119A | thermostat duct gasket | 16119-75020 |
| 16128A | water pump thermostat guide plate | 16128-75020 |
| 16206 | PIPE SUB-ASSY, WATER BY-PASS | 16206-30010 |
| 16207 | No. 2 water bypass pipe sub-assembly | 16207-30010 |
| 16258A | Pad (for heater return) | 16258-67010 |
| 16261 | HOSE, WATER BY-PASS | 16261-30010 · 16261-30020 · 16261-62060 · 16261-75040 · 16261-75100 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90467-23009 · 96134-42100 · 96135-41300 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-30010 · 16264-75070 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90467-23009 · 96134-42100 · 96135-41300 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-30010 · 16267-75010 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 90467-19022 · 96135-41300 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-62060 · 16268-75020 · 16268-75080 |
| 16268G | Gasket (for water bypass pipe) | 17175-75010 |
| 16278 | PIPE, WATER BY-PASS, NO.2 | 16278-67010 |
| 16278G | O-ring (for No. 2 water bypass pipe) | 96761-24010 |
| 16281 | HOSE, WATER BY-PASS, NO.4 | 16281-30010 · 99555-10080 |
| 16281A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.4 | 90467-13128 · 90467-19022 |
| 16284 | Turbine Water Hose No. 1 | 16284-30010 |
| 16284A | Clamp (for No. 1 turbine water hose) | 90467-15022 |
| 16285 | Turbine Water Hose No. 2 | 16285-67010 |
| 16285A | Clamp (for No. 2 turbine water hose) | 90467-15022 |
| 16285B | Connector (for turbine water hose No. 2) | 90405-10044 |
| 16286 | No. 3 turbine water hose | 16284-67020 · 16285-67010 · 16286-30010 |
| 16286A | Clamp (for No. 3 turbine water hose) | 90467-13128 · 90467-15022 |
| 16321 | water inlet | 16321-0W010 · 16321-30010 · 16321-62020 · 16321-67011 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-62010 · 16325-76010 |
| 16331 | Water outlet | 16331-0W010 · 16331-30020 · 16331-62040 · 16331-67020 |
| 16331A | thermostat | 90916-03075 · 90916-03097 · 90916-03101 · 90916-03118 · 90916-03120 |
| 16341 | GASKET, WATER OUTLET | 16341-30020 · 16341-62040 · 16341-67020 · 16341-75020 |
| 16346 | thermostat gasket | 16346-67010 |
| 16347A | Liners (for turbine water pipes) | 16347-67010 |
| 16361 | Fan | 16361-62010 · 16361-67020 · 16361-75020 |
| 16381 | Fan belt adjustment lever | 16381-62041 · 16381-67020 · 16381-75030 · 16381-75040 · 16381-75050 |
| 16385 | Fan belt adjustment slider | 16385-62020 · 16385-67010 · 16385-75030 |

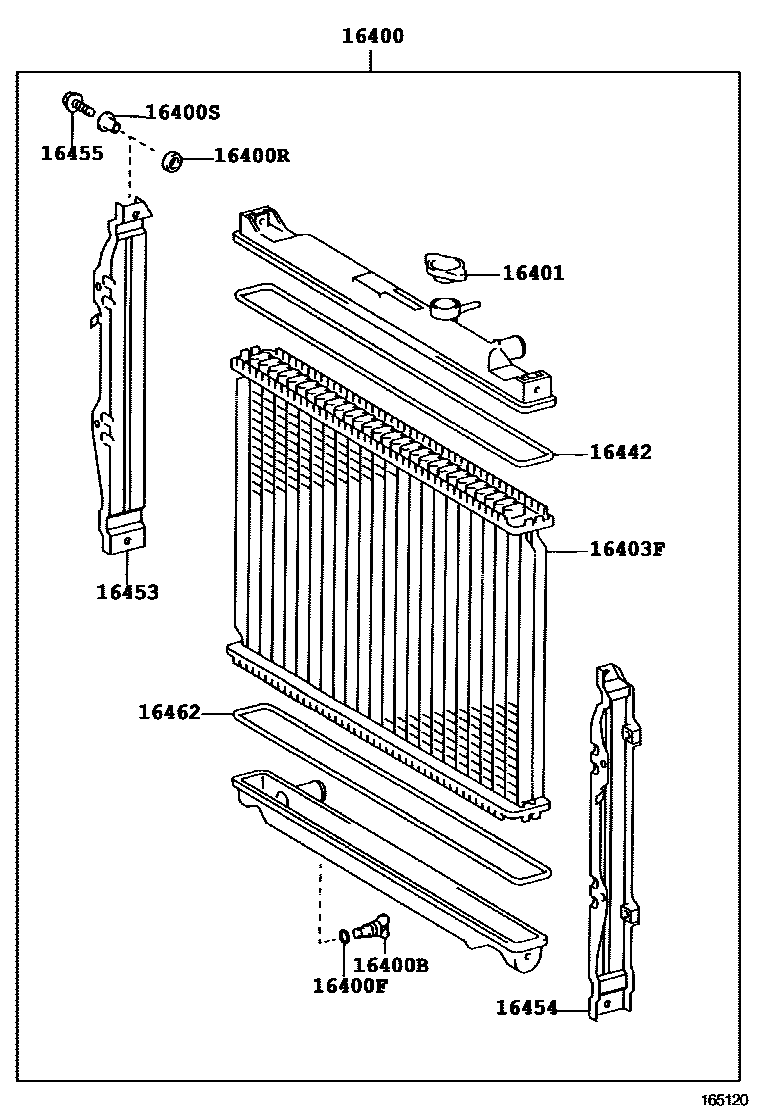

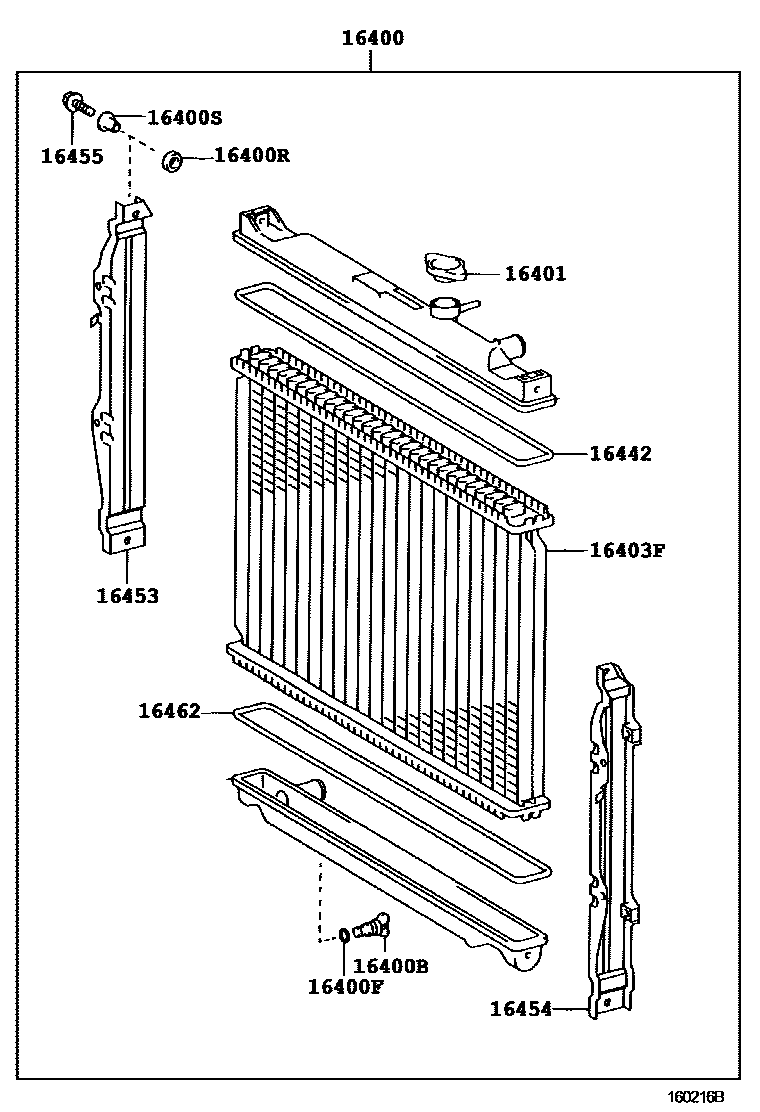

| 16400 | Radiator assembly | 16400-67110 · 16400-67120 · 16400-67121 · 16400-67130 · 16400-75170 · 16400-75190 · 16400-75191 |
| 16400B | Radiator drain switch screw plug | 16417-15210 · 23322-54010 |
| 16400F | Seal (for radiator drain switch) | 16418-15520 · 16492-21050 · 96711-19007 |
| 16400R | Bushing (for radiator) | 16444-67130 · 16444-75180 |
| 16400S | Collar (for radiator) | 16445-67130 · 16445-75180 |
| 16401 | Radiator cover sub-assembly | 16401-54750 · 16401-62100 · 16401-72090 |
| 16403F | Radiator core sub-assembly | 16403-67130 · 16403-75180 · 16403-75190 |
| 16442 | O-ring (for radiator tank) | 16442-67130 · 16462-42240 |
| 16453 | Radiator side panel | 16453-67130 · 16453-75180 |
| 16454 | Radiator side panel | 16454-67130 · 16454-75180 |
| 16455 | Radiator side support plate bolts | 16455-67130 · 91652-B0820 |
| 16462 | O-ring (for radiator lower tank) | 16442-67130 · 16462-42240 |
| 16470 | Radiator reservoir assembly | 16470-75030 |
| 16470B | Clip or clip (for radiator reservoir hose) | 90467-11085 |
| 16470E | Radiator reservoir hose gasket | 90480-25025 |
| 16471 | Liquid storage tank cover sub-assembly | 16405-75020 |
| 16561 | Seal No. 1 (radiator to bracket) | 16561-75010 |
| 16571 | Radiator water inlet hose | 16571-07030 · 16571-30010 · 16571-62070 · 16571-67070 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90467-41006 · 90467-41007 |
| 16571C | Radiator hose No. 1 | 16571-0C021 · 16571-75180 |
| 16571D | No. 1 radiator hose clip | 90466-37001 · 90467-37002 · 90467-37005 |
| 16572 | Radiator outlet hose | 16572-30010 · 16572-67070 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90467-41006 · 90467-41007 |
| 16572D | Radiator hose No. 2 | 16572-62070 · 16572-62090 · 16572-75090 |
| 16572E | No. 2 radiator hose clip | 90466-37001 · 90467-37002 · 90467-37005 |
| 16581 | Hose clamp (for water hose) | 16581-30010 |
| 16701 | Fan cover sub-assembly | 16711-62040 · 16711-67080 |
| 16702 | No. 2 fan cover sub-assembly | 16702-62030 |
| 16702A | Clip (for fan cover No. 2) | 90468-06092 |
| 16711 | fan cover | 16711-0C031 |
| 16712 | No. 2 fan cover | 16712-0C011 · 16712-67050 |
