Toyota HILUX Water Pump — Figure 1601

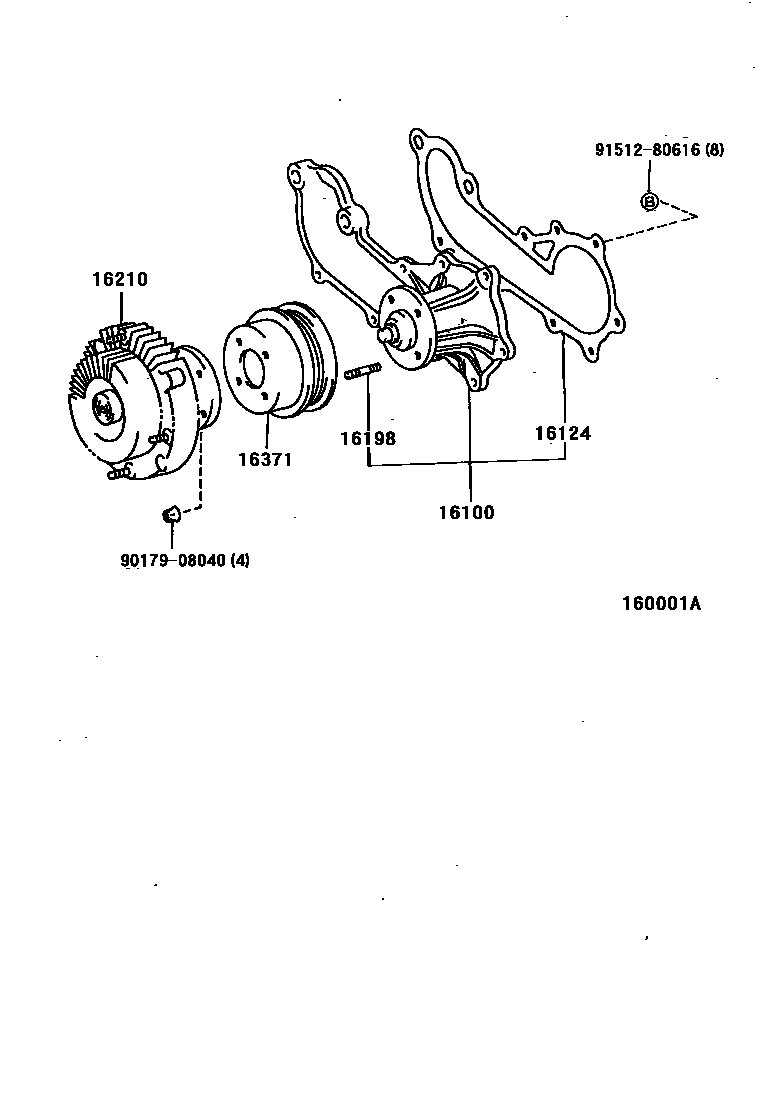

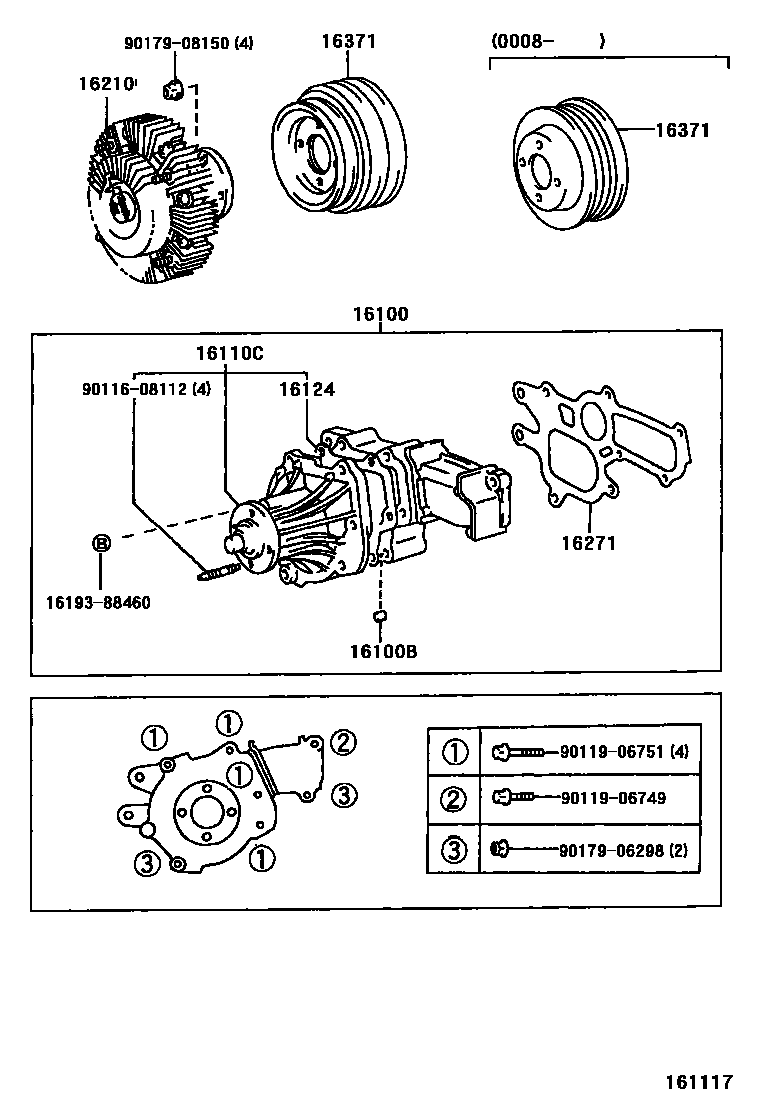

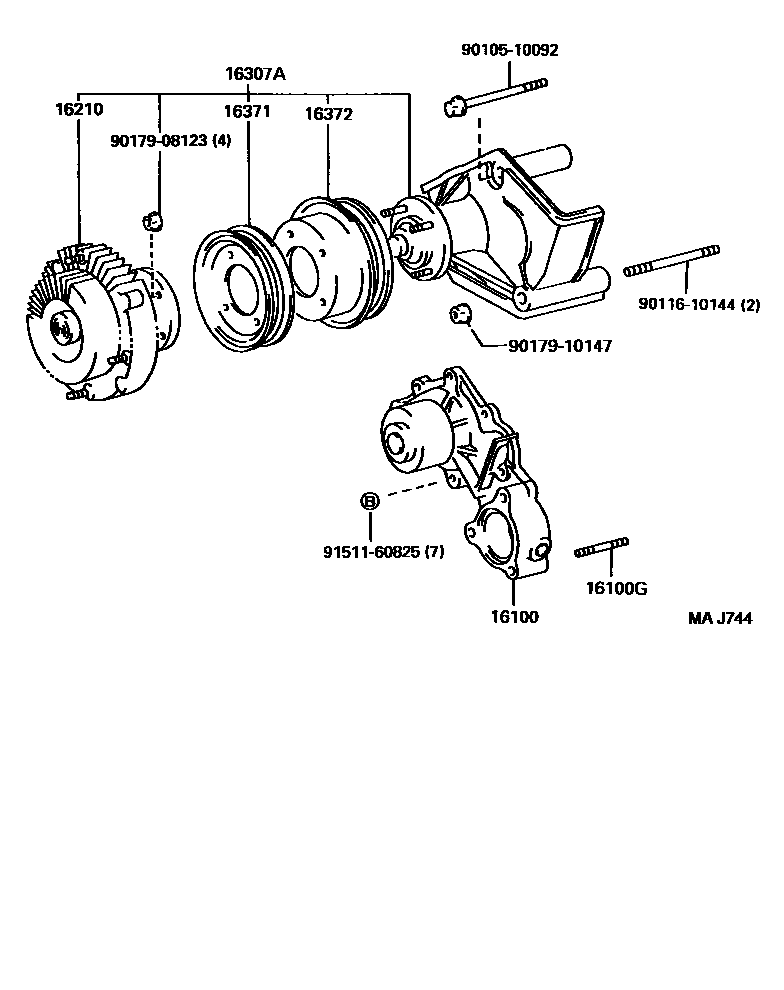

Toyota HILUX EPC diagram 1601, Water Pump, with 3 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16100 | Engine water pump assembly | 16100-69355 · 16100-69356 · 16100-69405 · 16100-69406 · 16100-69407 · 16100-79255 |
| 16100B | Ring pin (for water pump assembly) | 16159-70040 |
| 16100G | Studs (for water pump assembly) | 90116-08270 |
| 16110C | Water pump assembly without cover | 16110-69045 |
| 16124 | water pump cover gasket | 16124-67010 · 16124-75030 |
| 16198 | Stud bolts (for water pump pulley seat) | 92122-60818 |
| 16210 | Hydraulic coupler assembly | 16210-62011 · 16210-62030 · 16210-67030 · 16210-75040 · 16210-75060 |
| 16271 | water pump gasket | 16271-67020 |
| 16307A | Fan bracket sub-assembly | 16307-62011 · 16307-62030 |
| 16371 | fan pulley | 16371-30020 · 16371-62010 · 16371-67020 · 16371-75030 |
| 16372 | No. 2 fan pulley | 16372-65010 |
