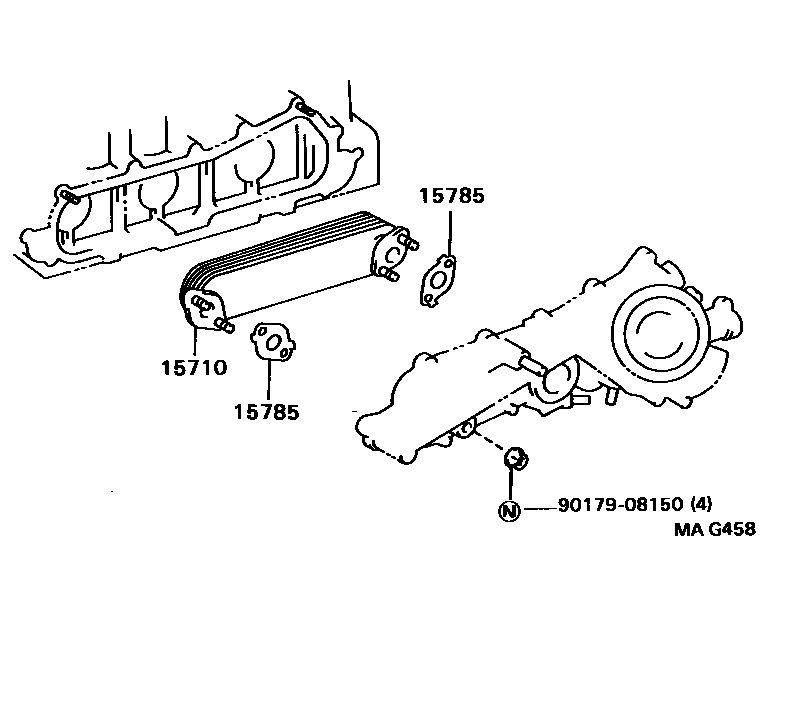

Toyota HILUX Engine Oil Cooler — Figure 1503
Toyota HILUX EPC diagram 1503, Engine Oil Cooler, with 1 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15710 | Oil cooler assembly | 15710-30010 · 15710-67040 |
| 15785 | oil cooler gasket | 15785-30010 · 15785-66010 |
