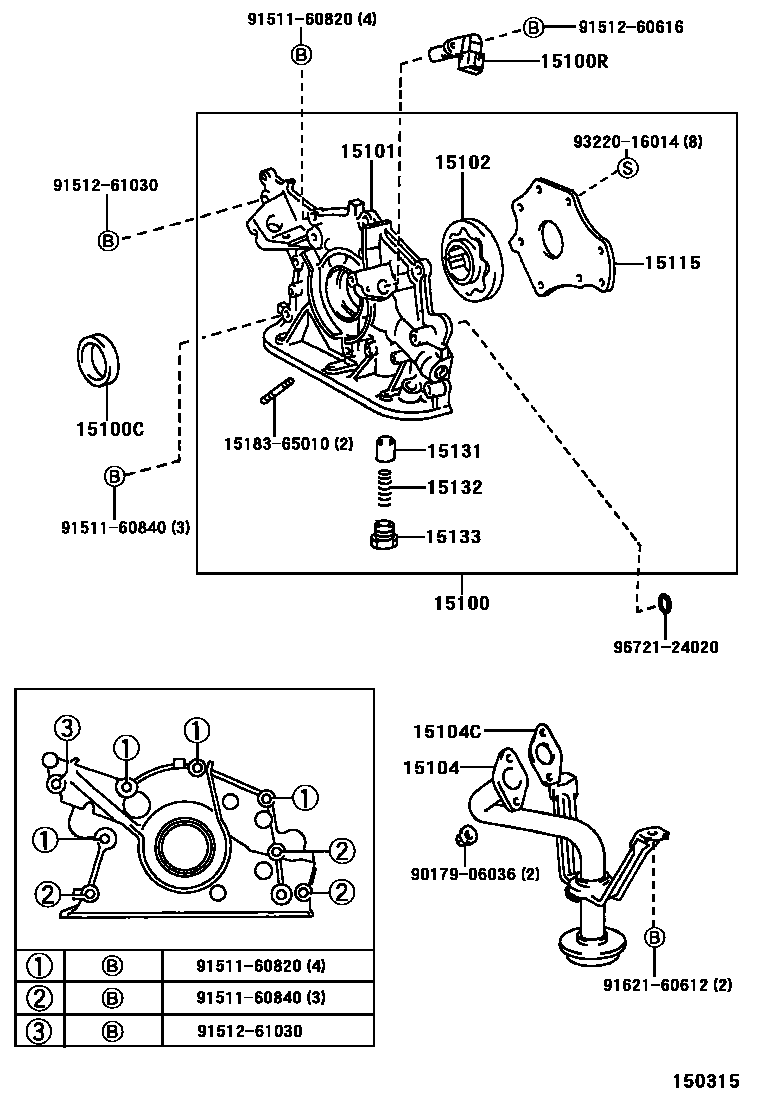

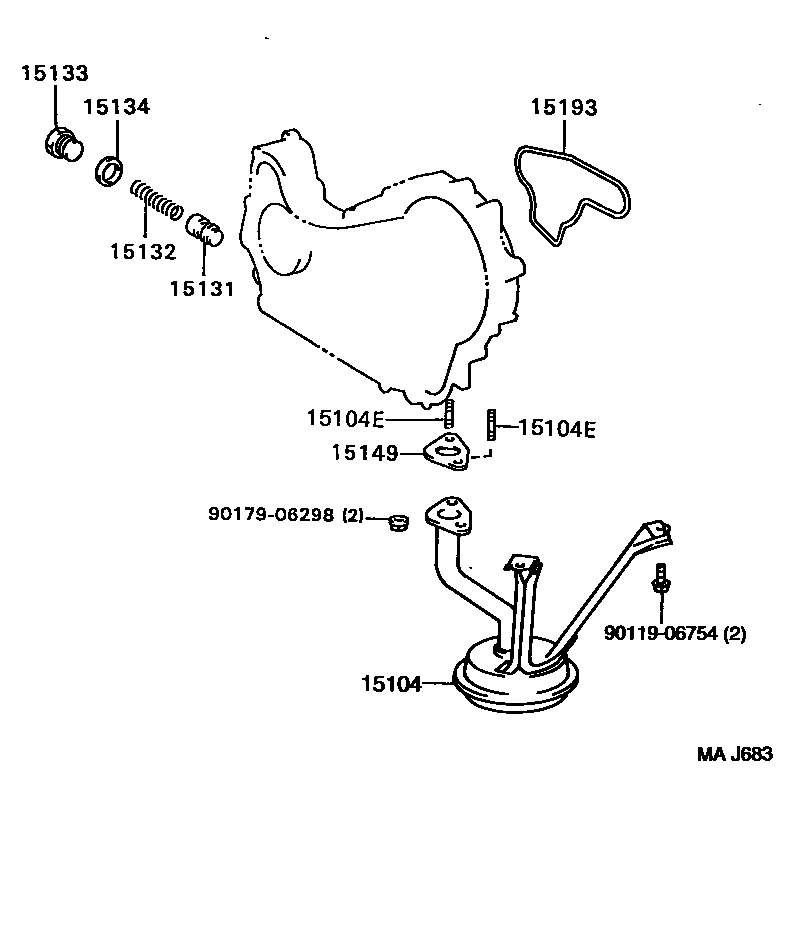

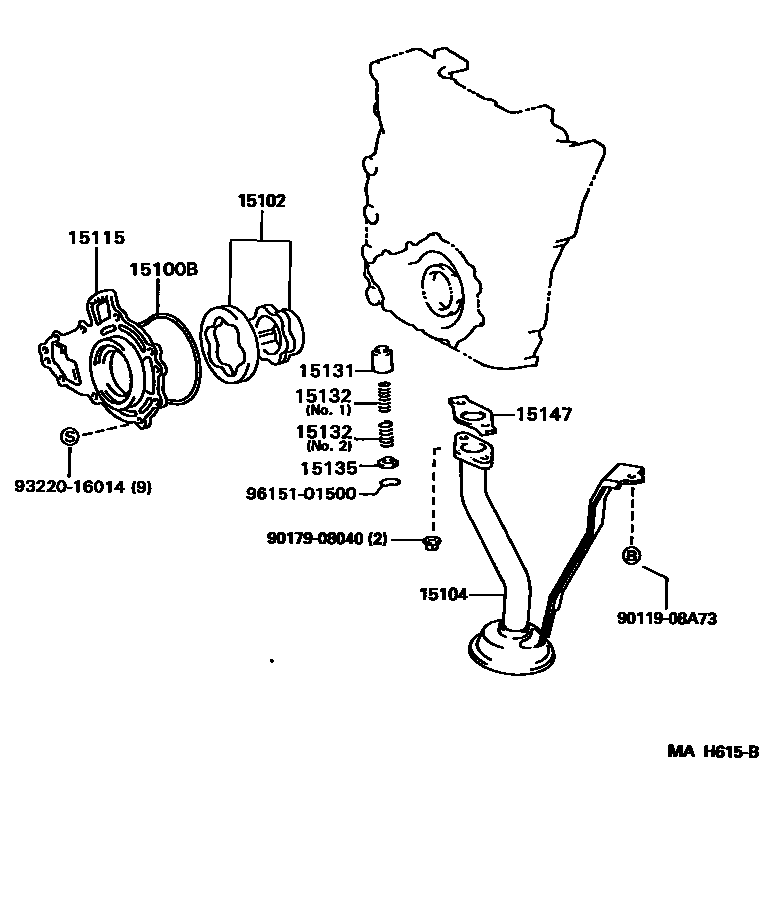

Toyota HILUX Engine Oil Pump — Figure 1501
Toyota HILUX EPC diagram 1501, Engine Oil Pump, with 3 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15100 | Oil pump assembly | 15100-62050 |
| 15100B | O-ring (for oil pump) | 15188-75020 · 15188-75021 |
| 15100C | Seals (for oil pump) | 90311-40013 · 90311-40022 |
| 15100R | crankshaft position sensor | 90919-05020 |
| 15101 | Oil pump body sub-assembly | 15101-62050 |
| 15102 | Oil pump rotor assembly | 15103-62030 · 15103-75020 |
| 15104 | Oil filter sub-assembly | 15104-62040 · 15104-67080 · 15104-75050 |
| 15104C | Gasket (for oil filter) | 15147-62020 |
| 15104E | Stud bolts (for oil filter) | 90116-06140 |
| 15115 | oil pump cover | 15115-62040 · 15115-75020 |
| 15131 | Oil pump pressure reducing valve | 15131-24010 · 15131-46040 |
| 15132 | Oil pump pressure reducing valve spring | 15132-17010 · 15132-20020 · 15132-75020 · 15132-75021 |
| 15133 | PLUG, OIL PUMP RELIEF VALVE | 15133-17010 · 15133-24010 |
| 15134 | Oil pump pressure reducing valve gasket | 15134-67020 |
| 15135 | Oil pump pressure reducing valve retaining ring | 15135-75040 |
| 15147 | Oil filter gasket | 15147-75020 |
| 15149 | Oil filter flange gasket | 15149-67010 |
| 15193 | oil pump gasket | 15193-67010 · 15193-67011 |
