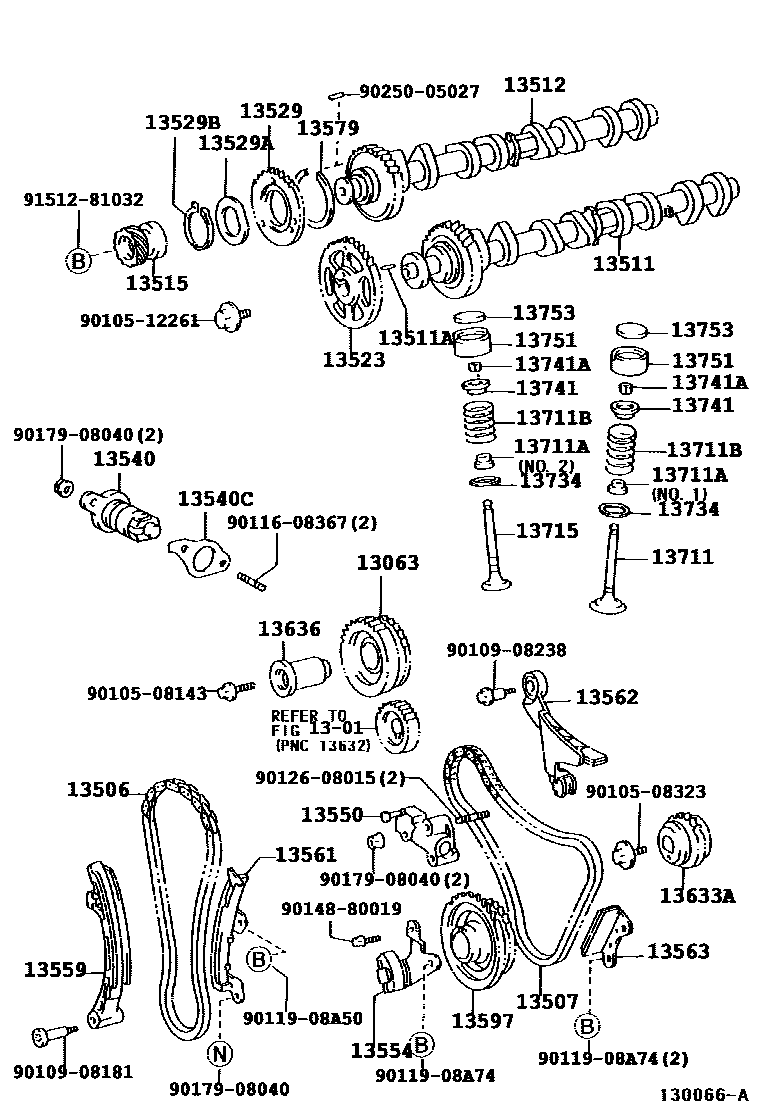

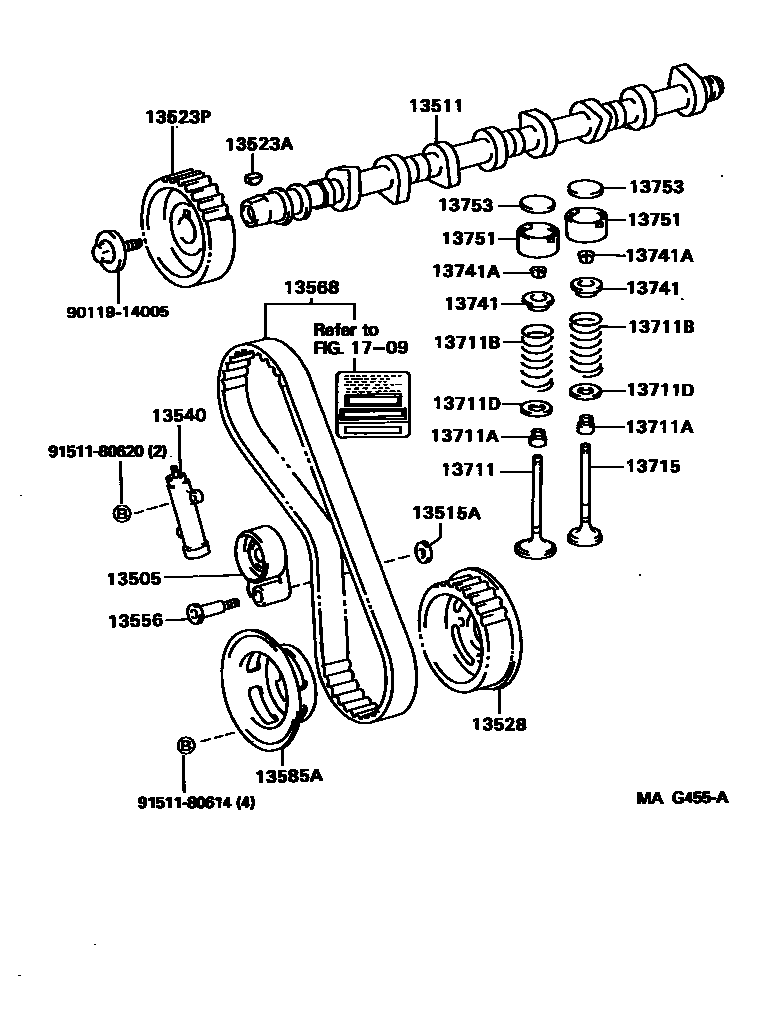

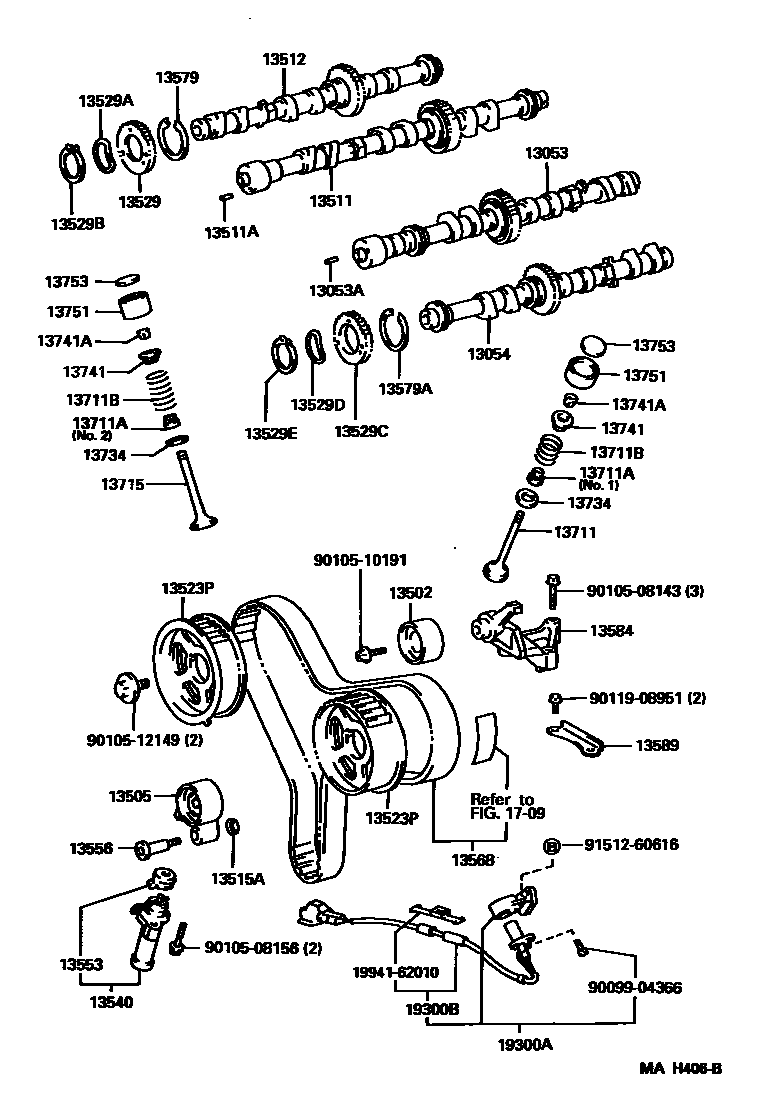

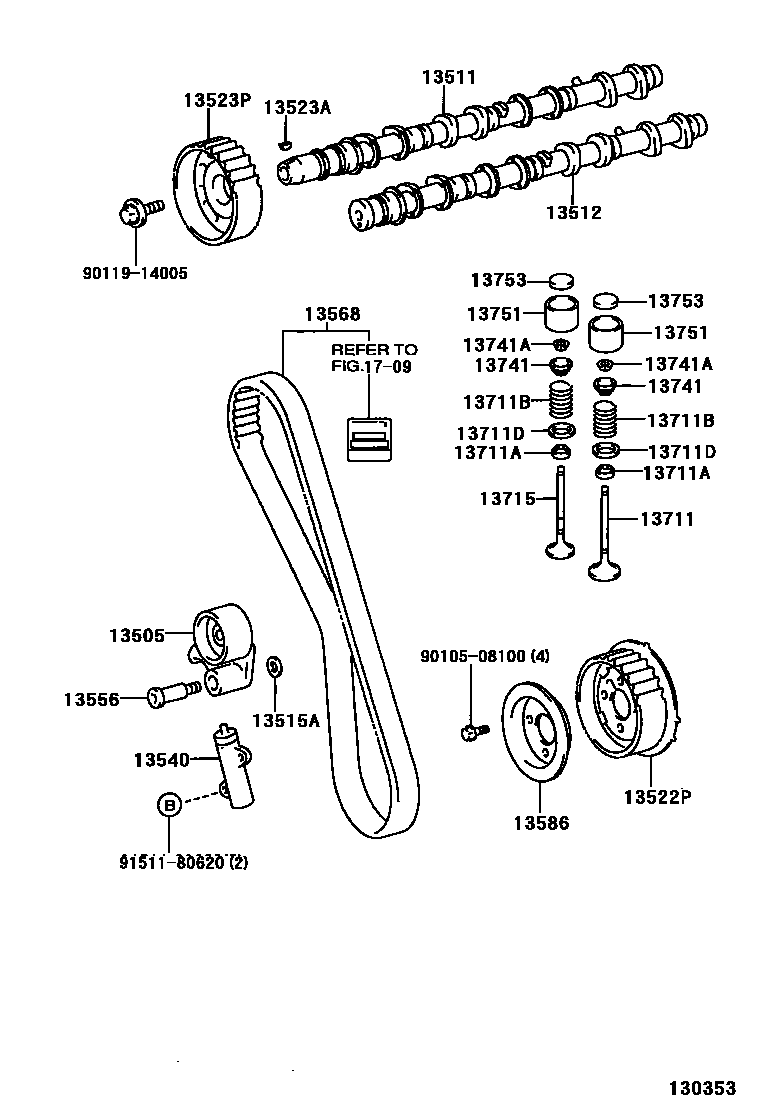

Toyota HILUX Camshaft & Valve — Figure 1302
Toyota HILUX EPC diagram 1302, Camshaft & Valve, with 4 images and 56 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 13053 | No. 3 camshaft sub-assembly | 13053-62050 |
| 13053A | No. 3 straight locking pin (for camshaft) | 90250-05121 |
| 13054 | No. 4 camshaft sub-assembly | 13054-62030 |
| 13063 | Balance shaft driving gear sub-assembly | 13063-75010 |
| 13502 | No. 2 timing belt idler pulley sub-assembly | 13503-62040 |
| 13505 | No. 1 timing belt idler pulley sub-assembly | 13505-62070 · 13505-67040 · 13505-67050 |
| 13506 | Chain sub-assembly | 13506-75020 |
| 13507 | No. 2 chain sub-assembly | 13507-75010 |
| 13511 | camshaft | 13501-30020 · 13501-62050 · 13501-67010 · 13501-75030 · 13501-75040 |
| 13511A | Direct pin (for camshaft locking pin) | 90250-05121 · 90250-06068 |
| 13512 | Camshaft No. 2 | 13502-30010 · 13502-62030 · 13502-75010 |
| 13515 | Distributor drive gear | 13515-75020 |
| 13515A | Flat washer (for distributor drive gear) | 90201-10098 · 90201-10124 |
| 13522P | Pump drive shaft pulley | 13524-30010 |
| 13523 | Camshaft timing gear or sprocket | 13523-75010 |
| 13523A | Half-moon pin (for timing gear) | 90280-05004 |
| 13523P | Camshaft timing pulley | 13051-62030 · 13523-17010 · 13528-62020 |
| 13528 | Camshaft driving gear | 13528-67010 |
| 13529 | Camshaft counter gear | 13529-62901 · 13529-74900 |
| 13529A | Wave Washer (for Camshaft Counter Gear) | 90206-42001 |
| 13529B | Shaft snap ring (for camshaft counter gear) | 90520-41004 |
| 13529C | Camshaft No. 3 pinion gear | 13529-62901 |
| 13529D | Wave washer (for camshaft No. 3 sub-gear) | 90206-42001 |
| 13529E | Shaft snap ring (for camshaft No. 3 secondary gear) | 90520-41004 |
| 13540 | No. 1 chain tensioner assembly | 13540-62021 · 13540-67020 · 13540-75020 |
| 13540C | Pad (for chain tensioner) | 13552-75010 |
| 13550 | No. 2 chain tensioner assembly | 13550-75010 |
| 13553 | Chain tensioner dust cover | 13553-62020 |
| 13554 | No. 4 chain shock absorber | 13554-75010 |
| 13556 | Timing belt idler shaft | 13556-62010 · 13556-67010 |
| 13559 | chain tensioner guide plate | 13559-75020 |
| 13561 | No. 1 chain shock absorber | 13561-75020 |
| 13562 | No. 2 chain shock absorber | 13562-75010 |
| 13563 | No. 3 chain shock absorber | 13563-75010 |
| 13568 | timing belt | 13568-39015 · 13568-69085 · 13568-69095 |
| 13579 | Camshaft timing gear bolt washer | 13579-62010 · 13579-74010 |
| 13579A | No. 3 camshaft timing gear bolt washer | 13579-62010 |
| 13584 | Timing belt idler bracket | 13584-62050 |
| 13585A | No. 1 camshaft timing pulley flange | 13585-67010 |
| 13586 | No. 2 camshaft timing pulley flange | 13586-17020 |
| 13589 | Idler gear bracket stay | 13589-62020 |
| 13597 | No. 2 crankshaft timing sprocket | 13597-75010 |
| 13633A | No. 2 balance shaft driven gear | 13633-75010 |
| 13636 | Balance shaft driving gear shaft | 13636-75010 |
| 13711 | intake valve | 13711-30030 · 13711-54020 · 13711-54040 · 13711-62030 · 13711-75060 |
| 13711A | Oil seal or O-ring (for valve stem) | 90913-02053 · 90913-02090 · 90913-02095 · 90913-02103 · 90913-02110 · 90913-02118 · 90913-02121 |
| 13711B | Compression spring (for inner side) | 90501-31013 · 90501-31017 · 90501-36002 · 90504-49001 · 90905-01076 · 90905-01077 |
| 13711D | Flat washer (for valve spring seat) | 90201-16023 · 90201-23003 |
| 13715 | exhaust valve | 13715-30030 · 13715-62050 · 13715-67020 · 13715-67040 · 13715-75050 |
| 13734 | Valve spring seat | 13734-62020 · 90201-18015 |
| 13741 | Valve spring seat ring | 13741-15020 · 13741-46020 · 13741-54020 · 13741-62010 |
| 13741A | Valve spring seat lock plate | 90913-03014 · 90913-03021 |
| 13751 | valve lifter | 13751-46030 · 13751-46040 · 13751-46050 · 13751-46060 · 13751-46070 · 13751-46080 · 13751-46090 · 13751-46100 · 13751-46110 · 13751-46120 · 13751-46130 · 13751-46140 · 13751-46150 · 13751-46160 · 13751-46170 · 13751-46180 · 13751-46190 · 13751-46200 · 13751-46210 · 13751-46220 · 13751-46230 · 13751-46240 · 13751-46250 · 13751-46260 · 13751-46270 · 13751-46280 · 13751-46290 · 13751-46300 · 13751-46310 · 13751-46320 · 13751-46330 · 13751-46340 · 13751-46350 · 13751-46360 · 13751-46370 · 13751-54010 · 13751-74020 |
| 13753 | valve adjustment gasket | 13753-30010 · 13753-30020 · 13753-30030 · 13753-30040 · 13753-30050 · 13753-30060 · 13753-30070 · 13753-30080 · 13753-30090 · 13753-30100 · 13753-30110 · 13753-30120 · 13753-30130 · 13753-30140 · 13753-30150 · 13753-30160 · 13753-30170 · 13753-30180 · 13753-30190 · 13753-30200 · 13753-30210 · 13753-30220 · 13753-30230 · 13753-30240 · 13753-30250 · 13753-30260 · 13753-30270 · 13753-30280 · 13753-30290 · 13753-30300 · 13753-30310 · 13753-30320 · 13753-54010 · 13753-54060 · 13753-54110 · 13753-54160 · 13753-54210 · 13753-54260 · 13753-54310 · 13753-54360 · 13753-54410 · 13753-54420 · 13753-54430 · 13753-54440 · 13753-54450 · 13753-54460 · 13753-54470 · 13753-54480 · 13753-54490 · 13753-74010 · 13753-74030 · 13753-74050 · 13753-74070 · 13753-74090 · 13753-74110 · 13753-74130 · 13753-74150 · 13753-74170 · 13753-74190 · 13753-74210 · 13753-74230 · 13753-74250 · 13753-74270 · 13753-74290 · 13753-74310 · 13753-74330 |
| 19300A | Cam position sensor assembly | 19300-62010 |
| 19300B | Cam position sensor | 90919-05021 |
