Toyota HILUX Crankshaft & Piston — Figure 1301

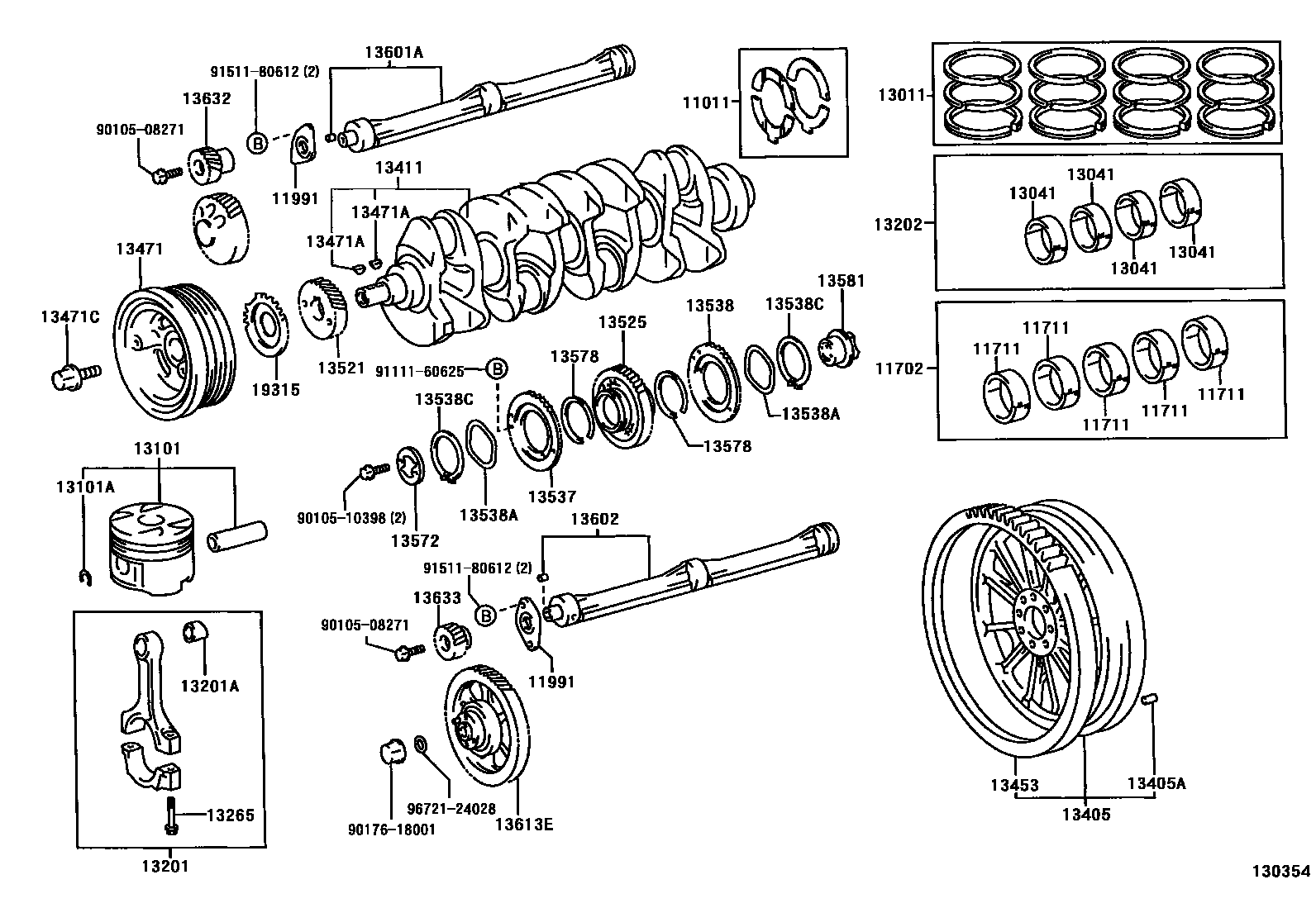

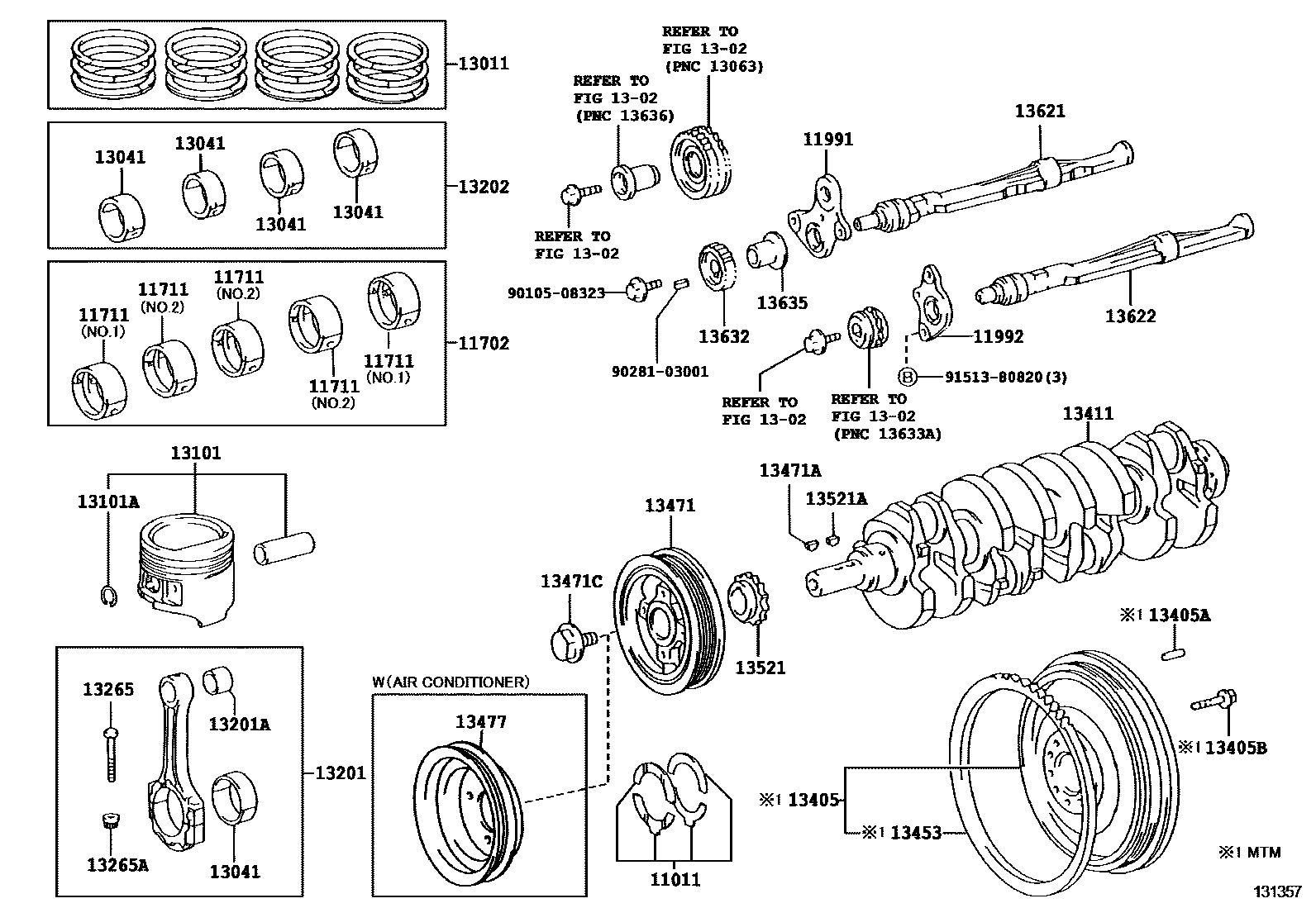

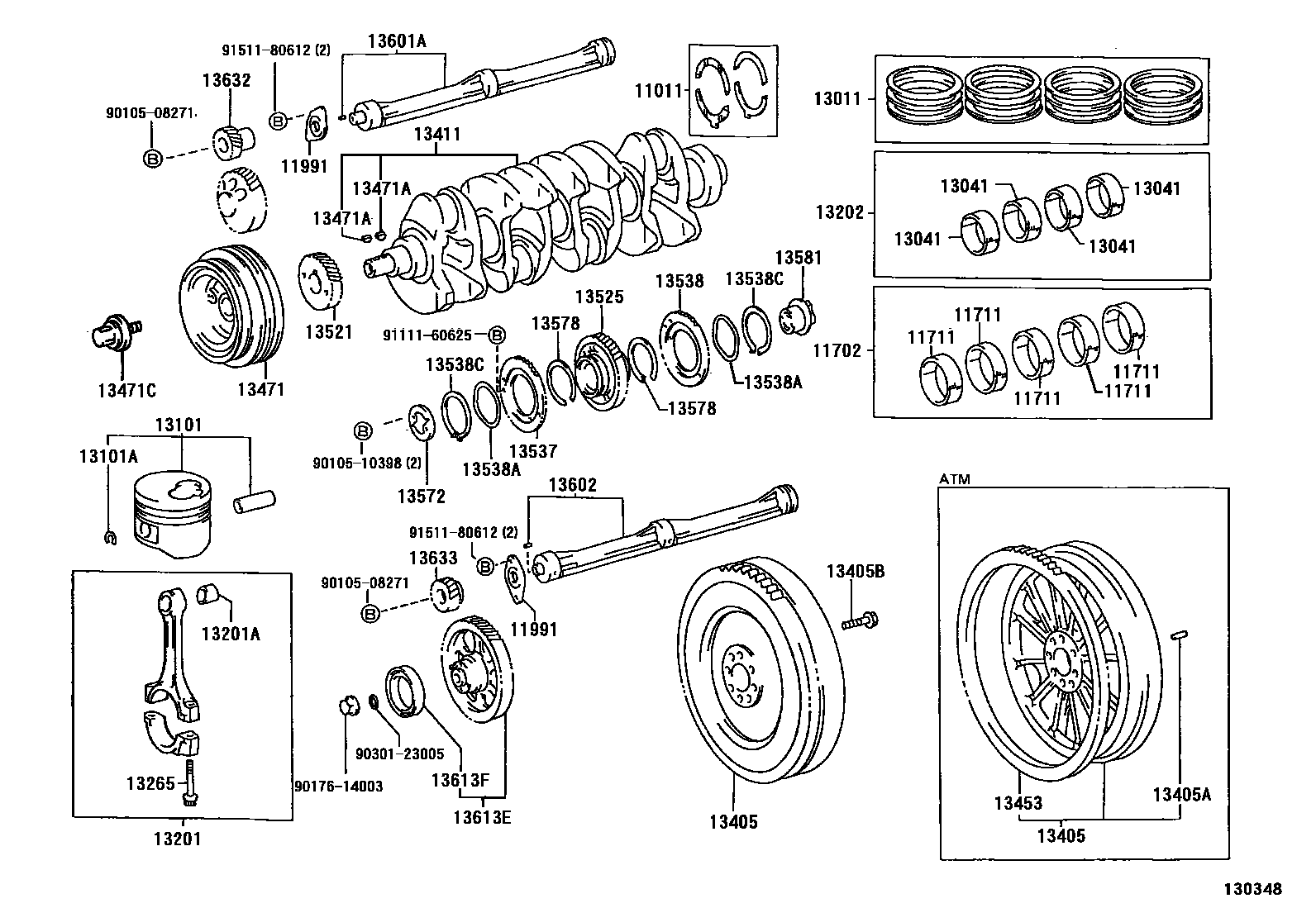

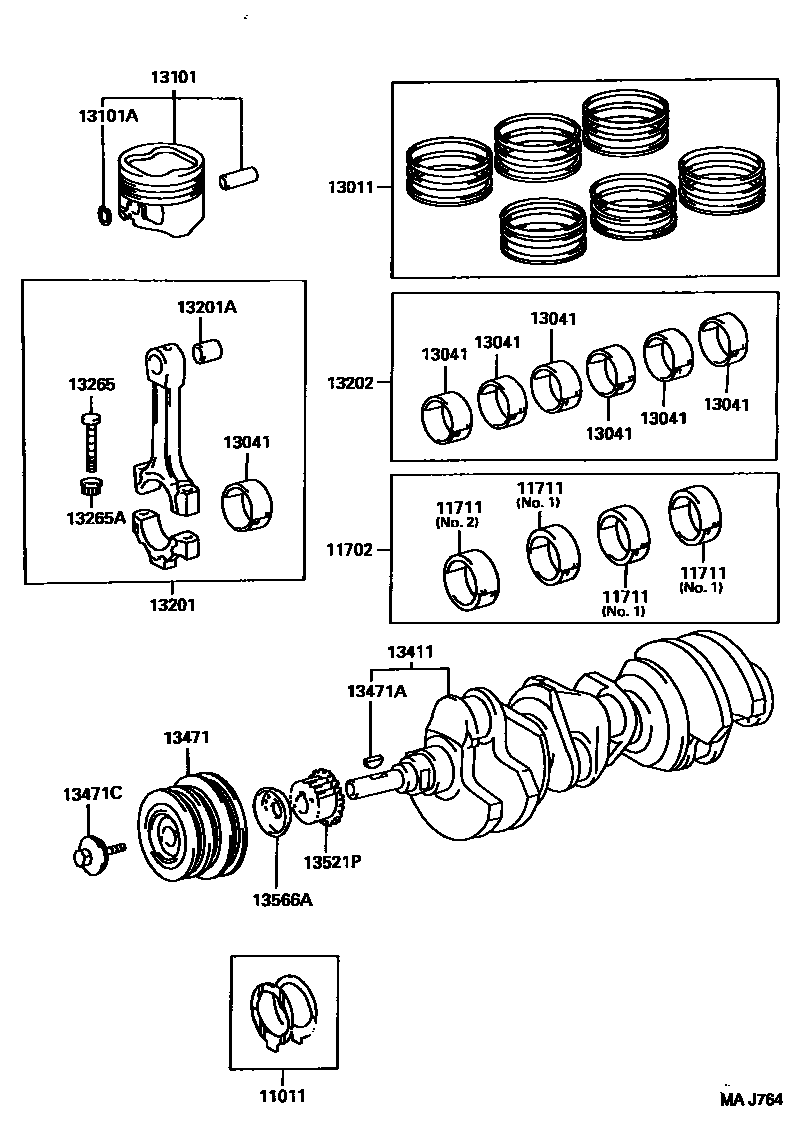

Toyota HILUX EPC diagram 1301, Crankshaft & Piston, with 4 images and 43 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11011 | Crankshaft thrust washer assembly | 11011-62010 · 11011-67020 · 11011-75010 · 11012-67020 · 11013-67020 |
| 11702 | crankshaft bearing assembly | 11704-65013 · 11704-67020 · 11704-67021 · 11704-75020 · 11704-75021 · 11705-67020 · 11705-67021 |
| 11991 | Balance shaft thrust washer | 11991-67010 · 11991-75010 |
| 11992 | No. 2 balance shaft thrust washer | 11992-75010 |
| 13011 | Piston ring assembly | 13011-30020 · 13011-30021 · 13011-62100 · 13011-62110 · 13011-62130 · 13011-67020 · 13011-67030 · 13011-75040 · 13011-75041 · 13013-30020 · 13013-30021 · 13013-62100 · 13013-62110 · 13013-62130 · 13013-67020 · 13013-67030 · 13013-75040 · 13013-75041 · 13014-30020 · 13014-30021 · 13014-67020 · 13014-67030 · 13015-30020 · 13015-30021 · 13015-67020 · 13015-67030 |
| 13101 | Piston sub-assembly with pin | 13101-75040 · 13101-75041 · 13103-30020 · 13103-62060 · 13103-62070 · 13103-67020 · 13103-67030 · 13103-67050 · 13103-75040 · 13103-75041 · 13104-30020 · 13104-67020 · 13104-67030 · 13104-67050 · 13105-30020 · 13105-67020 · 13105-67030 · 13105-67050 |
| 13101A | Bore snap ring (for piston pin) | 90520-37014 · 90521-25004 · 90521-28003 |
| 13201 | Connecting rod sub-assembly | 13201-30020 · 13201-67020 · 13201-67021 · 13201-69145 · 13201-79205 |
| 13201A | Bushing (for connecting rod small end) | 90999-73129 · 90999-73130 · 90999-73136 · 90999-73143 |
| 13202 | Connecting rod bearing assembly | 13204-62030 · 13204-67030 · 13204-67031 · 13204-75020 · 13204-75021 · 13205-67030 · 13205-67031 |
| 13265 | Connecting rod bolts | 13265-62030 · 13265-67020 · 13265-67021 · 13265-75030 |
| 13265A | Hexagonal nut (for connecting rod bolts) | 90179-08118 · 90179-09009 |
| 13405 | Flywheel sub-assembly | 13405-67030 · 13405-75040 · 13450-67011 · 13450-67020 · 13450-67021 |
| 13405A | Direct sales (for flywheel) | 90250-05121 · 90250-08054 |
| 13405B | Flywheel fixing bolt | 90105-13009 · 90910-02116 |
| 13411 | crankshaft | 13401-30010 · 13401-62030 · 13401-67010 · 13411-75020 |
| 13453 | flywheel ring gear | 13453-20010 · 13453-67020 · 13453-67030 |
| 13471 | crankshaft pulley | 13408-30010 · 13408-62040 · 13408-67020 · 13408-75030 |
| 13471A | Crankshaft key (for crankshaft pulley assembly) | 90280-05005 · 95161-30516 |
| 13471C | Bolt (for crankshaft pulley assembly) | 90105-16031 · 90105-16041 · 90119-16006 · 90119-18003 |
| 13477 | No. 2 crankshaft pulley | 88451-95J01 |
| 13521 | Crankshaft timing gear or sprocket | 13521-67020 · 13521-75010 |
| 13521A | Key (for crankshaft timing gear) | 90280-05005 |
| 13521P | crankshaft timing pulley | 13521-62030 · 13521-62031 |
| 13525 | No. 1 idler pulley | 13508-67900 |
| 13537 | No.1 auxiliary idler pulley | 13537-67900 |
| 13538 | No. 2 auxiliary idler pulley | 13538-67900 |
| 13538A | Wave washer | 90206-69001 |
| 13538C | Shaft snap ring | 90520-58002 |
| 13566A | timing belt guide | 13567-62010 |
| 13572 | Idler thrust plate | 13572-67041 |
| 13578 | Idler spring | 13578-67010 |
| 13581 | No. 1 idler shaft | 13581-67041 |
| 13601A | No. 1 balance shaft sub-assembly | 13601-67010 · 13601-67020 |
| 13602 | No. 2 balance shaft sub-assembly | 13602-67010 · 13602-67020 |
| 13613E | Driving gear | 13603-30010 · 13613-67900 |
| 13613F | Radial ball bearing | 90363-60004 |
| 13621 | No. 1 balance shaft | 13621-75010 |
| 13622 | No. 2 balance shaft | 13622-75010 |
| 13632 | No. 1 balance shaft driven gear | 13632-67010 · 13632-75010 |
| 13633 | No. 2 balance shaft driven gear | 13633-67010 |
| 13635 | balance shaft thrust spacer | 13635-75010 |
| 19315 | No. 1 crankshaft angle signal plate | 19315-30010 |
