Toyota HILUX Ventilation Hose — Figure 1201

Toyota HILUX EPC diagram 1201, Ventilation Hose, with 5 images and 8 PNC and OE references.

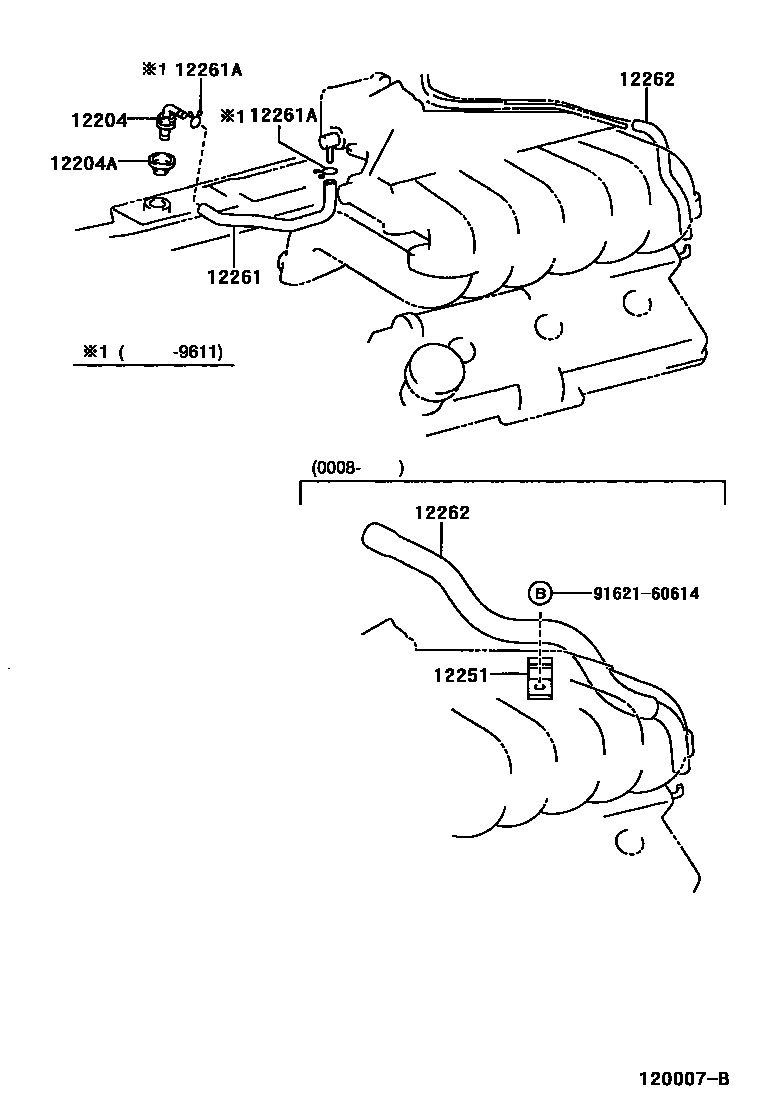

Toyota HILUX Ventilation Hose EPC diagram — 120007B
Ventilation Hose — 120007B (199511 – 999999)

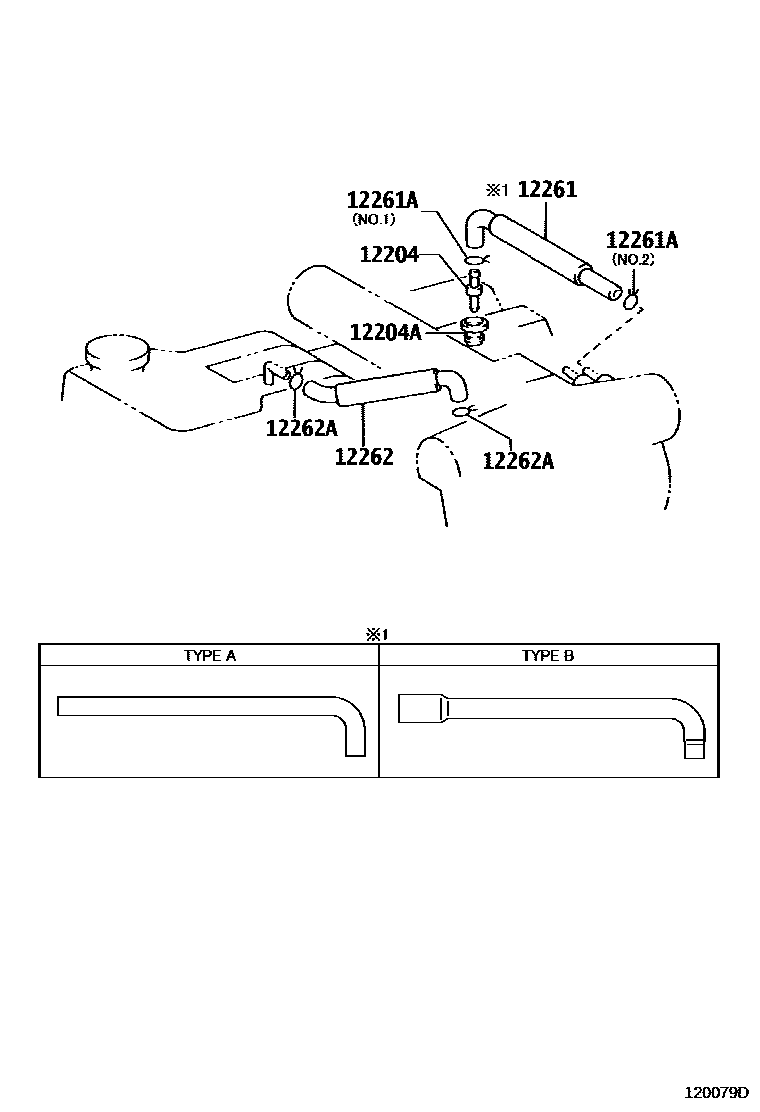

Toyota HILUX Ventilation Hose EPC diagram — 120079D
Ventilation Hose — 120079D (199511 – 200008)

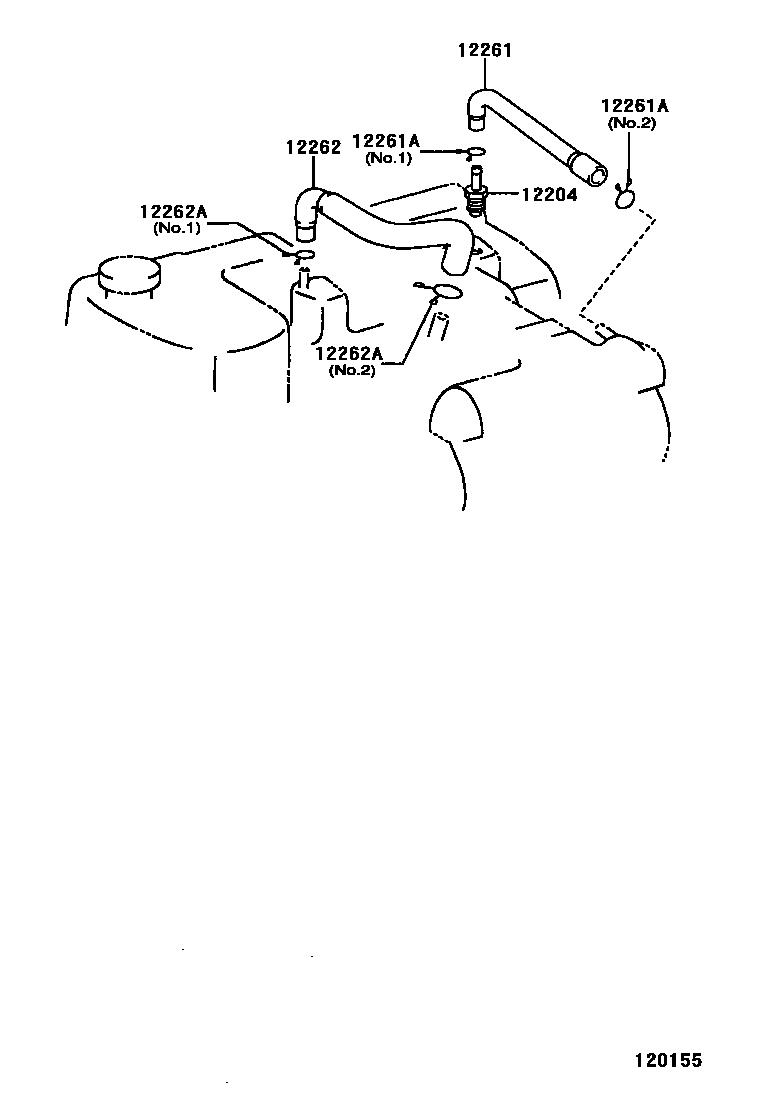

Toyota HILUX Ventilation Hose EPC diagram — 120155
Ventilation Hose — 120155 (200008 – 999999)
Toyota HILUX Ventilation Hose EPC diagram — 120156
Ventilation Hose — 120156 (200008 – 999999)

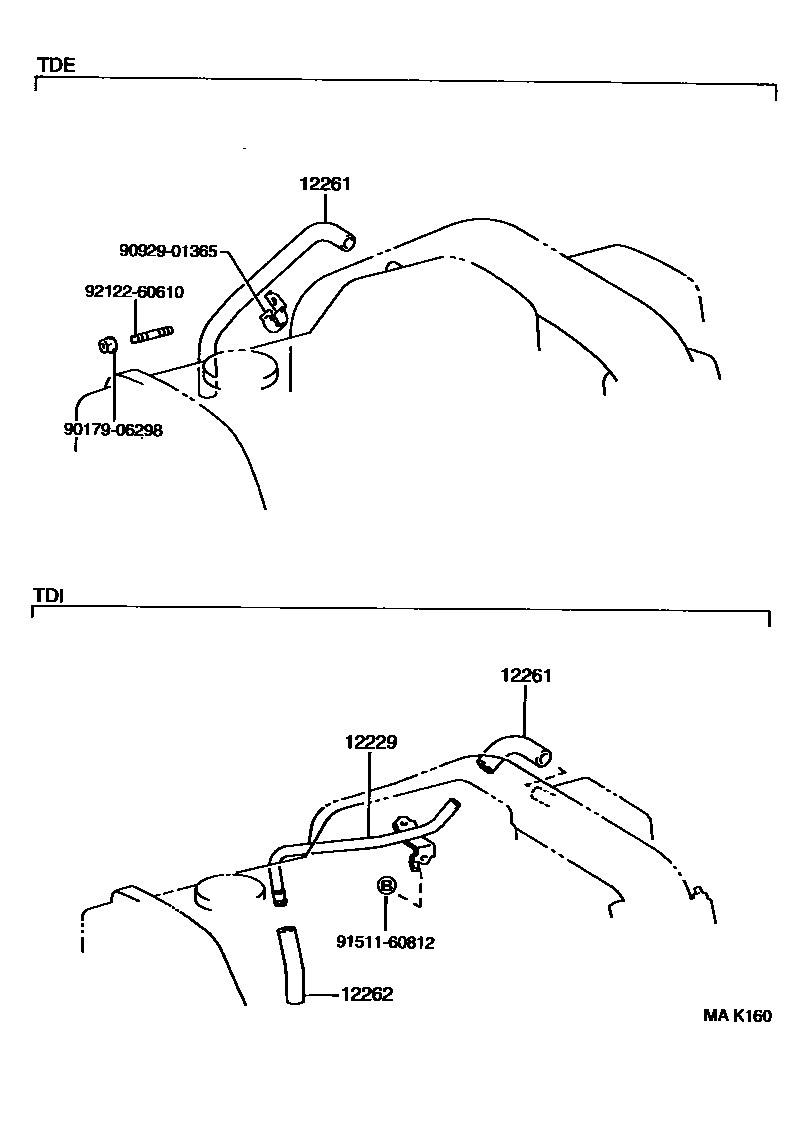

Toyota HILUX Ventilation Hose EPC diagram — MAK160
Ventilation Hose — MAK160 (199511 – 200008)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-62010 · 12204-75010 · 12204-75020
12204AGasket (for ventilation system)90480-18001
12229ventilation duct12229-30020 · 12229-67020
12251Ventilation duct clamp12251-62010
12261Ventilation Hose12261-62040 · 12261-62041 · 12261-67010 · 12261-67020 · 12261-75030 · 12261-75080
12261AClip or clip (for vent hose)90467-14001 · 90467-14017 · 90467-22010
12262Ventilation hose No. 212262-30010 · 12262-62050 · 12262-62060 · 12262-67020 · 12262-75050 · 12262-75130
12262AClamp (for vent hose No. 2)90467-14001 · 90467-22010
