Toyota HILUX Engine Mounting — Figure 1107

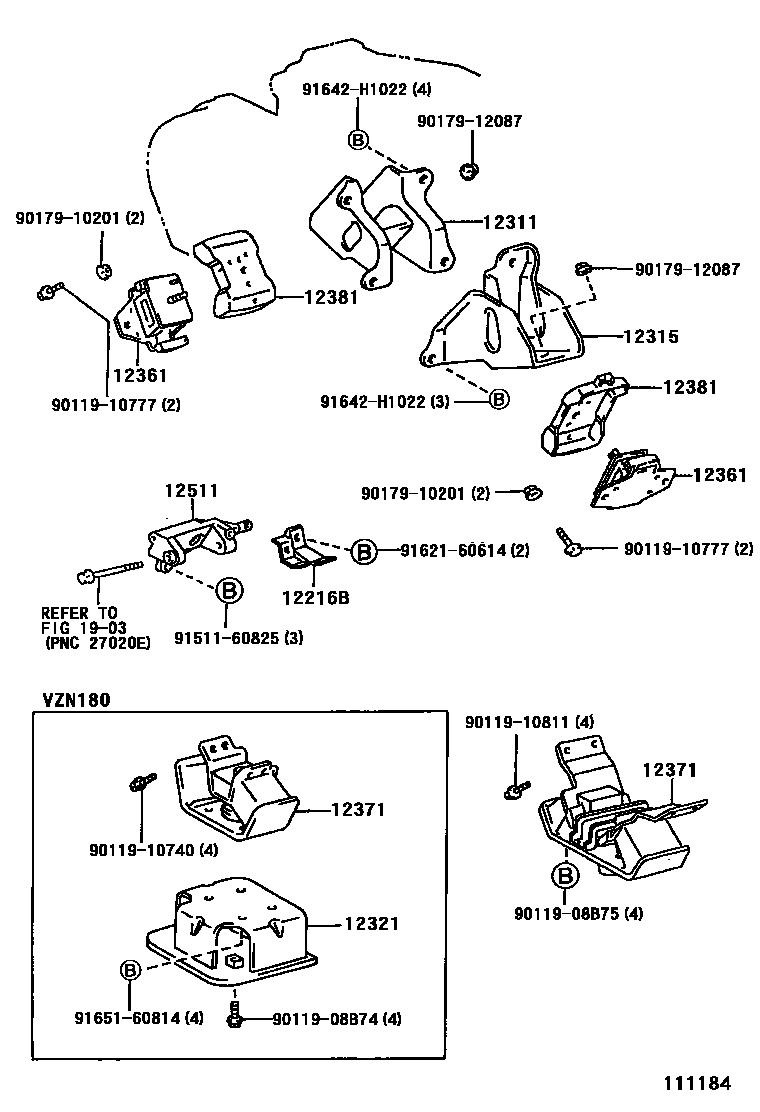

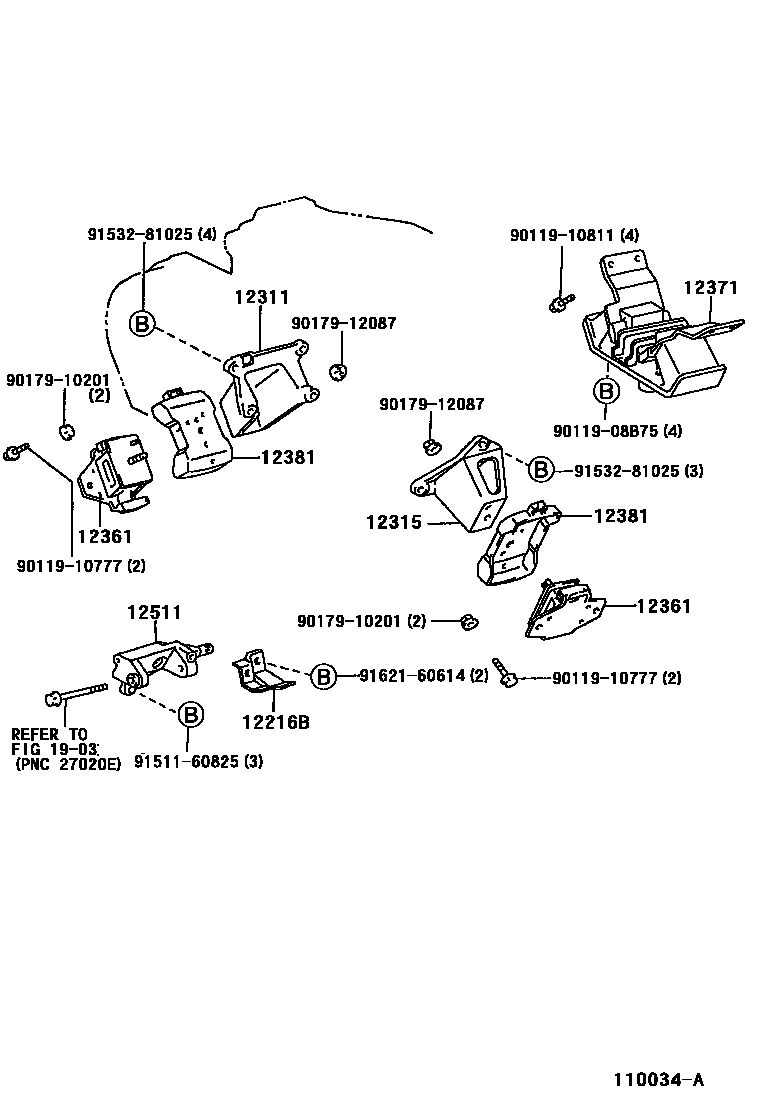

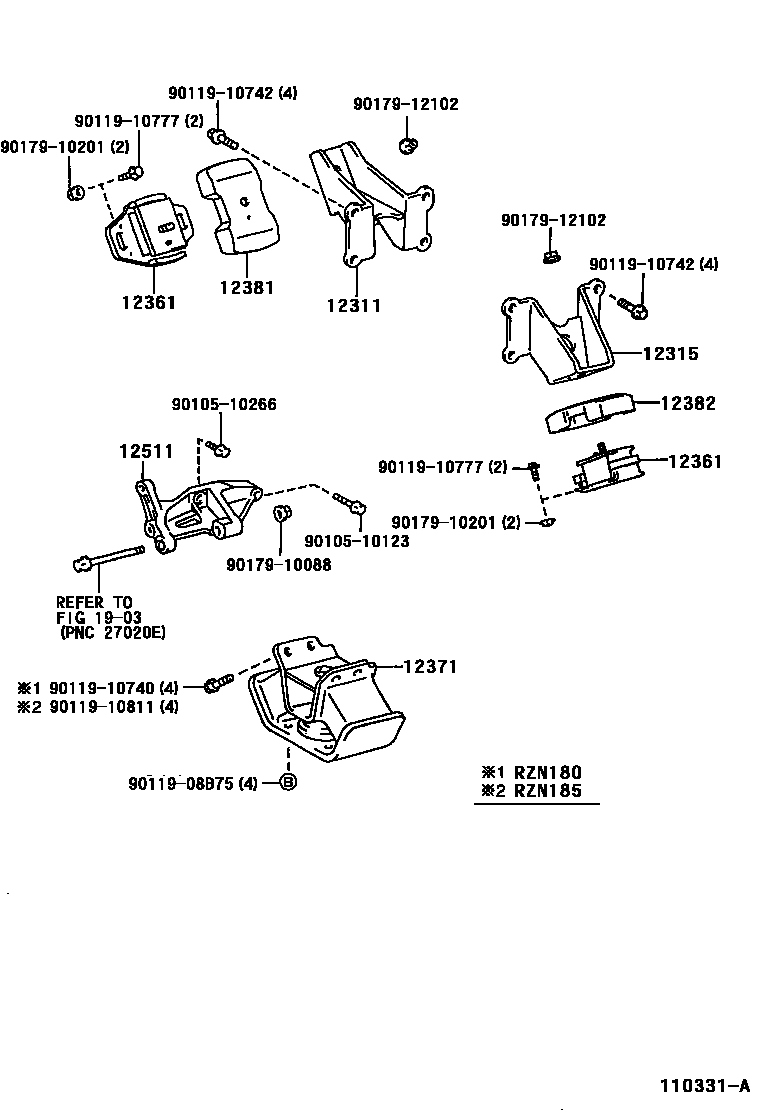

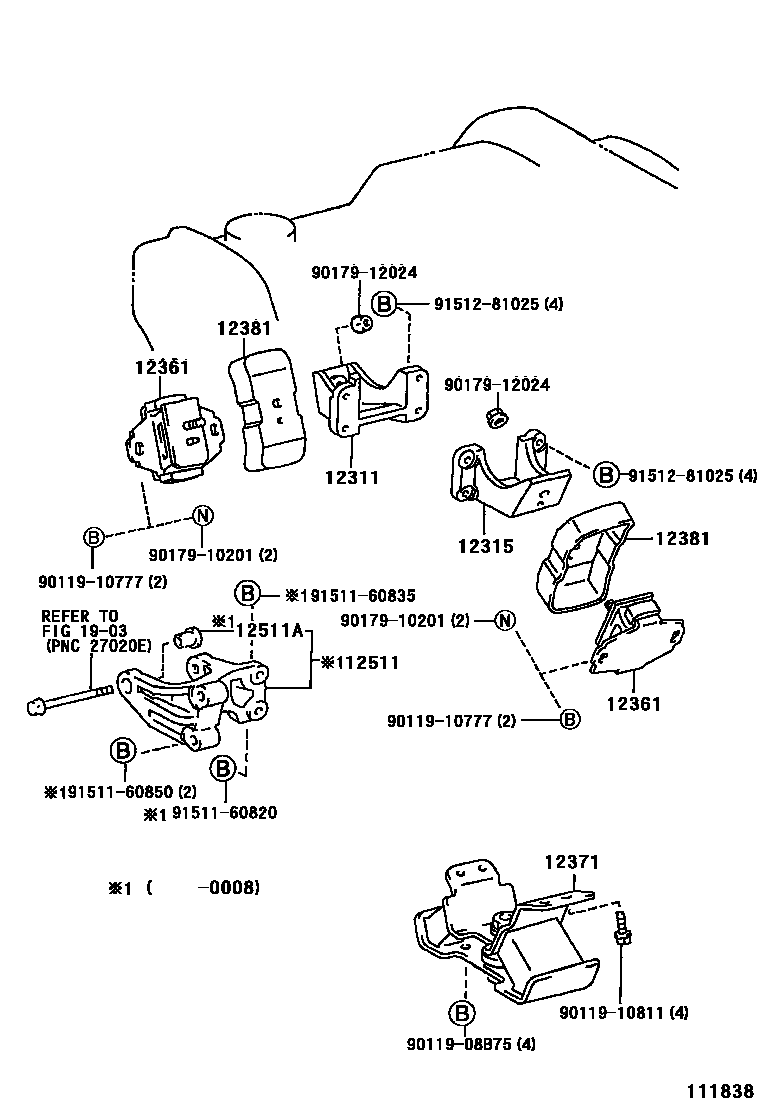

Toyota HILUX EPC diagram 1107, Engine Mounting, with 4 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12216B | Oil baffle | 12216-62030 |
| 12311 | Engine Mounting Bracket No. 1, Front RH | 12311-62030 · 12311-62060 · 12311-62070 · 12311-67050 · 12311-75050 |
| 12315 | Engine No. 1 left front suspension bracket | 12315-62040 · 12315-62070 · 12315-62080 · 12315-67030 · 12315-75050 |
| 12321 | Engine No. 1 rear suspension bracket | 12321-62100 |
| 12361 | Engine front mounting vibration isolation pad | 12361-35090 · 12361-62110 · 12361-62140 · 12361-67030 |
| 12371 | Engine No. 1 rear mount vibration isolation pad | 12371-62070 · 12371-62120 · 12371-67020 · 12371-67060 · 12371-75030 · 12371-75040 · 12371-75100 |
| 12381 | engine mount stabilizer bar | 12381-62020 · 12381-65030 · 12381-67020 · 12381-75020 · 12382-62010 |
| 12382 | Engine left mounting stabilizer bar | 12382-75010 |
| 12511 | No. 1 generator bracket | 12511-62010 · 12511-67020 · 12511-75030 · 12511-75040 · 12511-75041 |
| 12511A | Generator bracket bushing | 90389-10039 |
