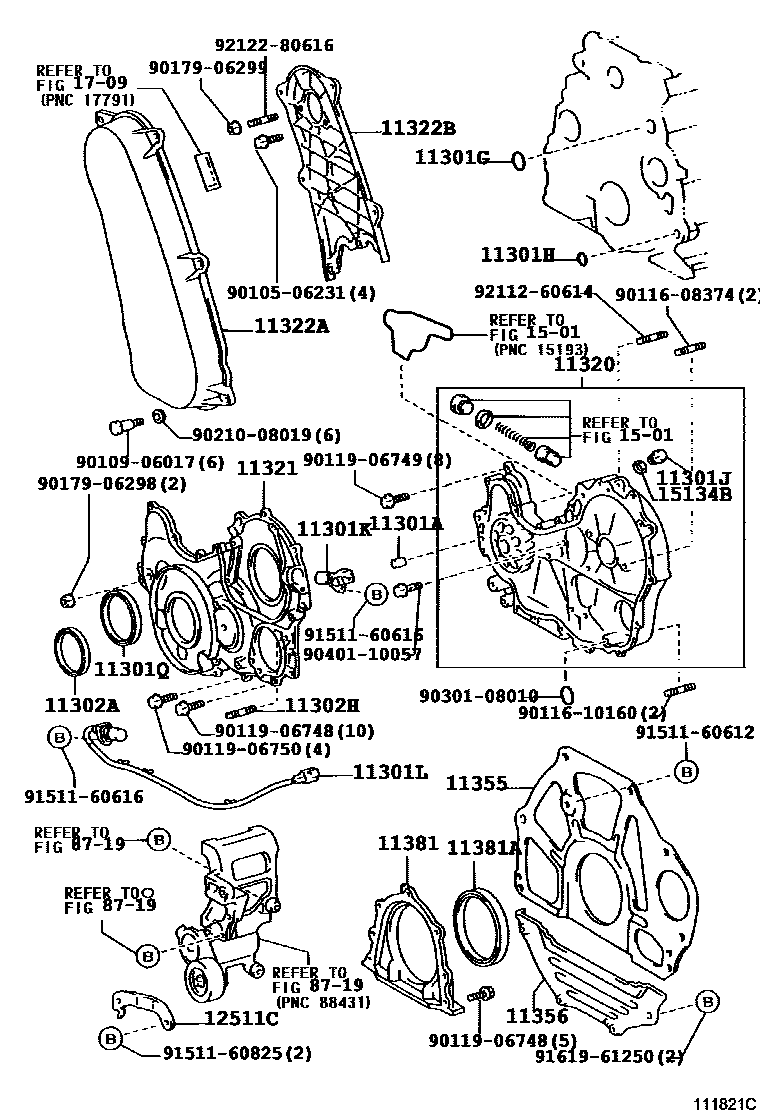

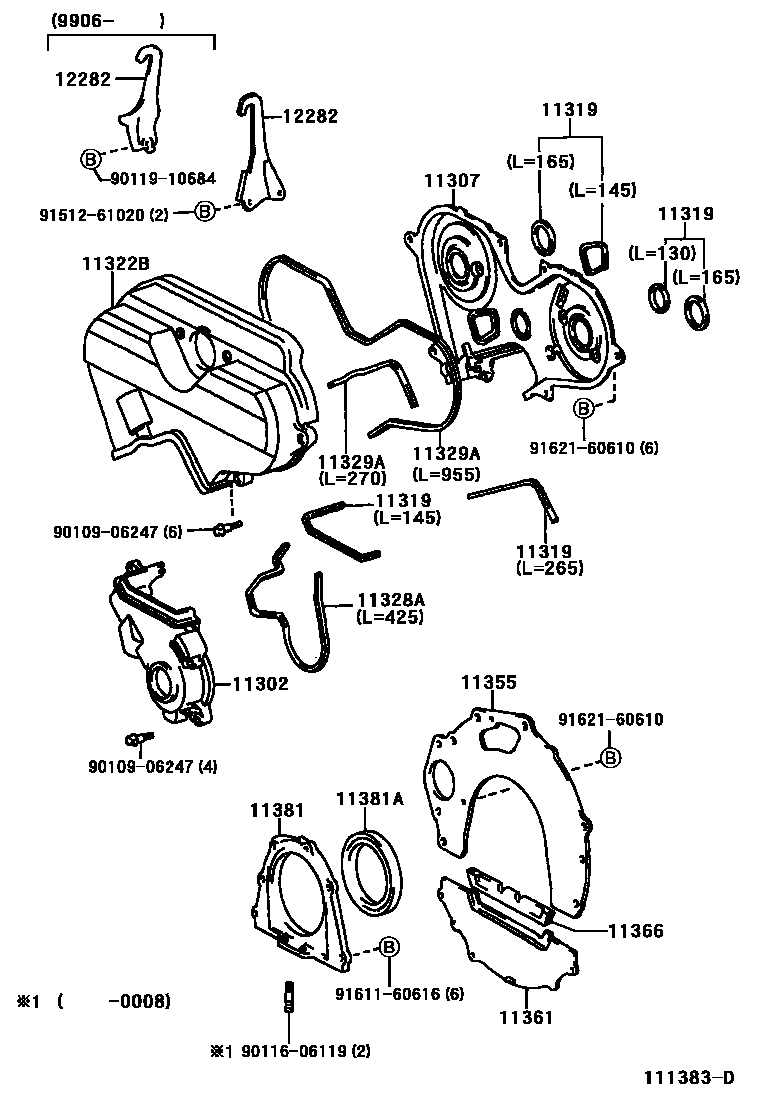

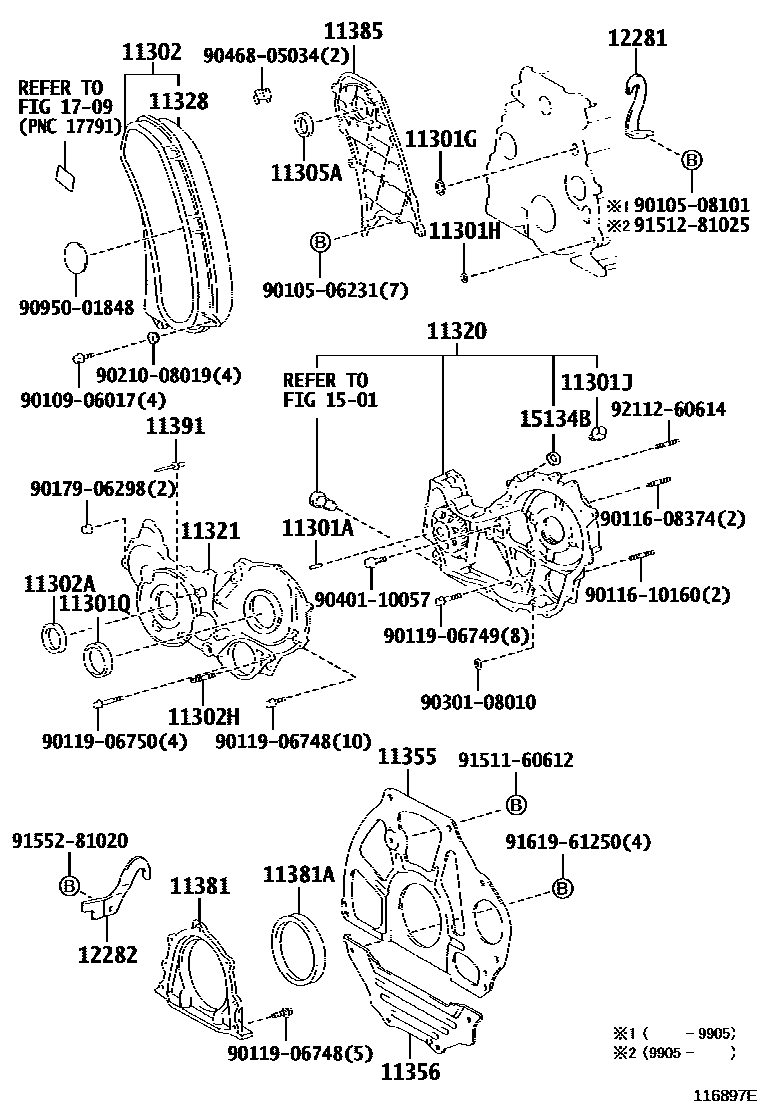

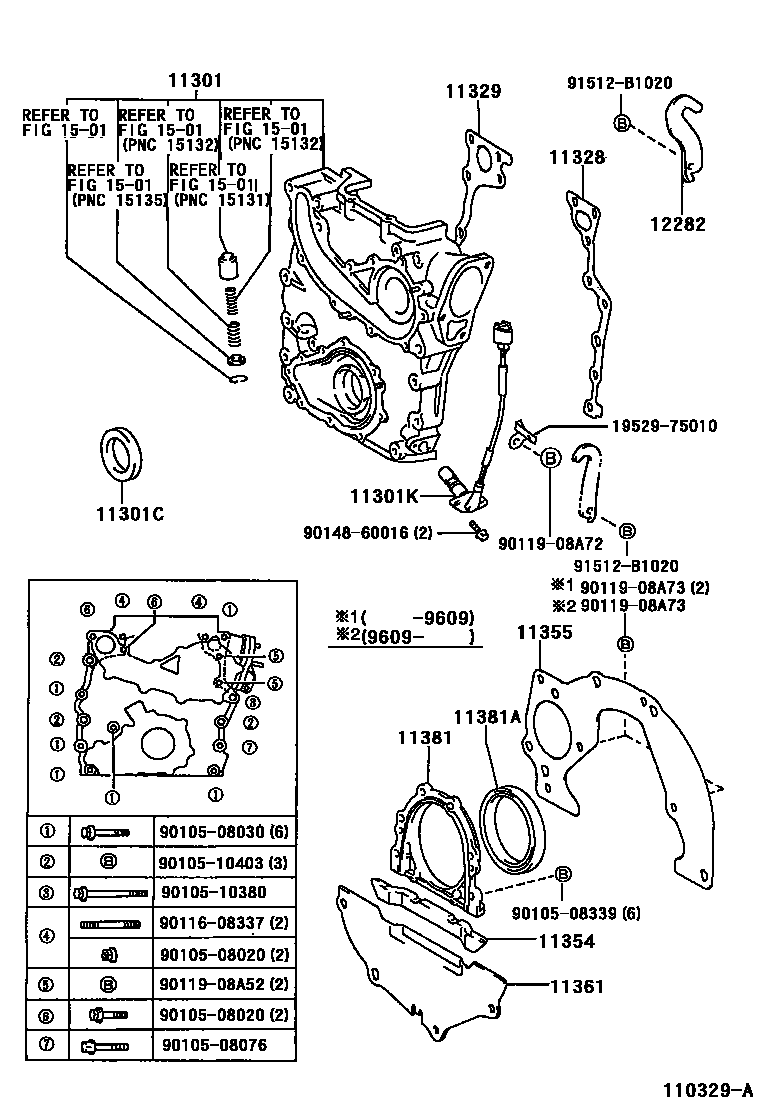

Toyota HILUX Timing Gear Cover & Rear End Plate — Figure 1106
Toyota HILUX EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 4 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11301 | Timing gearbox sub-assembly | 11301-75020 · 11301-75021 |
| 11301A | Direct sales (for timing gearbox) | 90250-08120 |
| 11301C | OIL SEAL (FOR TIMING GEAR OR CHAIN CASE) | 90311-48014 · 90311-48020 · 90311-48021 |
| 11301G | O-ring (for upper timing gearbox) | 90301-22007 · 96721-24022 |
| 11301H | O-RING (FOR LOWER TIMING GEAR CASE) | 90301-09018 · 96721-24010 |
| 11301J | Headed straight thread plug (for timing gearbox) | 90341-18015 |
| 11301K | crankshaft position sensor | 90919-05016 · 90919-05052 |
| 11301L | No. 2 crankshaft position sensor | 90919-05050 |
| 11301Q | Toyota part | 90311-58006 · 90311-65003 |
| 11302 | TIMING CHAIN OR BELT COVER SUB-ASSY | 11302-67010 · 11302-67020 · 11321-62900 |
| 11302A | Oil seal (for timing chain or timing belt cover) | 90311-50017 |
| 11302H | Studs (for timing gear cover) | 90116-08376 |
| 11305A | Oil seal (for No. 2 oil seal seat ring) | 90311-32017 · 90311-32019 |
| 11307 | No. 3 timing belt cover sub-assembly | 11323-62050 |
| 11319 | No. 3 timing belt cover gasket | 11319-20010 |
| 11320 | Timing gearbox assembly | 11320-30010 · 11320-30030 · 11320-67010 |
| 11321 | timing gearbox | 11321-30020 · 11321-67031 · 11321-67032 |
| 11322A | No. 1 timing belt cover | 11332-30010 |
| 11322B | No. 2 timing belt cover | 11322-30010 · 11322-62901 |
| 11328 | GASKET, TIMING GEAR OR CHAIN COVER | 11328-67020 · 11328-75020 · 11328-75021 |
| 11328A | No. 1 timing belt cover gasket | 11328-20020 |
| 11329 | Timing gear rear cover gasket | 11329-75020 · 11329-75021 |
| 11329A | No. 2 timing belt or chain cover gasket | 11329-20010 |
| 11354 | Flywheel housing dust seal | 11354-75010 |
| 11355 | rear end plate | 11355-65011 · 11355-67010 · 11355-75010 |
| 11356 | No. 2 rear end plate | 11356-30010 · 11356-67030 |
| 11361 | Flywheel housing bottom cover | 11361-0C010 · 11361-62010 |
| 11366 | Flywheel housing bottom cover dust seal | 11366-65010 |
| 11381 | RETAINER, ENGINE REAR OIL SEAL | 11381-62010 · 11381-67020 · 11381-75010 |
| 11381A | SEAL, ENGINE REAR OIL | 90311-88003 · 90311-88004 · 90311-88005 · 90311-92006 · 90311-95008 |
| 11385 | Camshaft oil seal race | 11382-67010 |
| 11391 | Timing pointer | 11391-67010 |
| 12281 | Engine No. 1 hanger | 12281-67040 · 12281-67070 |
| 12282 | ENGINE HANGER, NO.2 | 12282-62030 · 12282-62050 · 12282-67030 · 12282-75020 |
| 12511C | Generator bracket | 12511-30020 |
| 15134B | Oil pump pressure reducing valve gasket | 15134-67010 |
