Toyota HILUX Cylinder Block — Figure 1105

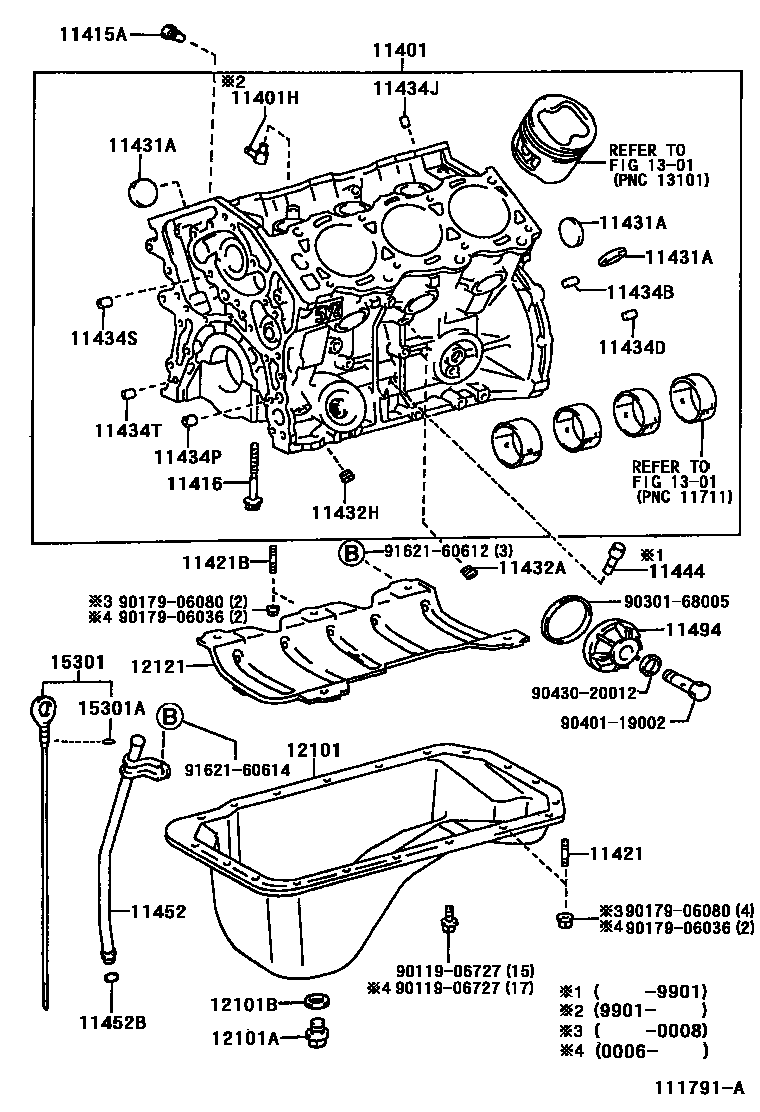

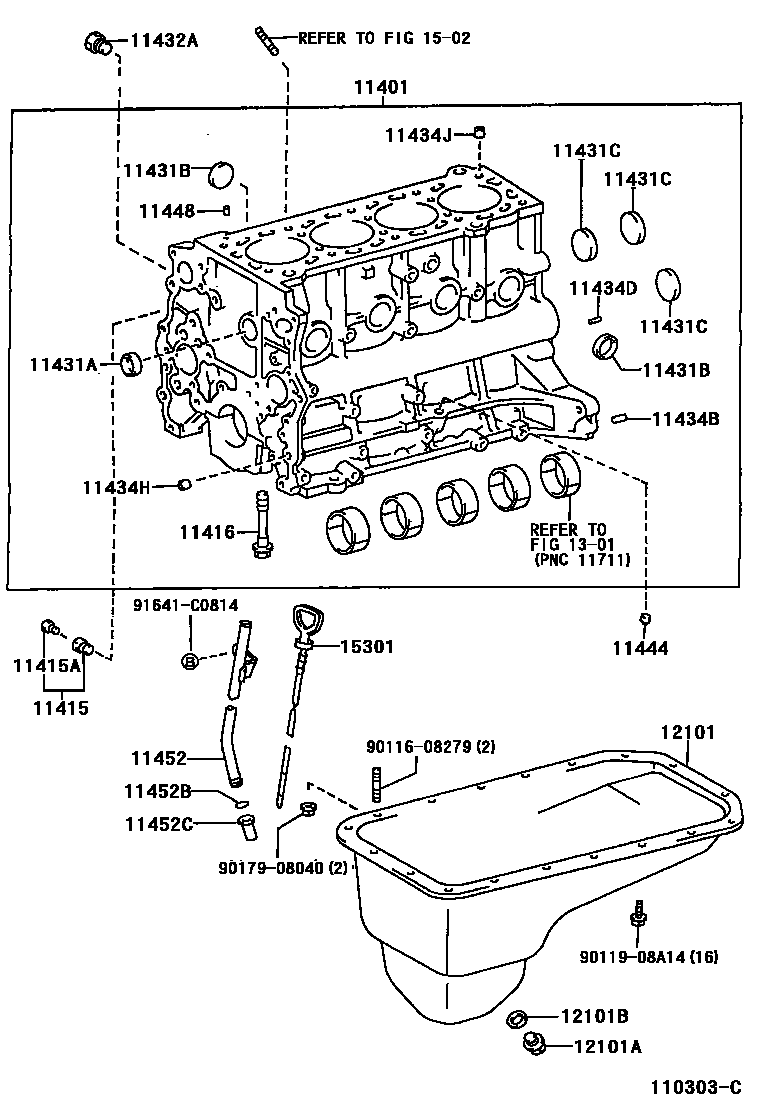

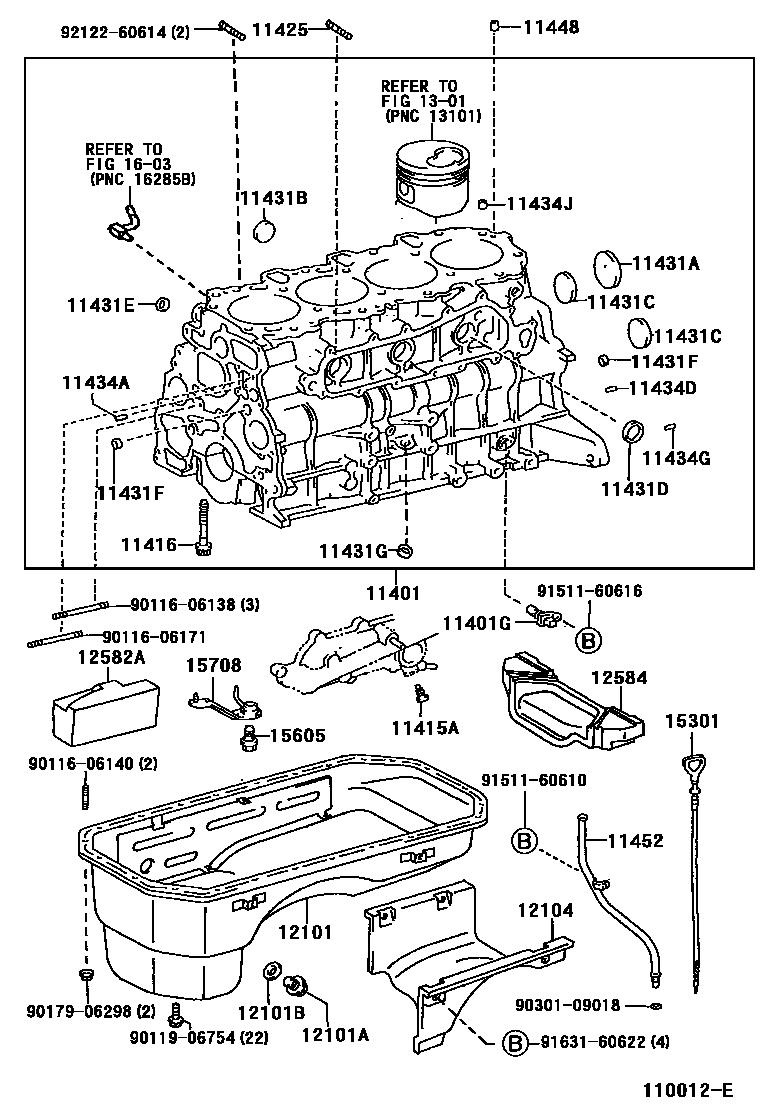

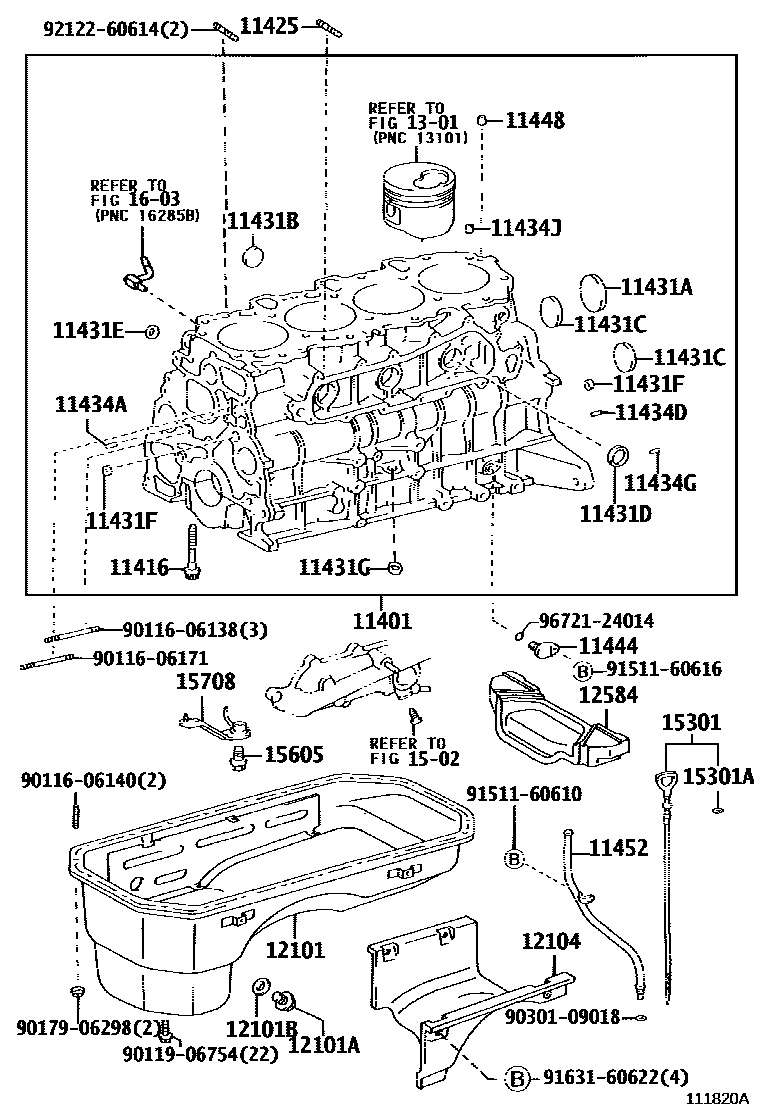

Toyota HILUX EPC diagram 1105, Cylinder Block, with 4 images and 44 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11401 | Cylinder block sub-assembly | 11401-39525 · 11401-39526 · 11401-39527 · 11401-69575 · 11401-69576 · 11401-69577 · 11401-69605 · 11401-69606 · 11401-69705 · 11401-69835 · 11401-69836 · 11401-69837 · 11401-69865 · 11401-69875 · 11401-79685 · 11401-79686 |
| 11401G | crankshaft position sensor | 90919-05005 |
| 11401H | Connector (for cylinder block discharge LLC) | 90406-08023 |
| 11415 | Water release switch sub-assembly (for cylinder block) | 90345-52001 · 90910-09118 |
| 11415A | Water drain switch screw plug (for cylinder block) | 90910-09087 · 96431-23814 |
| 11416 | Bolts (for crankshaft bearing cap assembly) | 90910-02072 · 90910-02092 · 90910-02113 |
| 11421 | Stud bolts (for oil pan) | 90116-06119 |
| 11421B | Studs (for oil pan baffle) | 90116-06119 |
| 11425 | Studs (for oil filter) | 90116-06141 · 90116-06171 |
| 11431A | No. 1 sealing plug (for cylinder block) | 90331-35005 · 96411-63000 · 96411-64500 |
| 11431B | No. 2 sealing plug (for cylinder block) | 96411-63500 |
| 11431C | No. 3 sealing plug (for cylinder block) | 96411-64000 |
| 11431D | No. 4 sealing plug (for cylinder block) | 90331-35004 |
| 11431E | No. 5 sealing plug (for cylinder block) | 96411-62000 |
| 11431F | No. 6 sealing plug (for cylinder block) | 96411-61800 |
| 11431G | sealing plug | 90331-14006 |
| 11432A | No. 1 headed tapered thread plug | 90344-53015 · 90345-53009 |
| 11432H | No. 5 headed tapered thread plug | 90344-53015 |
| 11434A | Direct sales (for timing gear cover assembly) | 90250-08120 |
| 11434B | Direct sales (for clutch housing assembly) | 90250-10113 |
| 11434D | Direct sales (for engine rear oil seal) | 90250-06003 · 90250-06015 · 90250-06068 |
| 11434G | Direct sales (for end plates) | 90250-10192 |
| 11434H | Ring pin (for timing belt cover assembly) | 90253-11005 |
| 11434J | Ring pin (for cylinder head assembly) | 90253-15016 · 90253-16001 |
| 11434P | Direct sales (for oil pump components) | 90253-11021 |
| 11434S | Ring pin (for water pump assembly) | 90253-11021 |
| 11434T | Ring pin (for timing belt idler bracket assembly) | 90253-11021 |
| 11444 | hole plug | 11444-62020 · 11444-67020 · 11444-75020 |
| 11448 | Cylinder block oil orifice | 11448-67010 · 90977-02011 |
| 11452 | Engine oil level gauge guide | 11409-75040 · 11409-75041 · 11452-30010 · 11452-62050 · 11452-67030 |
| 11452B | O-ring (for oil level gauge guide) | 96721-19010 |
| 11452C | Connector (for oil level gauge tube) | 11459-70010 · 90405-10016 |
| 11494 | Oil hole cover | 11494-65010 |
| 12101 | Oil pan sub-assembly | 12101-62070 · 12101-67110 · 12101-67120 · 12101-75050 |
| 12101A | Screw plug (for draining oil from the oil pan) | 90341-12012 · 90341-12026 |
| 12101B | Gasket (for oil pan drain plug) | 90430-12031 |
| 12104 | No. 1 oil pan cover sub-assembly | 12104-67010 |
| 12121 | No. 1 oil pan baffle | 12122-62040 |
| 12582A | No. 2 cylinder block vibration isolation pad | 12582-67010 |
| 12584 | No. 4 cylinder block vibration isolation pad | 12584-30010 · 12584-67060 |
| 15301 | Engine oil level scoring assembly | 15301-62070 · 15301-67030 · 15301-67031 · 15301-75060 |
| 15301A | O-ring (for engine oil level gauge) | 96741-19005 |
| 15605 | Oil check valve sub-assembly | 15605-17030 · 15605-54010 |
| 15708 | No. 1 oil nozzle sub-assembly | 15708-30010 · 15708-67010 |
