Toyota HILUX Cylinder Head — Figure 1104

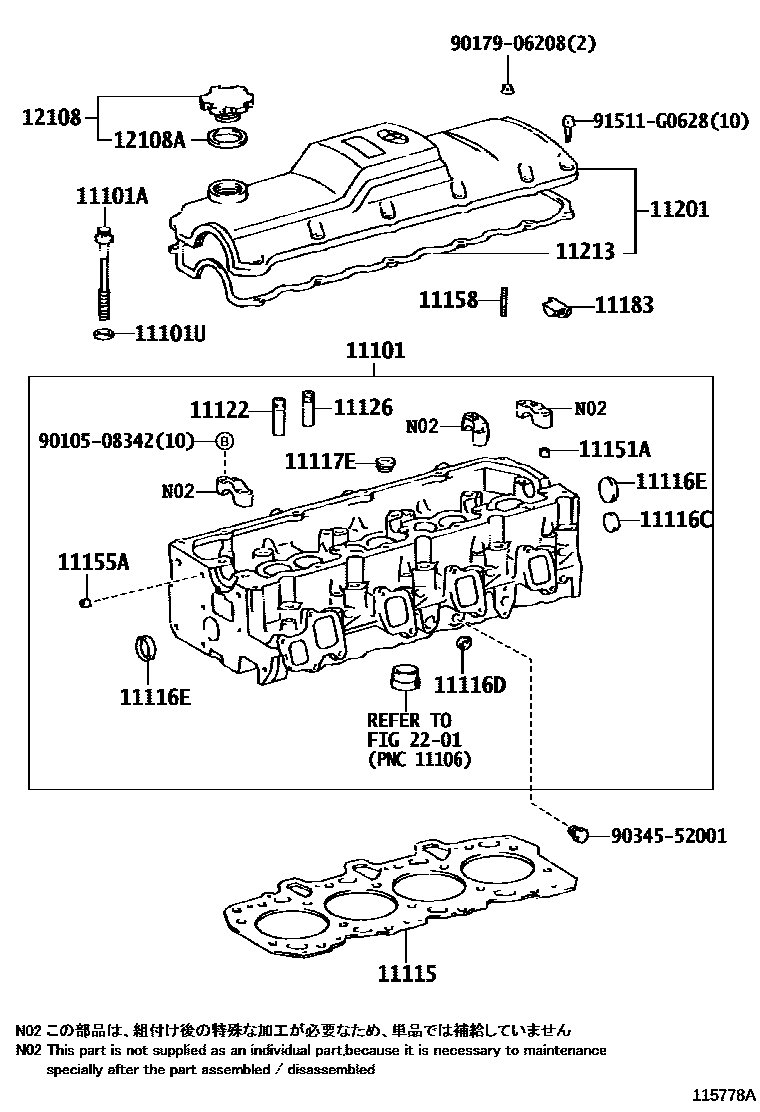

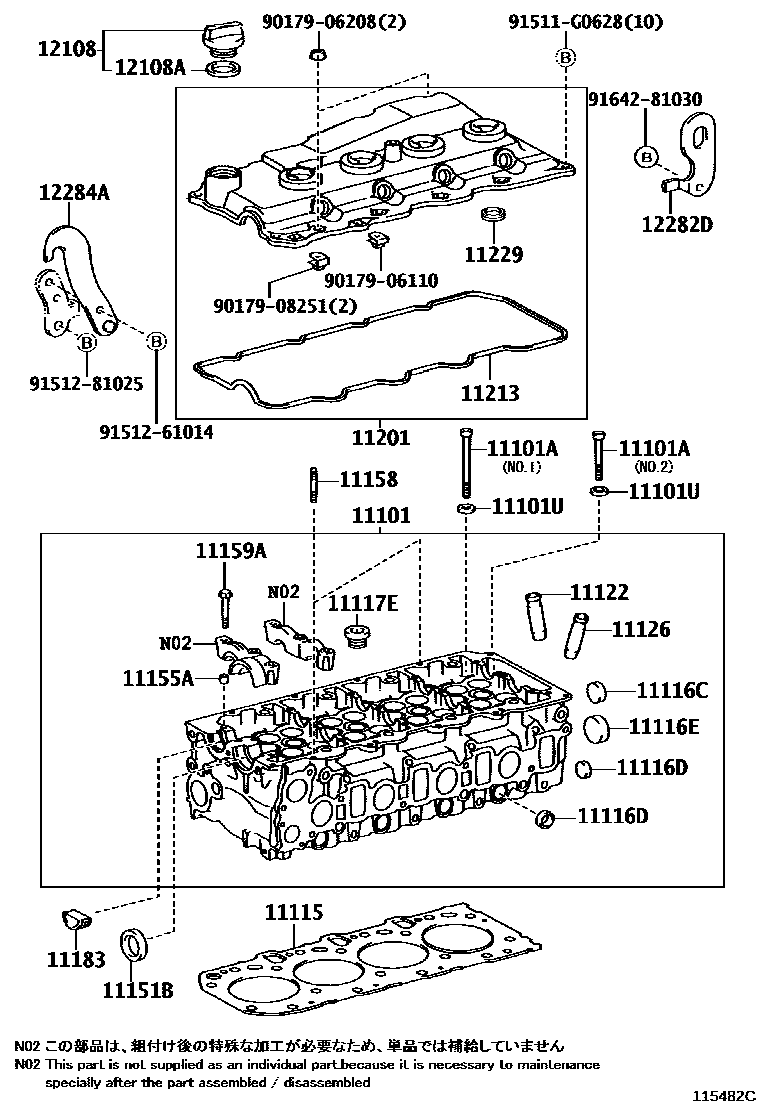

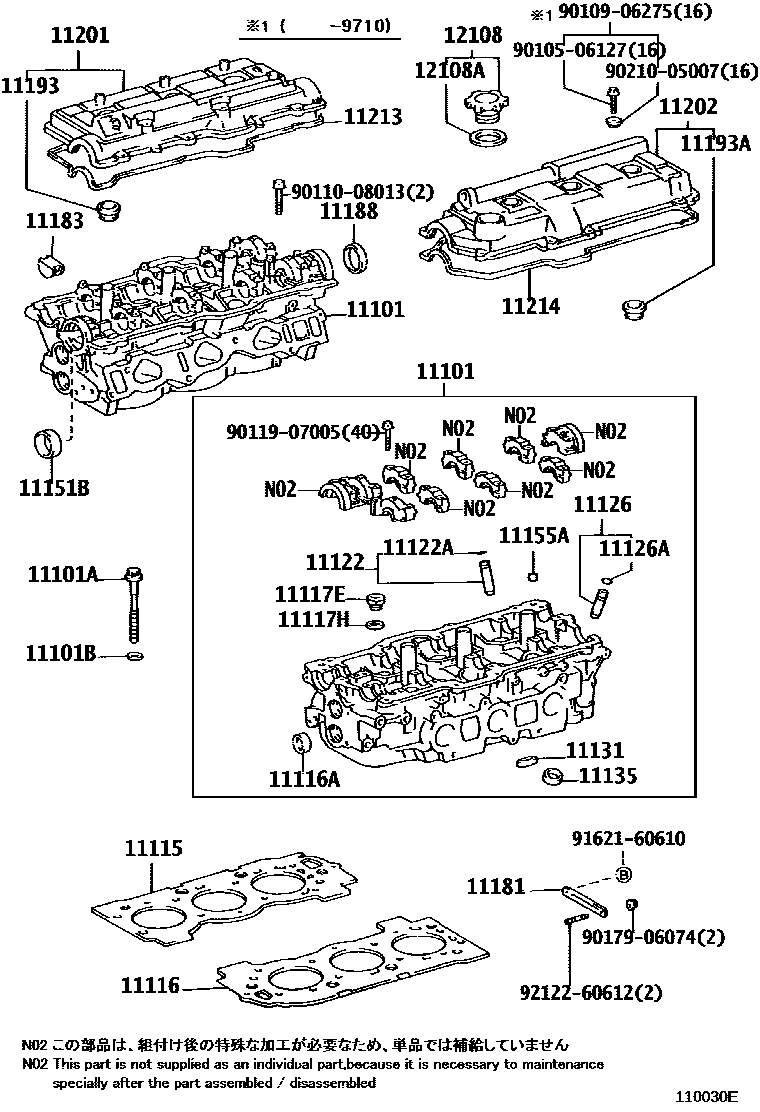

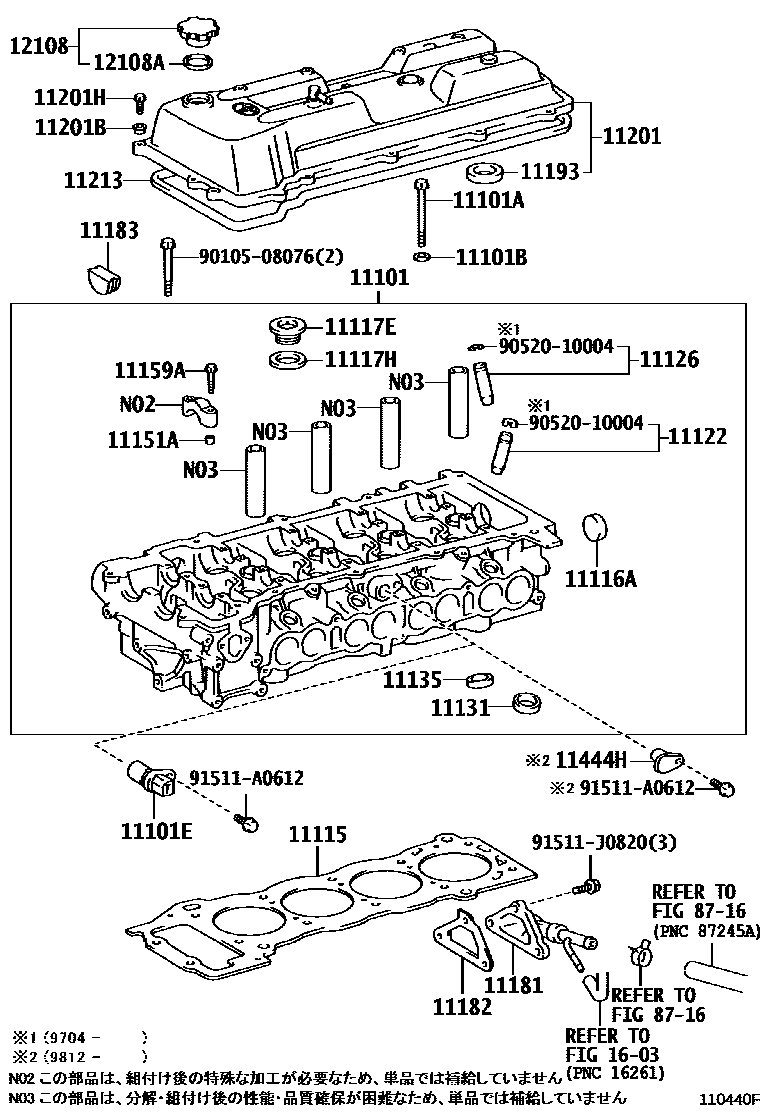

Toyota HILUX EPC diagram 1104, Cylinder Head, with 4 images and 42 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11101 | CYLINDER HEAD SUB-ASSY | 11101-30030 · 11101-30031 · 11101-30032 · 11101-69126 · 11101-69135 · 11101-69136 · 11101-69165 · 11101-69166 · 11101-69167 · 11101-69175 · 11101-79105 · 11101-79106 · 11101-79266 · 11101-79275 · 11101-79276 |
| 11101A | BOLT (FOR CYLINDER HEAD) | 90910-02077 · 90910-02091 · 90910-02112 · 90910-02145 · 90910-02146 |
| 11101B | Flat Washer (for cylinder head assembly) | 90201-11028 · 90201-12222 |
| 11101E | Cam position sensor | 90919-05026 |
| 11101U | SPACER (FOR CYLINDER HEAD SET BOLT) | 90560-13023 |
| 11115 | GASKET, CYLINDER HEAD | 11115-62070 · 11115-62071 · 11115-62080 · 11115-75030 · 11115-75031 |
| 11116 | No. 2 cylinder head gasket | 11116-62070 · 11116-62071 · 11116-62080 |
| 11116A | No. 1 sealing plug | 96411-43000 · 96411-62800 |
| 11116C | No. 3 sealing plug | 96411-63000 |
| 11116D | No. 4 sealing plug | 96411-62000 |
| 11116E | No. 5 sealing plug | 96411-63500 |
| 11117E | PLUG, STRAIGHT SCREW W/HEAD, NO.1 | 90341-14015 · 90341-22008 · 90341-24011 · 90341-27006 |
| 11117H | Gasket (for coolant hole) | 90430-24013 · 90430-27005 |
| 11122 | BUSH, INTAKE VALVE GUIDE | 11122-16010 · 11122-16020 · 11122-30020 · 11122-67020 · 11123-16010 · 11123-16020 · 11123-30020 · 11123-67020 |
| 11122A | Shaft snap ring (for valve guide bushing) | 90520-10004 |
| 11126 | BUSH, EXHAUST VALVE GUIDE | 11122-16020 · 11122-30020 · 11122-67020 · 11123-16020 · 11123-30020 · 11123-67020 · 11126-50040 · 11126-50050 · 11127-50040 · 11127-50050 |
| 11126A | Shaft snap ring (for valve guide bushing) | 90520-10004 |
| 11131 | intake valve seat | 11131-62030 · 11131-62050 · 11131-75030 · 11132-62030 · 11132-62050 · 11132-75030 |
| 11135 | Exhaust valve seat | 11135-20040 · 11135-62020 · 11135-75030 · 11135-75040 · 11135-76020 · 11136-20040 · 11136-62020 · 11136-75030 · 11136-75040 · 11136-76020 |
| 11151A | Ring pin (for securing camshaft bearing cap) | 90253-10006 · 90253-11021 |
| 11151B | OIL SEAL (FOR CAMSHAFT SETTING) | 90311-32019 · 90311-38051 |
| 11155A | PIN, RING W/HEAD | 90253-10004 |
| 11158 | STUD (FOR CYLINDER HEAD TO HEAD COVER) | 90116-06149 |
| 11159A | BOLT (FOR CYLINDER HEAD TO CAMSHAFT BEARING CAP) | 90119-07009 · 90119-07011 |
| 11181 | cylinder head rear plate | 11181-62030 · 11181-62031 · 11181-75020 · 11181-75021 |
| 11182 | Rear cylinder head gasket | 11182-75010 |
| 11183 | PLUG, SEMICIRCULAR | 11183-20010 · 11183-50010 · 11183-54020 · 11183-62010 · 11183-67020 |
| 11188 | Camshaft housing screw plug | 11188-62010 |
| 11193 | spark plug bushing gasket | 11193-15010 · 11193-16010 |
| 11193A | Left spark plug bushing gasket | 11193-16010 |
| 11201 | CYLINDER HEAD COVER SUB-ASSY | 11201-62040 · 11201-75020 · 11201-75040 · 11210-30080 · 11210-30081 · 11210-67020 · 11210-67030 |
| 11201B | Gasket (for cylinder head cover) | 90210-07001 |
| 11201H | Bolts (for cylinder head cover) | 91513-J0628 |
| 11202 | Left cylinder head cover sub-assembly | 11202-62050 |
| 11213 | GASKET, CYLINDER HEAD COVER | 11213-30020 · 11213-62020 · 11213-67010 · 11213-75030 |
| 11214 | No. 2 cylinder head cover gasket | 11213-62020 |
| 11229 | GASKET, CYLINDER HEAD COVER, NO.3 | 23682-30020 |
| 11444H | Bore plug (for cylinder head) | 11444-75030 |
| 12108 | OIL FILLER CAP SUB-ASSY | 12180-21010 · 12180-55010 · 12180-65011 |
| 12108A | GASKET (FOR OIL FILLER CAP) | 90430-37004 · 90430-37140 |
| 12282D | ENGINE HANGER, NO.2 | 12282-67030 |
| 12284A | ENGINE HANGER, NO.1 UPPER | 12284-30020 |
