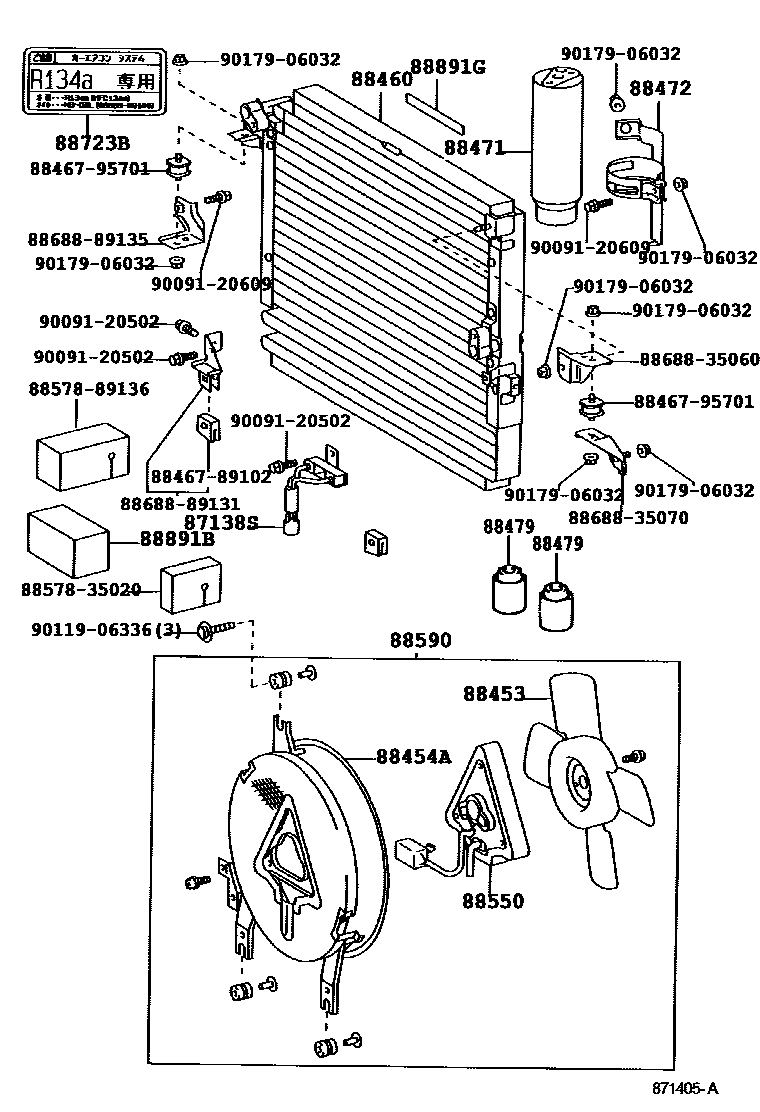

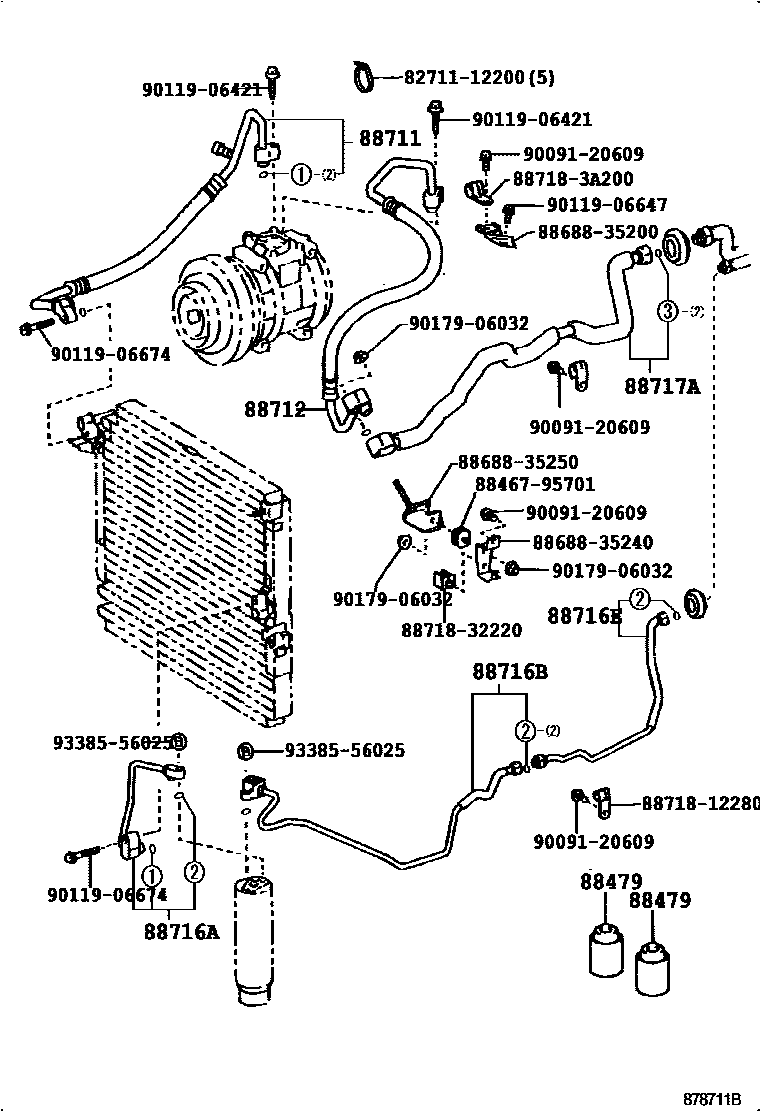

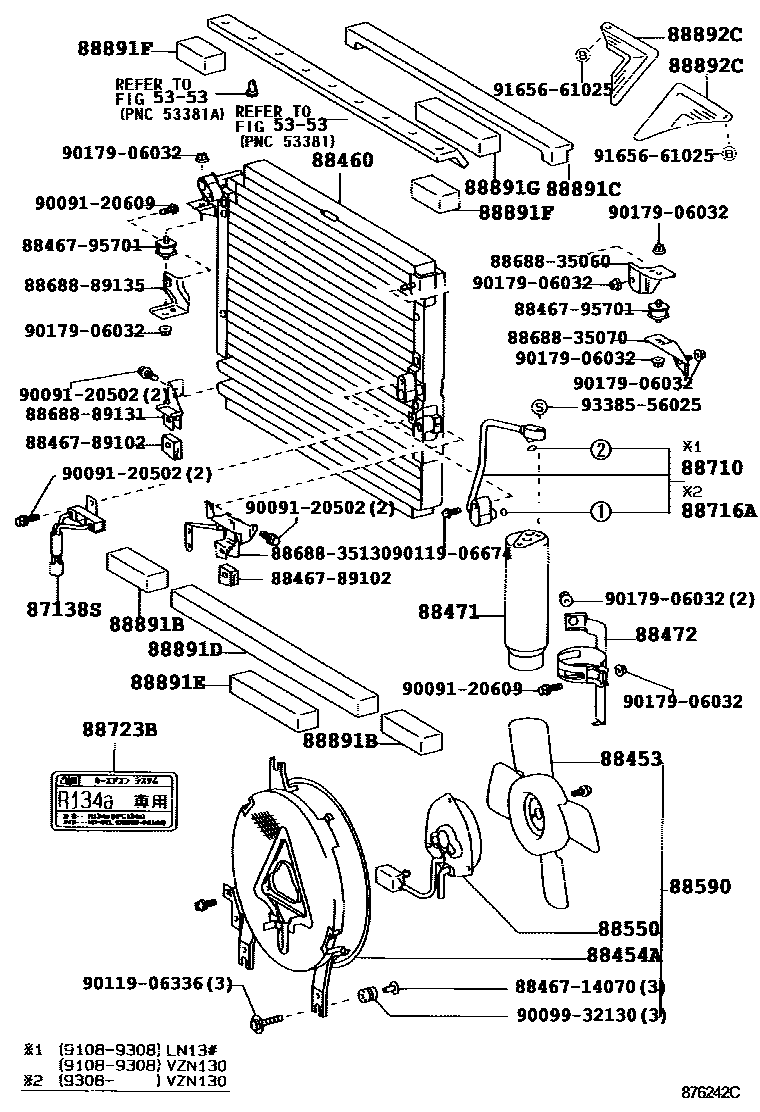

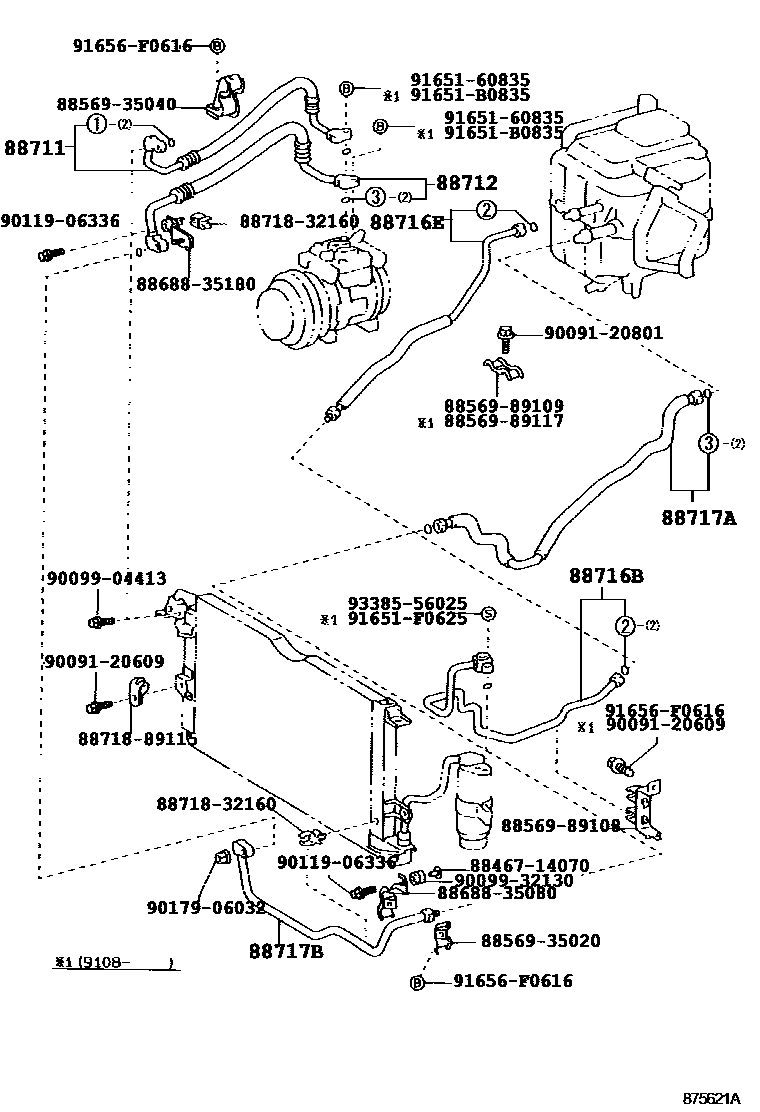

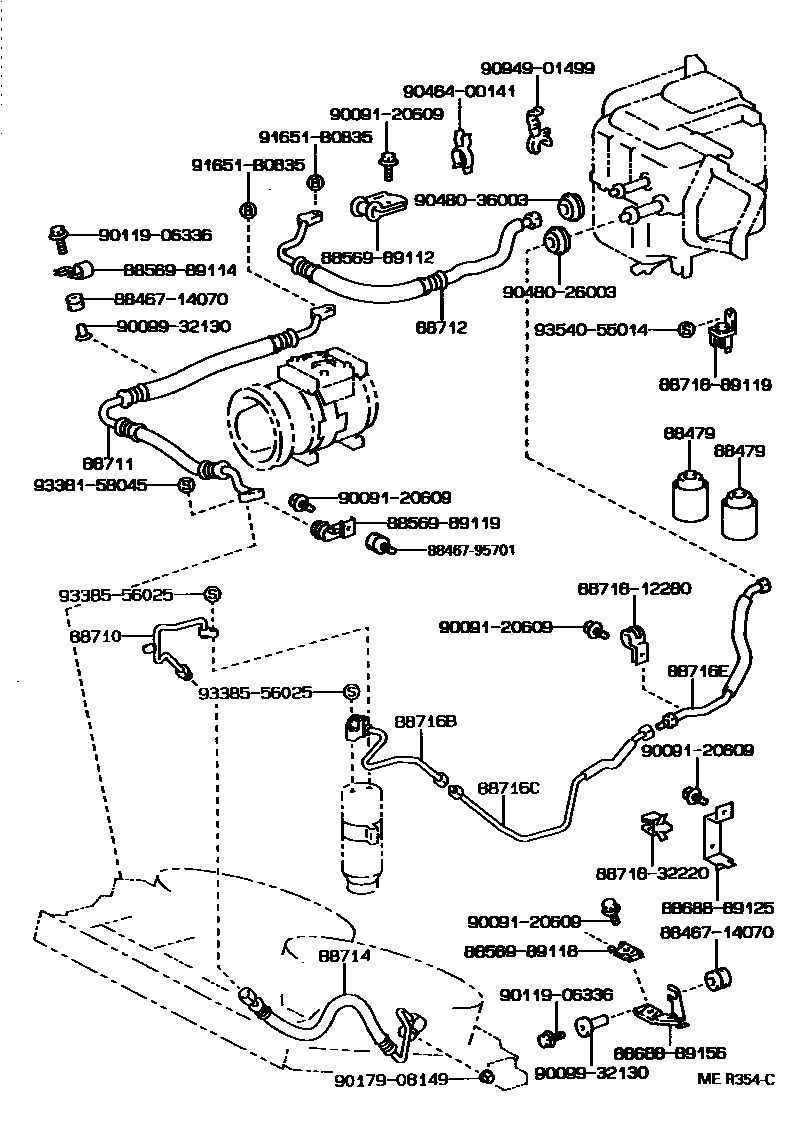

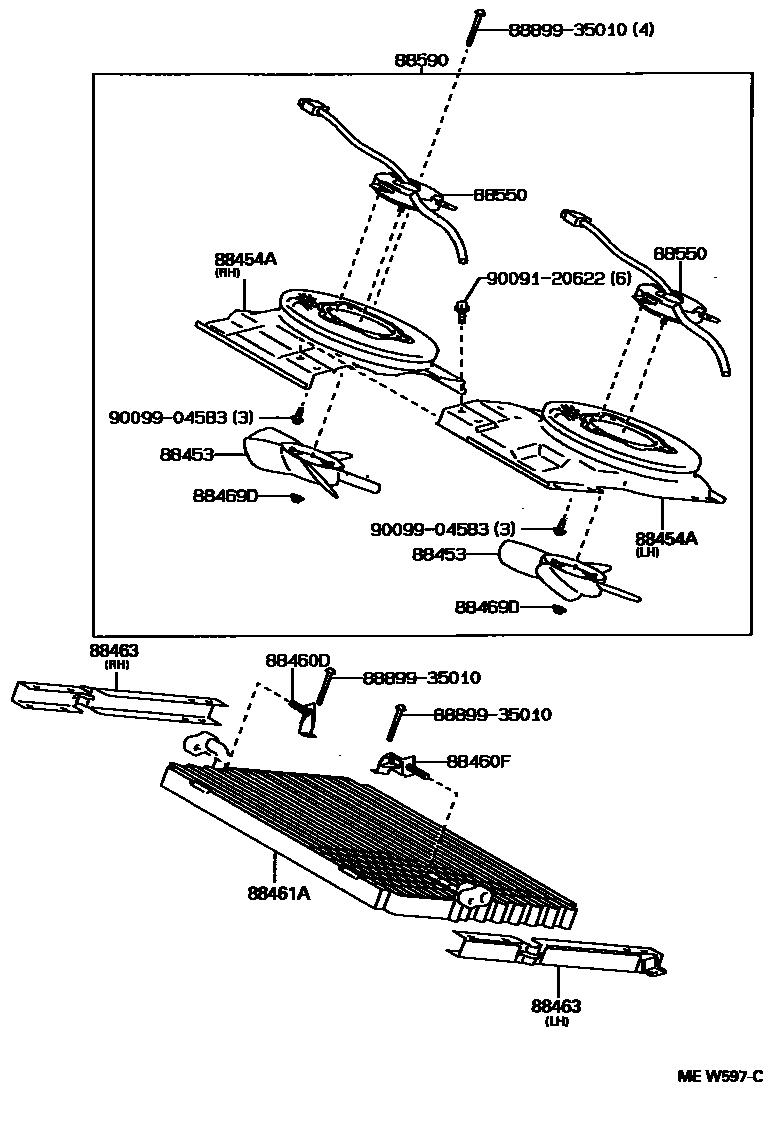

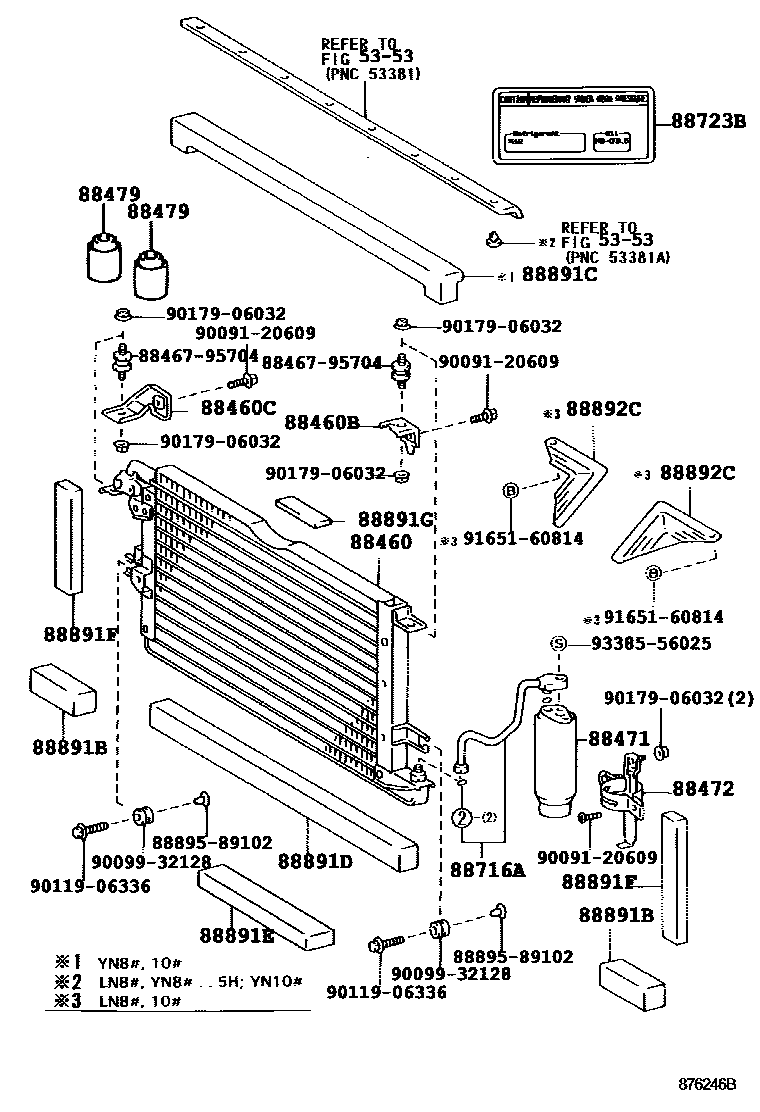

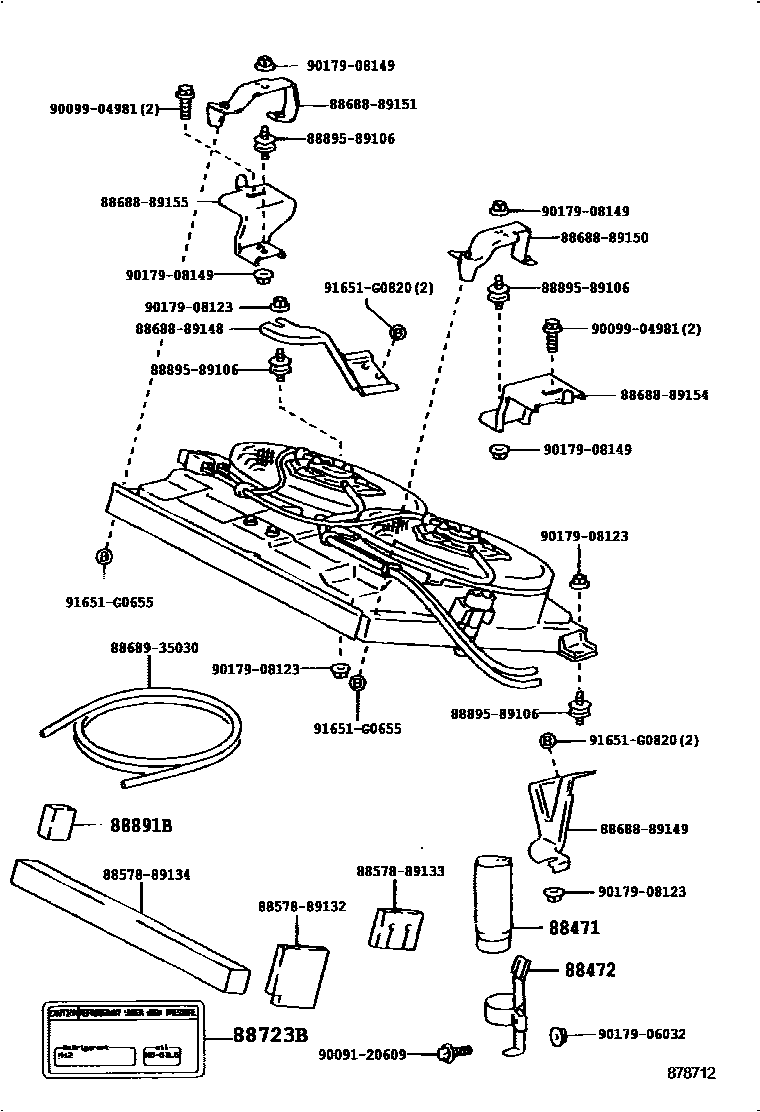

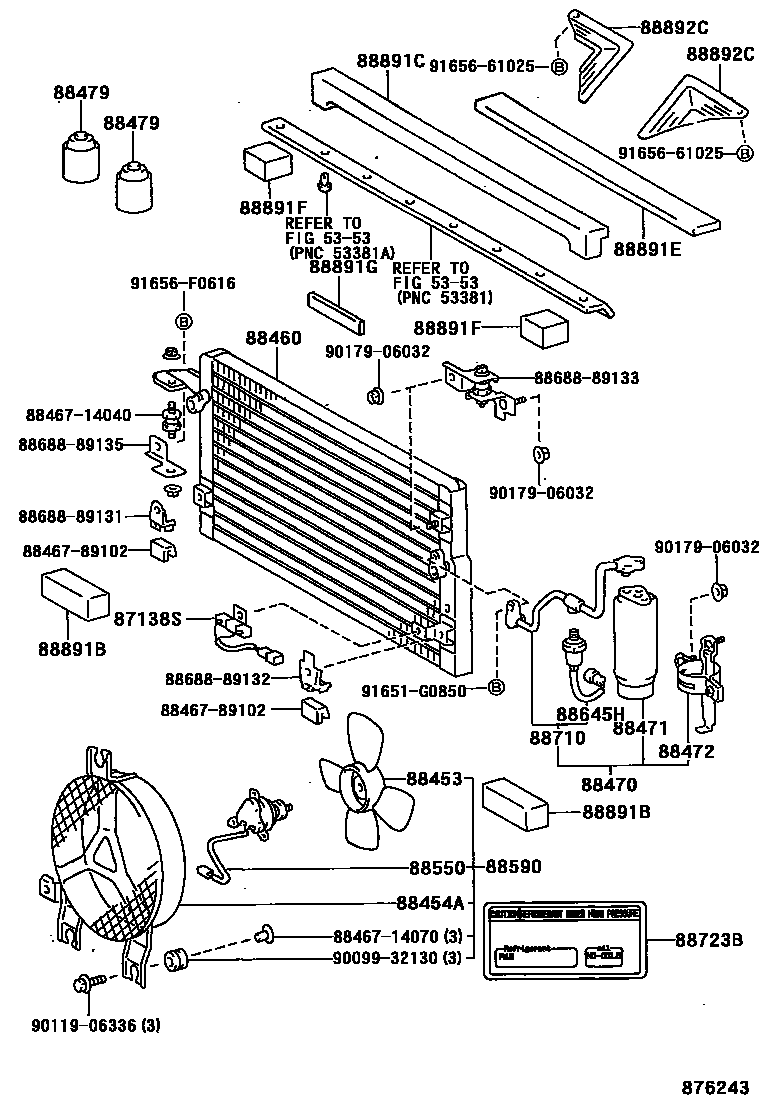

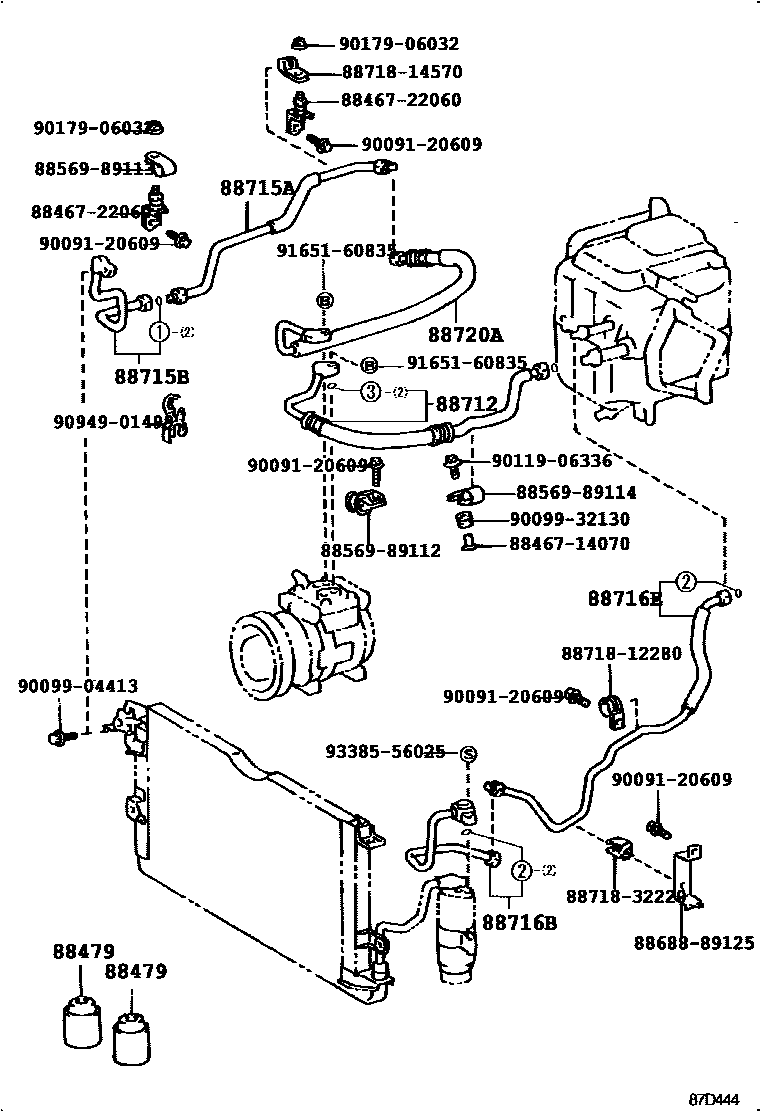

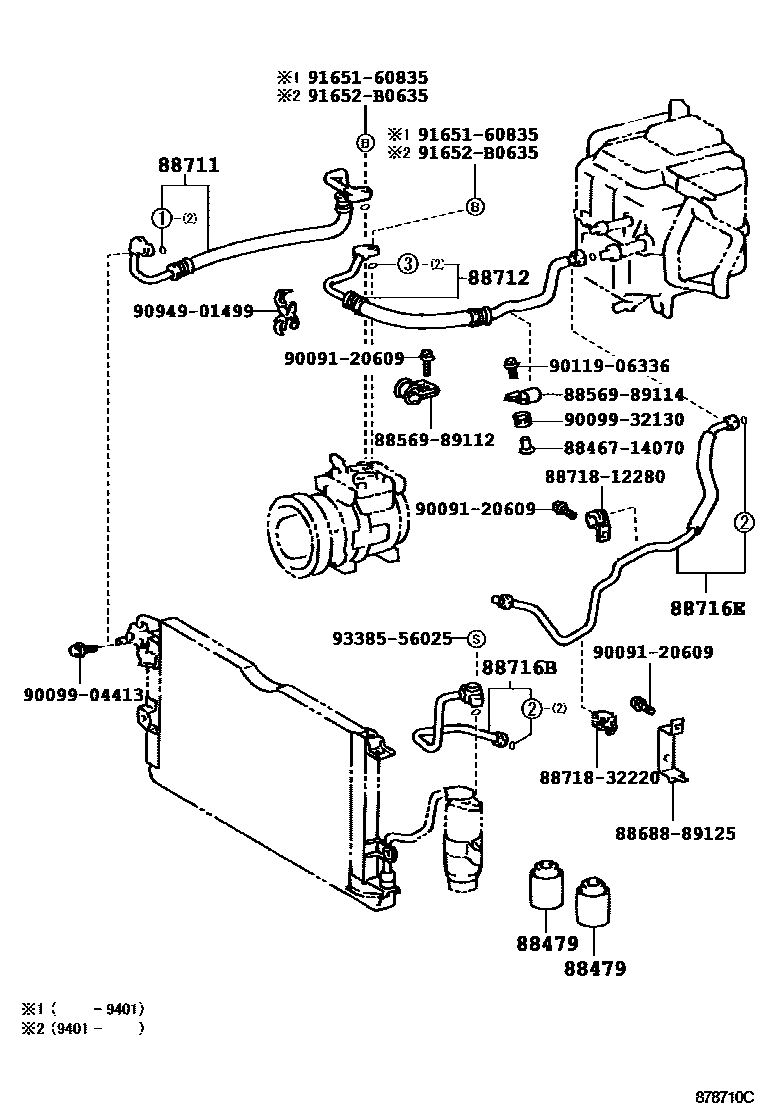

Toyota HILUX Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota HILUX EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 12 images and 39 PNC and OE references.
PNC and OE references

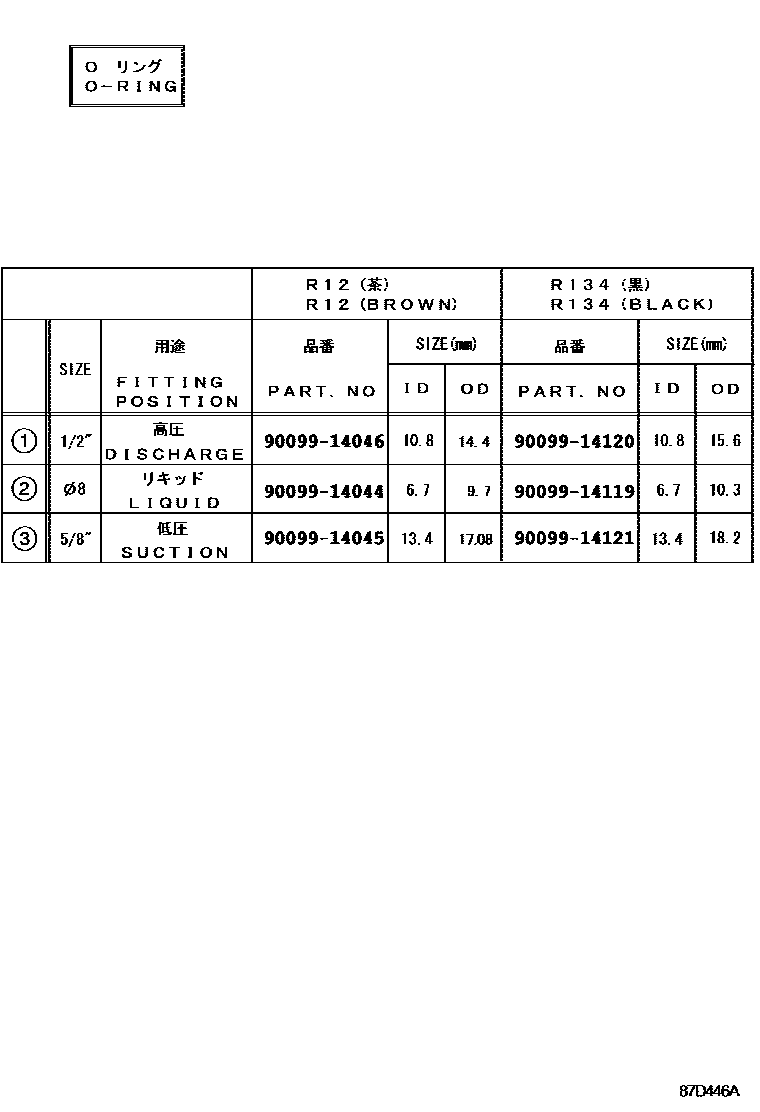

| PNC | Part name | OE numbers |
|---|---|---|
| 87138S | Blower resistor | 88635-35010 · 88635-89107 |
| 88453 | Cooling fan (for condenser) | 88453-12030 · 88453-28010 · 88453-35010 · 88453-35020 |
| 88454A | fan cover | 88454-35010 · 88454-35020 · 88454-35030 |
| 88460 | Air conditioning condenser assembly | 88460-35070 · 88460-35090 · 88460-35100 · 88460-35130 · 88460-35150 · 88460-35180 · 88460-89115 · 88460-89119 |
| 88460B | No. 1 air conditioner condenser bracket | 88688-89120 |
| 88460C | No. 2 air conditioner condenser bracket | 88688-89121 |
| 88460D | No. 3 air conditioner condenser bracket | 88688-35280 |
| 88460F | No. 4 air conditioner condenser bracket | 88688-35270 |
| 88461A | Air conditioning condenser core | 88461-35030 |
| 88463 | No. 1 air conditioner condenser bracket | 88463-35030 · 88463-35040 |
| 88469D | No. 1 condenser bracket collar | 88469-35010 |
| 88470 | Cooler reservoir and dryer assembly | 88470-89103 |
| 88471 | Air conditioning fluid storage tank | 88471-16040 · 88471-20050 · 88471-34010 |
| 88472 | No. 1 liquid storage tank bracket | 88472-35010 · 88472-89110 |
| 88479 | Air conditioning Freon gas (cooler refrigerant drum) | 90986-02001 · 90986-02004 · 90986-02007 · 90986-02008 |
| 88550 | Blower motor assembly (for condenser) | 88550-35010 · 88550-89101 |
| 88590 | Blower assembly with hood | 88590-35010 · 88590-89101 · 88590-89102 |
| 88645H | No. 1 pressure switch | 88645-12030 · 88645-20010 · 88645-89103 |
| 88710 | Air conditioning pipe assembly | 88710-35010 · 88710-35090 · 88710-89121 · 88710-89126 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-35090 · 88711-35100 · 88711-35130 · 88711-35160 · 88711-35180 · 88711-35240 · 88711-35260 · 88711-35310 · 88711-35311 · 88711-35320 · 88711-35500 · 88711-89137 · 88711-89142 · 88711-89150 · 88711-89151 · 88711-89159 · 88711-89160 · 88720-35050 · 88720-89138 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88712-35030 · 88712-35080 · 88712-35130 · 88712-35160 · 88712-35180 · 88712-35270 · 88712-35310 · 88712-35330 · 88712-35331 · 88712-35480 · 88712-89139 · 88712-89145 · 88712-89147 · 88712-89149 · 88712-89151 · 88712-89152 · 88712-89155 · 88720-35151 · 88720-35280 · 88720-89142 |
| 88714 | Cooler No. 1 refrigerant liquid hose | 88721-35010 · 88721-89101 |
| 88715A | Cooler refrigerant discharge pipe A | 88715-35020 · 88715-89109 |
| 88715B | Cooler refrigerant discharge pipe B | 88715-35030 · 88715-89108 |
| 88716A | Cooler refrigerant liquid pipe A | 88716-35100 · 88716-35110 · 88716-35230 · 88716-89163 |
| 88716B | Cooler refrigerant liquid pipe B | 88716-35030 · 88716-35090 · 88716-35170 · 88716-35200 · 88716-35300 · 88716-35320 · 88716-89175 · 88716-89177 · 88716-89183 |
| 88716C | Cooler refrigerant liquid pipe C | 88716-89179 |
| 88716E | Cooler refrigerant liquid pipe E | 88716-35050 · 88716-35160 · 88716-35210 · 88716-35290 · 88716-35310 · 88716-89176 · 88716-89178 · 88716-89180 · 88716-89182 |
| 88717A | Cooler refrigerant suction pipe A | 88717-35020 · 88717-35050 · 88717-35070 · 88717-35090 · 88717-89115 · 88717-89118 |
| 88717B | Cooler refrigerant suction pipe B | 88717-35011 · 88717-35040 · 88717-35080 · 88717-89113 · 88717-89117 |
| 88720A | Air conditioning hoses and accessories | 88720-35020 · 88720-35360 · 88720-89132 |
| 88723B | Cooler maintenance warning label | 88723-17020 · 88723-20010 · 88723-20030 · 88723-20040 · 88723-22040 |
| 88891B | Seal B (for cooler) | 88578-89103 · 88578-89111 |
| 88891C | Seal C (for cooler) | 88578-89118 |
| 88891D | Seal D (for cooler) | 88578-89119 · 88578-89127 |
| 88891E | Seal E (for cooler) | 88578-89112 · 88578-89120 · 88578-89122 |
| 88891F | Seal F (for cooler) | 88578-35010 · 88578-89122 · 88578-89123 · 88578-89128 |
| 88891G | Seal G (for cooler) | 88578-89107 · 88578-89131 |
| 88892C | Condenser plate No. 1 | 88892-89114 · 88892-89115 · 88892-89116 · 88892-89117 |
