Toyota HILUX 暖风和空调系统 - 真空管 — Figure 8717

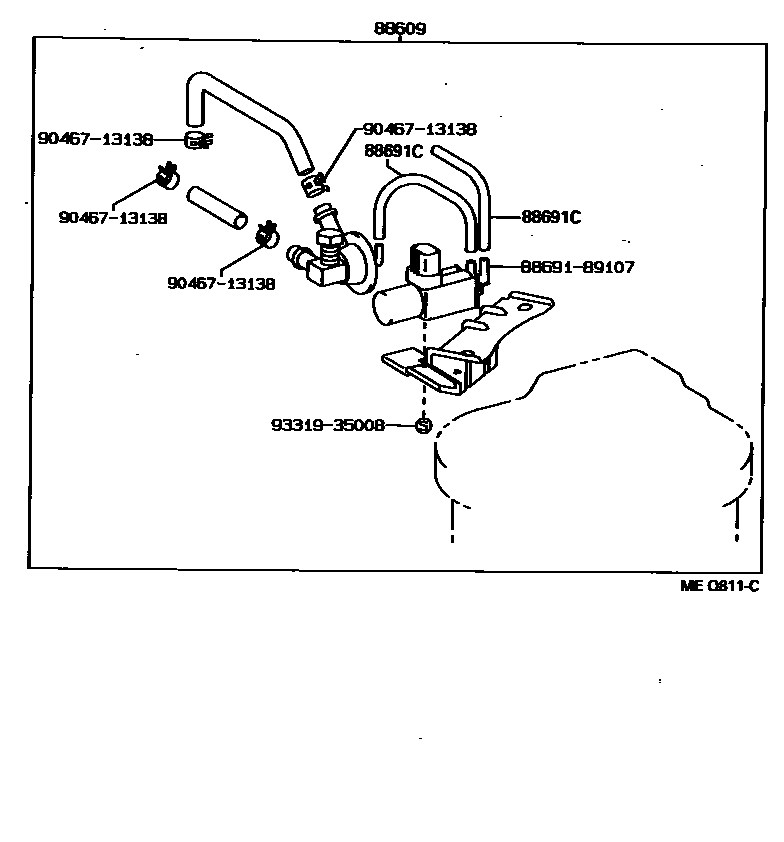

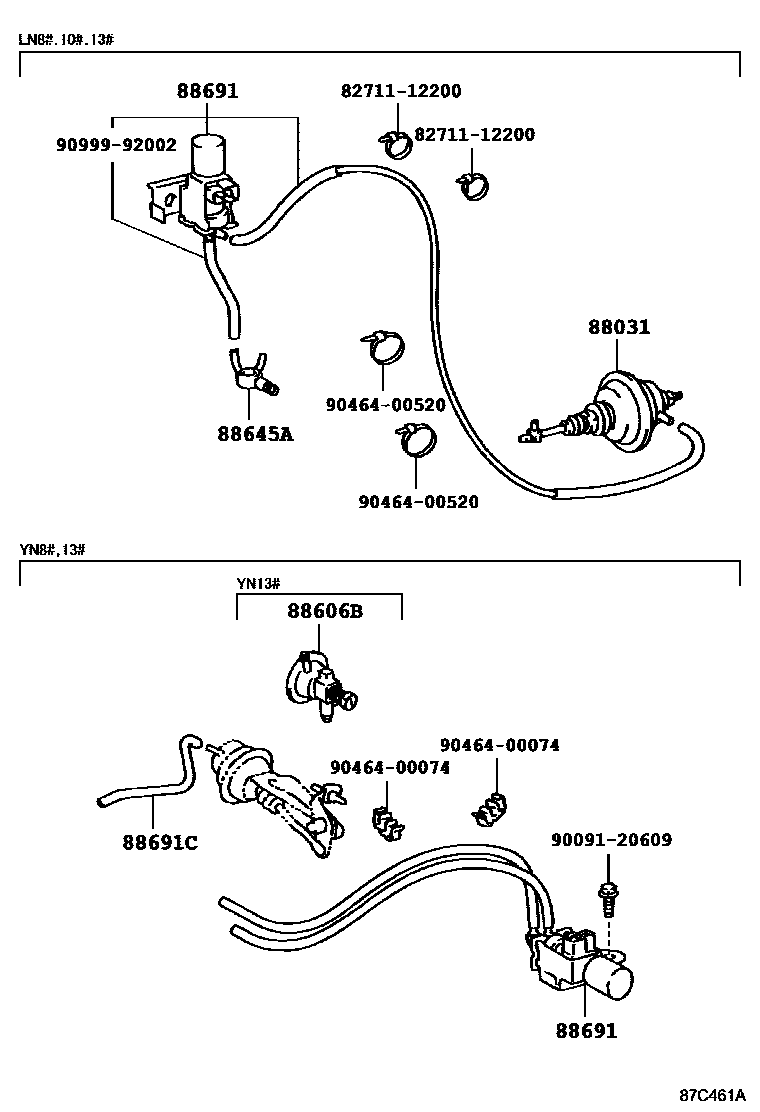

Toyota HILUX EPC diagram 8717, 暖风和空调系统 - 真空管, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88031 | Idle speed lift actuator assembly | 88031-25020 |
| 88606B | Cooler diaphragm sub-assembly | 88606-28010 |
| 88609 | Idle speed lifting device sub-assembly | 88609-89107 |
| 88645A | Connector (for idle lift device) | 90404-51093 · 90405-09127 · 90405-09149 |
| 88691 | Solenoid valve (for idle speed lifting device) | 88690-35050 · 88690-87028 · 88690-89129 · 88690-89133 · 88690-89139 · 88690-89140 · 88691-89106 |
| 88691C | Vacuum hose No. 1 (for idle lift) | 90999-92002 · 90999-92003 |
