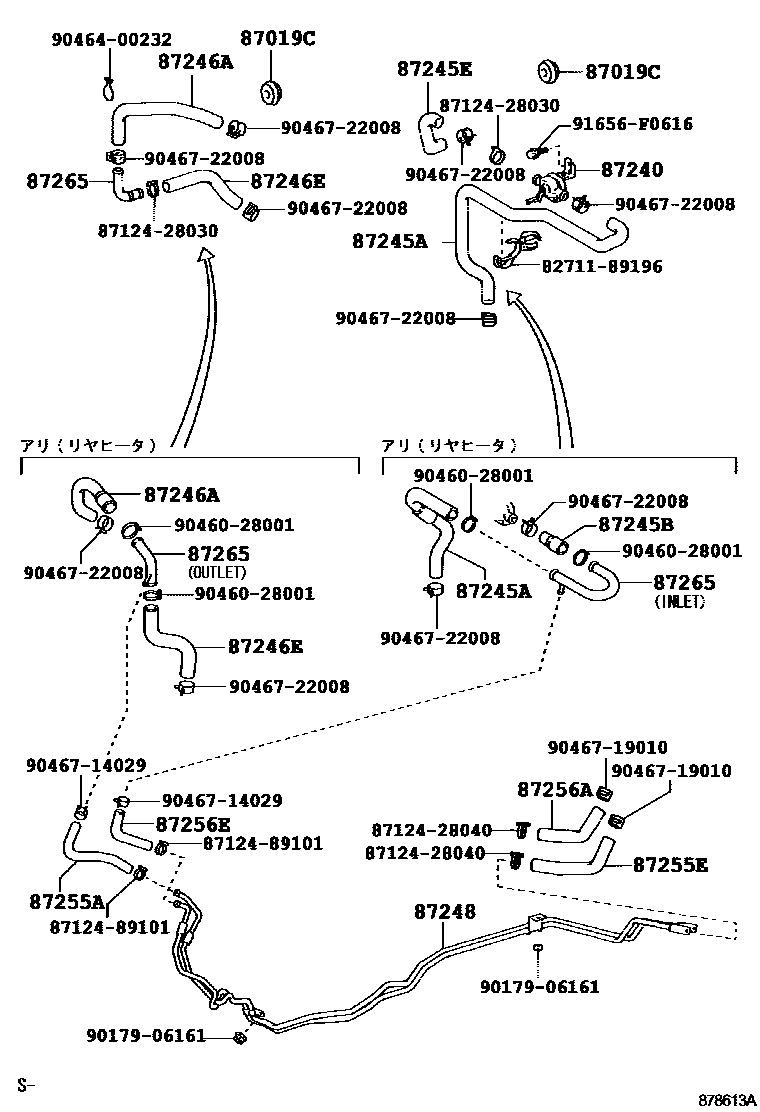

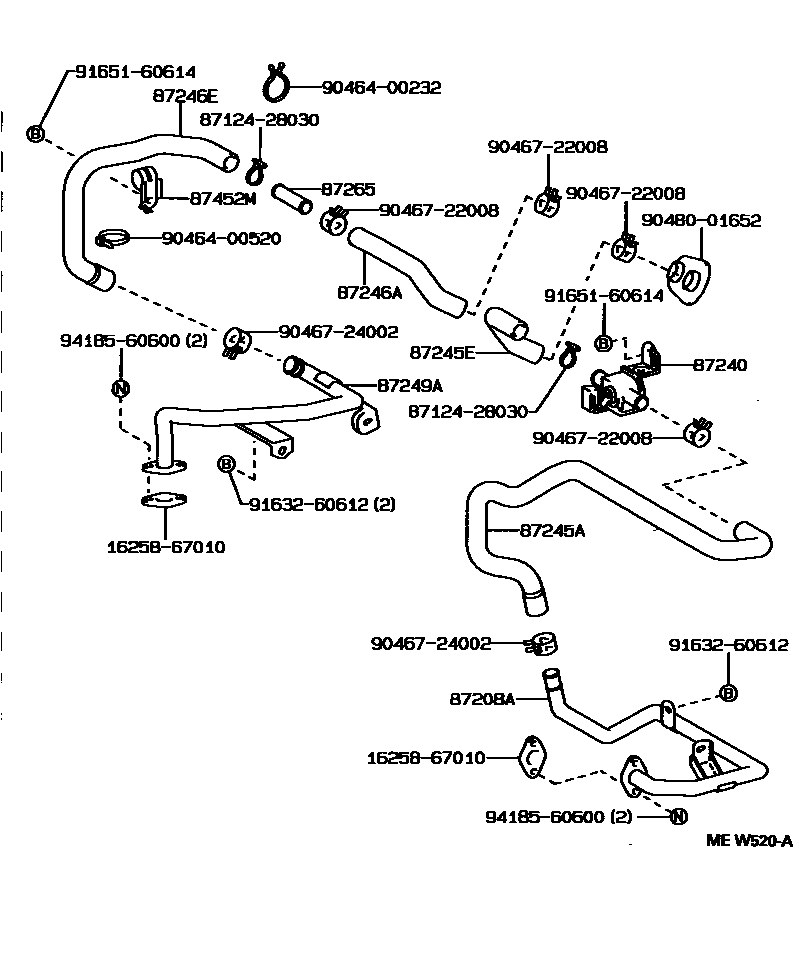

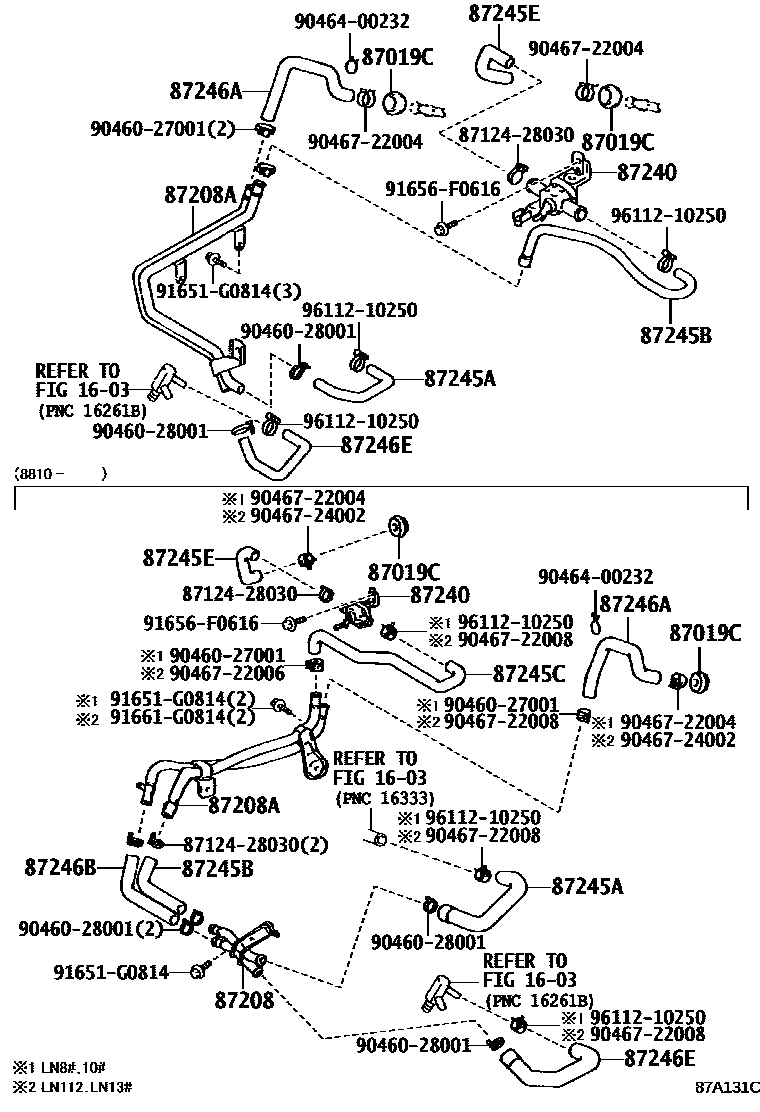

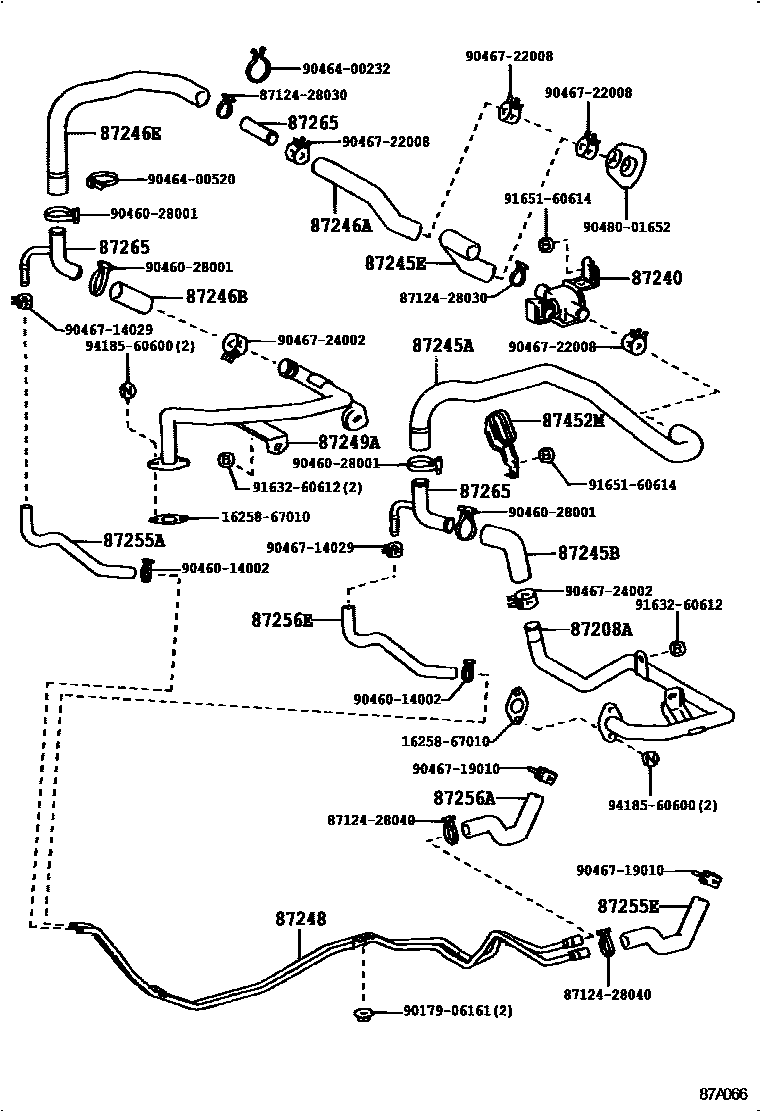

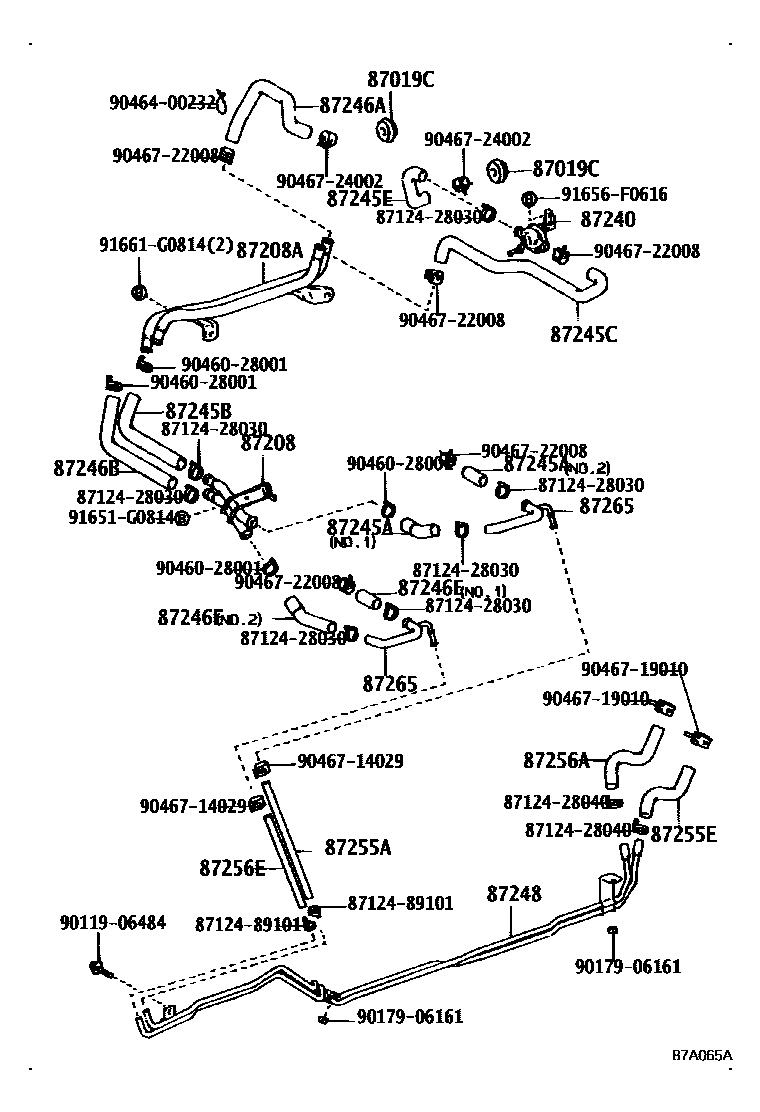

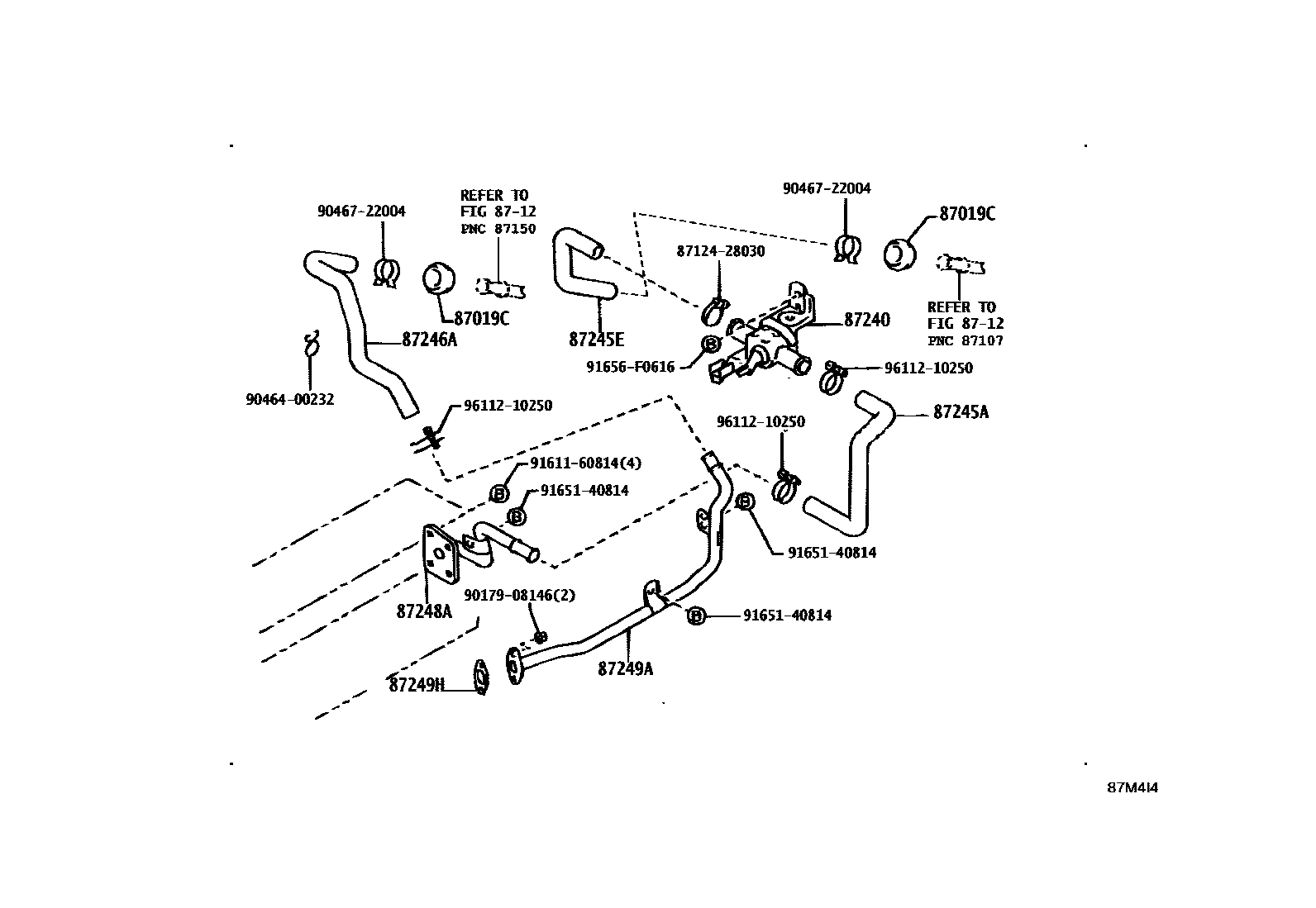

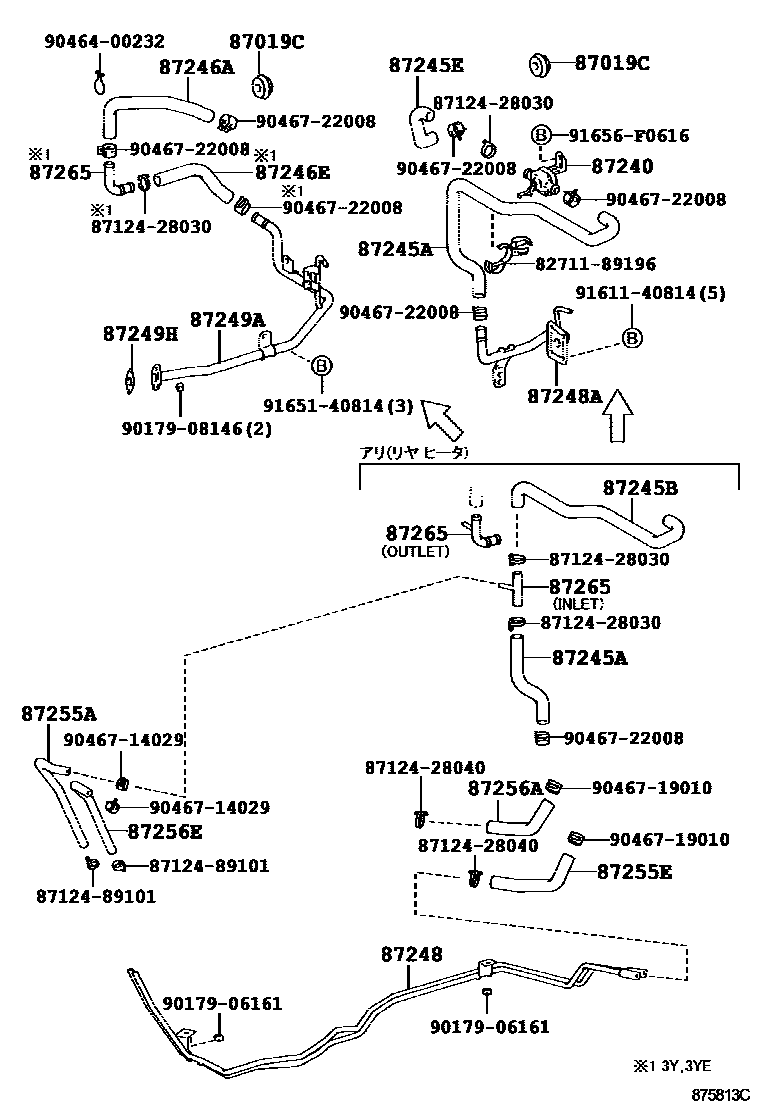

Toyota HILUX 暖风和空调系统 - 水管 — Figure 8716
Toyota HILUX EPC diagram 8716, 暖风和空调系统 - 水管, with 7 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87019C | heater hose seal | 90480-36005 |
| 87208 | Heater water pipe sub-assembly | 87208-89144 · 87208-89148 |
| 87208A | Heater water pipe sub-assembly A | 87208-35050 · 87208-35210 · 87208-89136 · 87208-89143 · 87208-89147 |
| 87240 | Heater water valve assembly | 87240-35020 · 87240-89126 |
| 87245A | Heater water inlet hose A | 87245-35070 · 87245-35160 · 87245-35230 · 87245-35280 · 87245-89228 · 87245-89238 · 87245-89266 · 87245-89269 · 87245-89270 · 87245-89274 · 87245-89279 · 87245-89290 · 87245-89294 · 87245-89299 · 87245-89301 |
| 87245B | Heater water inlet hose B | 87245-35110 · 87245-35290 · 87245-89240 · 87245-89258 · 87245-89265 · 87245-89281 · 87245-89293 |
| 87245C | Heater water inlet hose C | 87245-89240 · 87245-89287 |
| 87245E | Heater water inlet hose E | 87245-89233 |
| 87246A | Heater outlet hose A | 87245-35170 · 87245-35240 · 87245-89217 · 87245-89241 · 87245-89275 · 87245-89288 · 87245-89291 · 87245-89300 |
| 87246B | Heater outlet hose B | 87245-35310 · 87245-89282 |
| 87246E | Heater outlet hose E | 87245-35090 · 87245-35270 · 87245-35300 · 87245-89239 · 87245-89267 · 87245-89270 · 87245-89271 · 87245-89273 · 87245-89280 · 87245-89292 |
| 87248 | Water pipe sub-assembly | 87248-35010 · 87248-89131 · 87248-89132 · 87248-89134 |
| 87248A | Heater water inlet pipe A | 87208-35140 · 87208-89128 · 87208-89134 |
| 87249A | Heater outlet pipe A | 87208-35150 · 87208-35220 · 87208-89129 · 87208-89135 |
| 87249H | Outlet pipe gasket | 17175-72010 · 17175-72011 |
| 87255A | Rear heater water inlet hose A (from engine) | 87245-35180 · 87245-35220 · 87245-89250 · 87245-89254 · 87245-89297 · 87245-89302 |
| 87255E | Rear heater water inlet hose E (to heating device) | 87245-35190 · 87245-89246 · 87245-89256 |
| 87256A | Rear heater water outlet hose A (self-heating device) | 87245-35200 · 87245-89247 · 87245-89257 |
| 87256E | Rear heater water outlet hose E (to engine) | 87245-35130 · 87245-89251 · 87245-89255 · 87245-89298 · 87245-89303 |
| 87265 | Heater water hose connector | 87265-35030 · 87265-35100 · 87265-35130 · 87265-35140 · 87265-35150 · 87265-35180 · 87265-35190 · 87265-35200 · 87265-35210 · 87265-89112 · 87265-89113 · 87265-89114 · 87265-89115 · 87265-89116 · 87265-89117 · 87265-89119 · 87265-89120 · 87265-89122 · 87265-89123 |
| 87452M | Rear heater tube No. 4 bracket | 87452-35010 |
