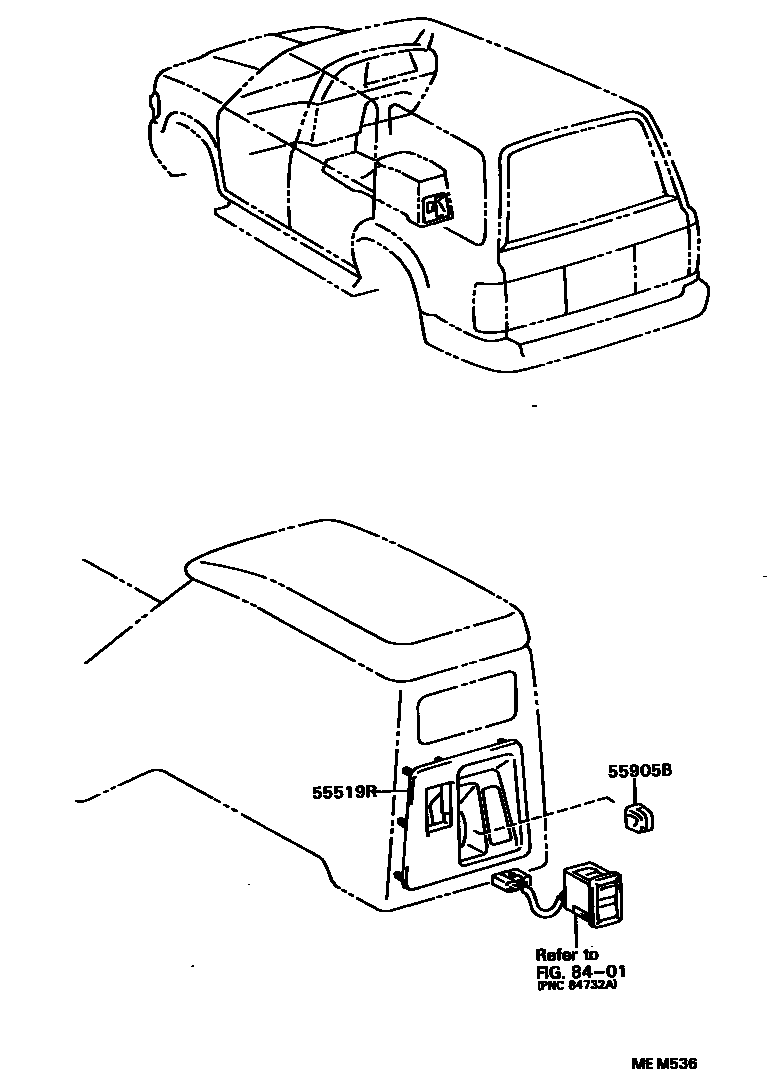

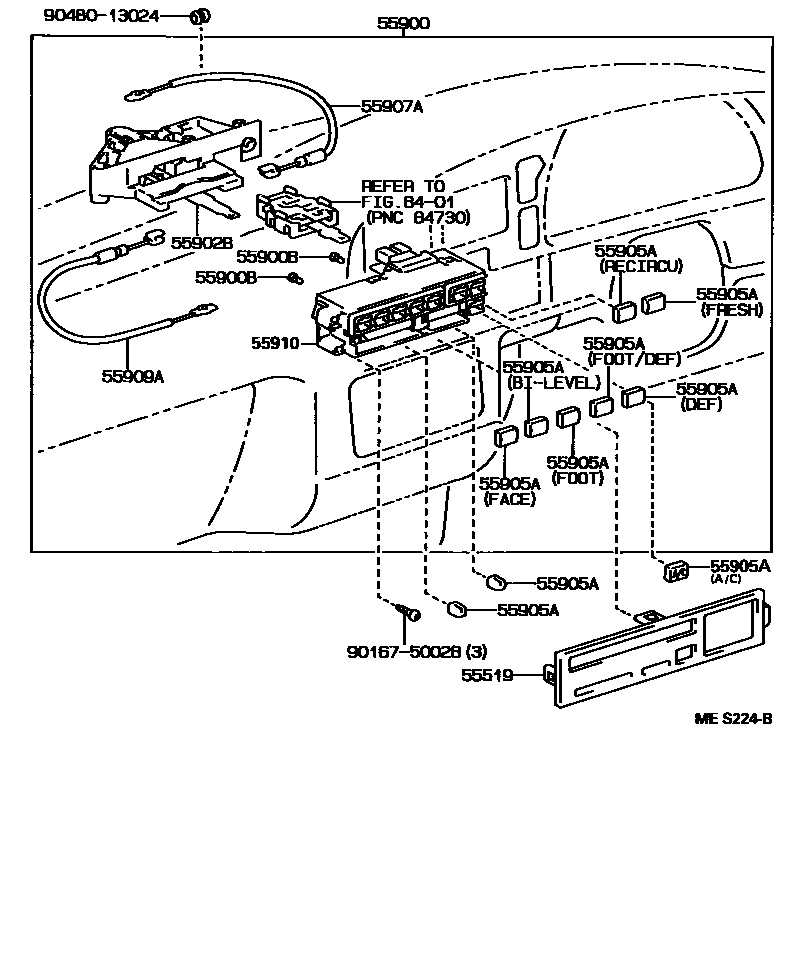

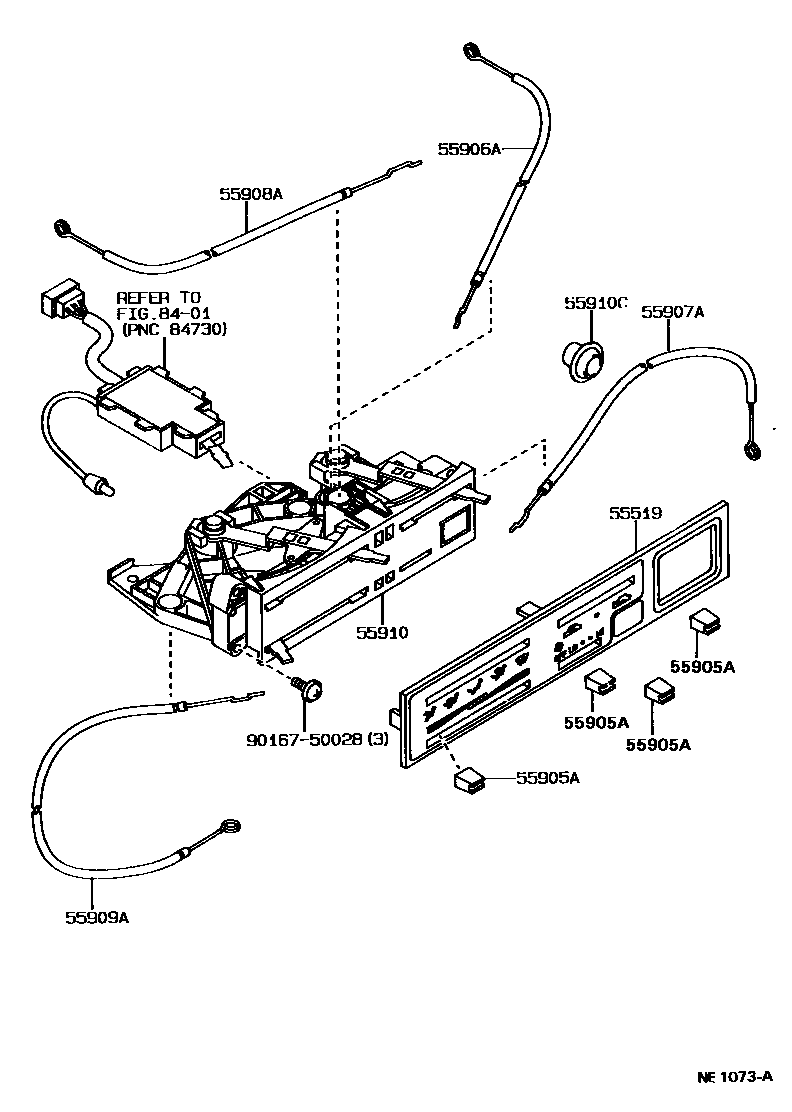

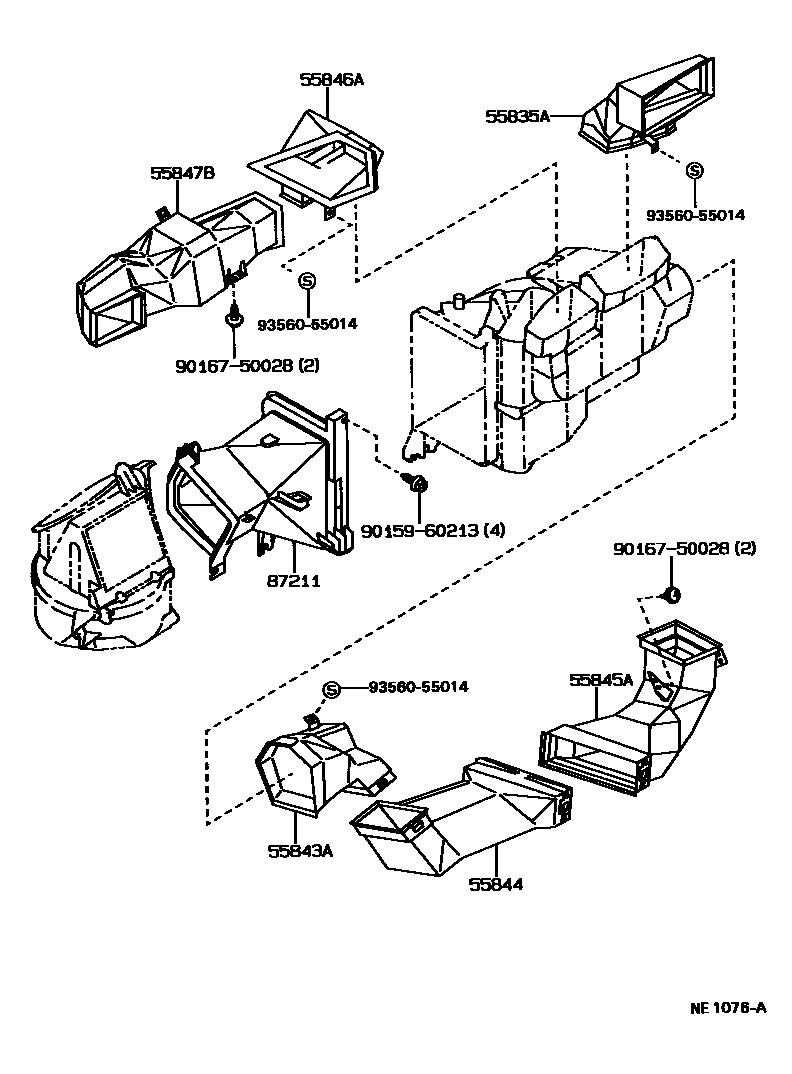

Toyota HILUX 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota HILUX EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 4 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55519 | Heater controller nameplate | 55519-35010 · 55519-89151 · 55519-89159 |
| 55835A | Central air duct from heater to air register | 55835-89110 |
| 55843A | Air duct No. 1 from heater to air register | 55843-89114 |
| 55844 | Air duct No. 2 from heater to air regulator | 55844-89111 |
| 55845A | Air duct No. 3 from heater to air regulator | 55845-89108 |
| 55846A | Air duct No. 4 from heater to air register | 55846-89109 |
| 55847B | Air duct No. 5 from heater to air regulator | 55847-89115 |
| 55900 | Air conditioning control assembly | 55900-35010 · 55900-35020 |
| 55900B | air conditioning control light bulb | 84999-70004 |
| 55902B | Heater control sub-assembly | 55902-35010 |
| 55905A | Heater control button | 55905-35010 · 55905-35020 · 55905-35030 · 55905-35040 · 55905-35050 · 55905-35060 · 55905-35070 · 55905-35080 · 55905-89115 |
| 55905B | Heater control button 2 | 55905-89115 |
| 55906A | Defroster damper control cable sub-assembly | 55906-35010 · 55906-35040 · 55906-89111 |
| 55907A | Water valve control cable sub-assembly | 55907-35010 · 55907-35050 · 55907-89118 |
| 55908A | Intake air valve control cable sub-assembly | 55908-35010 · 55908-35030 · 55908-89106 |
| 55909A | Air mix damper control cable sub-assembly | 55909-35010 · 55909-35020 · 55909-35050 · 55909-89111 |
| 55910 | Heater or auxiliary ventilation control assembly | 55910-35010 · 55910-35030 · 55910-35080 · 55910-89127 |
| 55910C | Gasket (for heater control cable) | 90480-13024 · 90480-15001 |
| 87211 | No. 1 air duct | 87211-89114 |
