Toyota HILUX 暖风和空调系统 - 冷却器组件 — Figure 8714

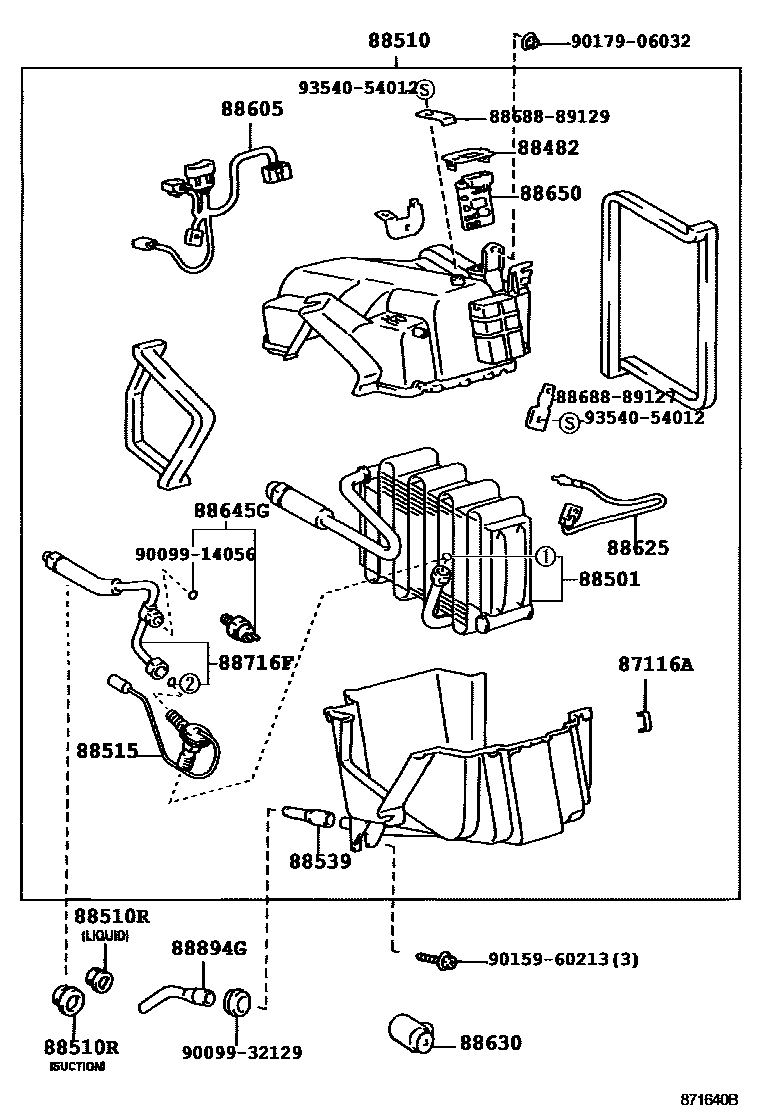

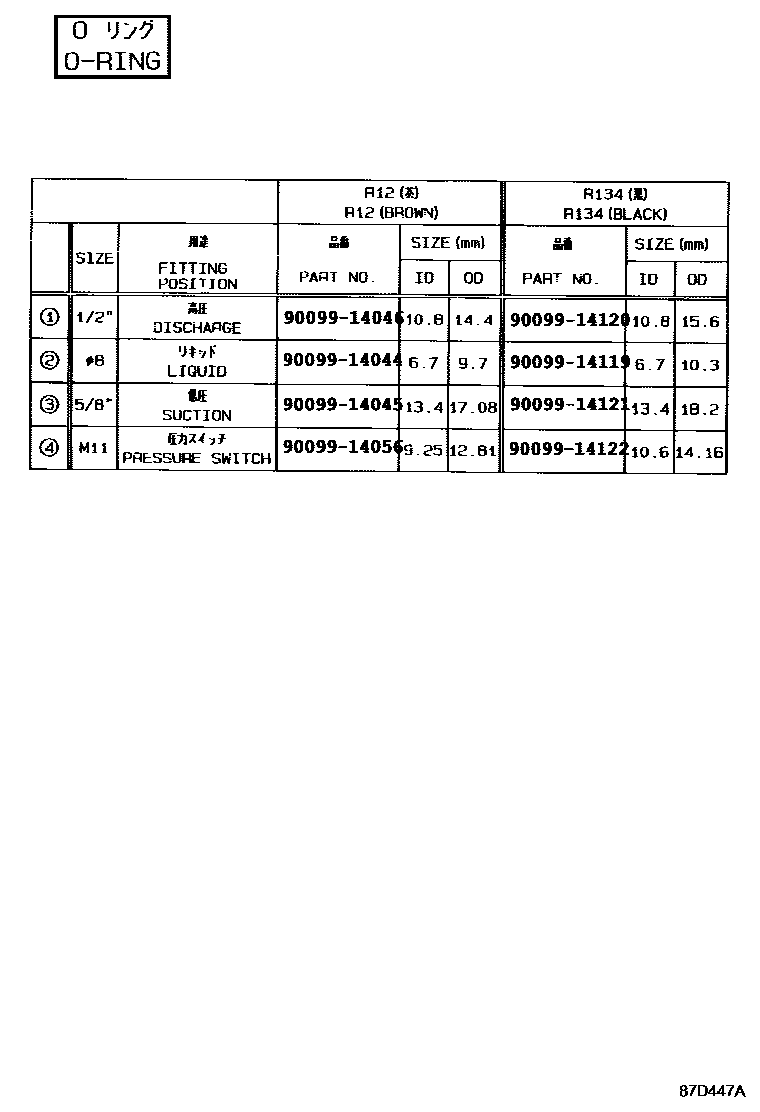

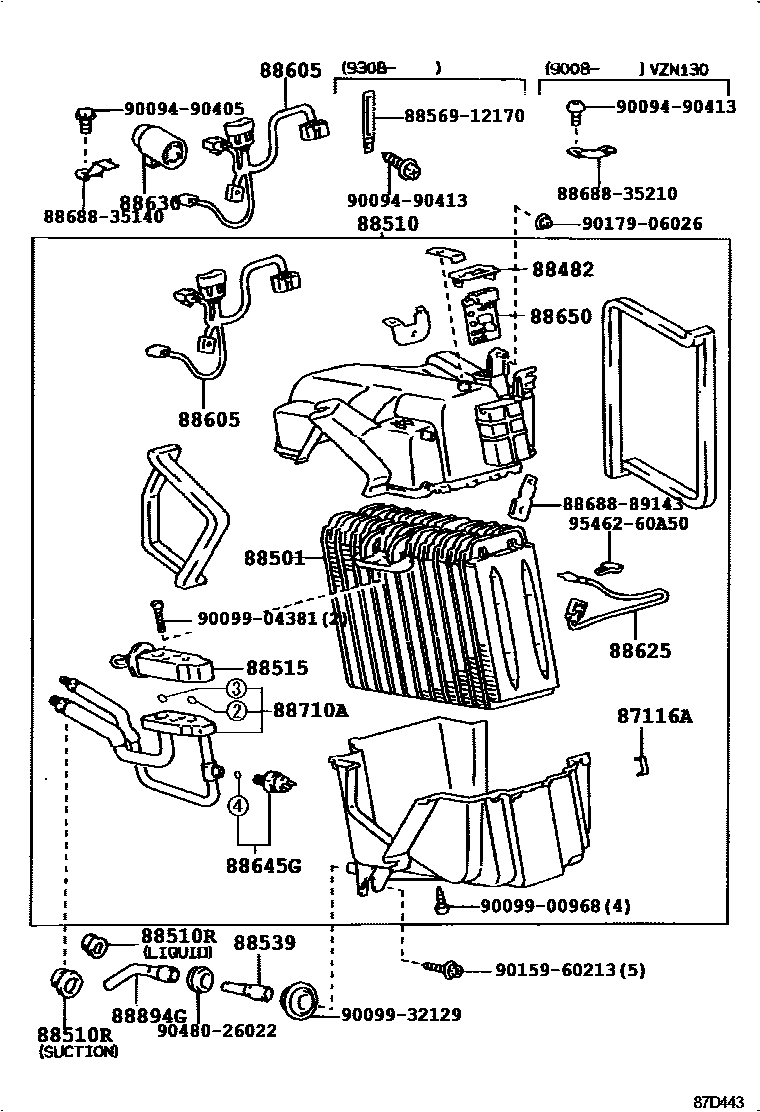

Toyota HILUX EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 3 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87116A | Fixing spring (for cooler unit housing) | 87116-14010 |
| 88482 | cooler cover | 88482-60010 · 88482-60020 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-35020 · 88501-35021 · 88501-35030 · 88501-89112 · 88501-89114 |
| 88510 | Cooler device assembly | 88510-35030 · 88510-35070 · 88510-35190 · 88510-35210 · 88510-35220 · 88510-35440 · 88510-35460 · 88510-35500 · 88510-35520 · 88510-89153 · 88510-89155 · 88510-89169 · 88510-89170 · 88510-89171 · 88510-89172 |
| 88510R | Seals (for cooler units) | 90480-26003 · 90480-26027 · 90480-36003 · 90480-36019 |
| 88515 | Cooler expansion valve | 88515-14060 · 88515-14061 · 88515-14062 · 88515-16040 · 88515-20100 · 88515-34010 |
| 88539 | No. 1 Cooler Unit Drain Hose | 88539-89113 |
| 88605 | No. 1 cooler wiring harness sub-assembly | 88605-35020 · 88605-35070 · 88605-35160 · 88605-35180 · 88605-35210 · 88605-35250 · 88605-89151 · 88605-89157 · 88605-89165 · 88605-89166 · 88605-89167 · 88605-89168 · 88605-89175 · 88605-89181 |
| 88625 | Cooler No. 1 Thermistor | 88625-34010 · 88625-35010 · 88625-89102 · 88625-89104 |
| 88630 | Cooler relay assembly | 88630-60020 · 88630-95702 |
| 88645G | pressure switch | 88645-10020 · 88645-16020 · 88645-20050 · 88645-34010 |
| 88650 | Cooler stabilized amplifier assembly | 88650-34010 · 88650-35020 · 88650-89108 · 88650-89109 · 88650-89112 · 88650-89113 |
| 88710A | Air conditioning pipe assembly | 88710-35110 · 88710-89123 |
| 88716F | Cooler refrigerant liquid pipe F | 88716-35220 · 88716-89157 |
| 88894G | Drain hose connector | 88894-89109 |
