Toyota HILUX 后视镜 — Figure 8701
Toyota HILUX EPC diagram 8701, 后视镜, with 3 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

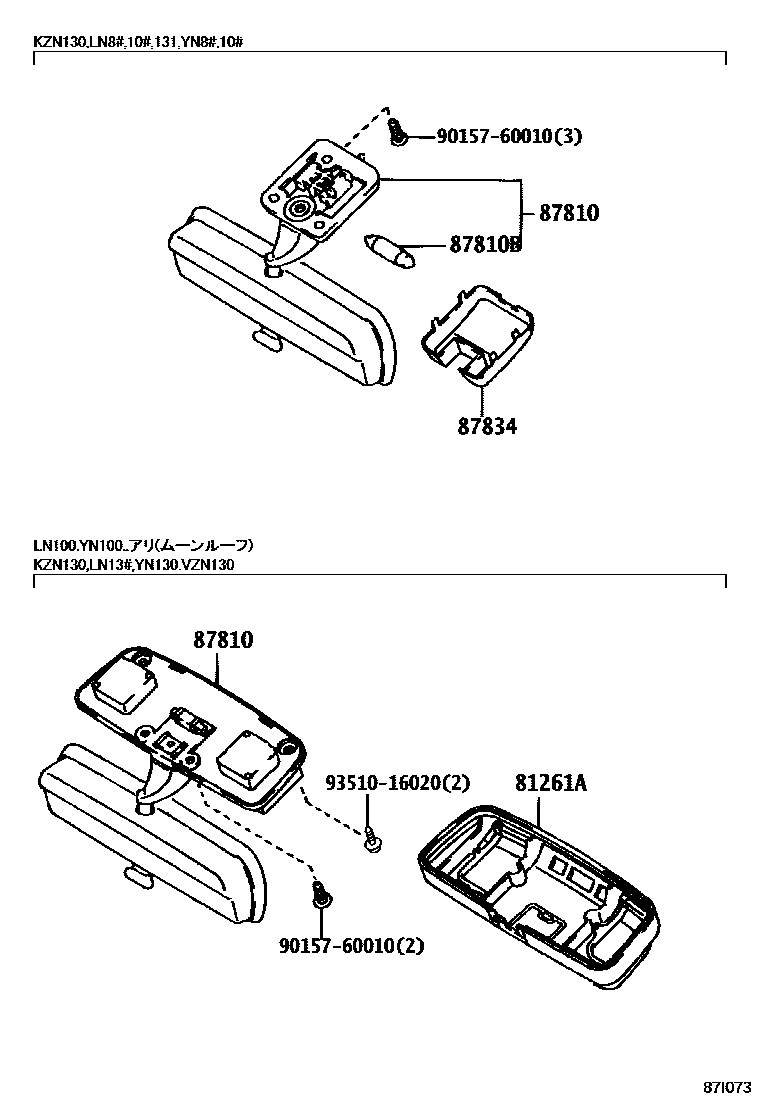

| 87810B | Interior rearview mirror light bulb | 99132-13050 |
| 87834 | Interior rearview mirror stay fixing cover | 87834-89104 |

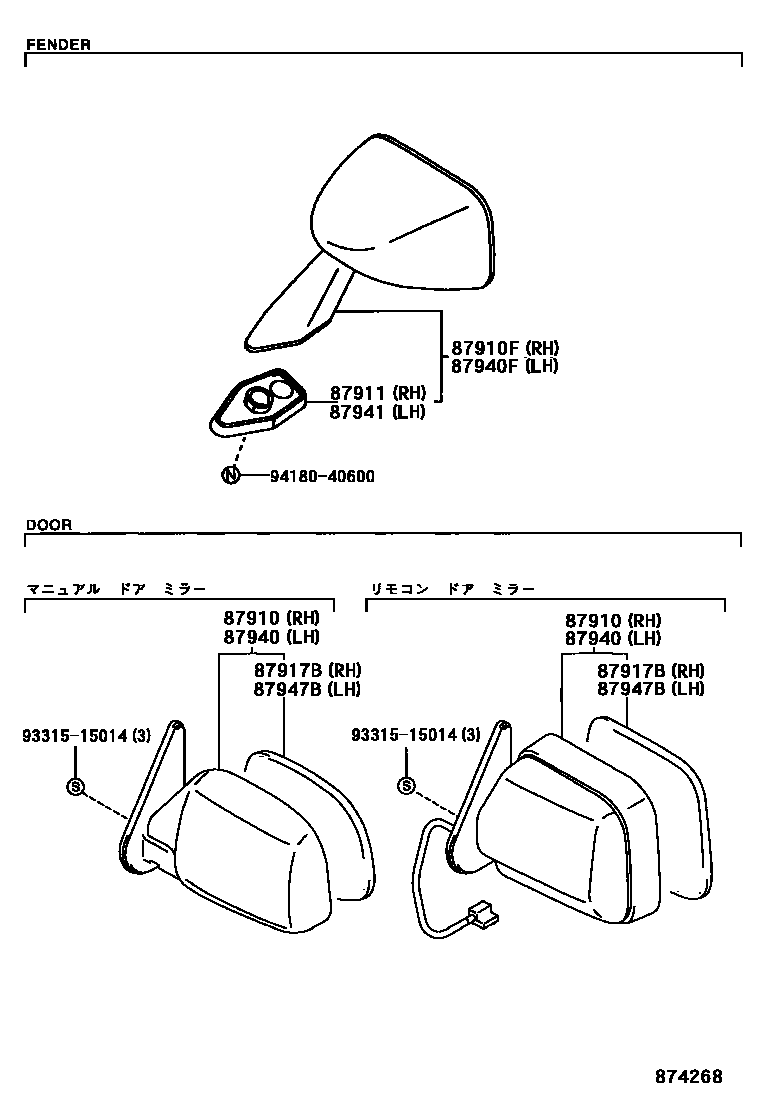

| 87910 | Right exterior rearview mirror assembly | 87910-35060 · 87910-35061 · 87910-35150 · 87910-35160 · 87910-89145 · 87910-89146 · 87910-89147 |
| 87910F | Right fender rearview mirror assembly | 87910-35030 · 87910-89151 |
| 87911 | Right exterior mirror pad | 87911-89116 |
| 87917B | Right exterior rearview mirror | 87917-89145 |
| 87940 | Left exterior rearview mirror assembly | 87940-35040 · 87940-35041 · 87940-35140 · 87940-35150 · 87940-89143 · 87940-89144 · 87940-89145 |
| 87940F | Left fender rearview mirror assembly | 87940-35010 · 87940-89148 |
| 87941 | Left exterior mirror pad | 87941-89113 |
| 87947B | Left exterior rearview mirror | 87947-89143 |
