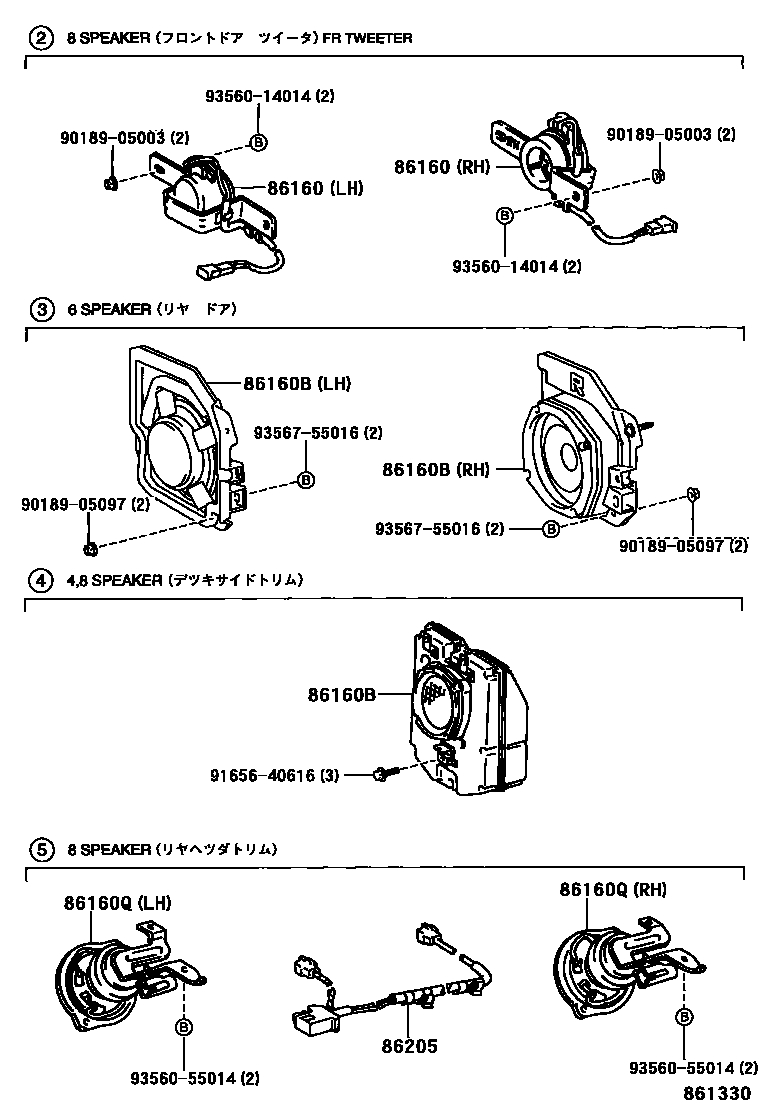

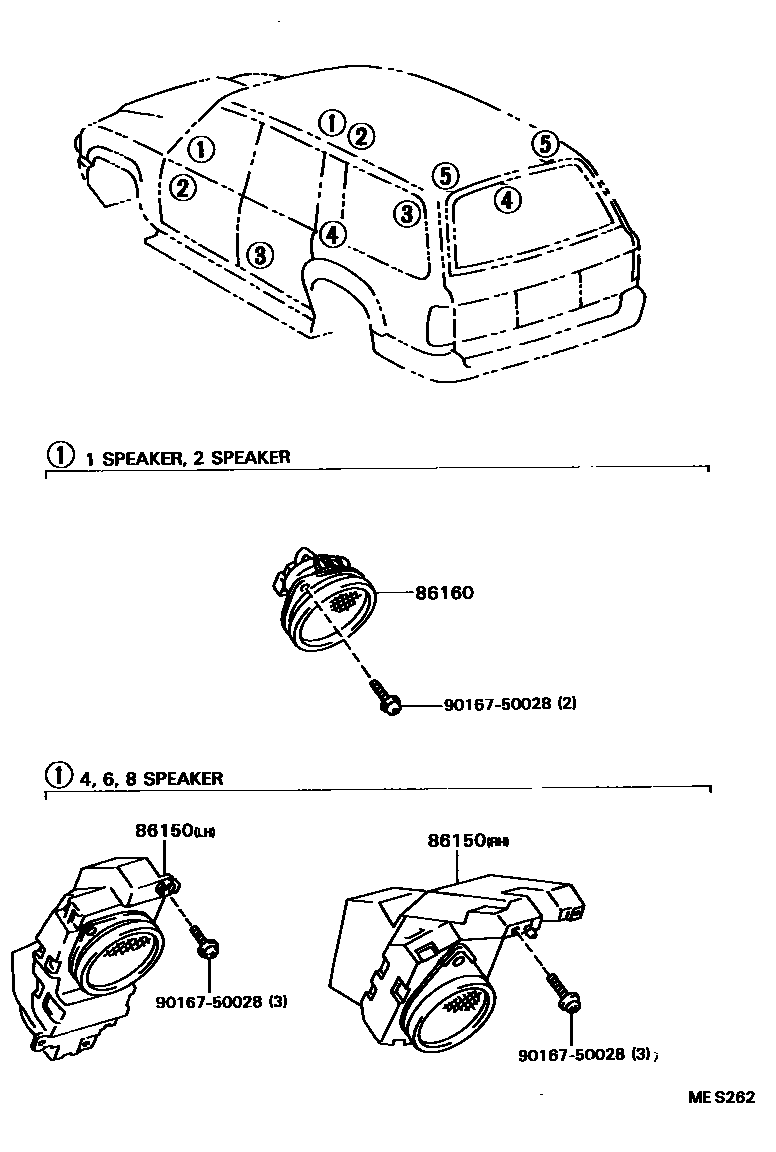

Toyota HILUX 扬声器 — Figure 8602
Toyota HILUX EPC diagram 8602, 扬声器, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86150 | No. 1 loudspeaker assembly with box | 86150-35030 · 86150-35050 |
| 86160 | No. 1 front speaker assembly | 86160-16130 · 86160-35040 · 86160-35050 · 86160-35080 |
| 86160B | Rear speaker assembly | 86150-35040 · 86160-35020 · 86160-35030 |
| 86160Q | Roof speaker assembly | 86160-35060 · 86160-35070 |
| 86205 | Rear speaker wiring harness sub-assembly | 86205-35020 |
