Toyota HILUX 收音机、放大器和冷凝器 — Figure 8601

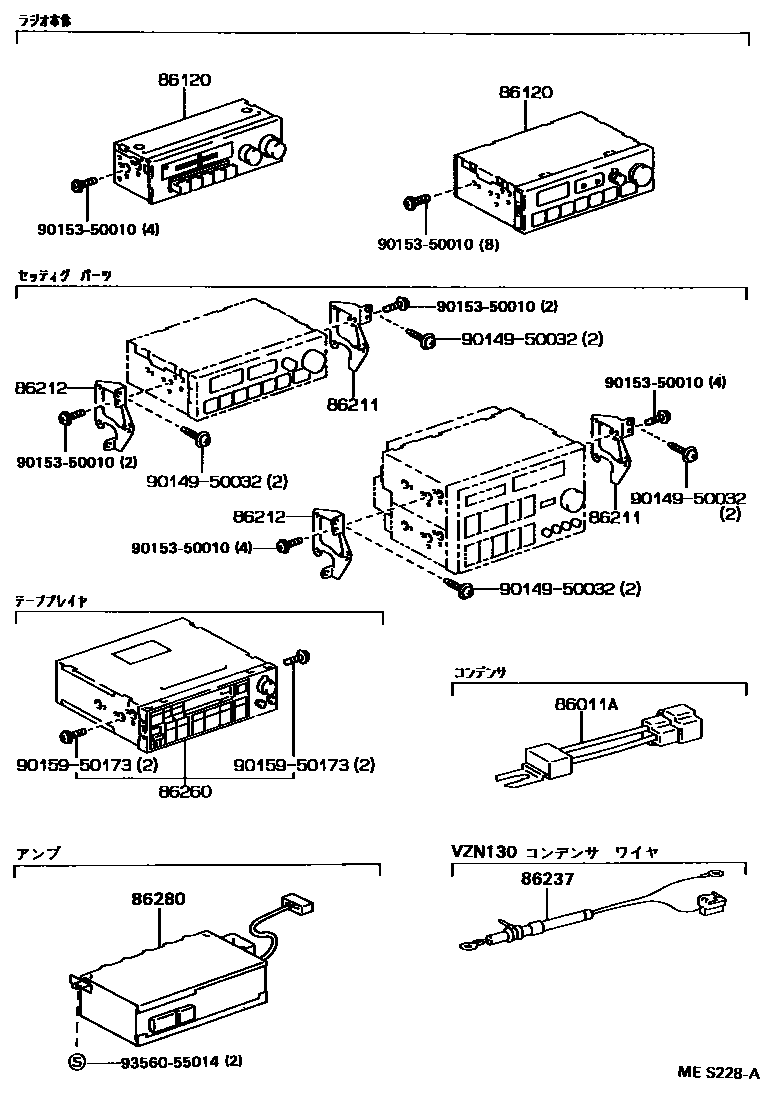

Toyota HILUX EPC diagram 8601, 收音机、放大器和冷凝器, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86011A | radio settings phase modulator | 90980-04036 · 90980-04040 · 90980-04072 |
| 86120 | Radio assembly | 86120-16530 · 86120-20650 · 86120-20890 · 86120-2A160 · 86120-2B480 · 86120-2B490 · 86120-35060 · 86120-35120 · 86120-35130 · 86120-37010 · 86120-95J04 |
| 86211 | No. 1 radio bracket | 86211-89111 |
| 86212 | No. 2 radio bracket | 86212-89111 |
| 86237 | capacitor harness | 86237-89111 |
| 86260 | Tape player assembly | 86260-19145 |
| 86280 | Stereo parts amplifier assembly | 86280-35010 · 86280-35050 |
