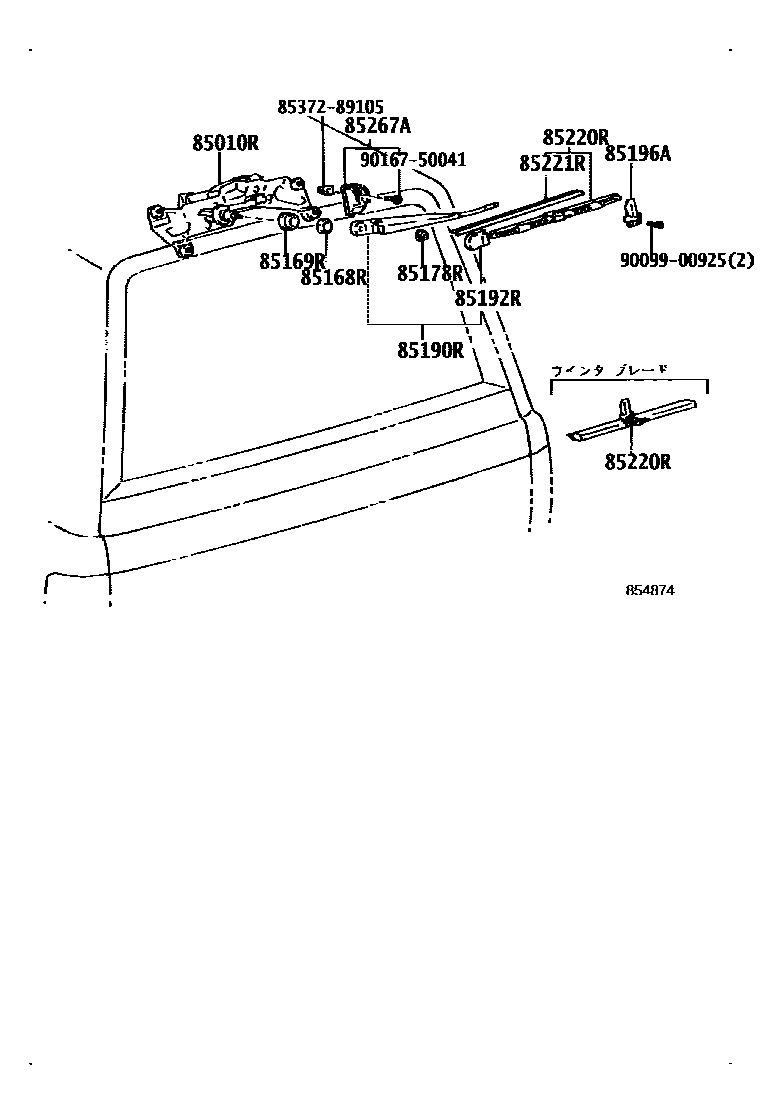

Toyota HILUX 后刮水器 — Figure 8502
Toyota HILUX EPC diagram 8502, 后刮水器, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85010R | Rear wiper motor and connecting rod assembly | 85010-89133 · 85020-35010 |
| 85168R | No. 1 rear wiper link pivot nut | 90099-05157 |
| 85169R | No. 1 rear wiper link pivot washer | 85179-89108 |
| 85178R | Nut (for securing rear wiper arm) | 90179-06158 |
| 85190R | Rear wiper arm assembly | 85190-89139 · 85190-89140 |
| 85192R | Rear wiper arm cover | 85192-13060 |
| 85196A | Wiper arm slider | 85196-89139 |
| 85220R | Rear wiper blade assembly | 85220-22460 · 85220-22461 · 85220-89112 |
| 85221R | Rear wiper blade | 85221-16070 |
| 85267A | Linear wiper steps | 85267-89102 |
