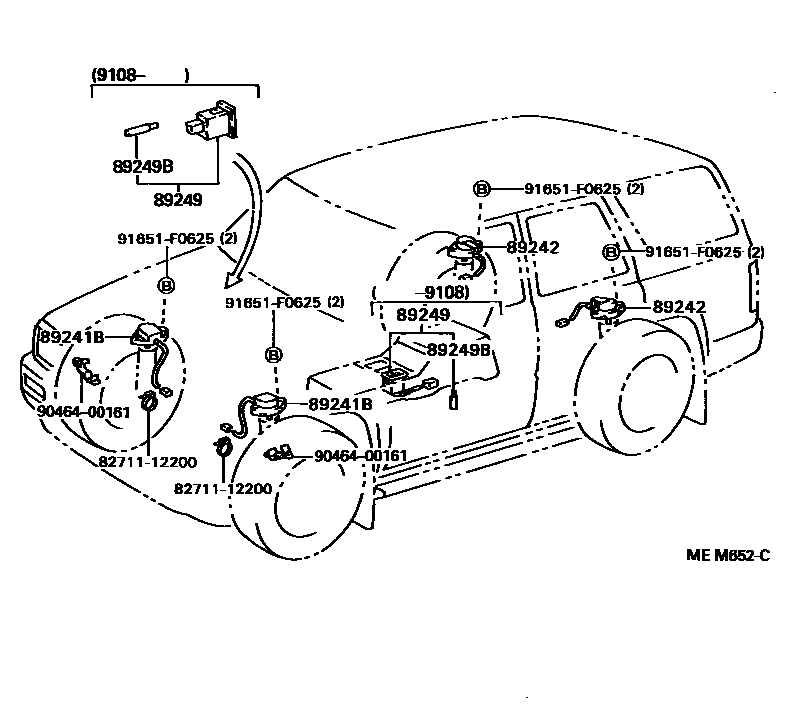

Toyota HILUX 电子调节悬架 — Figure 8419
Toyota HILUX EPC diagram 8419, 电子调节悬架, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89241B | Damper control actuator | 89241-35010 |
| 89242 | Rear shock absorber control actuator | 89242-35010 |
| 89249 | Damper control switch | 89249-35010 · 89249-35020 |
| 89249B | Damper control switch bulb | 84999-10340 |
