Toyota HILUX 巡航控制(自动行驶) — Figure 8408

Toyota HILUX EPC diagram 8408, 巡航控制(自动行驶), with 2 images and 10 PNC and OE references.

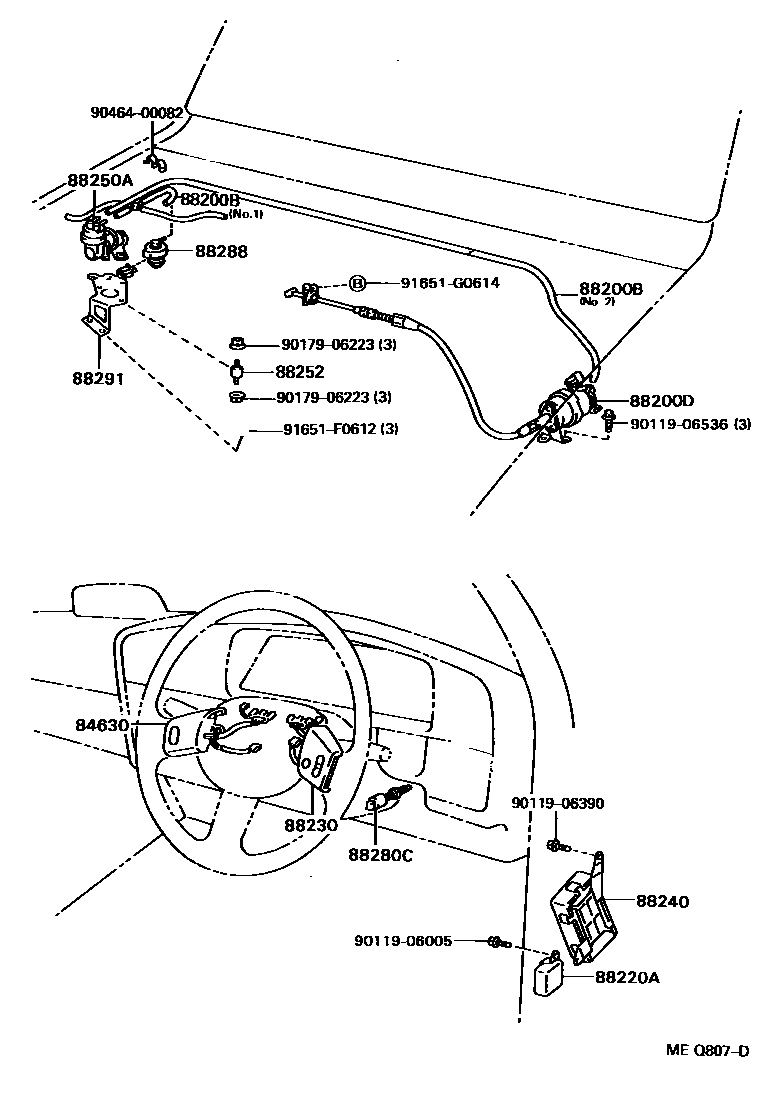

Toyota HILUX 巡航控制(自动行驶) EPC diagram — MEQ807D
巡航控制(自动行驶) — MEQ807D (199008 – 999999)

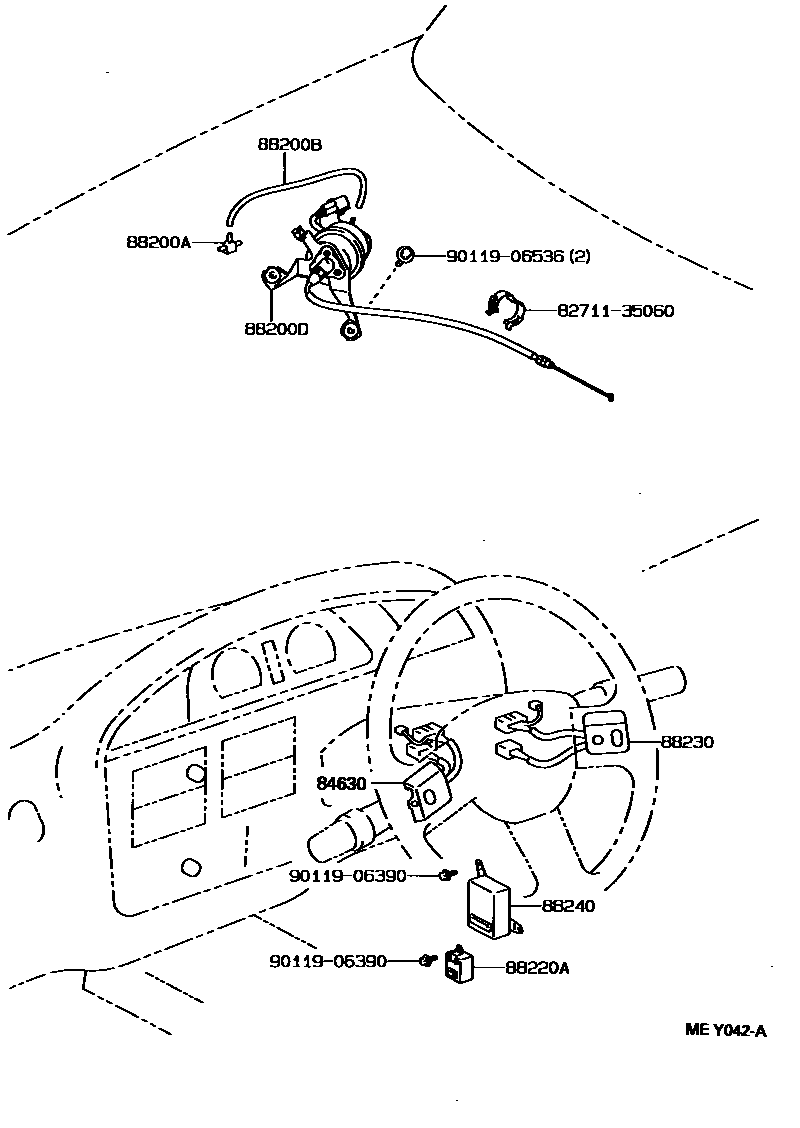

Toyota HILUX 巡航控制(自动行驶) EPC diagram — MEY042A
巡航控制(自动行驶) — MEY042A (199308 – 999999)

PNC and OE references

PNCPart nameOE numbers
88200Acruise control vacuum fitting or tube90413-04005
88200Bcruise control vacuum hose88283-35080 · 90445-08278
88200DCruise control actuator assembly88200-35230 · 88200-35240
88220ASpeed control main relay assembly88220-35010
88240Cruise control ECU assembly88240-35190 · 88240-35191 · 88240-35210
88250Acruise control pump assembly88251-35090
88252Vacuum pump cushion88252-30140
88280CClutch switch assembly88280-20010
88288Vacuum speed control switch88288-22010
88291No. 1 cruise control (automatic driving) bracket88291-35060
