Toyota HILUX 电子控制柴油机(ECD) — Figure 8405

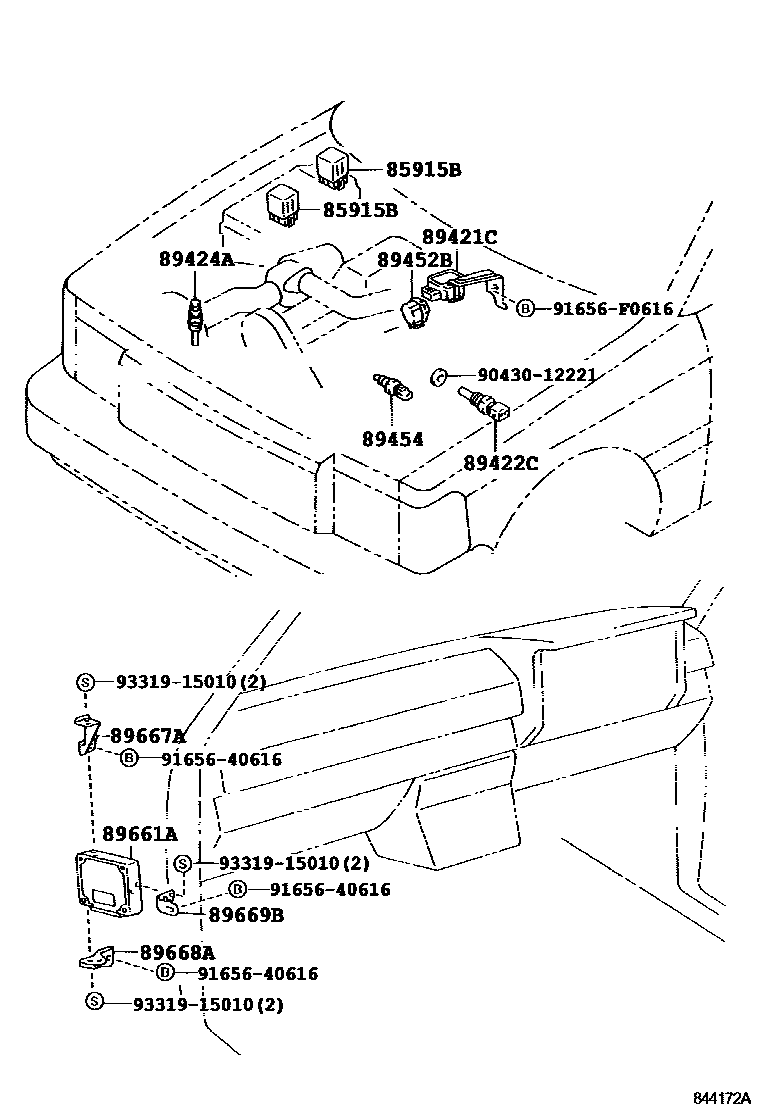

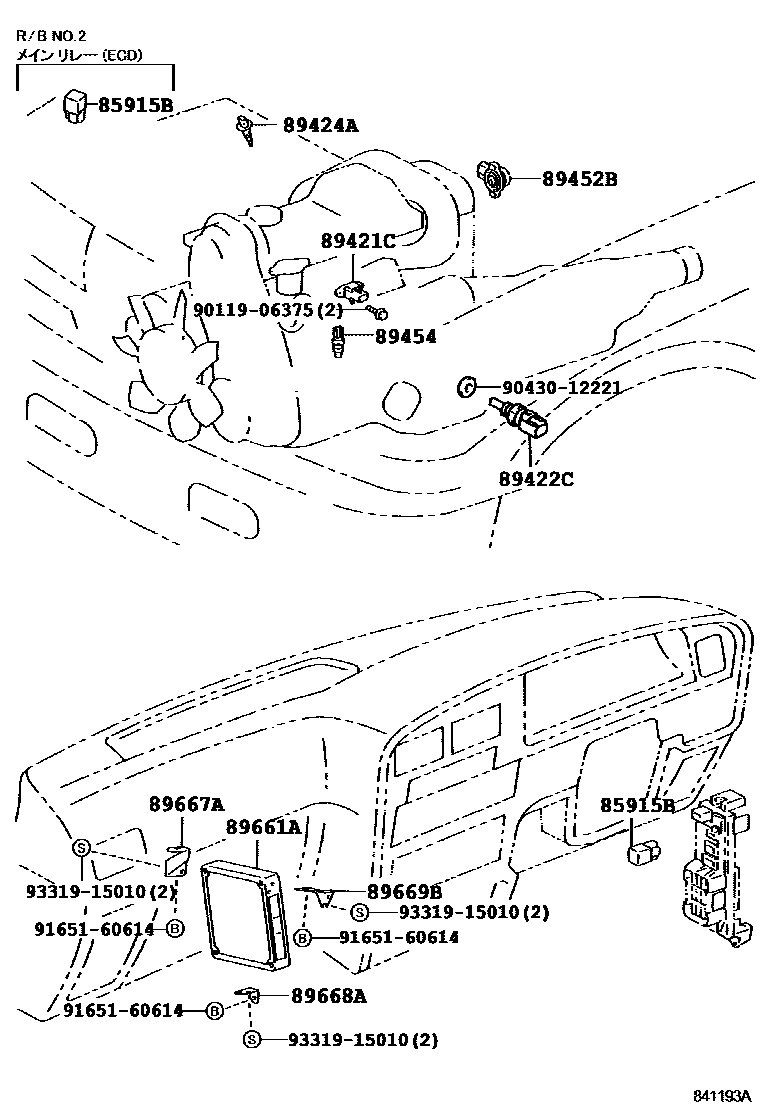

Toyota HILUX EPC diagram 8405, 电子控制柴油机(ECD), with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85915B | Main relay (for diesel turbine) | 85915-30050 |
| 89421C | Turbo pressure sensor (for diesel turbines) | 89420-35060 · 89421-60030 |
| 89422C | Diesel engine water temperature sensor | 89422-20010 · 89422-35010 |
| 89424A | Intake air temperature sensor (for diesel turbine) | 89424-12010 |
| 89452B | Throttle position sensor | 89452-12040 · 89452-22090 |
| 89454 | fuel temperature sensor | 89454-60010 |
| 89661A | Engine control ECU | 89661-35480 · 89661-35490 · 89661-35500 · 89661-35690 · 89661-35691 · 89661-35700 · 89661-35701 · 89661-3D090 · 89661-3D091 · 89661-3D100 |
| 89667A | No. 1 engine control ECU bracket | 89667-35040 |
| 89668A | No. 2 engine control ECU bracket | 89668-35060 |
| 89669B | No. 3 engine control ECU bracket | 89669-35040 |
