Toyota HILUX 蓄电池和蓄电池电缆 — Figure 8201

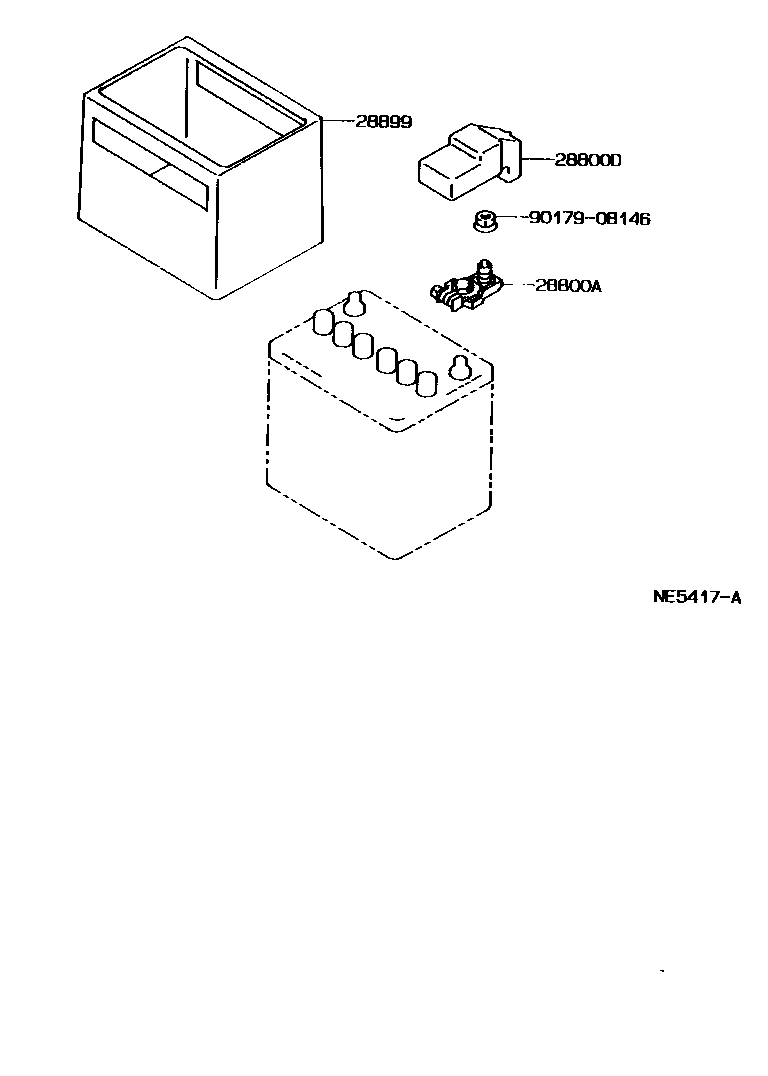

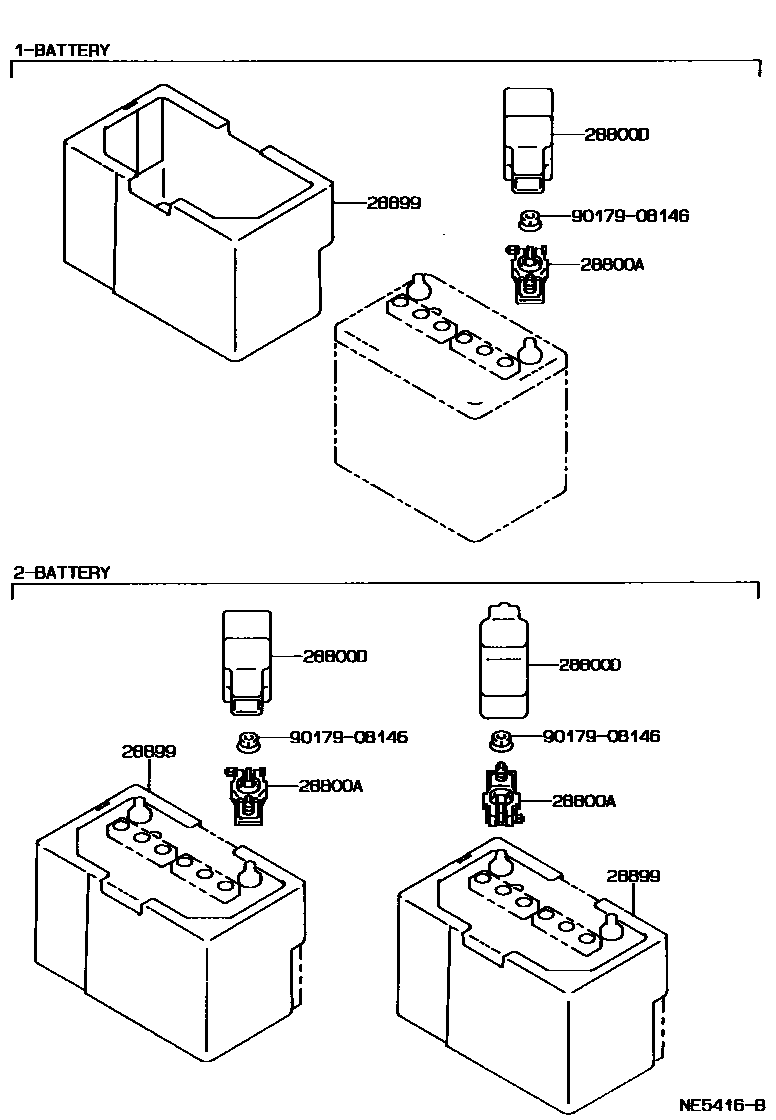

Toyota HILUX EPC diagram 8201, 蓄电池和蓄电池电缆, with 3 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28800A | battery positive terminal | 90982-05035 · 90982-05036 · 90982-05037 |
| 28800D | Connector cover (for battery terminals) | 82821-12150 · 82821-24010 · 82821-35020 |
| 28897 | Battery warning nameplate | 28897-54030 |
| 28899 | Battery insulation cover | 28899-35010 · 28899-76010 · 28899-76020 |
