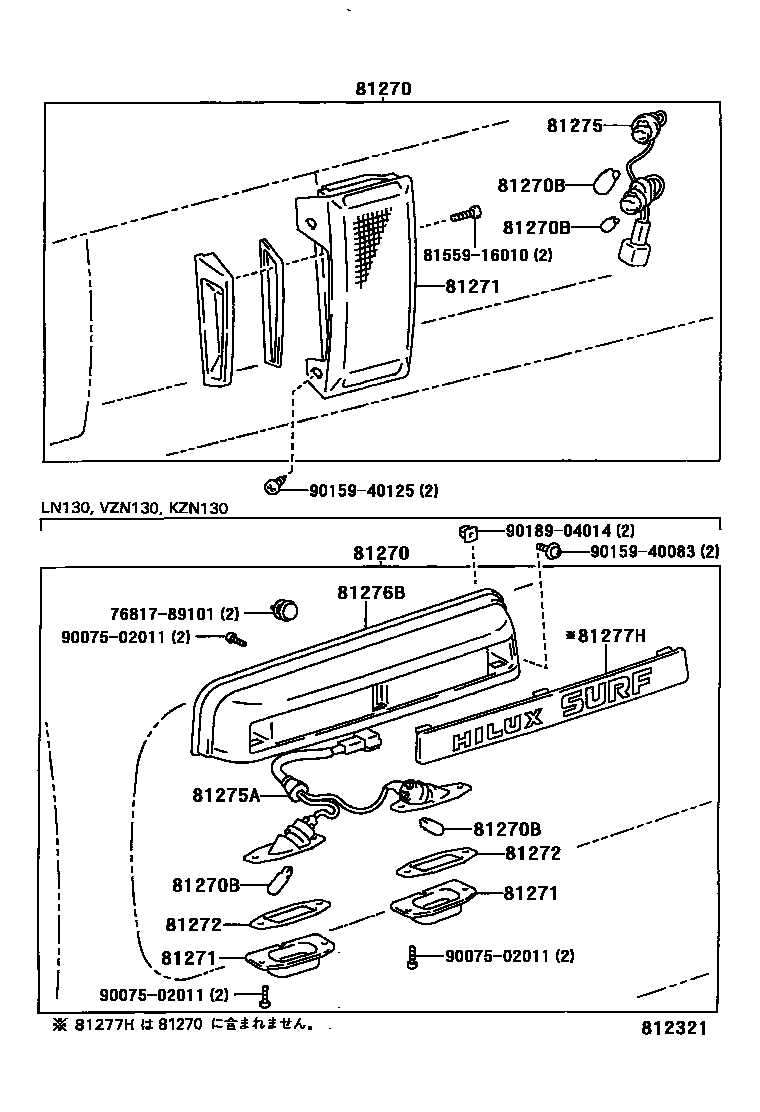

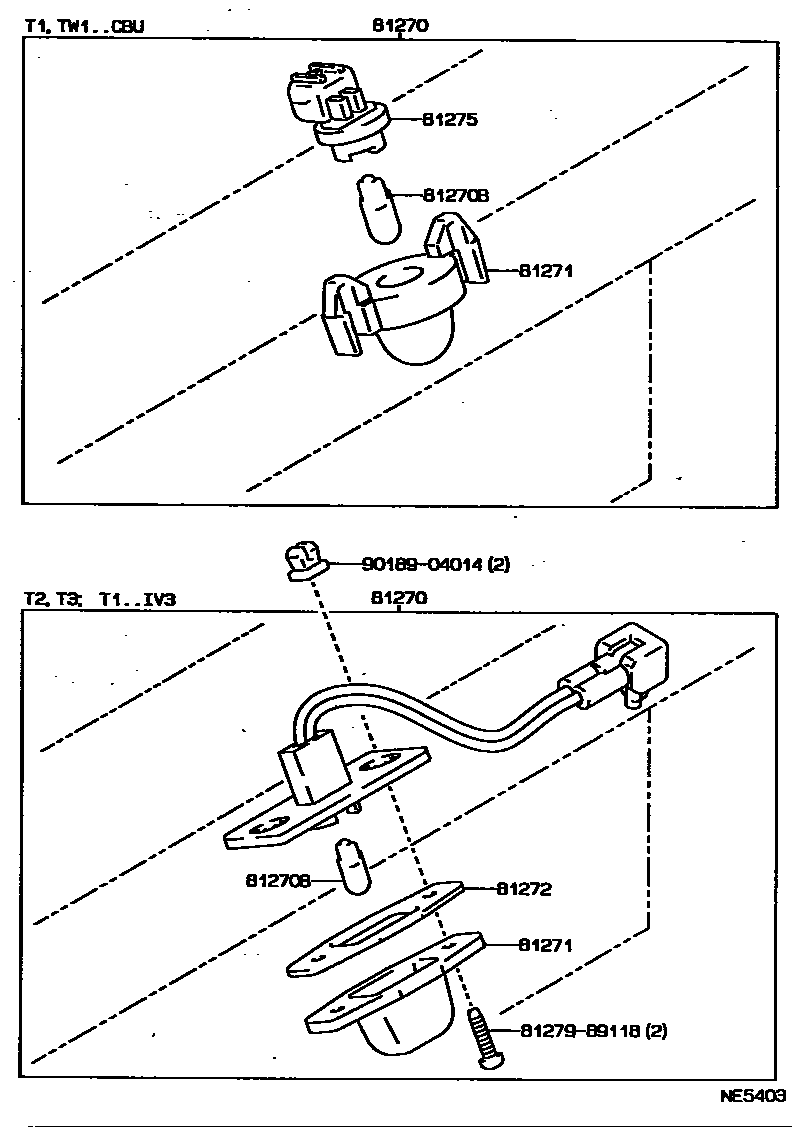

Toyota HILUX 后牌照灯 — Figure 8113
Toyota HILUX EPC diagram 8113, 后牌照灯, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81270 | License plate light assembly | 81270-35030 · 81270-35050 · 81270-35070 · 81270-35110 · 81270-89124 · 81270-89126 · 81270-89129 · 81270-89131 |
| 81270B | Bulb (for license plate light) | 90981-11039 · 99132-12050 |
| 81271 | license plate lamp shade | 81271-35050 · 81271-35070 · 81271-35110 · 81271-89110 · 81271-89126 · 81271-89129 · 81271-89131 · 81271-89133 |
| 81272 | License plate lamp shade gasket | 81272-24010 · 81272-89110 |
| 81275 | License plate lamp holder and wiring harness | 81275-89129 · 90075-99012 |
| 81275A | License plate light wire | 81275-35030 |
| 81276B | license plate light cover | 81276-35030 |
| 81277H | license plate light cover | 81277-35030 |
