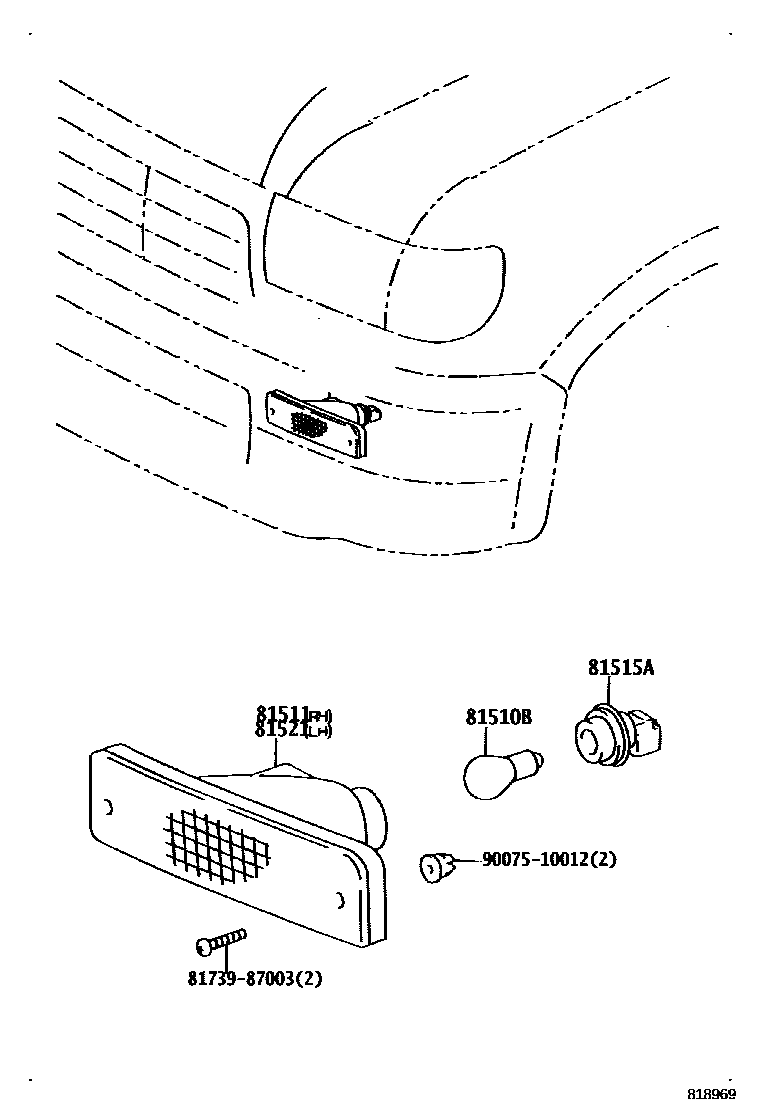

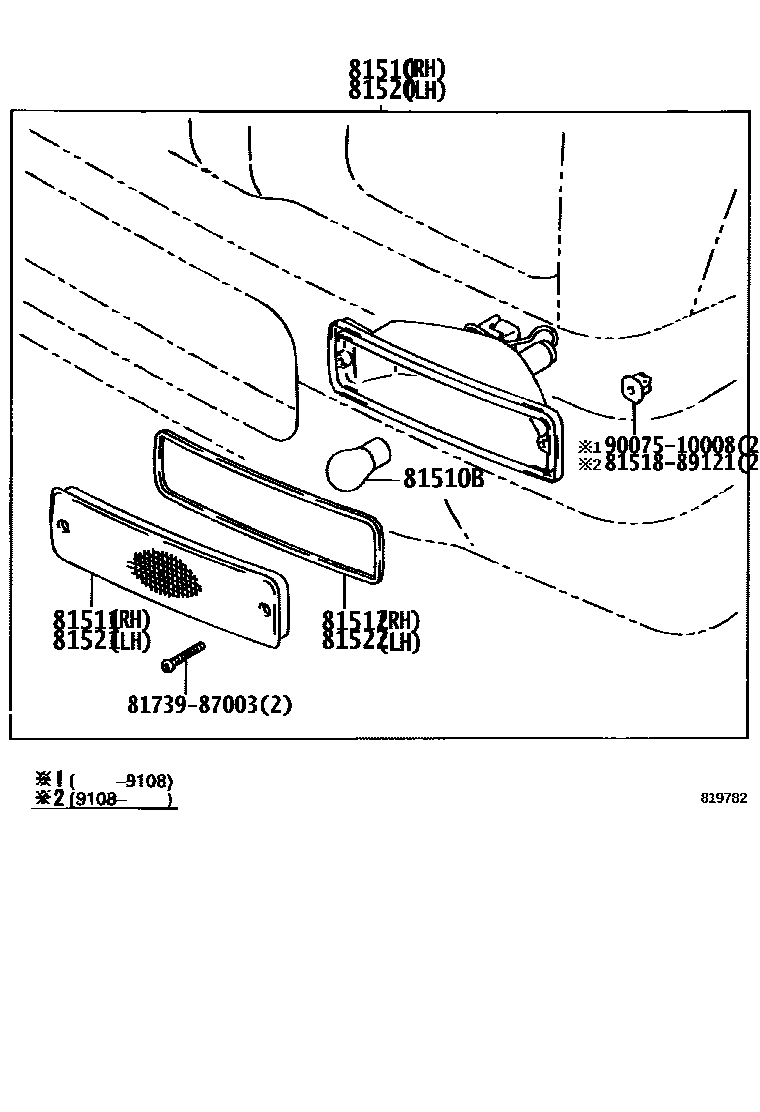

Toyota HILUX 前转向灯 — Figure 8103
Toyota HILUX EPC diagram 8103, 前转向灯, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81510 | Right front turn signal lamp assembly | 81510-35090 · 81510-89133 |
| 81510B | Bulb (for front turn signal lamp) | 99132-11210 |
| 81511 | Right front turn signal lamp cover | 81511-35070 · 81511-35090 · 81511-89133 |
| 81512 | Right front turn signal lamp housing gasket | 81512-89133 |
| 81515A | Front turn signal light plug assembly | 90075-99078 |
| 81520 | Left front turn signal lamp assembly | 81520-35090 · 81520-89133 |
| 81521 | Left front turn signal lamp cover | 81521-35070 · 81521-35090 · 81521-89133 |
| 81522 | Left front turn signal lamp housing gasket | 81512-89133 |
